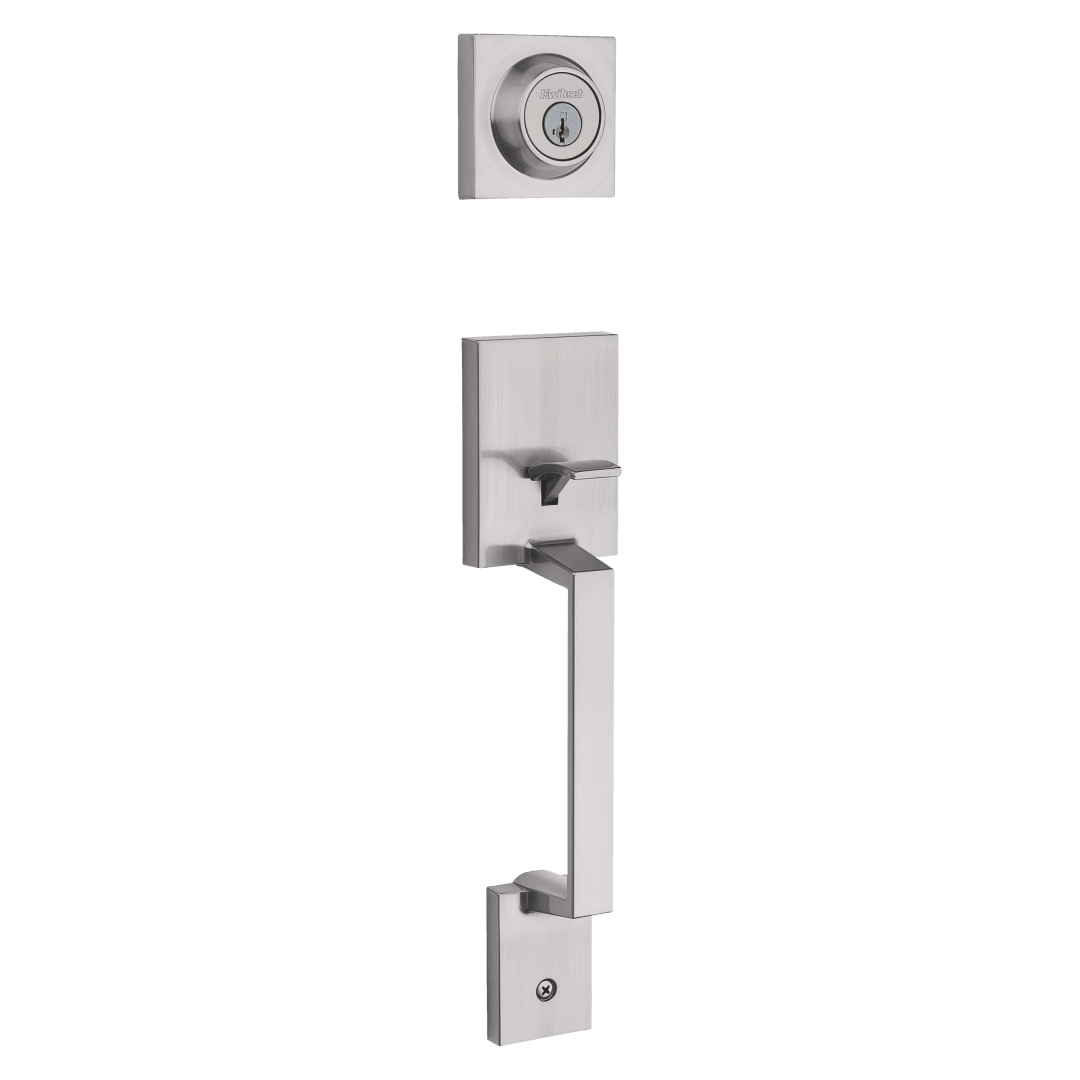

Amador Single Cylinder Exterior Only Handleset featuring SmartKey Security™ in Satin Nickel

687AMD LIP 15 SMT RCAL

Handleset and Interior Level: Use on exterior front doors for added security and style, combine with a Kwikset electronic or mechanical deadbolt (sold separately)
Smartkey Security: Kwikset’s SmartKey® Security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
Easy Install: Do it yourself, installs in minutes with just a screwdriver, if door is missing a bottom handleset support hole you will need a drill, directions provided
Fits Standard Doors: Fits standard size doors 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation
Microban Protection: Kwikset’s door hardware is treated with Microban, this offers powerful product protection that is 99.9% cleaner than an unprotected surface
Box Includes: Box includes entry levers, adjustable latch with round and square front options or drive-in collar, round corner strike, SmartKey® tool, 2 Kwikset keys, designer rosette, screws and Allen wrench
Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details

Lock Finish

Vignette

Vignette

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Clipped

Brand	Kwikset
Series	Security Series
Sales Status	OBSOLETE
MFG Pro #	96870-145
Desc 1	687AMD LIP 15 SMT RCAL
Desc 2	RCS/5303
UPC	883351615013
Family	Amador
Function	Single Cylinder
Finish	Satin Nickel
Type	Handleset
ANSI Grade	Handleset Grade 3
Hardware Type	Residential

Product Description

As the industry leader, Kwikset has provided trusted security for over 70 years and has become synonymous with security, peace of mind, style and innovation. Amador has a refined, structural look with its simplistic modern design. Priced affordably, this handleset offers achievable style while maintaining superior security. The latch bolt is operated by the thumb piece on the outside and the grip on the inside. The deadbolt is operated by a key on the outside and a thumb turn on the inside.

Features

For use on exterior doors where keyed entry and security is needed
Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
Comes with 2 keys
Non-functioning handleset - Exterior Pack only
Latch has round corner faceplate
Deadbolt Latch has round corner faceplate
Handleset Deadbolt ANSI/BHMA Grade 3 Certified
Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
Includes round deadbolt strike
1/2 in. latch throw
1 inch deadbolt throw
Easily installs in minutes with just a screwdriver
Lifetime mechanical and finish warranty
Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Assembled Height 17-15/32
Assembled Length 2-3/32
Assembled Width 2-25/32
Exterior Assembled Depth 2-25/32
Exterior Assembled Height 17-15/32
Exterior Assembled Width 6-13/32
Projection 2-25/32

Style	Traditional
Throw Length	.5
Deadbolt Throw Length	1 in.
Cross Bore	2-1/8"
Latch Type	Round Corner
Strike Height	2-1/4
Strike Type	Round Corner Full Lip
Strike Width	1-3/4
Deadbolt Strike Height	2-1/4
Deadbolt Strike Width	1
Strike Code	Default
Entry Has SmartKey	Yes
Entry # Of Keys	2

Assembled Height	17-15/32
Assembled Length	2-3/32
Assembled Width	2-25/32
Exterior Assembled Depth	2-25/32
Exterior Assembled Height	17-15/32
Exterior Assembled Width	6-13/32
Projection	2-25/32
