96870-169

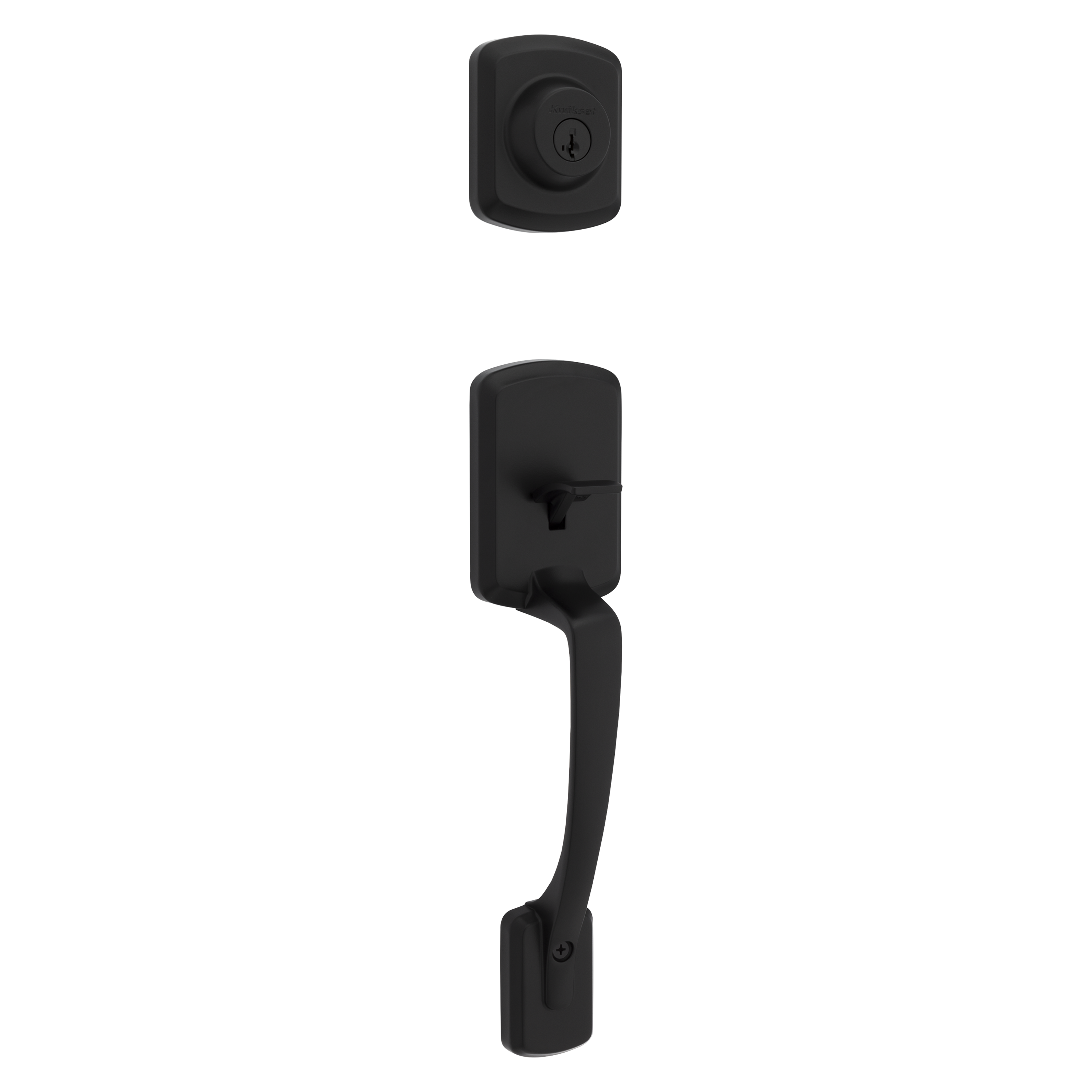

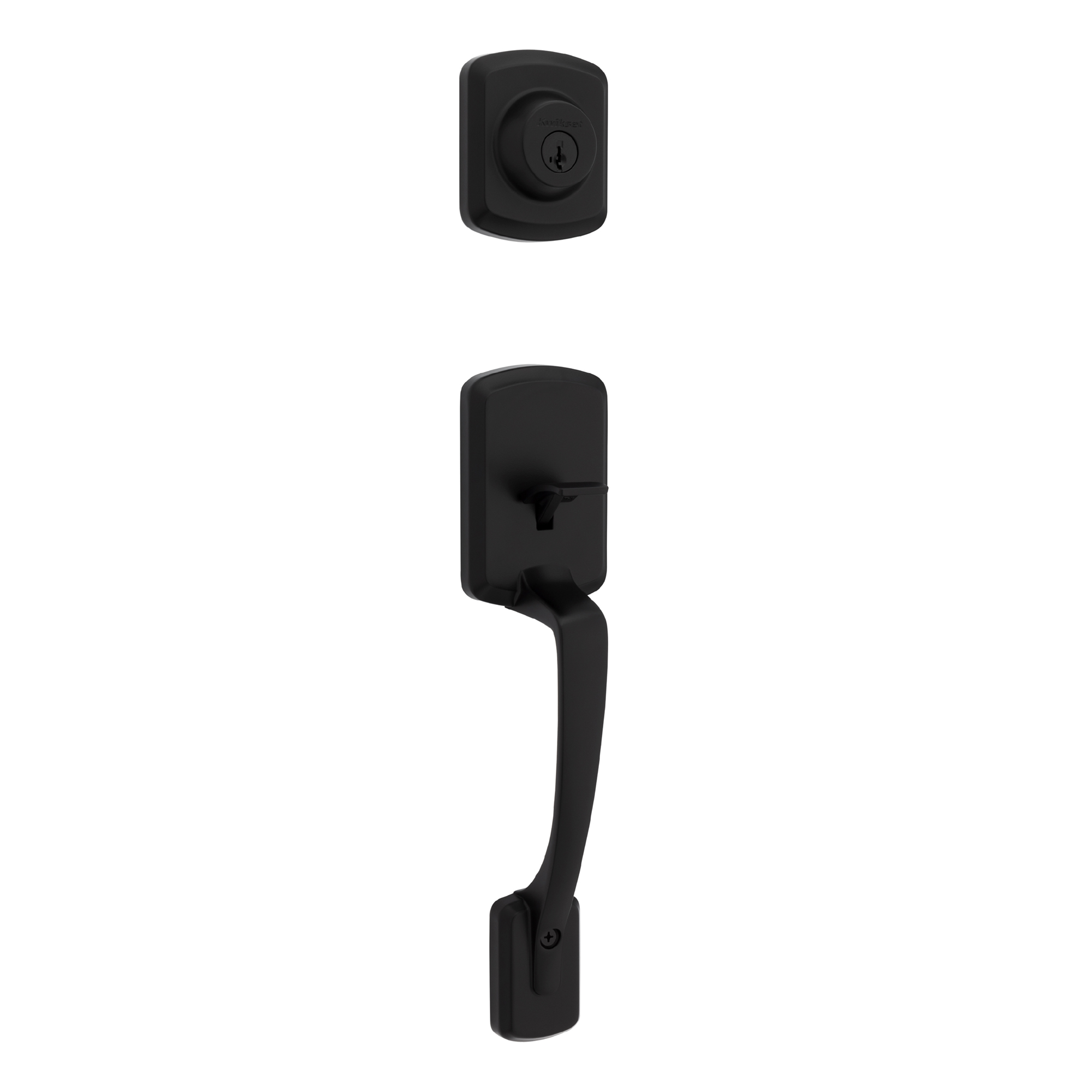

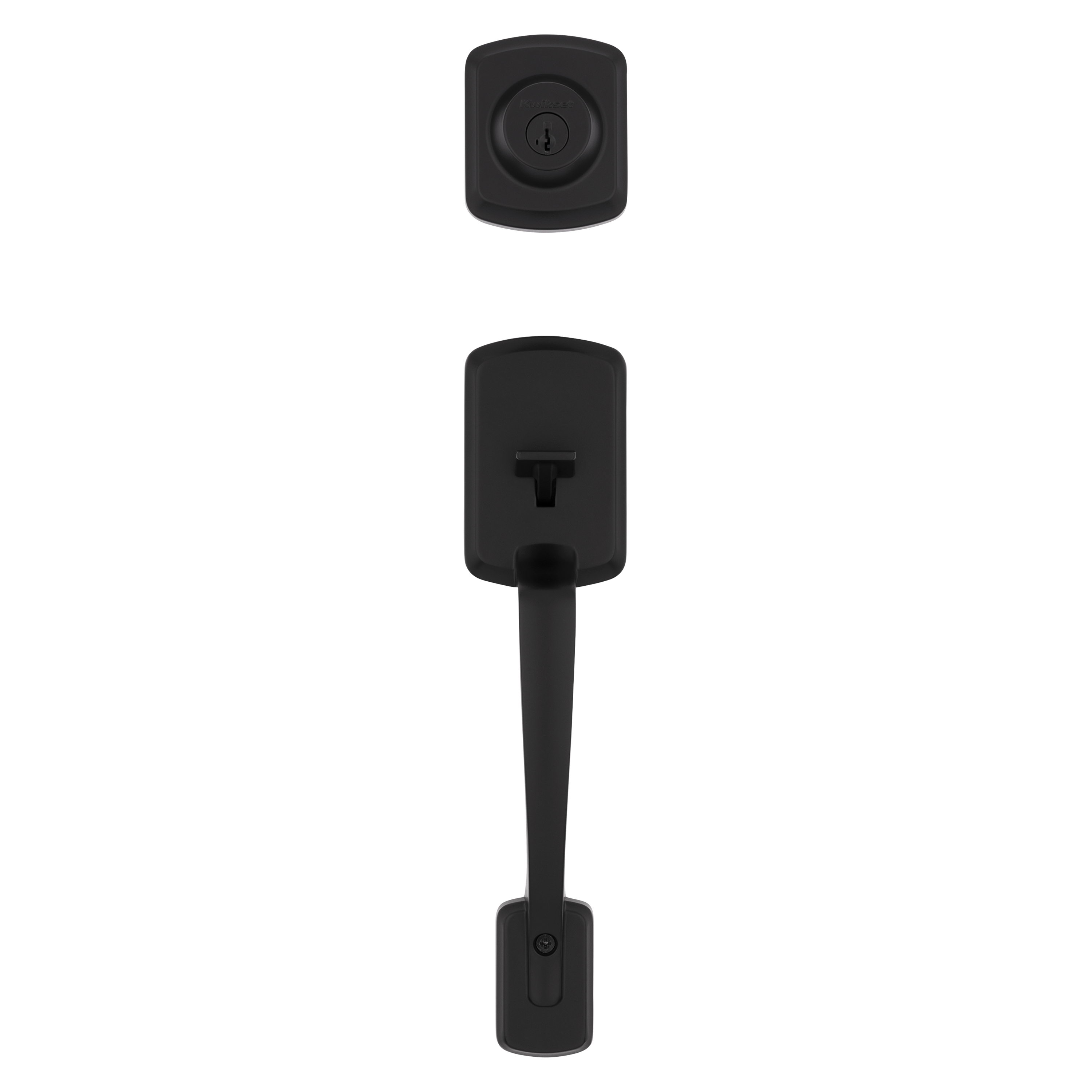

Henley Single Cylinder Handleset Less Interior Pack featuring SmartKey Security™ in Matte Black
687HYH LIP 514 SMT RCAL
Vignette
Vignette
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Clipped
Clipped

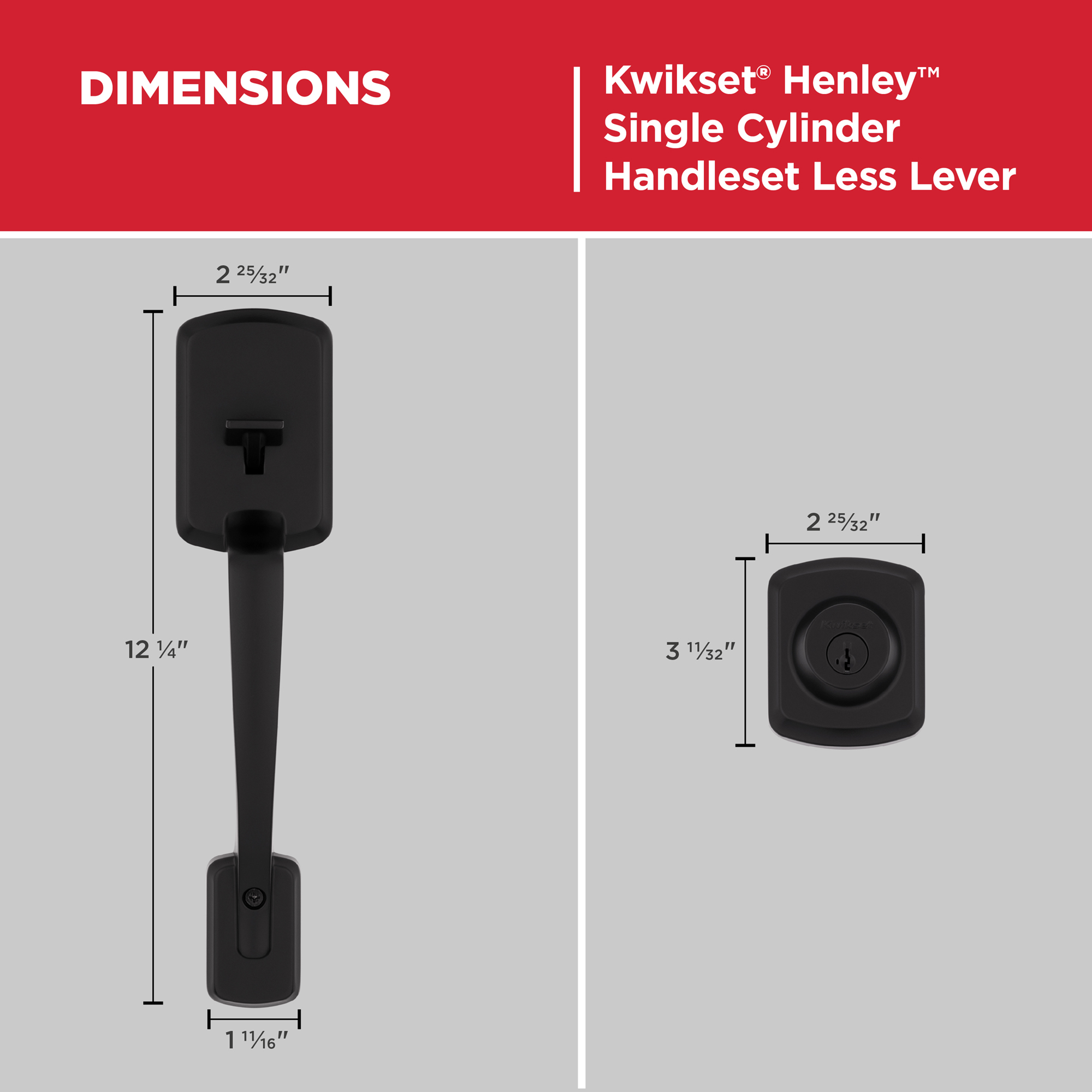

Dimensions
Brand Kwikset Series Security Series Sales Status OBSOLETE MFG Pro # 96870-169 Desc 1 687HYH LIP 514 SMT RCAL Desc 2 RCS/5303 UPC 883351900188 Family Henley Finish Matte Black Type Handleset ANSI Grade Handleset Grade 3 Hardware Type Residential Product Description Henley levers combine subtle details with ergonomic curves, creating a versatile design that complements any home aesthetic. The unique designer rosette will add style and dimension to your doors, and our full suite of products can outfit the interior and exteriors of your home. SmartKey Security™ allows you to re-key your exterior door lock yourself in seconds, and powerful Microban® technology guards against bacteria growth. Enjoy trusted security, peace of mind and an easy install from the number-one-selling lock brand in the U.S. Features - For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys

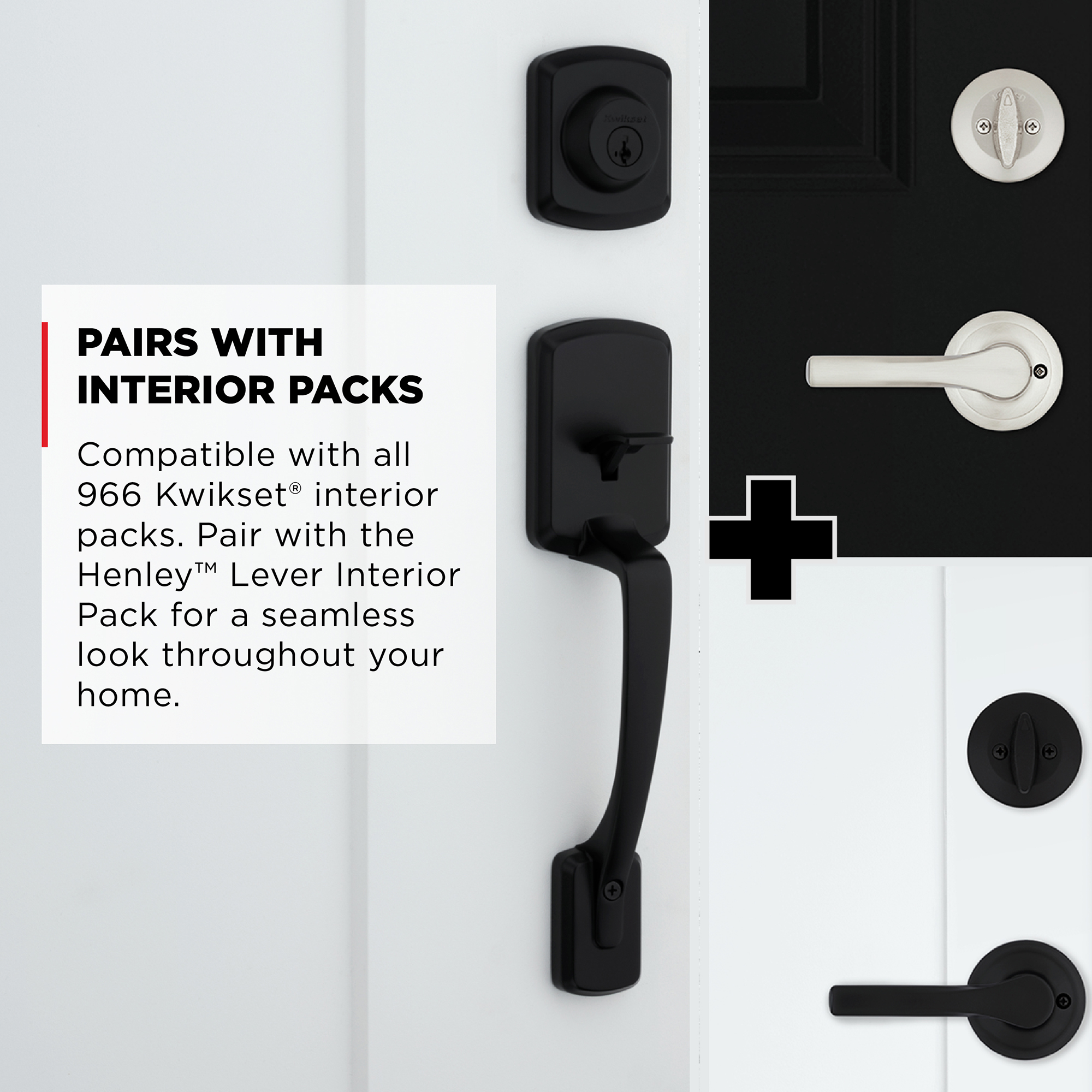

- Non-functioning handleset - Exterior Pack only
- Latch is 20 minute fire rated with round corner face
- Handleset Deadbolt ANSI/BHMA Grade 3 Certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- 1/2 in. latch throw
- 1 inch deadbolt throw

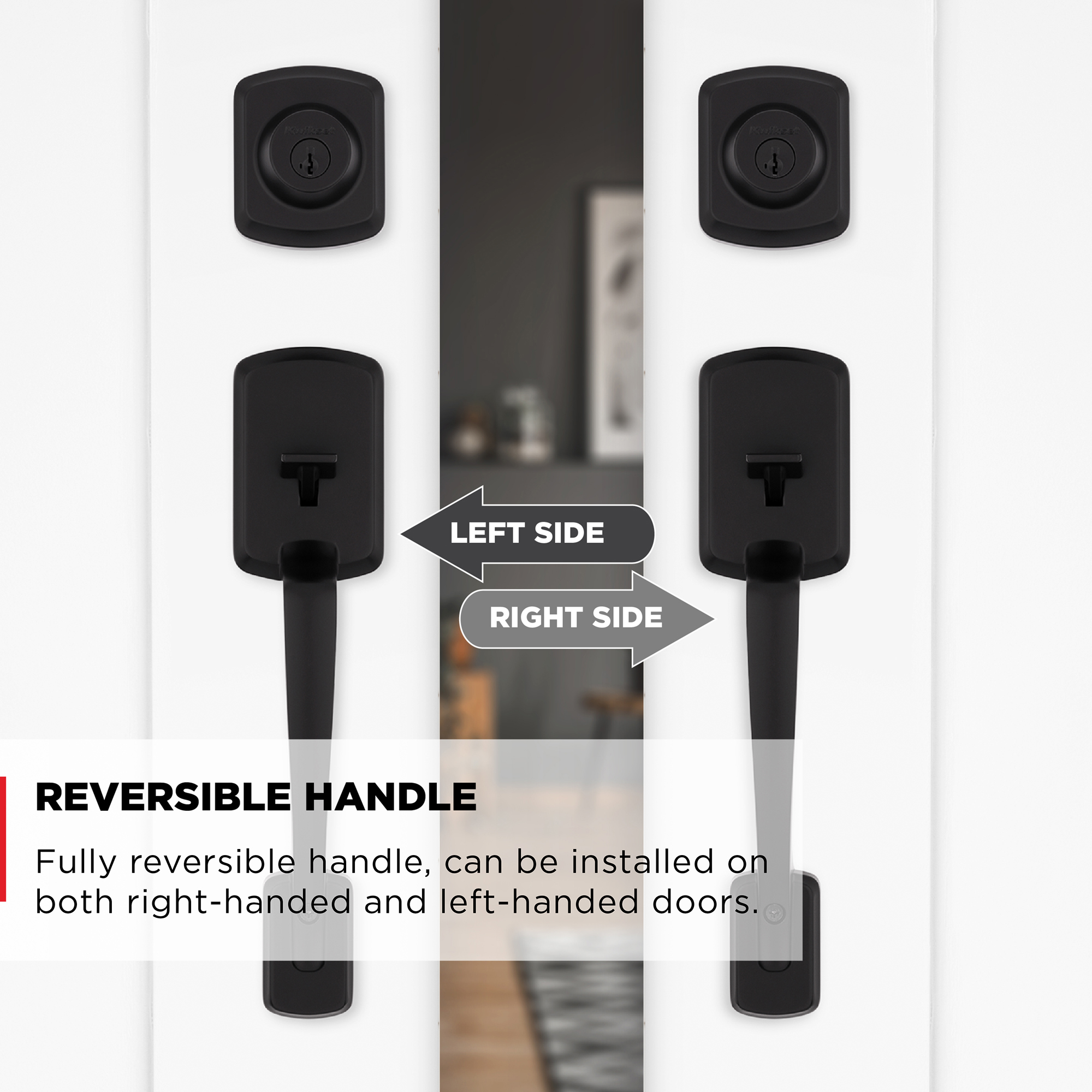

- Fully reversible lever, can be installed on both right handed and left handed doors

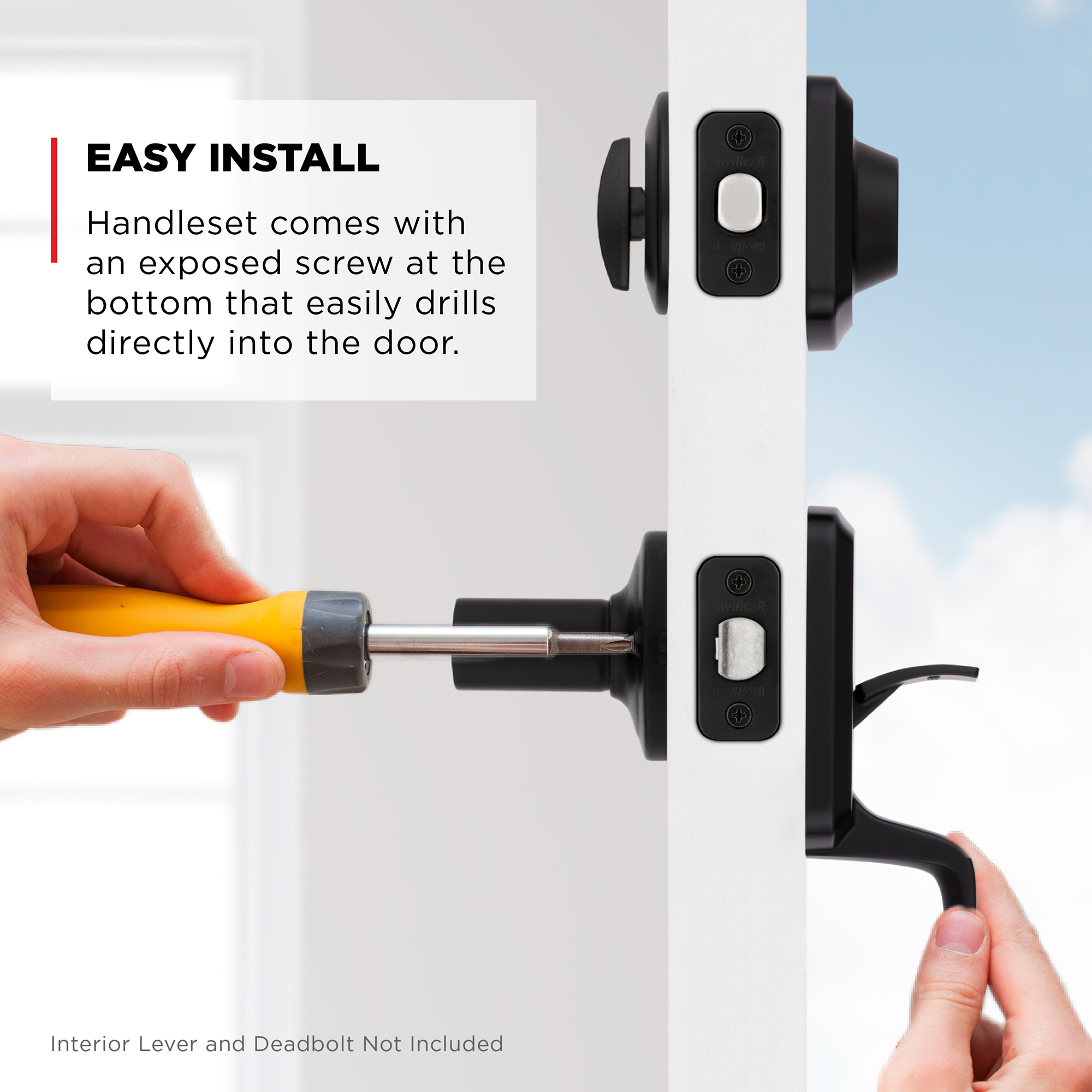

- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Assembled Height 17-5/8 Assembled Length 2-5/32 Assembled Width 2-25/32 Exterior Assembled Depth 2-5/8 Exterior Assembled Height 17-5/8 Exterior Assembled Width 2-25/32 Projection 2-9/16 Lever Grip Length 4-3/32 Lever Rose Shape Round Style Contemporary Throw Length .5 Cross Bore 2-1/8" Latch Type Round Corner FD Strike Height 2-1/4 Strike Type Round Corner Full Lip Strike Width 1-3/4 Strike Code Default Entry Has SmartKey Yes Entry # Of Keys 2
