96900-374

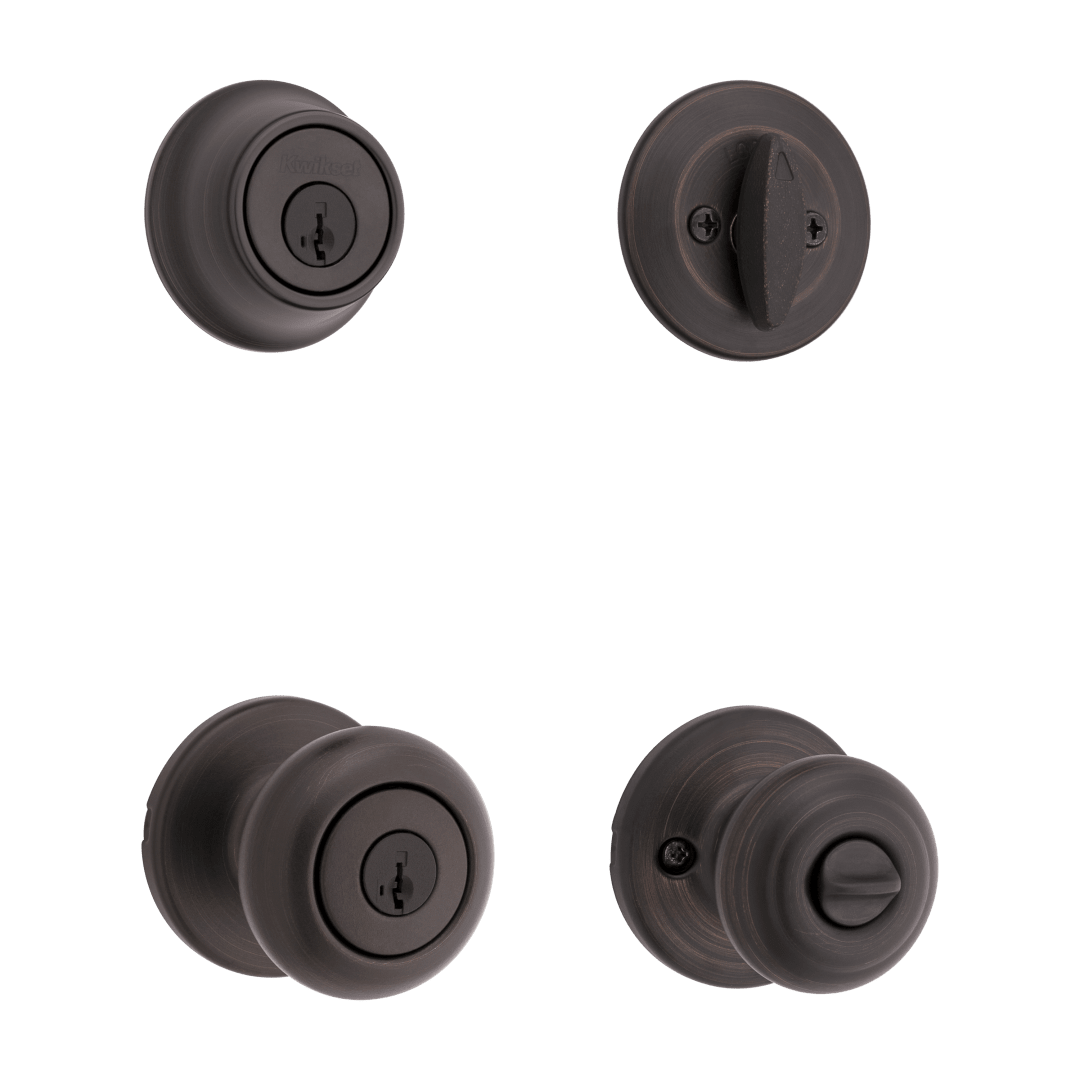

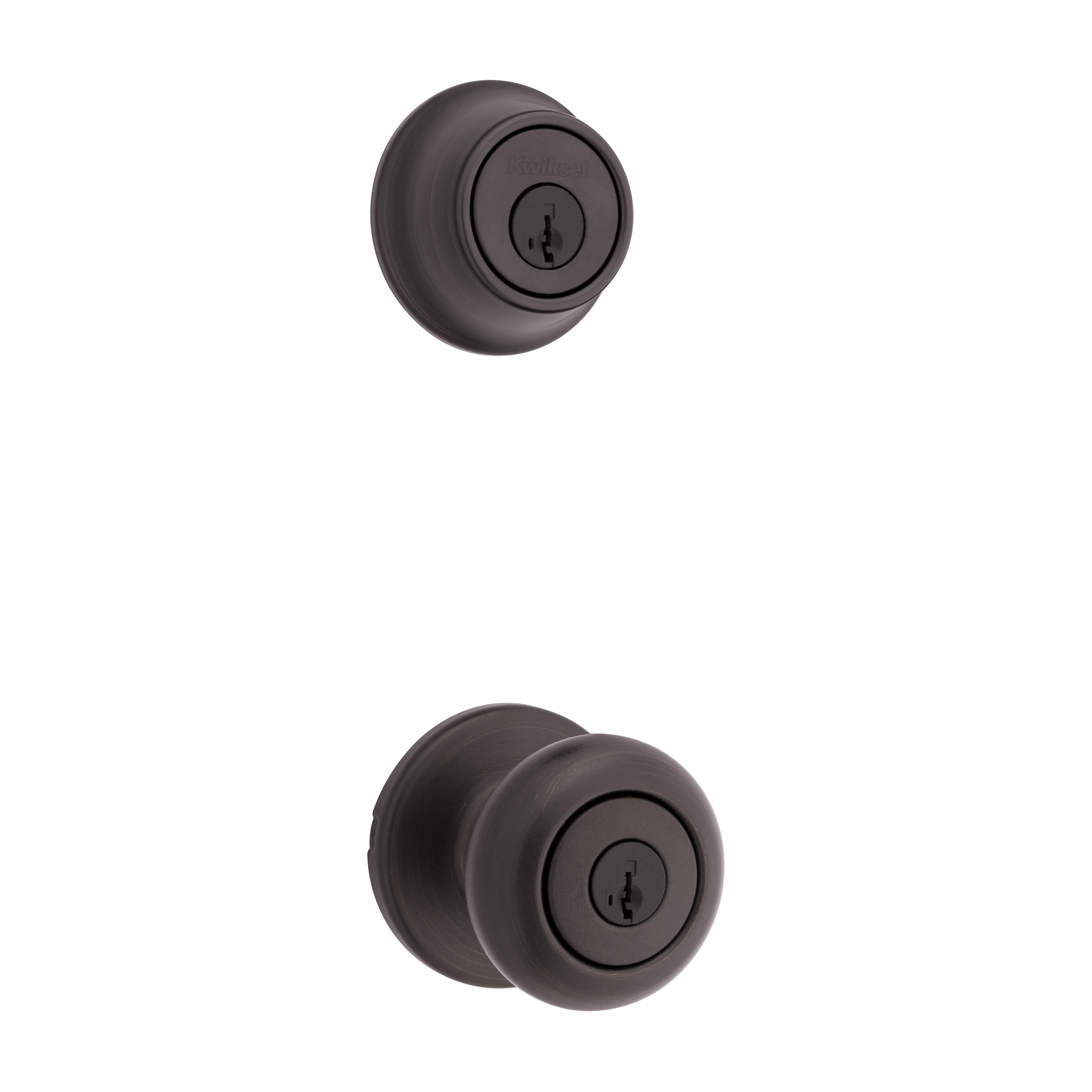

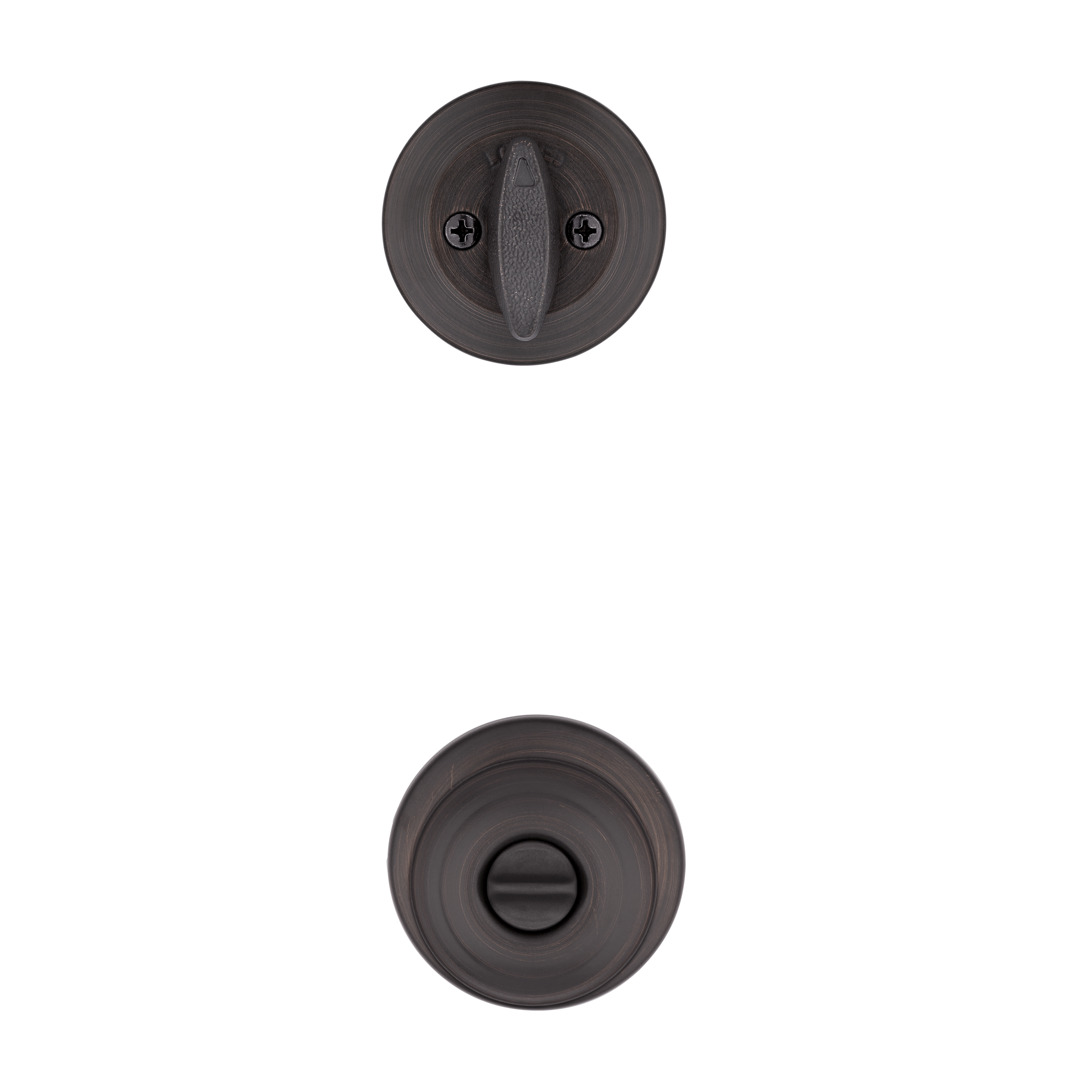

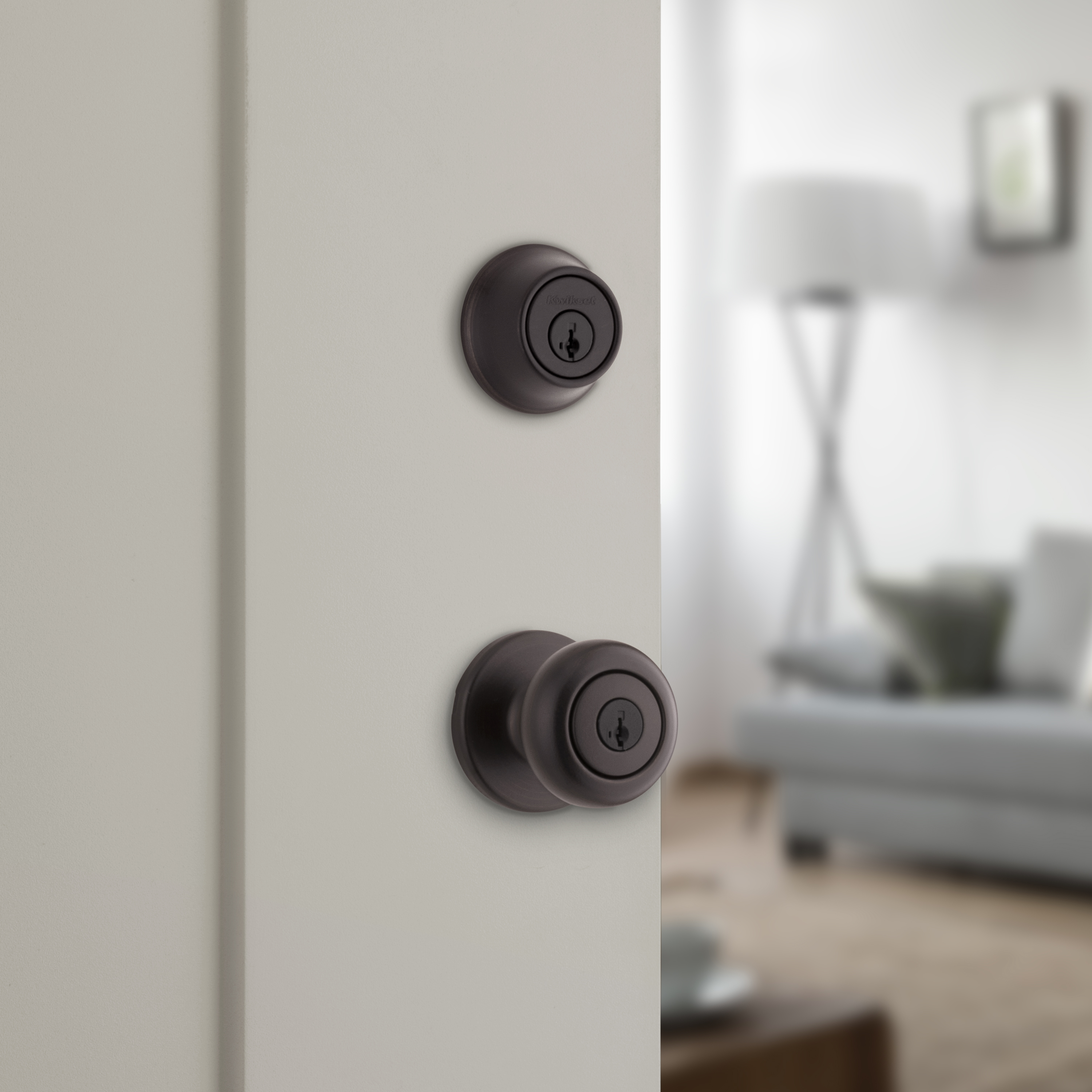

690 Cove Keyed Entry Knob and Single Cylinder Deadbolt Combo Pack featuring SmartKey Security™ in Venetian Bronze
ZZ690CV 11P CP K6 SMT
Vignette
Vignette
Vignette
Vignette
Vignette
Combined
Combined
Combined
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Clipped
Clipped
Clipped
Clipped
Clipped
Clipped
Clipped
Clipped
Brand Kwikset Series Security Series Sales Status OBSOLETE MFG Pro # 96900-374 Desc 1 ZZ690CV 11P CP K6 SMT UPC 883351513951 Family Cove Function Combo Pack Finish Venetian Bronze Type Knob ANSI Grade Grade 3 Hardware Type Residential Features - For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Universal handing; fits both right handed and left handed doors
- Comes with 2 keys
- Latch has 2 interchangeable faceplates; round corner and square corner
- Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes both deadbolt and full lip round strikes
- Includes round deadbolt strike
- 1 in. deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Assembled Height 2-5/8 Assembled Length 2-1/2 Assembled Width 2-5/8 Projection 2-1/2 Knob Diameter 2-3/16 Knob Rose Shape Round Knob Style Round Throw Length 1 Cross Bore 2-1/8" Strike Code Default Entry Has SmartKey Yes Entry # Of Keys 2
