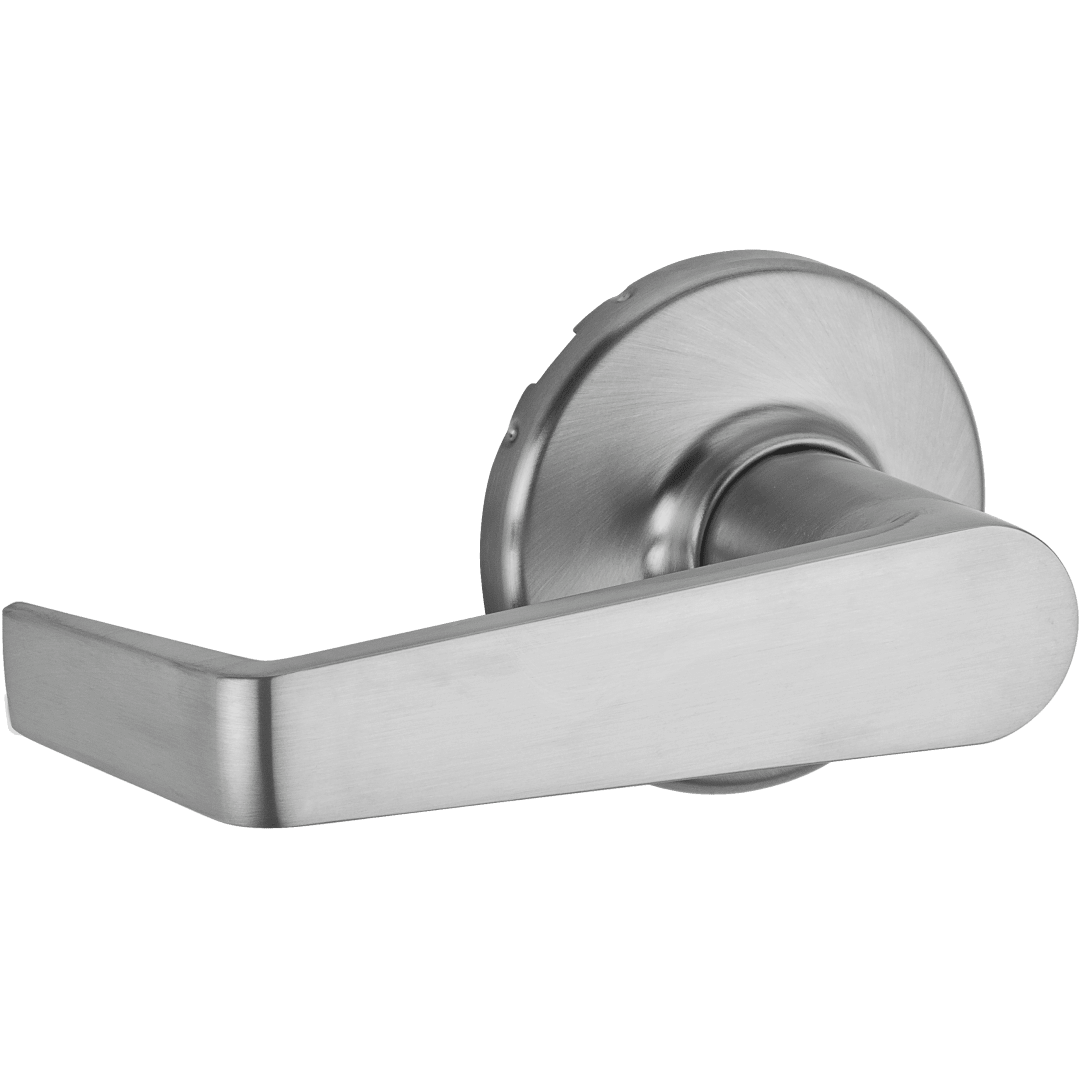

Kingston Hall/Closet Lever in Satin Chrome

720KNL 26D 6AL RCS

Non-Locking Passage: Use on doors requiring no locking method, latch allows door to be opened or closed, recommended for closets and other doors where security is not needed
Easy Install: Do it yourself, installs in minutes with just a screwdriver, all the hardware you need is included for a hassle-free installation, detailed directions provided
Fits Standard Doors: Fits standard size doors 1-3/8" to 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation
Adjustable Latch: By sliding the adjustment pin during installation, the latch backset can be adjusted to either 2-3/8" or 2-3/4" in order to fit all standard door preparations
Certified Trusted Quality: Security, Durability and Finish are Grade 3 BHMA certified, designed for reliable protection, providing peace of mind at home
Box Includes: Box Includes passage lever, Adjustable Latch with round and square front options or drive-in collar, round corner strike, designer rosette, screws and Allen wrench
Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details

Lock Finish

Enhanced Gallery

Clipped

Brand	Kwikset
Series	Light Commercial
Sales Status	ACTIVE
MFG Pro #	97209-115
Desc 1	720KNL 26D 6AL RCS
Desc 2	720KNL
UPC	883351212205
Family	Kingston
Function	Passage
Finish	Satin Chrome
Type	Lever
ANSI Grade	Grade 2
Hardware Type	Commercial

Product Description

At Kwikset, we work hard to deliver the quality and durability customers expect while offering the highest level of security. Every product undergoes rigorous testing to give you peace of mind. Deadbolts and door handles with our patented SmartKey Security are bump- and pick-resistant and let you re-key your lock yourself in seconds. With Kwikset, you get more than just a door lock; you gain proven performance and sophisticated style on every door.

Features

For use on interior doors requiring no locking functionality, such as hallway or closet doors
Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar
Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
ANSI/BHMA grade 2 certified
Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
Fully reversible lever, can be installed on both right handed and left handed doors
Easily installs in minutes with just a screwdriver
Lifetime Mechanical, 5 Year Finish

Assembled Height 2-9/16
Assembled Length 2-23/32
Assembled Width 5-1/8
Projection 1-24/25
Lever Grip Length 3-5/6
Lever Rose Shape Round
Throw Length 1/2
Cross Bore 2-1/8"
Latch Type 6-Way Adjustable Latch
Strike Height 2-1/4
Strike Type Round Corner Full Lip
Strike Width 1-3/4
Strike Code RCS

Assembled Height	2-9/16
Assembled Length	2-23/32
Assembled Width	5-1/8
Projection	1-24/25
Lever Grip Length	3-5/6

Lever Rose Shape	Round
Throw Length	1/2
Cross Bore	2-1/8"
Latch Type	6-Way Adjustable Latch
Strike Height	2-1/4
Strike Type	Round Corner Full Lip
Strike Width	1-3/4
Strike Code	RCS
