97301-022

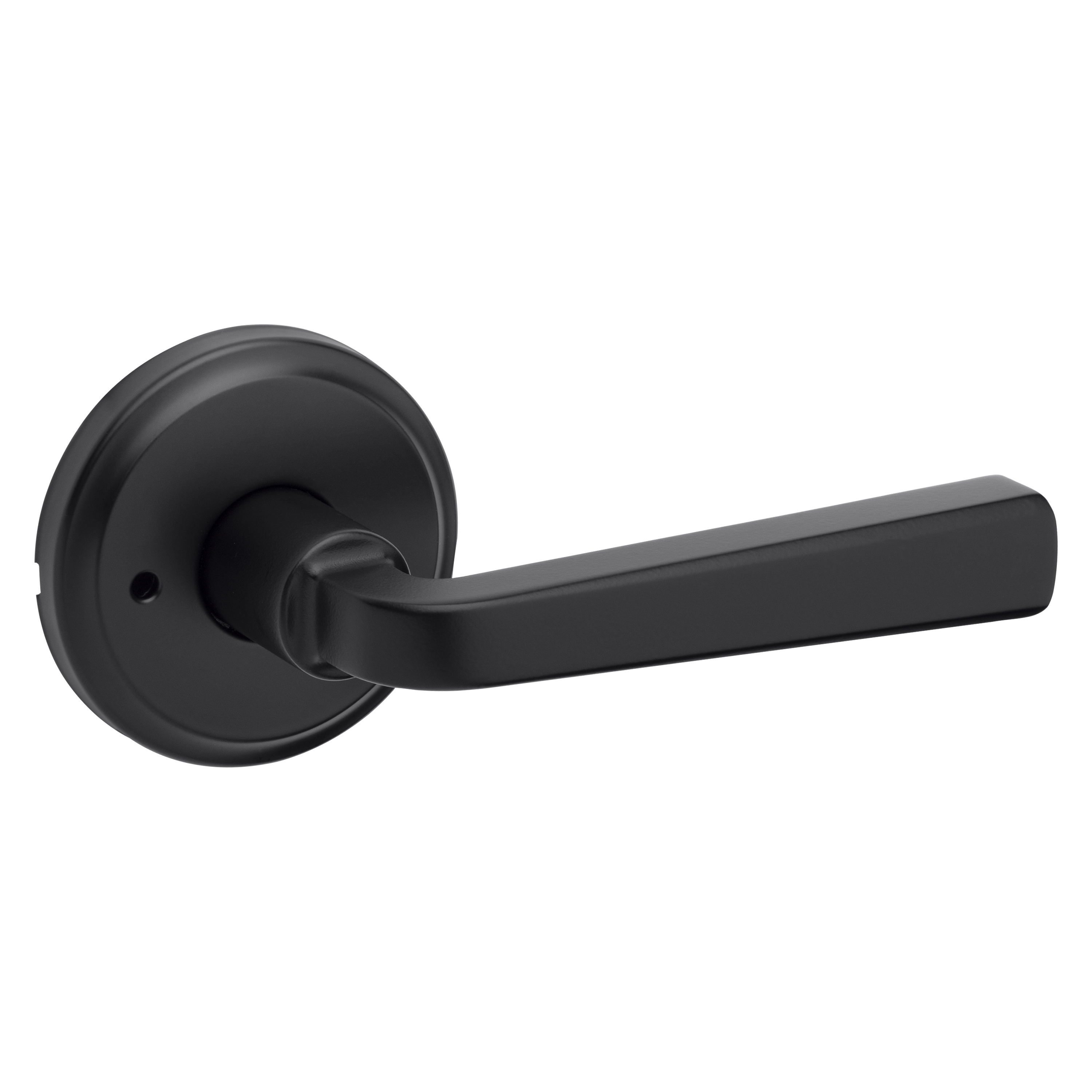

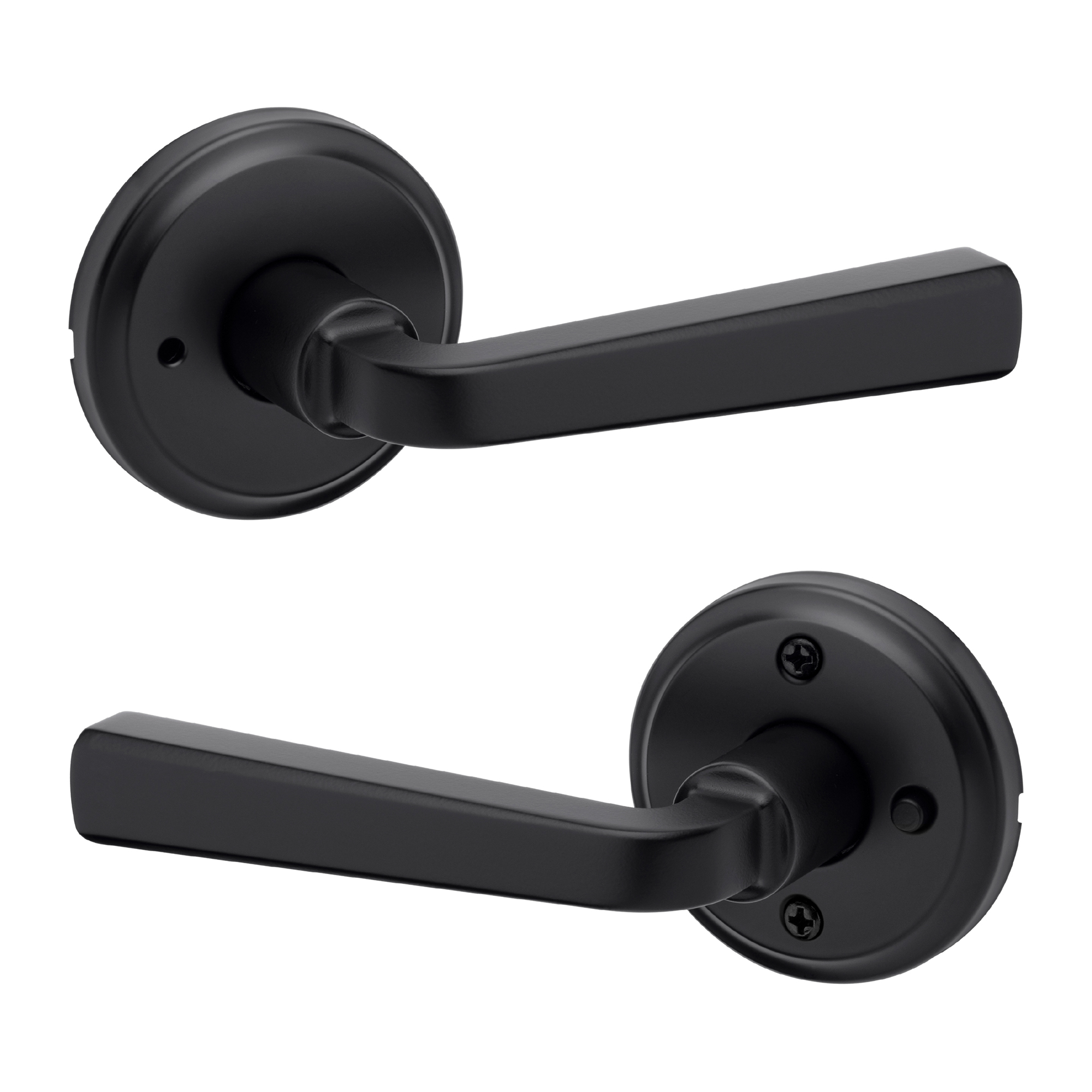

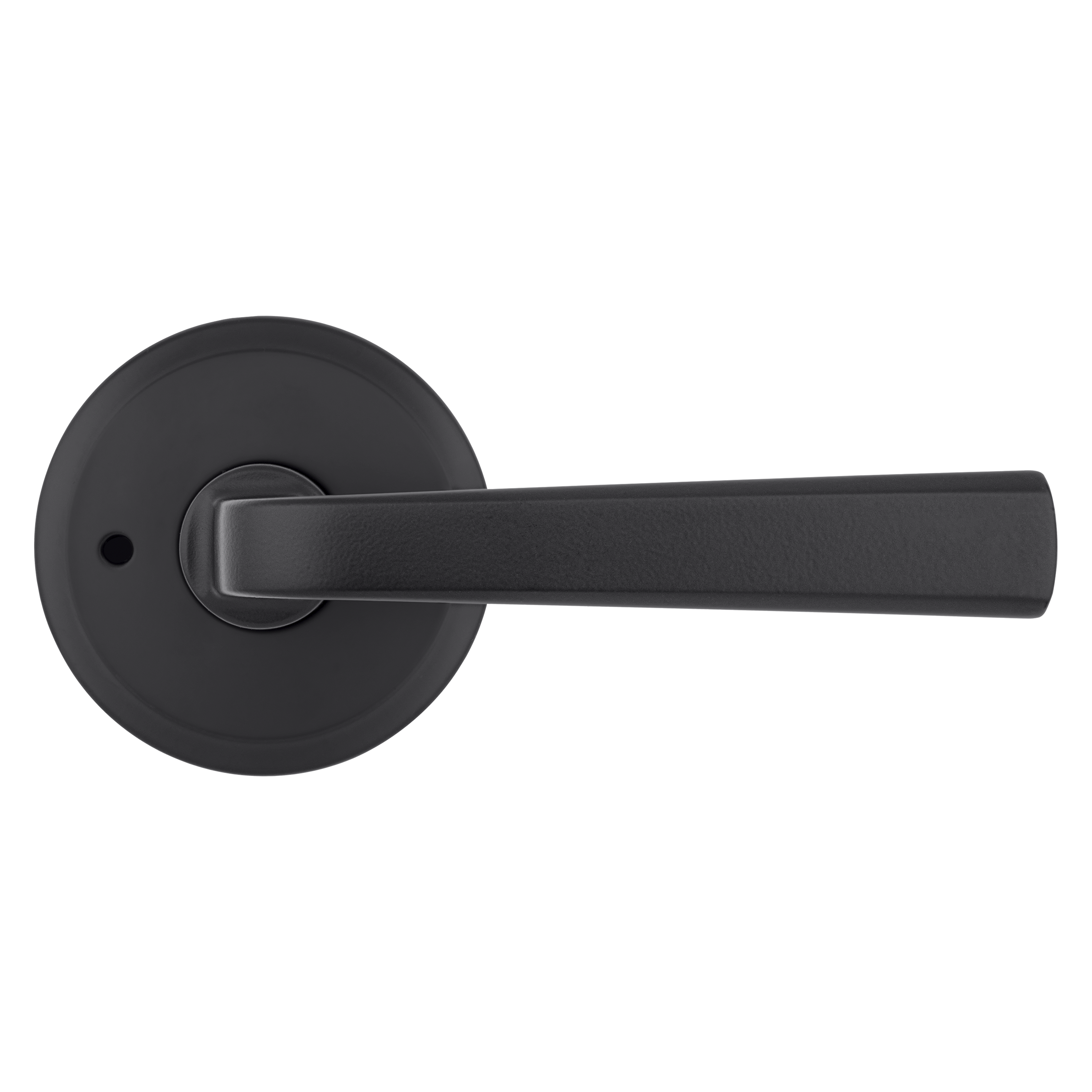

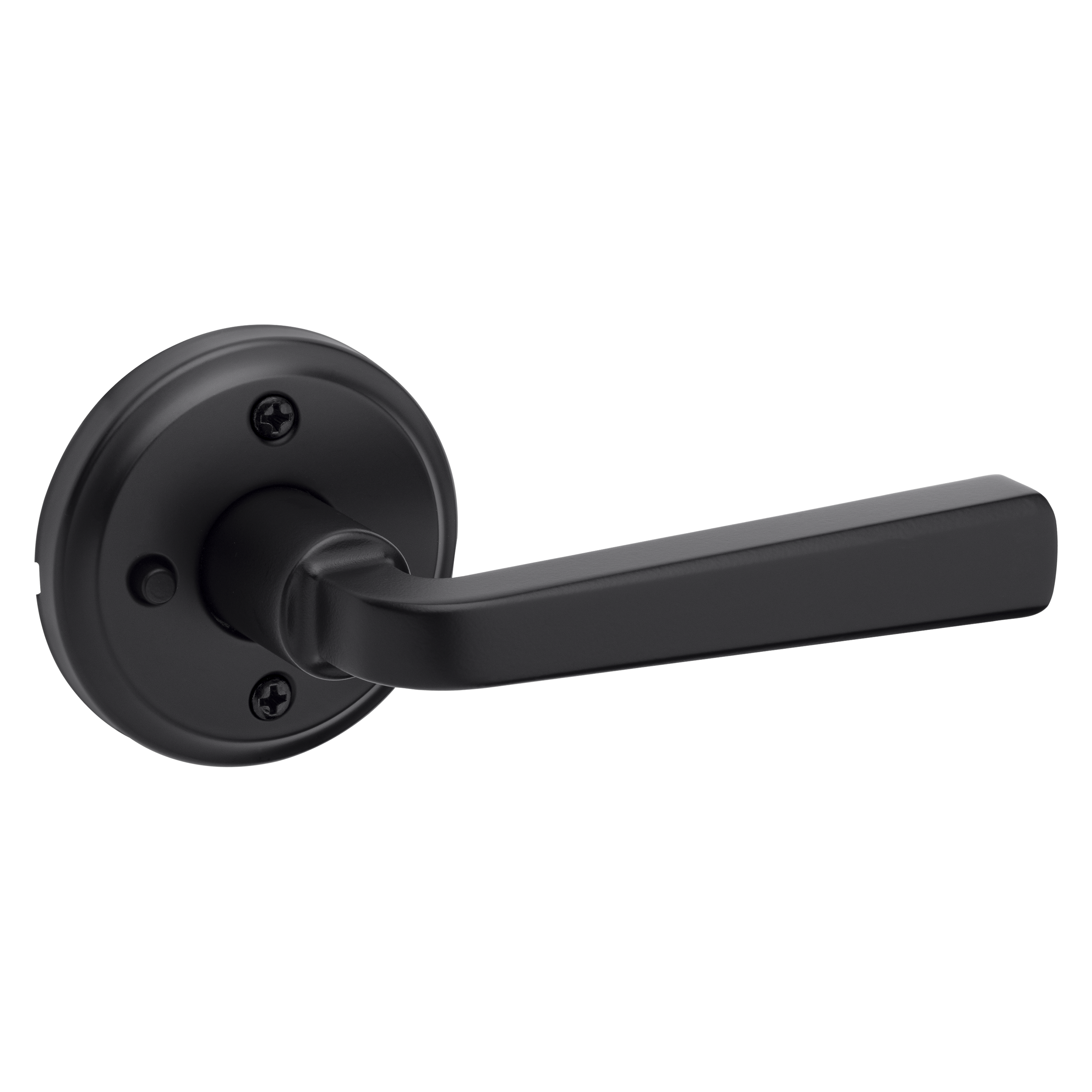

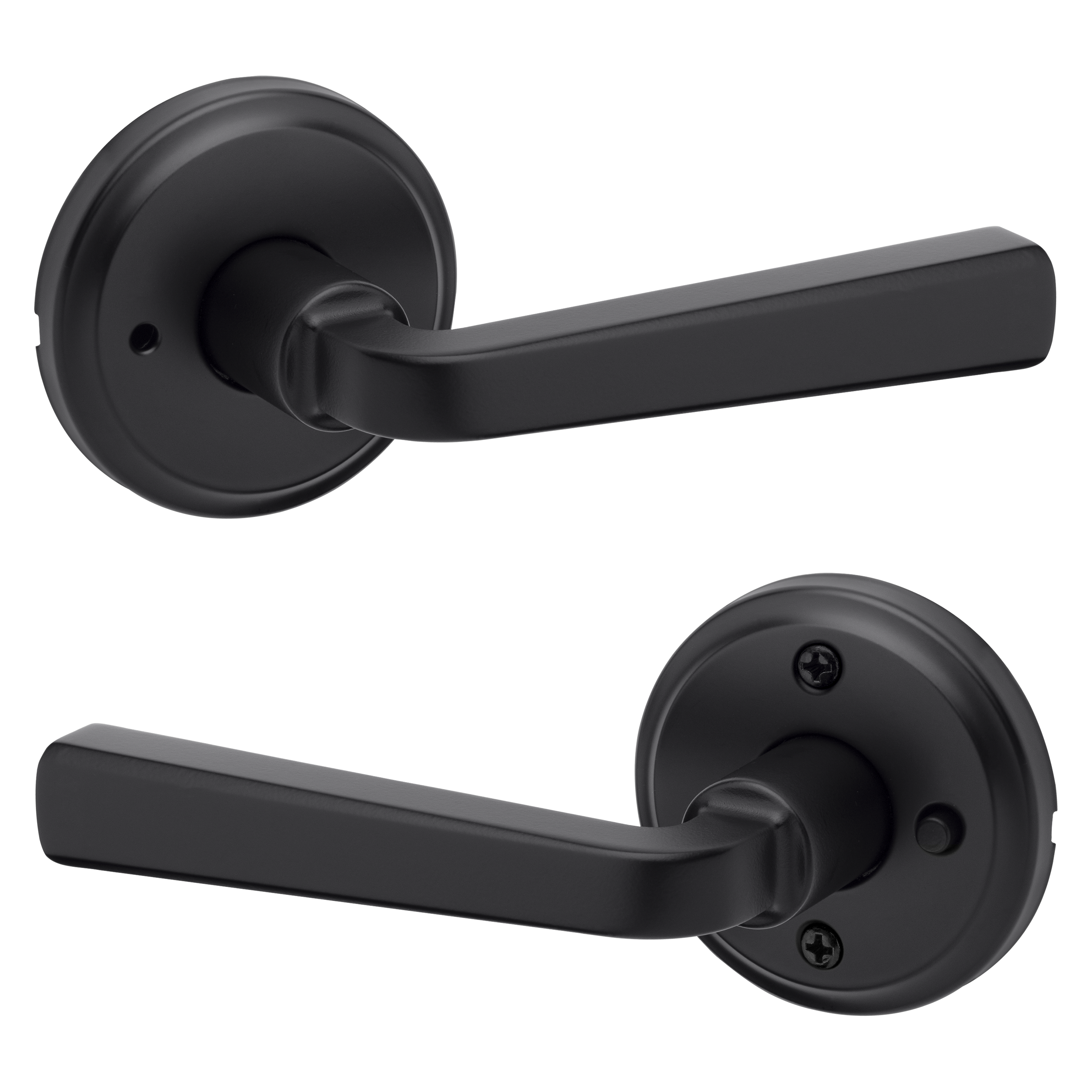

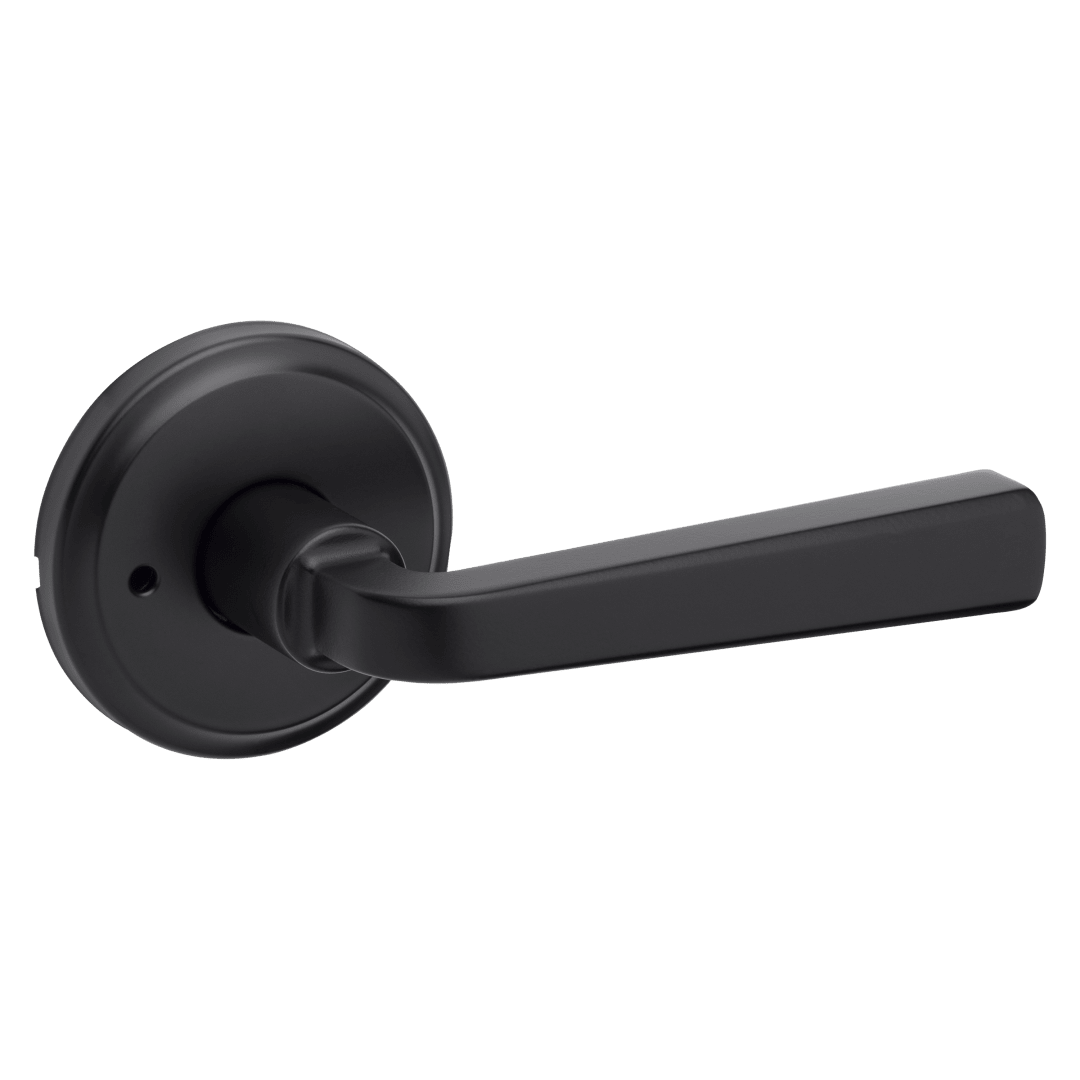

Trafford Bed/Bath Door Lever in Matte Black
730TDL 514 6AL RCS
Vignette
Vignette
Vignette
Vignette
Vignette
Combined
Combined
Combined
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Clipped
Clipped
Clipped
Clipped
Dimensions

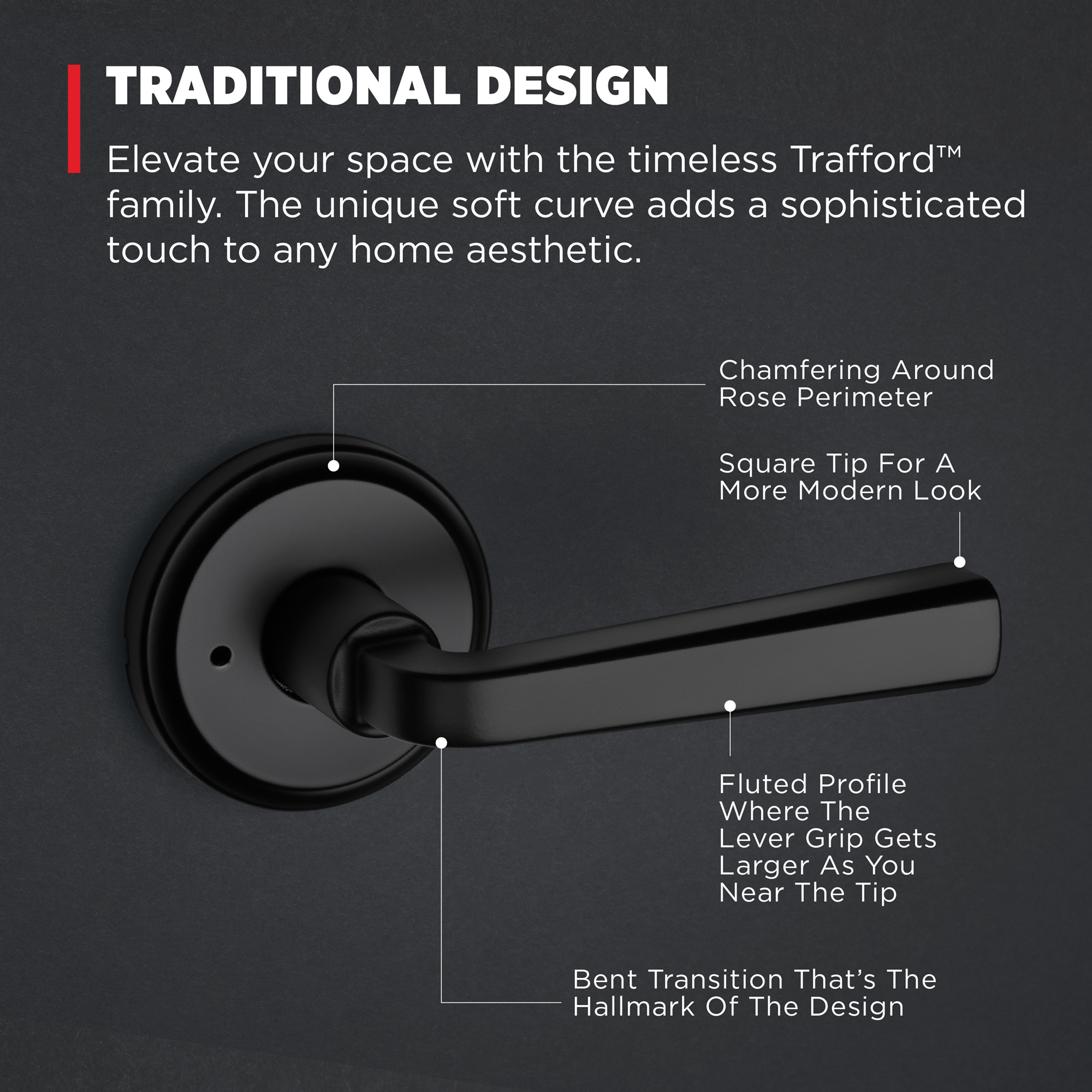

Brand Kwikset Series Signature Series Sales Status ACTIVE MFG Pro # 97301-022 Desc 1 730TDL 514 6AL RCS UPC 883351941983 Family Trafford Function Privacy Finish Matte Black Type Lever ANSI Grade AAA Hardware Type Residential Product Description Step up to designer styles and superior security with Kwikset Signature Series products. Elevate your space with the timeless Trafford™ family. The unique soft curve adds a sophisticated touch to any home aesthetic, while the designer rosette imparts a warm and welcoming feel to your doors. Create your desired look with three premium finishes, then let our bump- and pick-resistant SmartKey® Security protect what matters most. Adorn your interior and exteriors with Trafford™ levers, and enjoy our highest level of security, easiest installation and peace of mind. Features - Designer style and superior security with this Kwikset Signature Series™ product

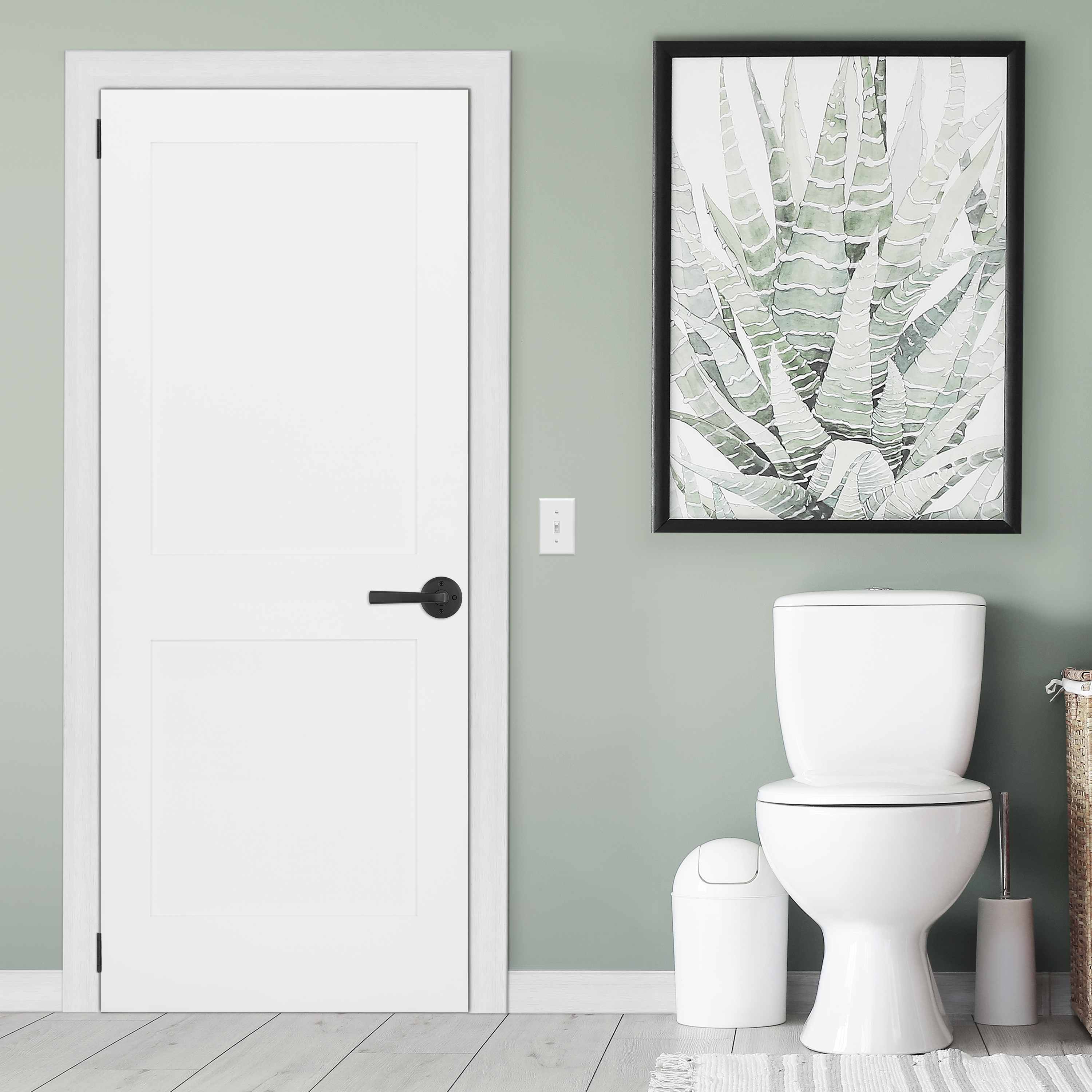

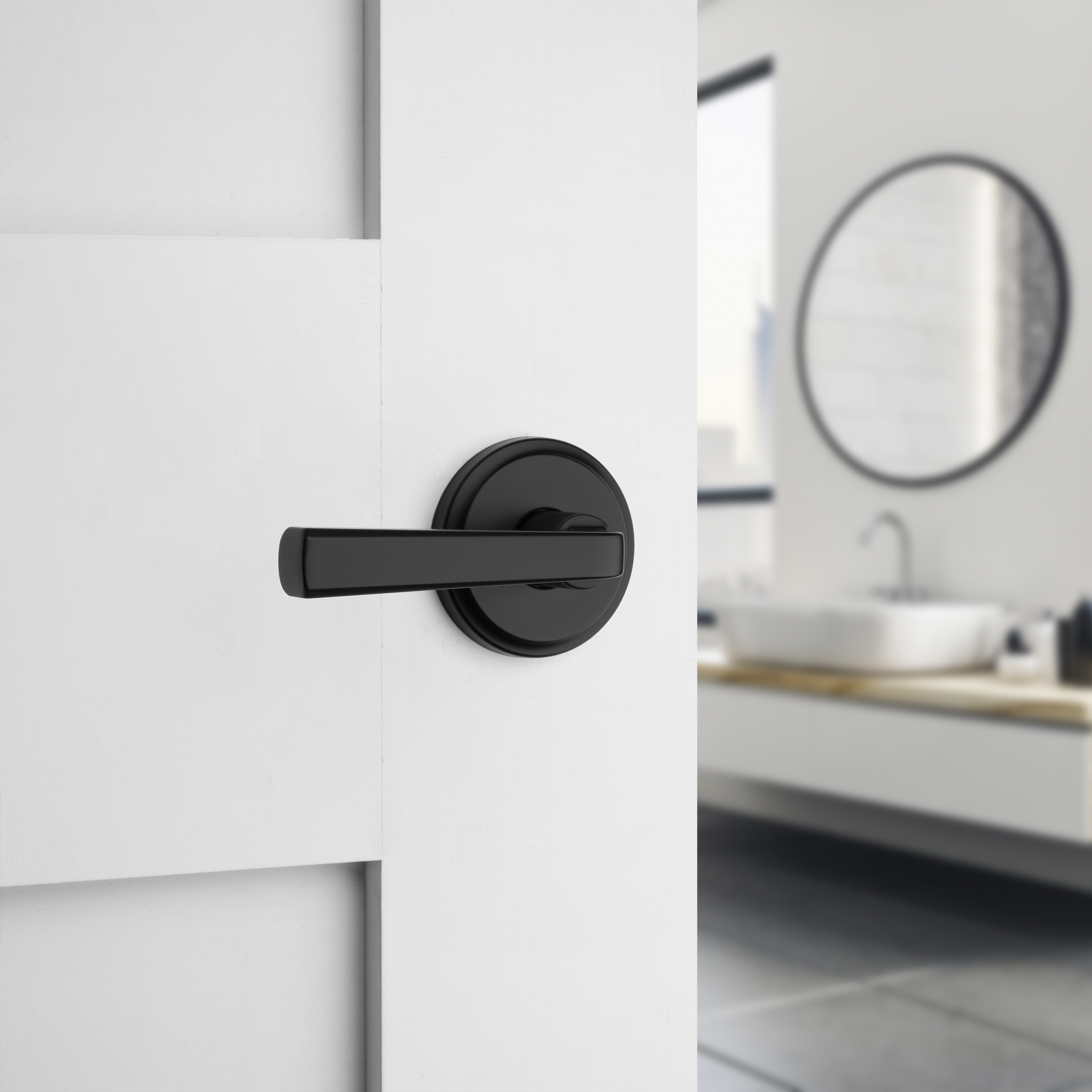

- For use on interior doors where a privacy locking function is required, such as a bedroom or bathroom

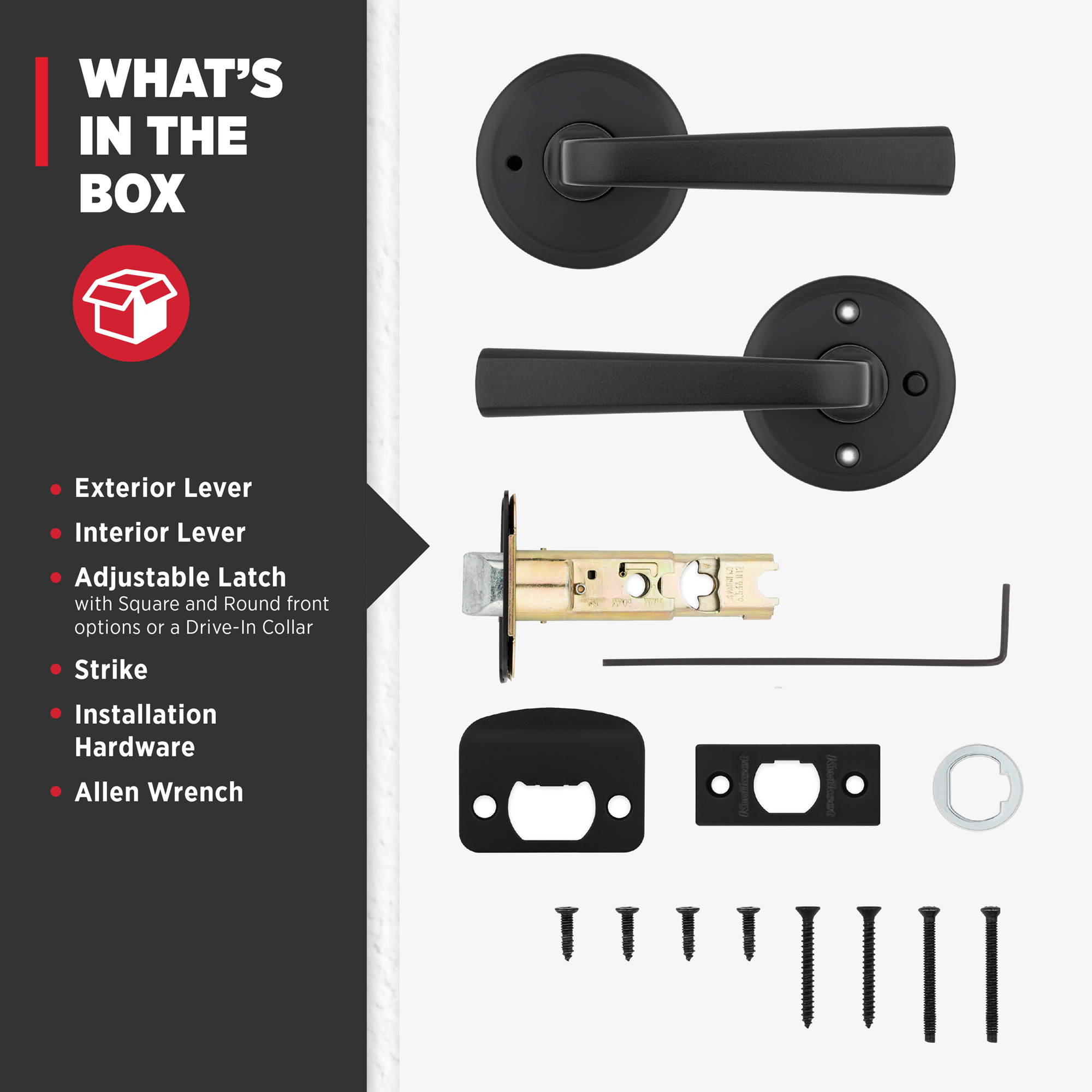

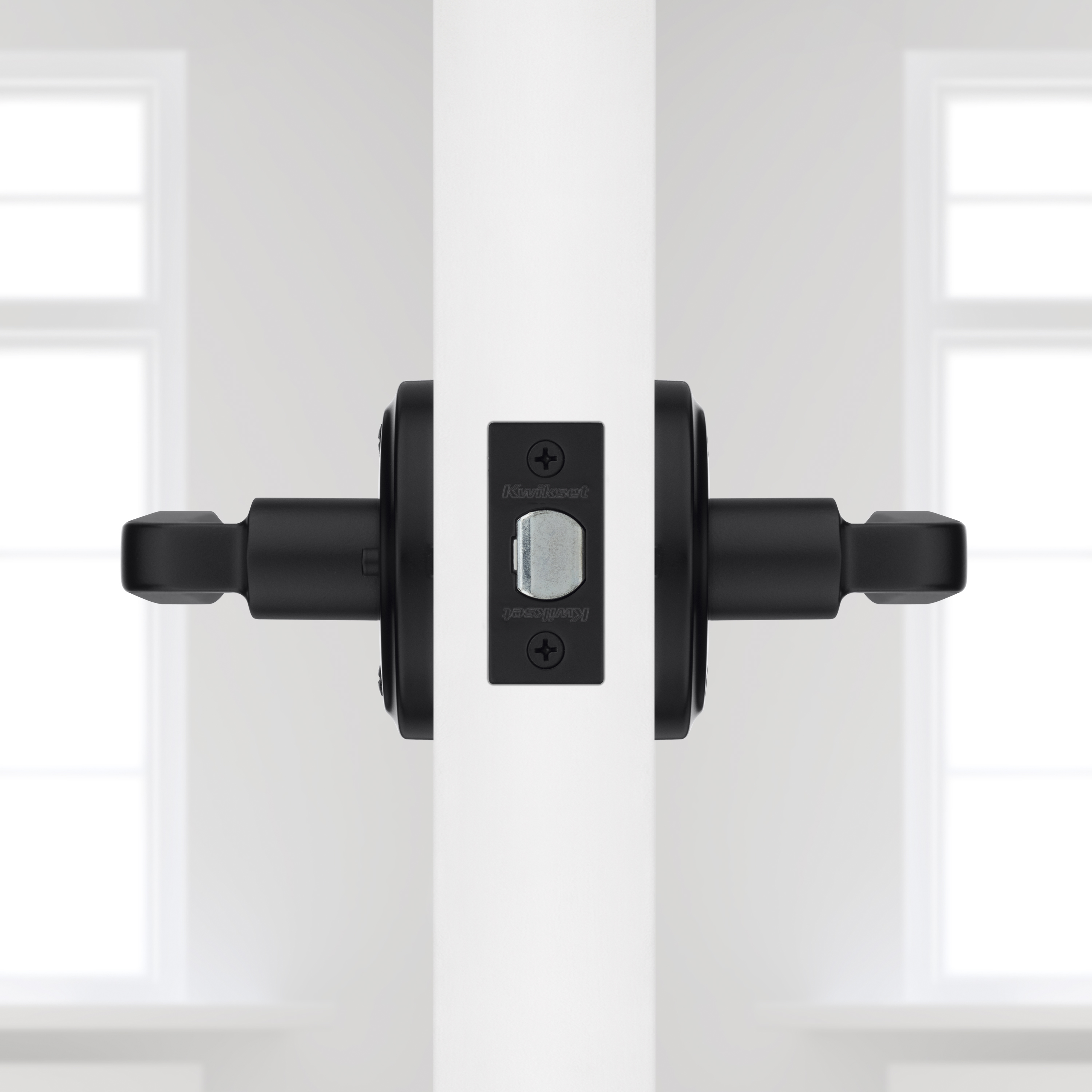

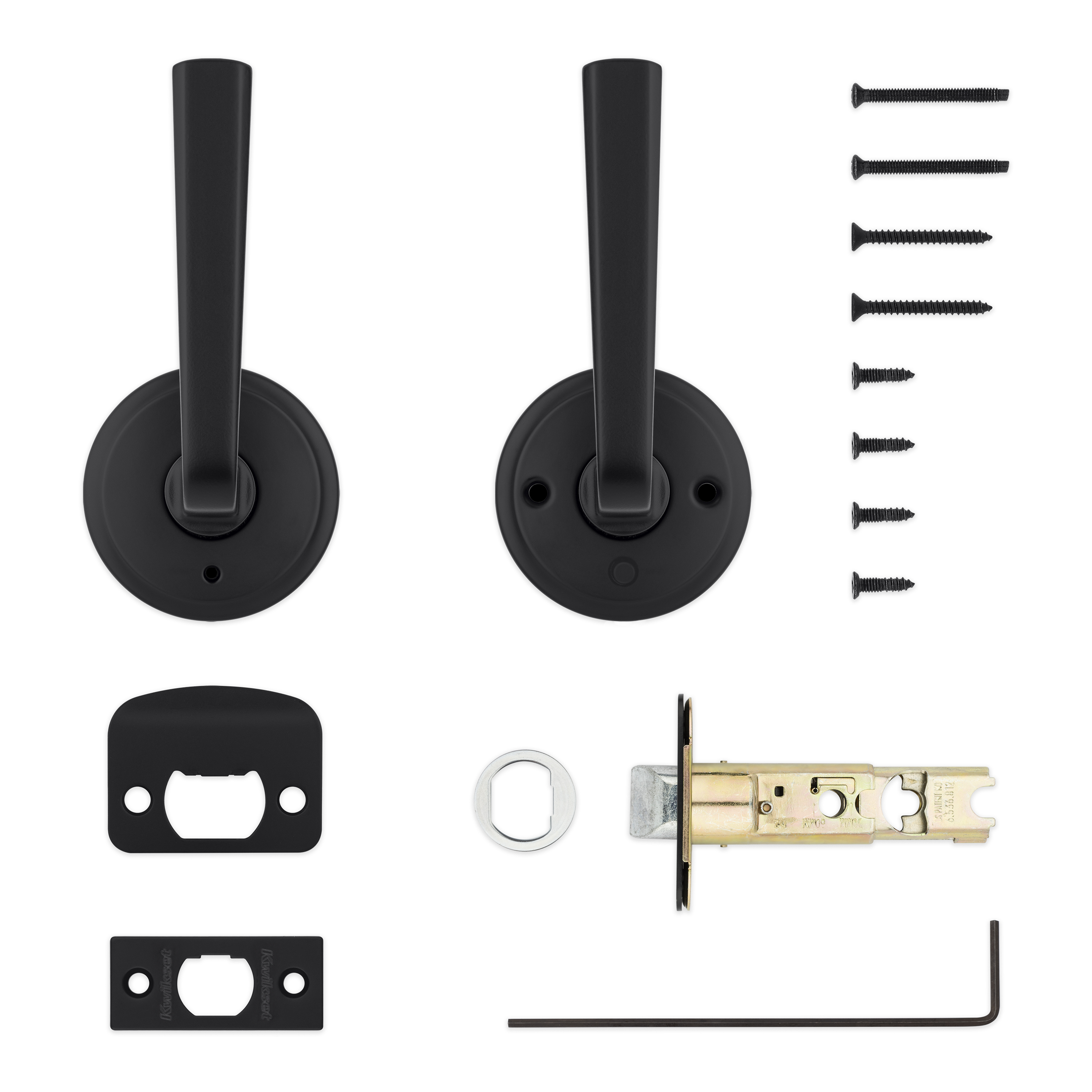

- Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar

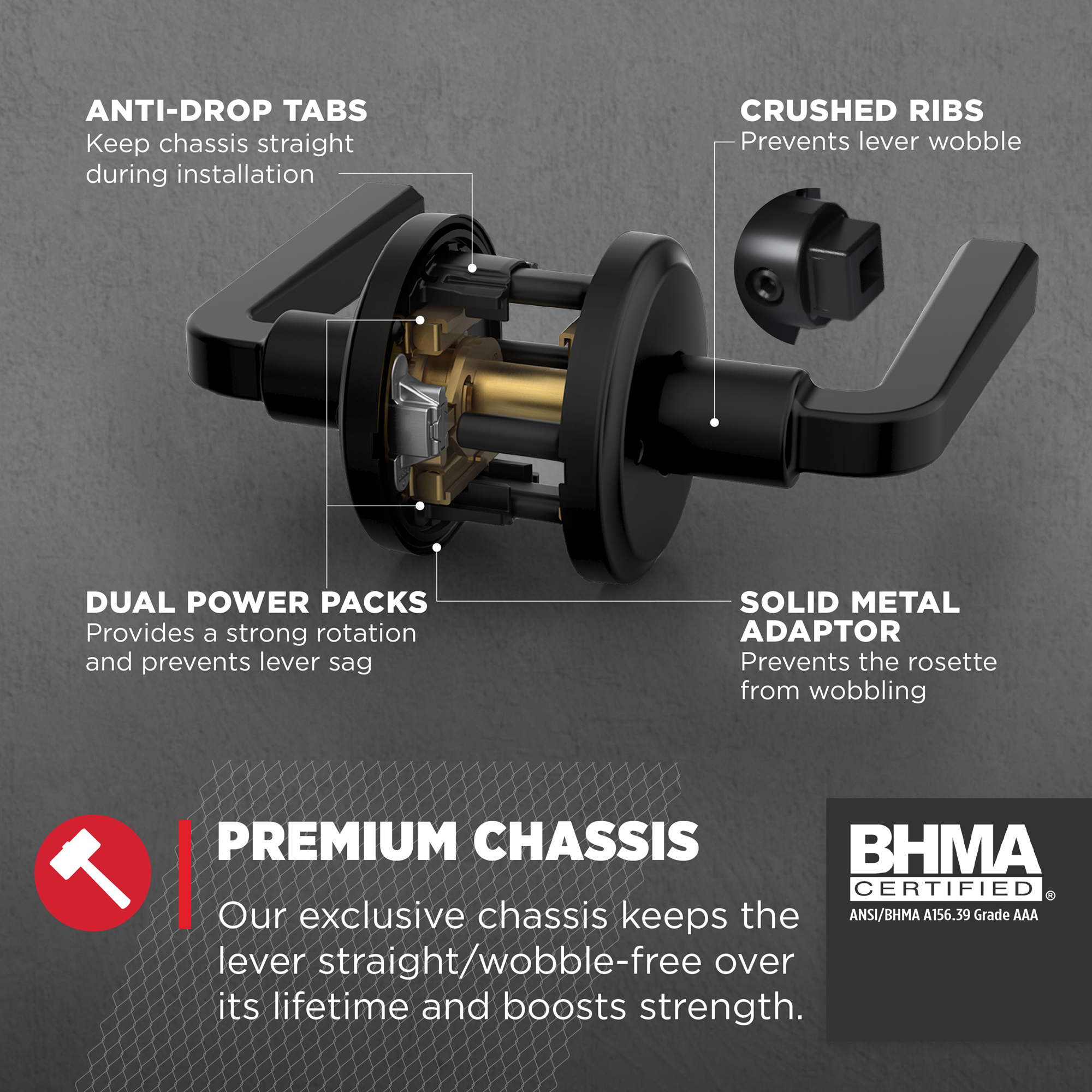

- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

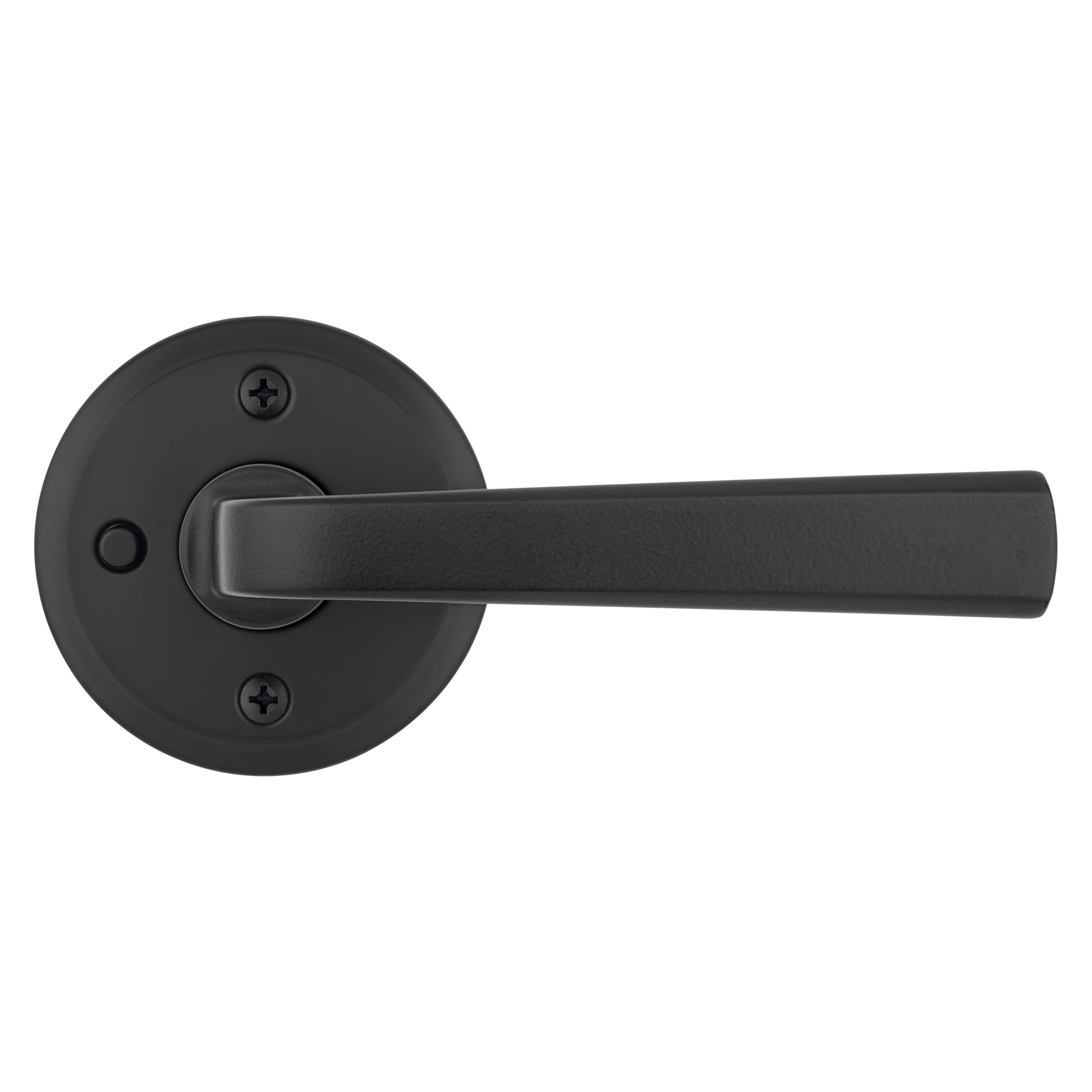

- Locking mechanism functions by pressing the push button on the interior of the lock
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

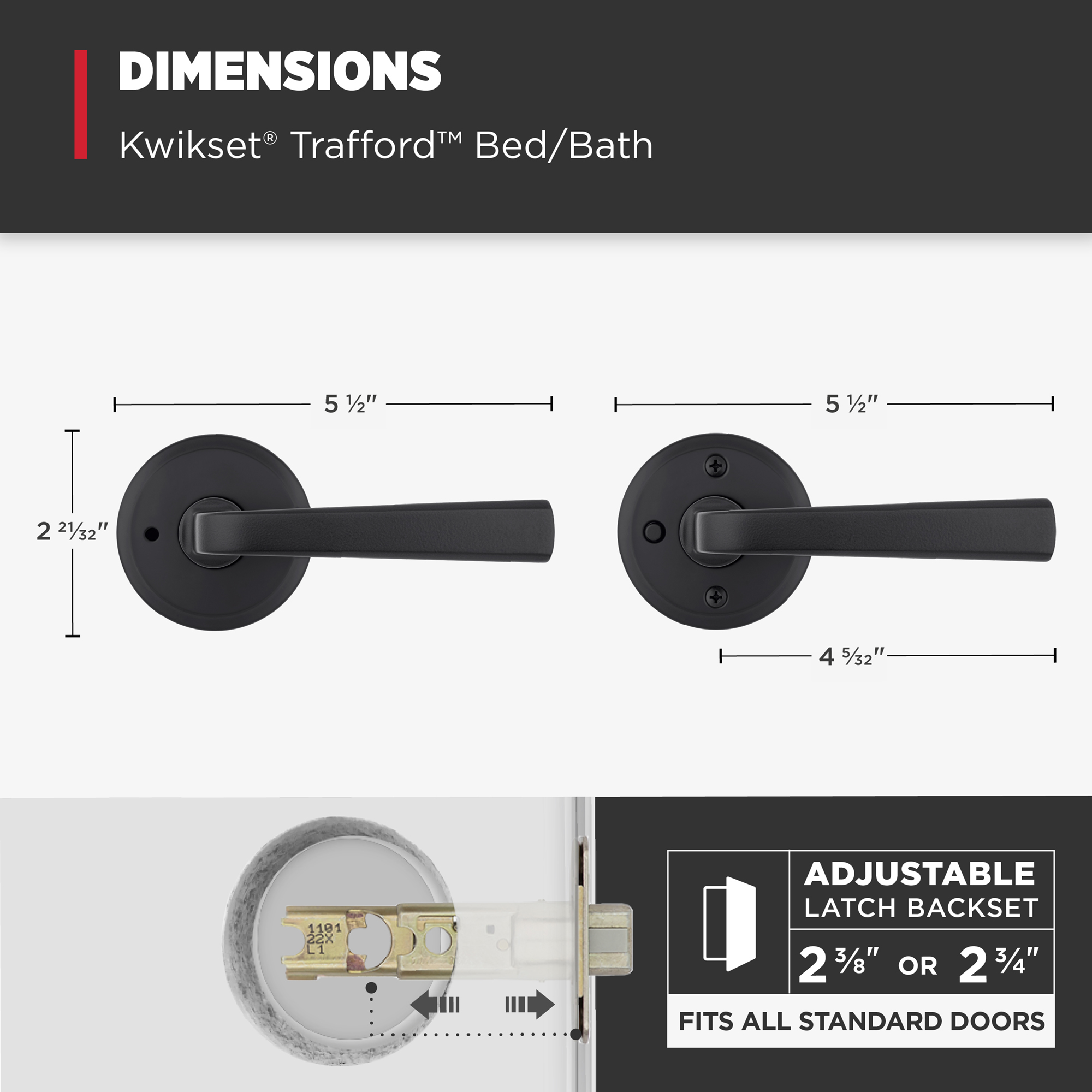

Assembled Height 2-21/32 Assembled Length 2-19/32 Assembled Width 5-1/2 Projection 2-19/32 Lever Grip Length 4-5/32 Lever Rose Shape Round Style Traditional Throw Length 1/2 Cross Bore 2-1/8" Latch Type 6-Way Adjustable Latch Strike Code RCS
