Primary
98160-017

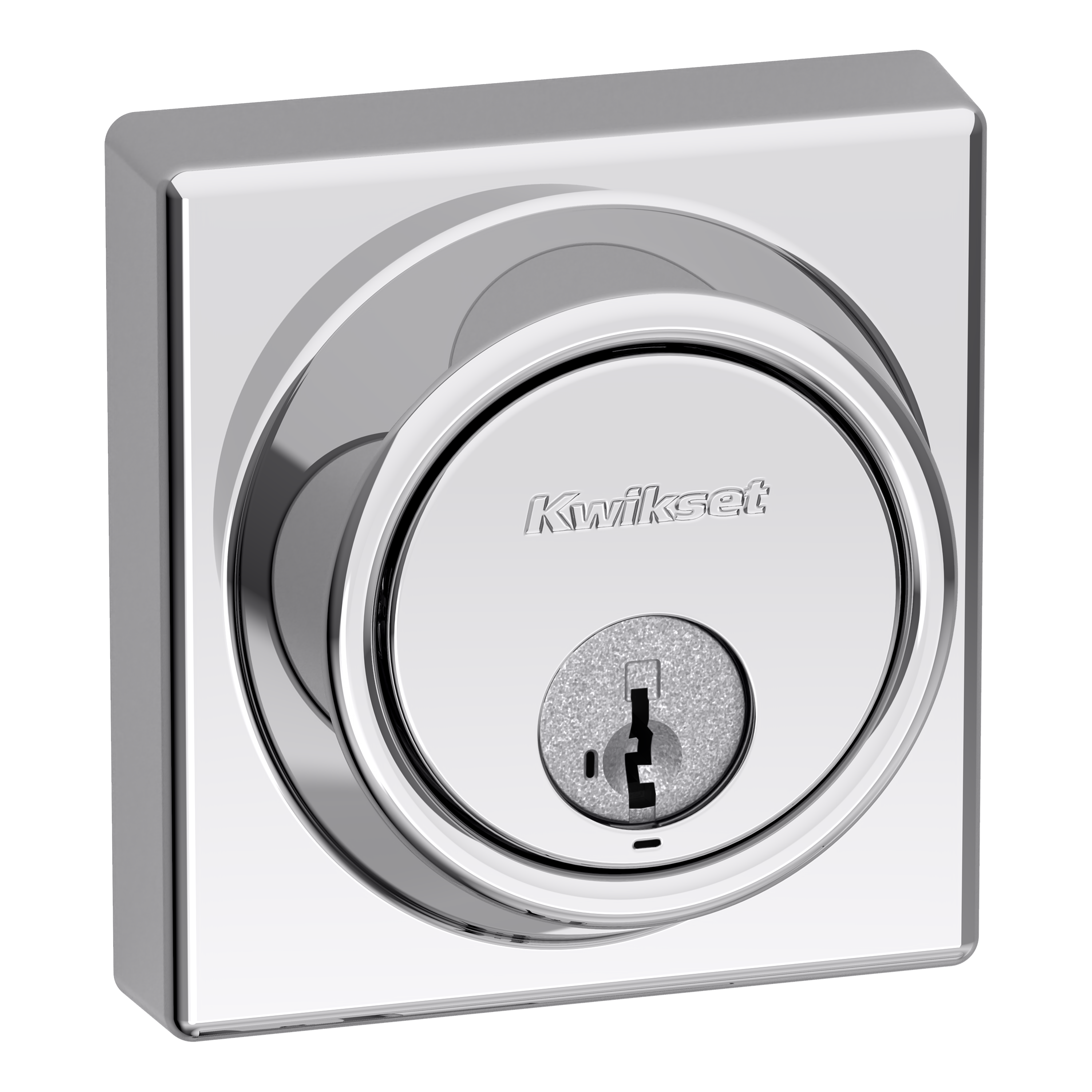

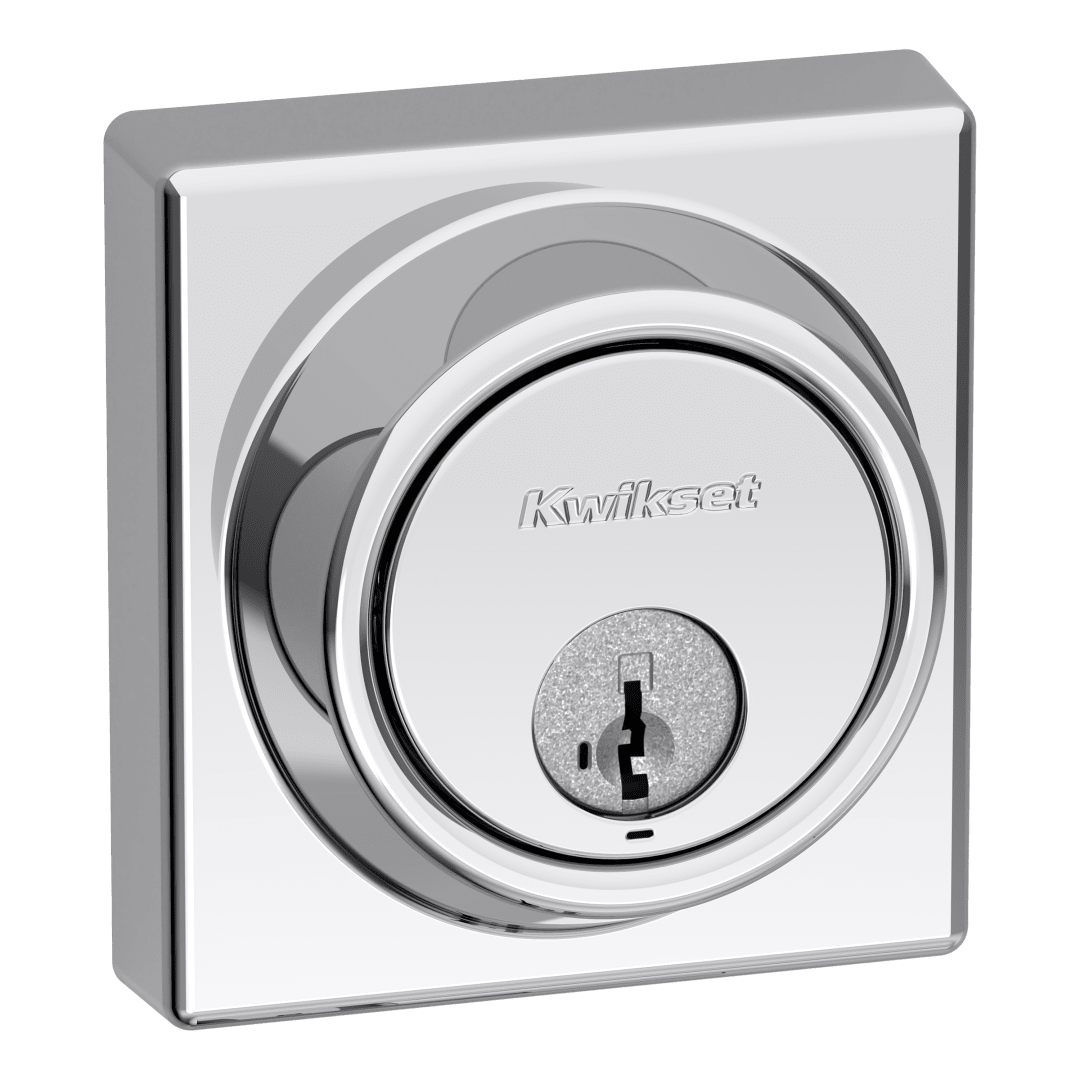

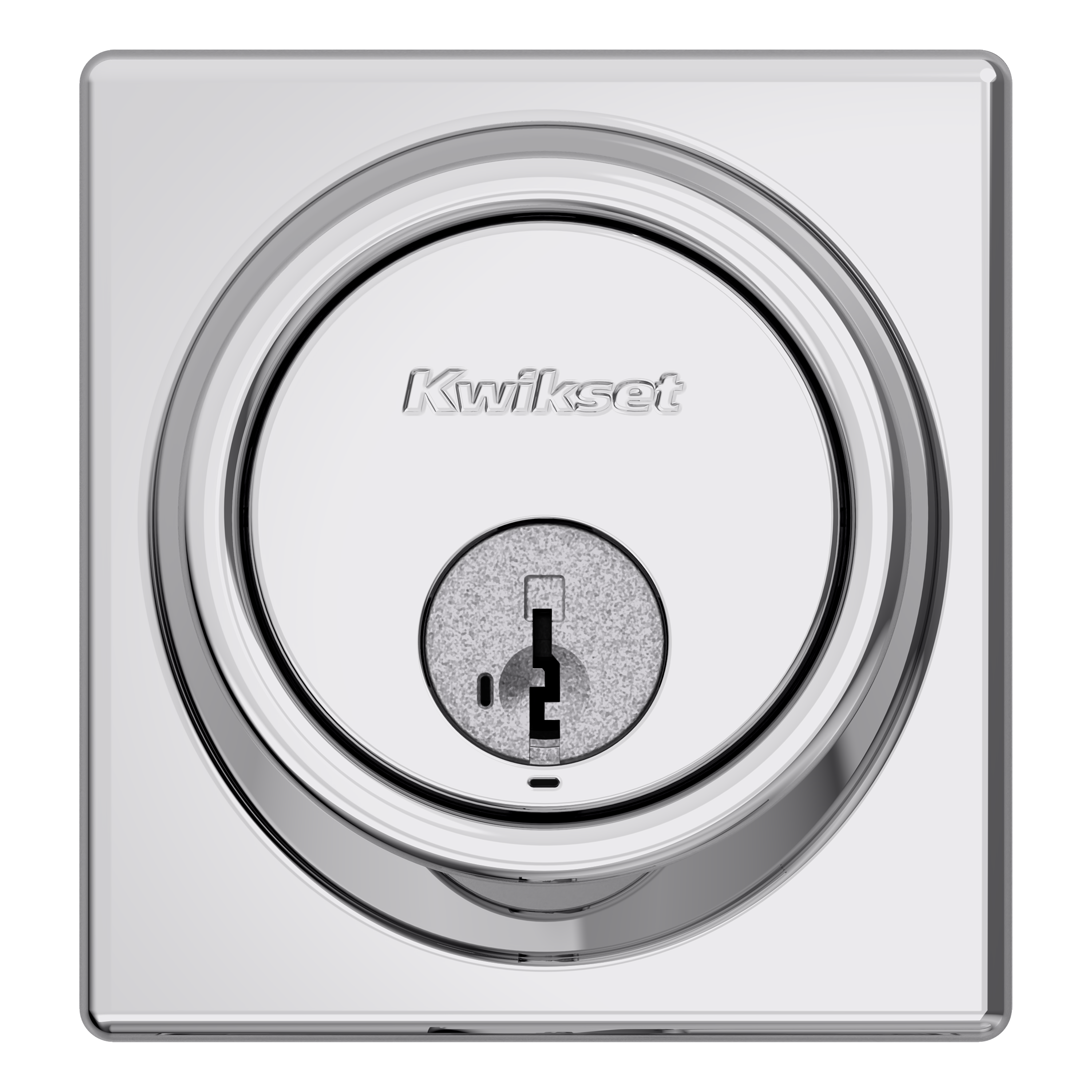

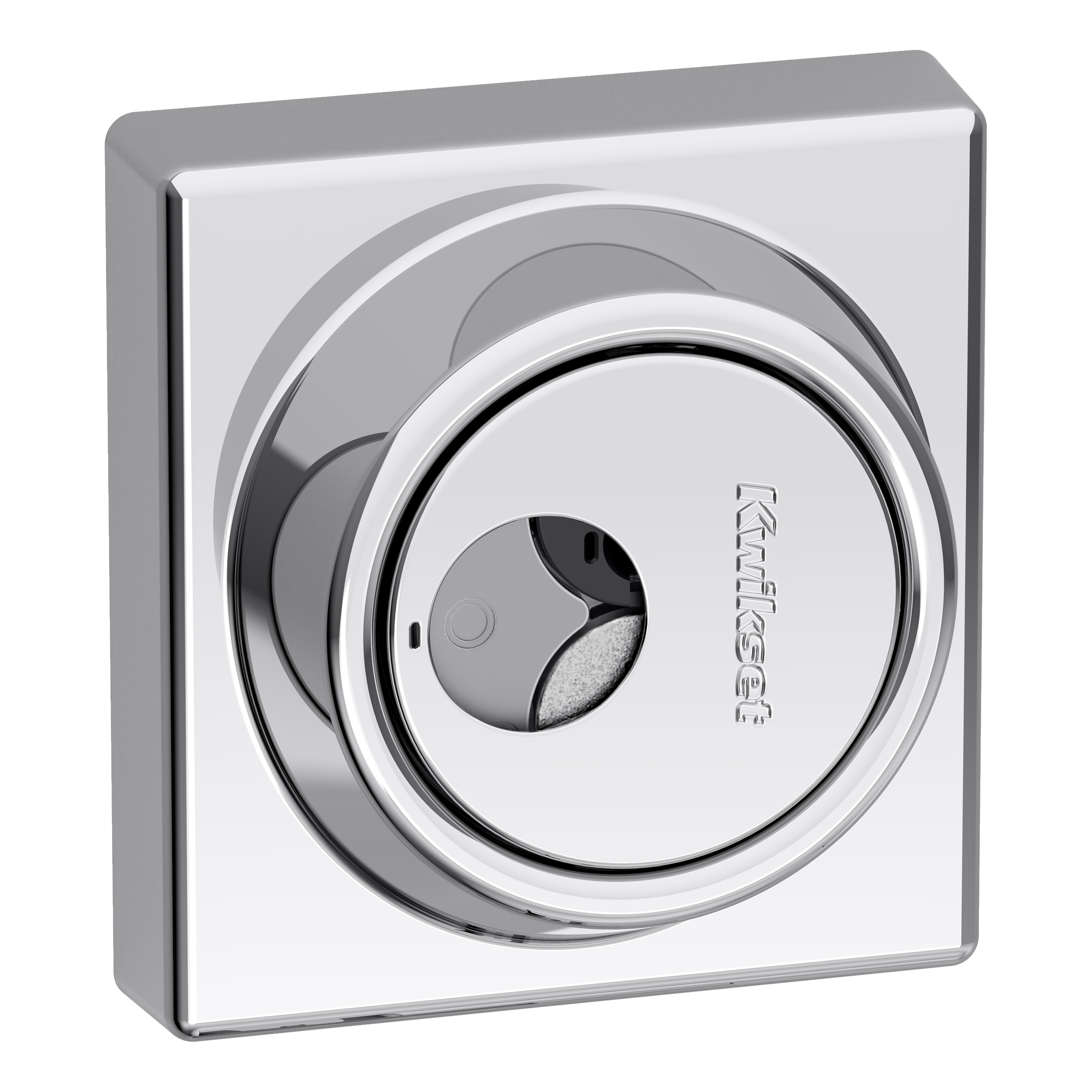

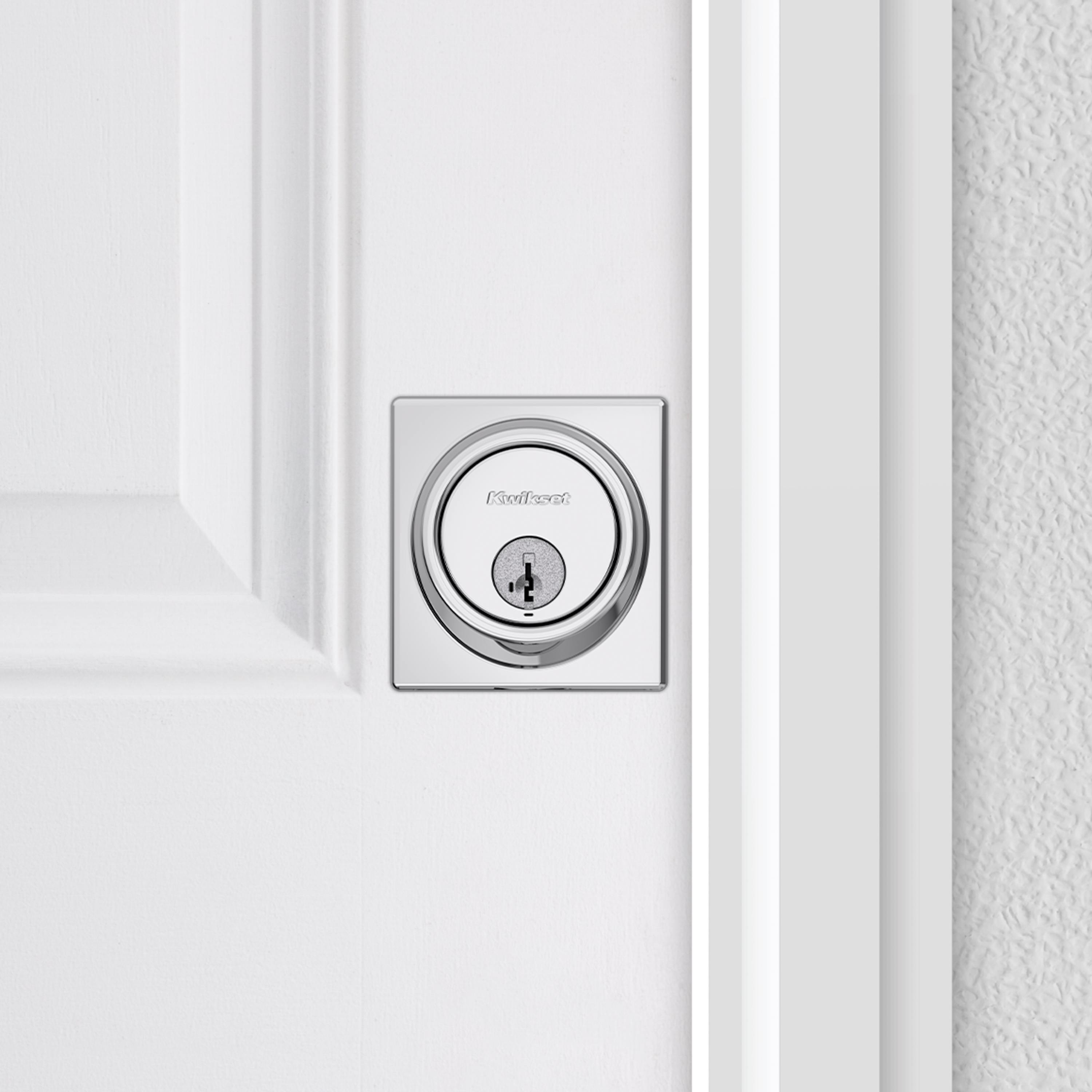

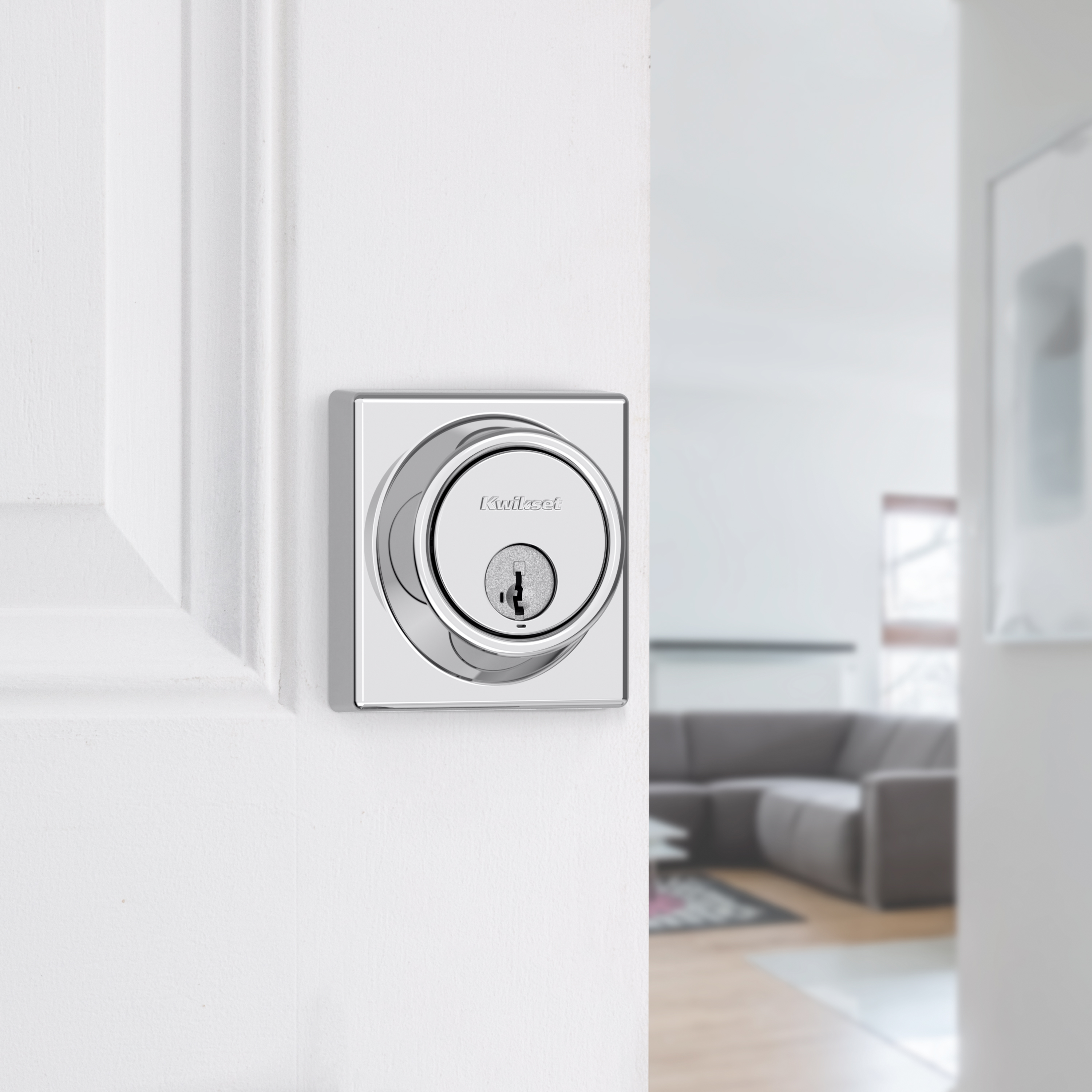

816 Contemporary Key Control Deadbolt, Keyed One Side, featuring SmartKey Security™ in Polished Chrome
816 SQT 26 SMT RCAL RCS
Vignette
Vignette
Vignette
Vignette
Combined
Combined
Enhanced Gallery
Enhanced Gallery
Clipped
Clipped
Clipped
Clipped
Clipped
Clipped
Clipped
Clipped
Clipped
Clipped
Clipped
Clipped

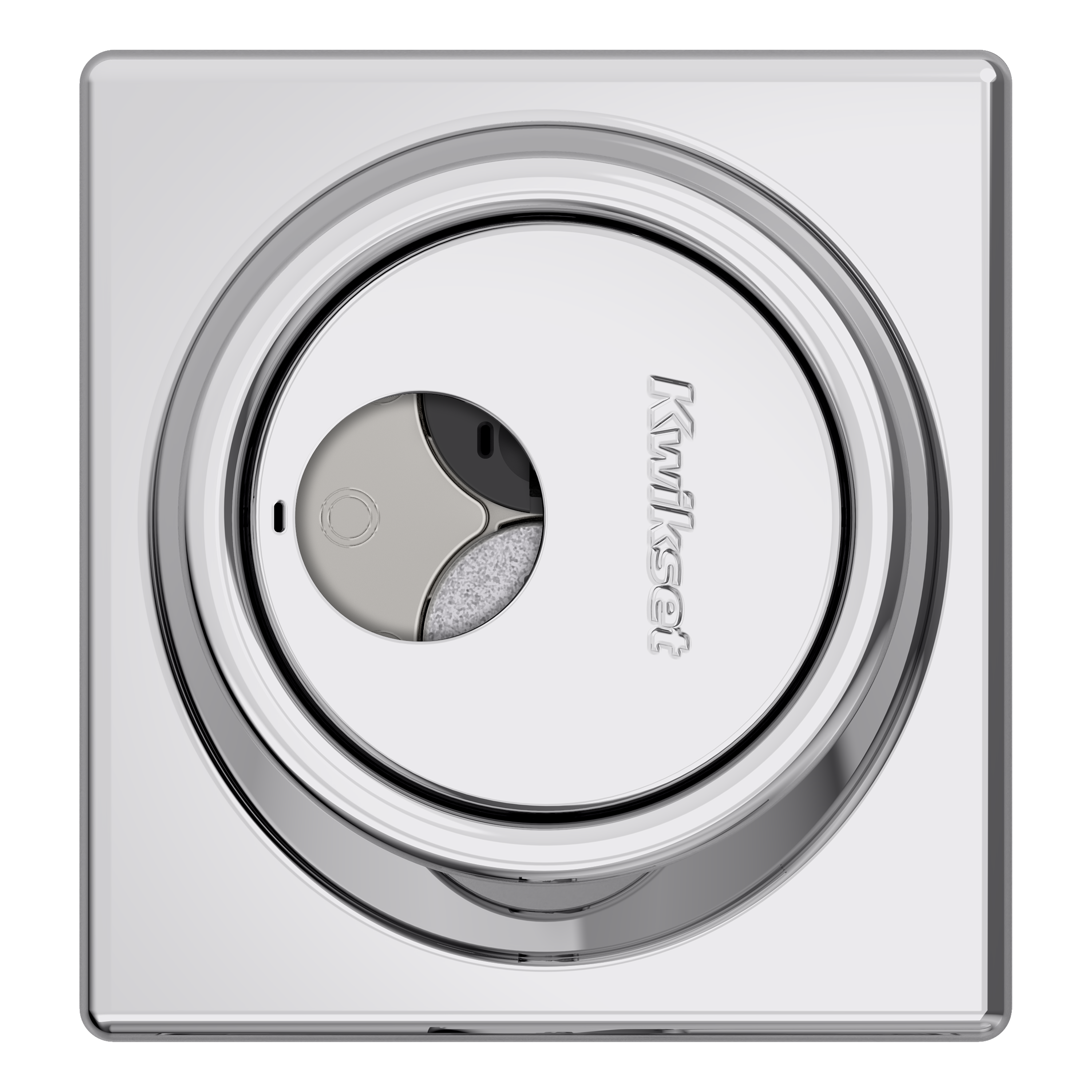

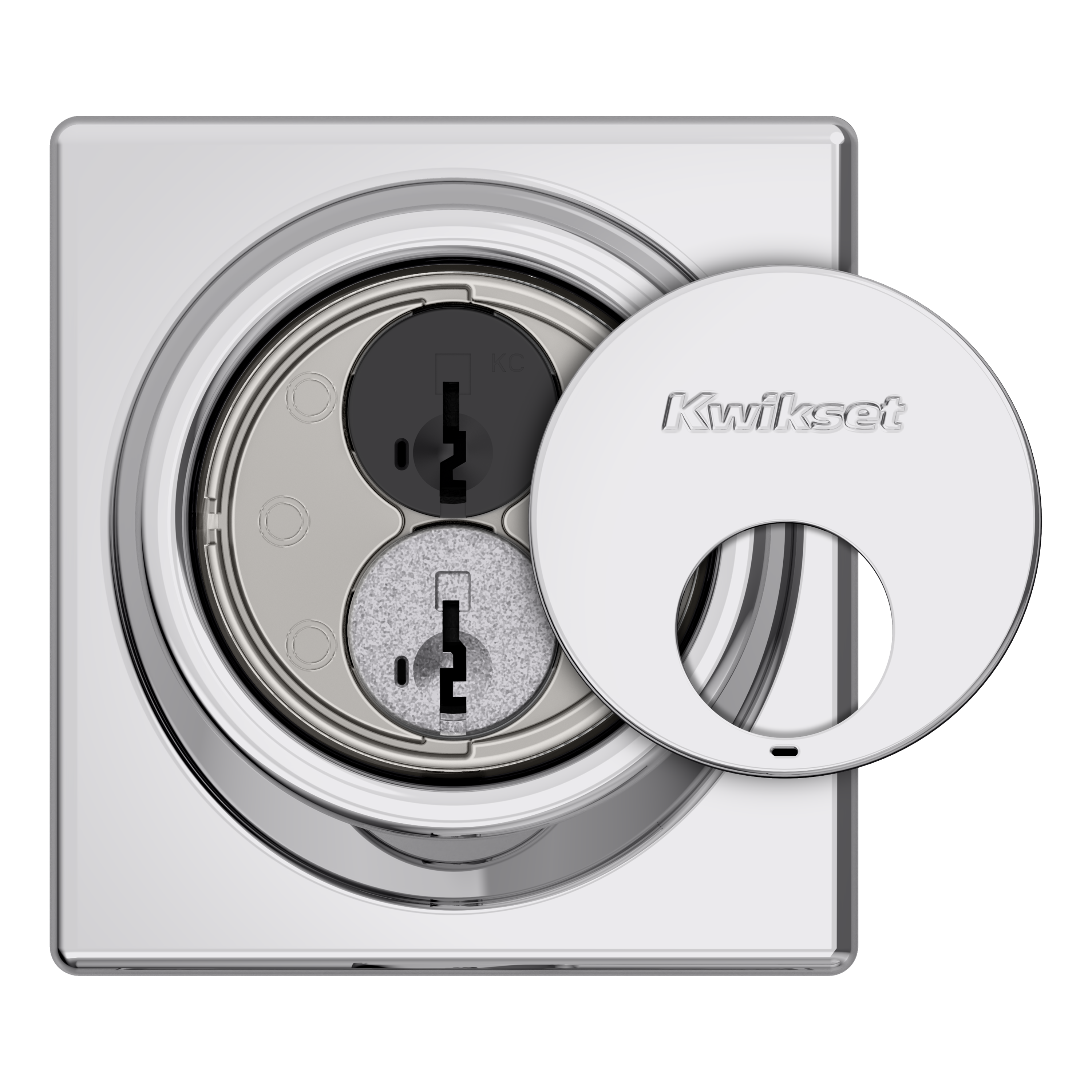

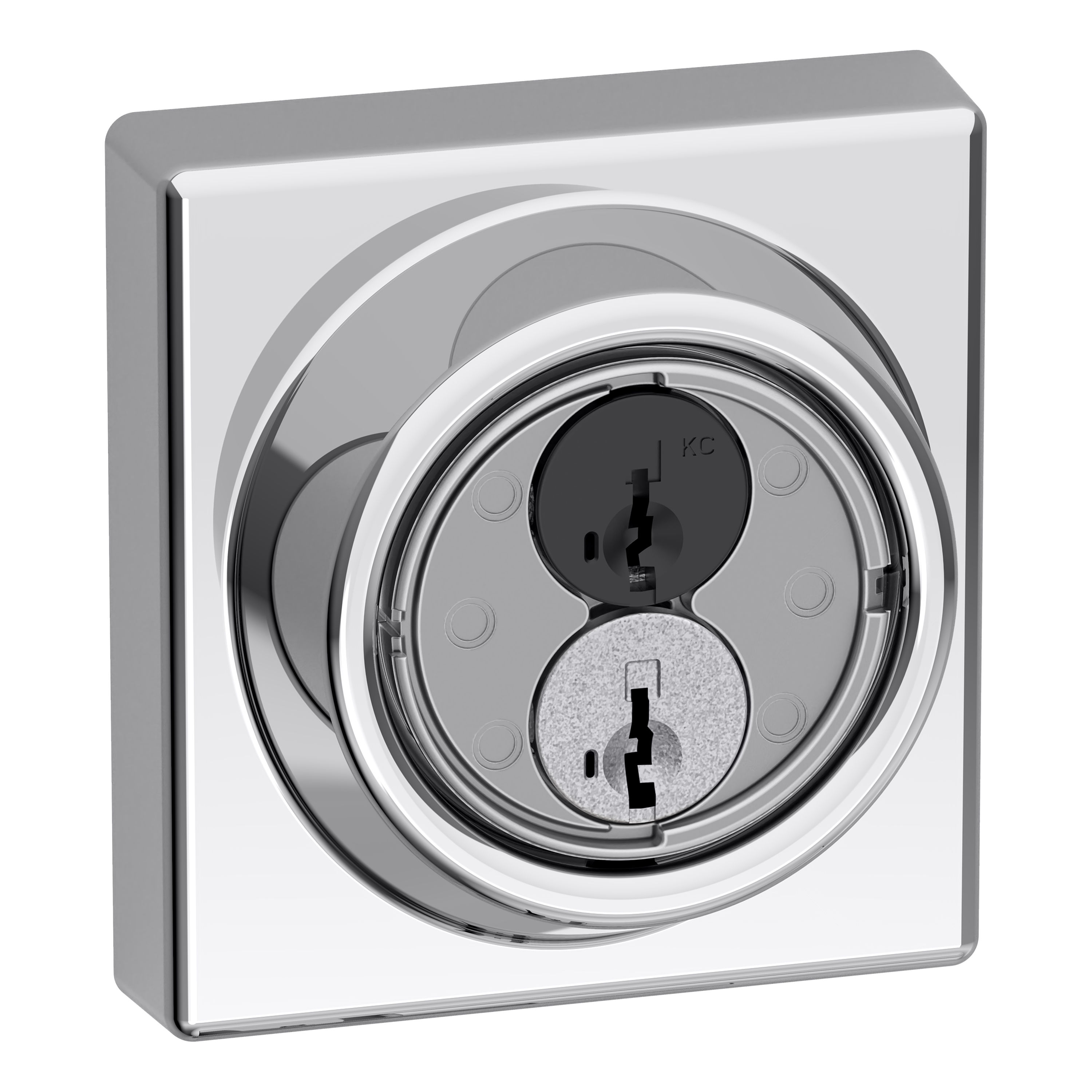

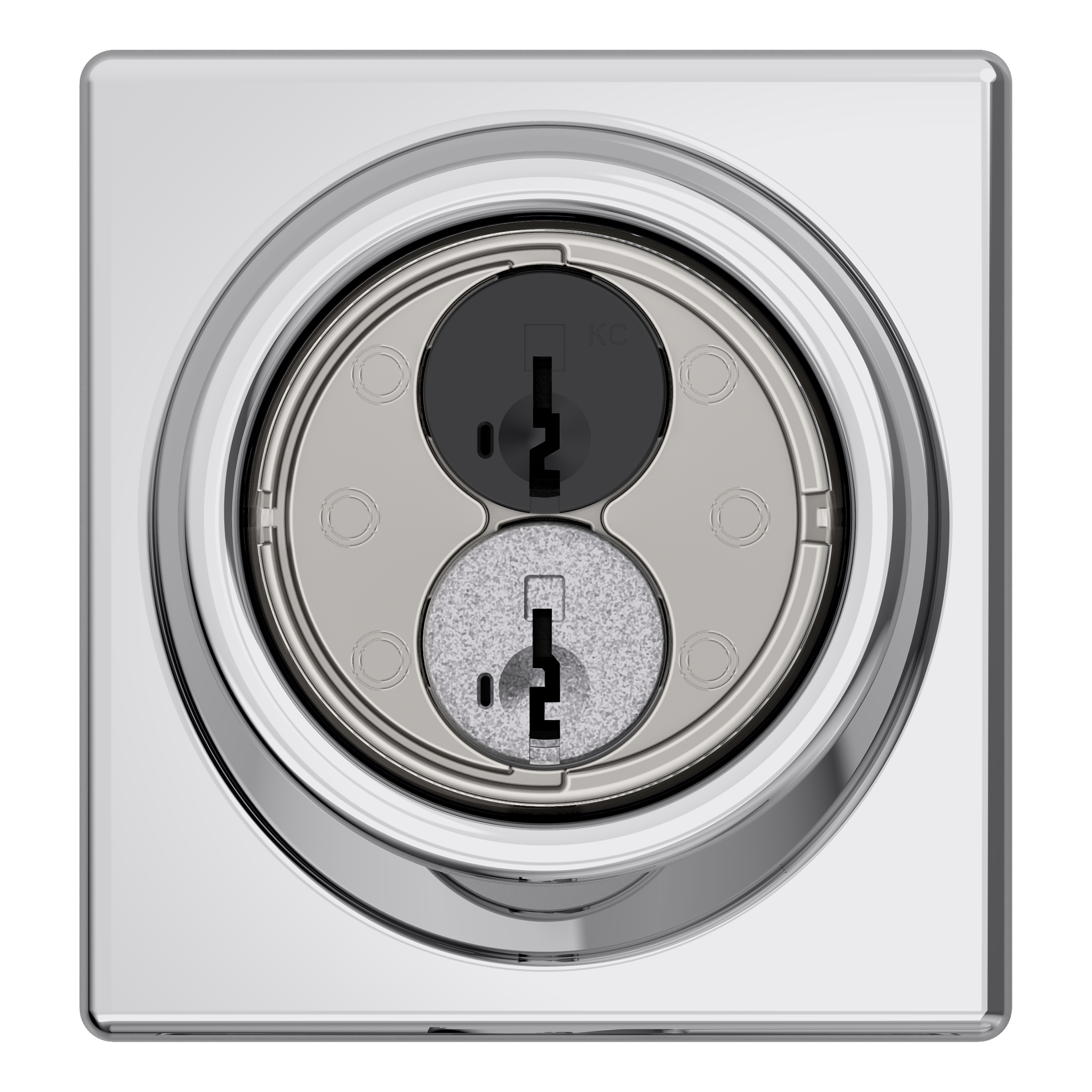

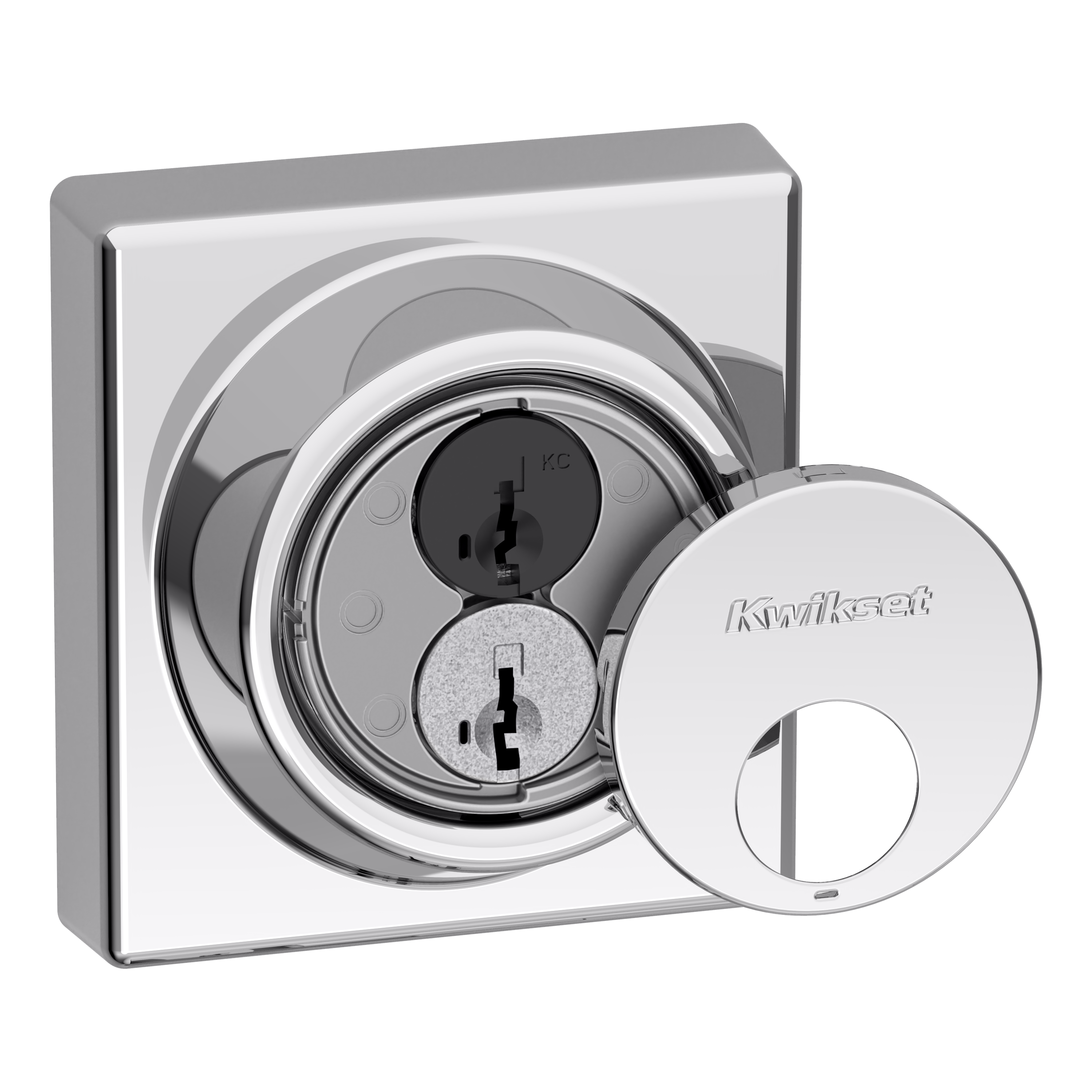

Brand Kwikset Series Signature Series Sales Status OBSOLETE MFG Pro # 98160-017 Desc 1 816 SQT 26 SMT RCAL RCS Desc 2 KC IN BOX UPC 883351782340 Family 816/7 KeyControl Deadbolt Deadbolt Family Key Control Function Single Cylinder Finish Polished Chrome Type Deadbolt ANSI Grade Grade 2 Hardware Type Residential Product Description Step up to designer styles and superior security with Kwikset Signature Series products. The Key Control Deadbolt is perfect for multi-family dwellings, student housing, assisted living & rental properties. Kwikset’s Key Control Deadbolt, featuring SmartKey® Re-key Technology, is a revolutionary cost and time-saving alternative to master keying. With the first and only two-cylinder Key Control Deadbolt, either cylinder can be re-keyed in seconds, without removing the lock from the door. Retain your one-key access to all units and gain more flexible key management, all while saving time and money. This single cylinder deadbolt is operated by a key on the outside or a thumb turn on the inside. Features - Designer style and superior security with this Kwikset Signature Series™ product
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

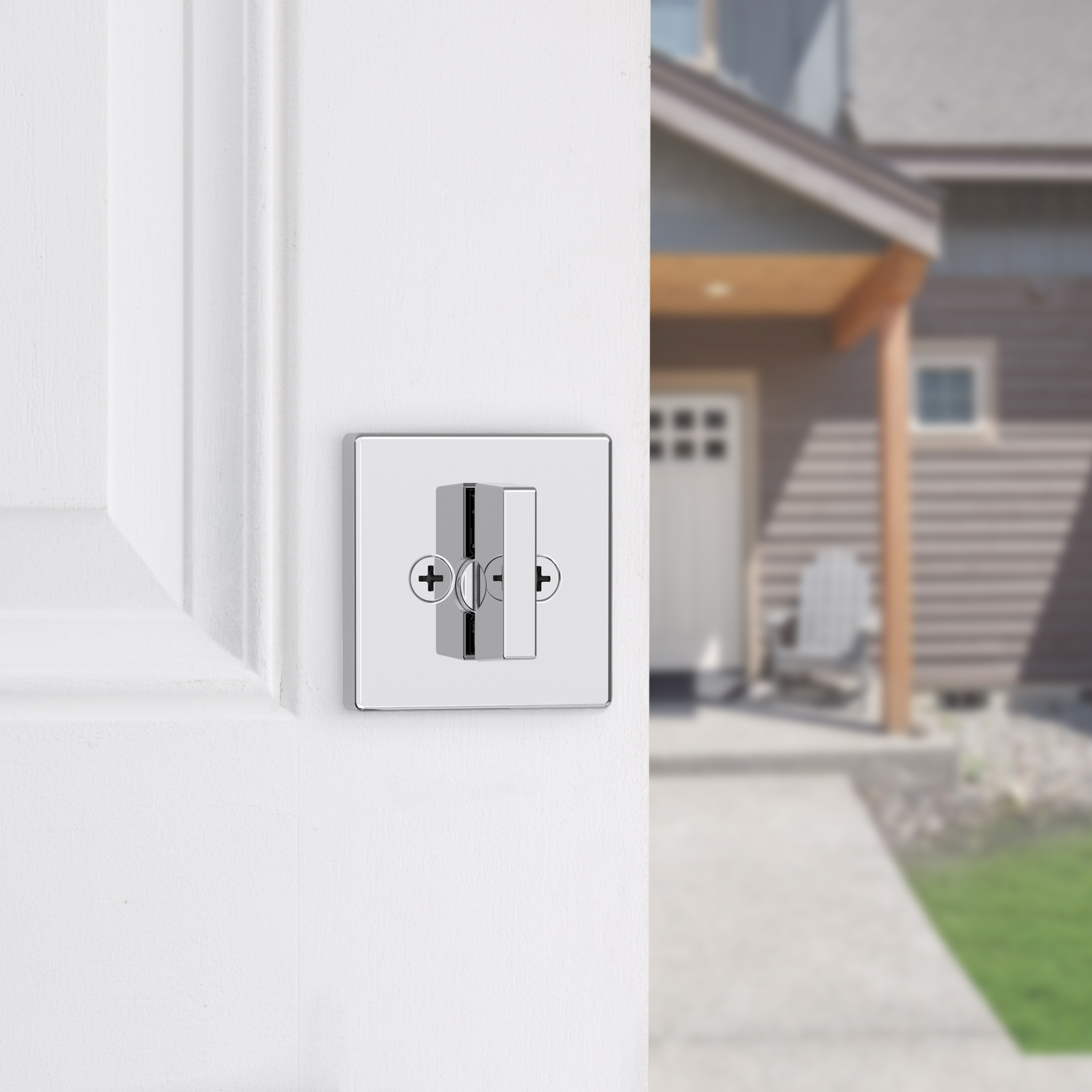

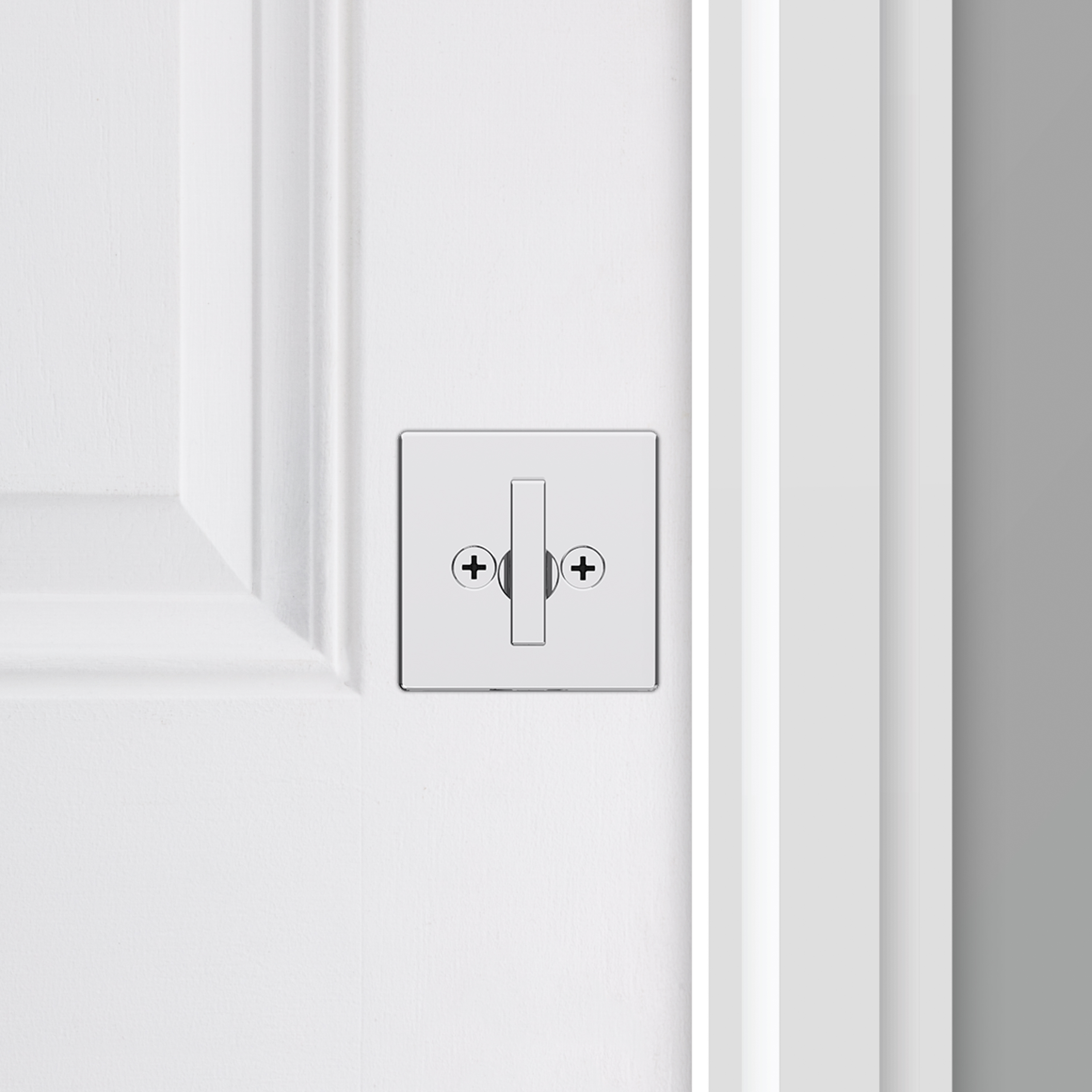

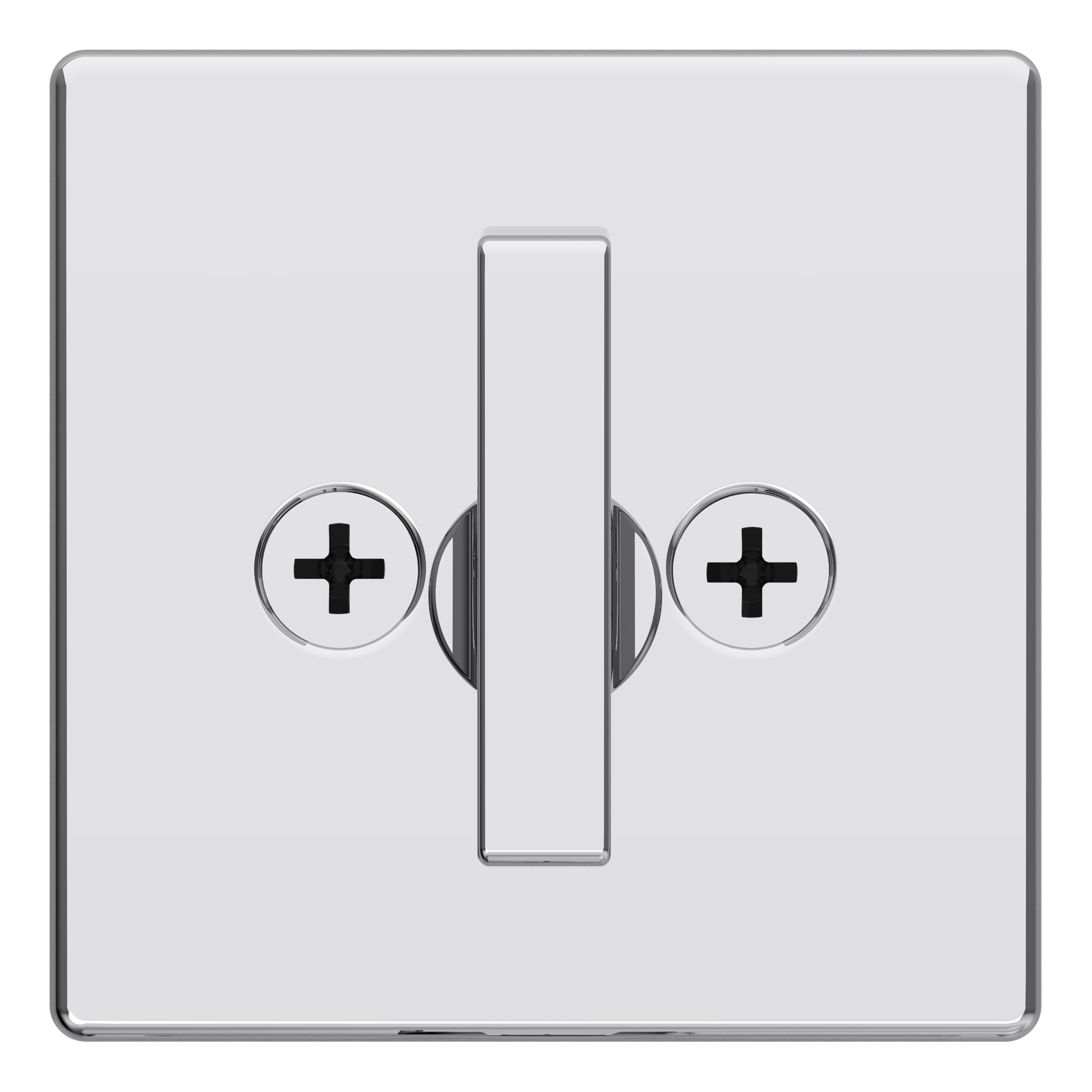

- Deadbolt operated by key outside and thumb turn inside
- Comes with 2 keys
- Deadbolt Latch has round corner faceplate
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 inch deadbolt throw

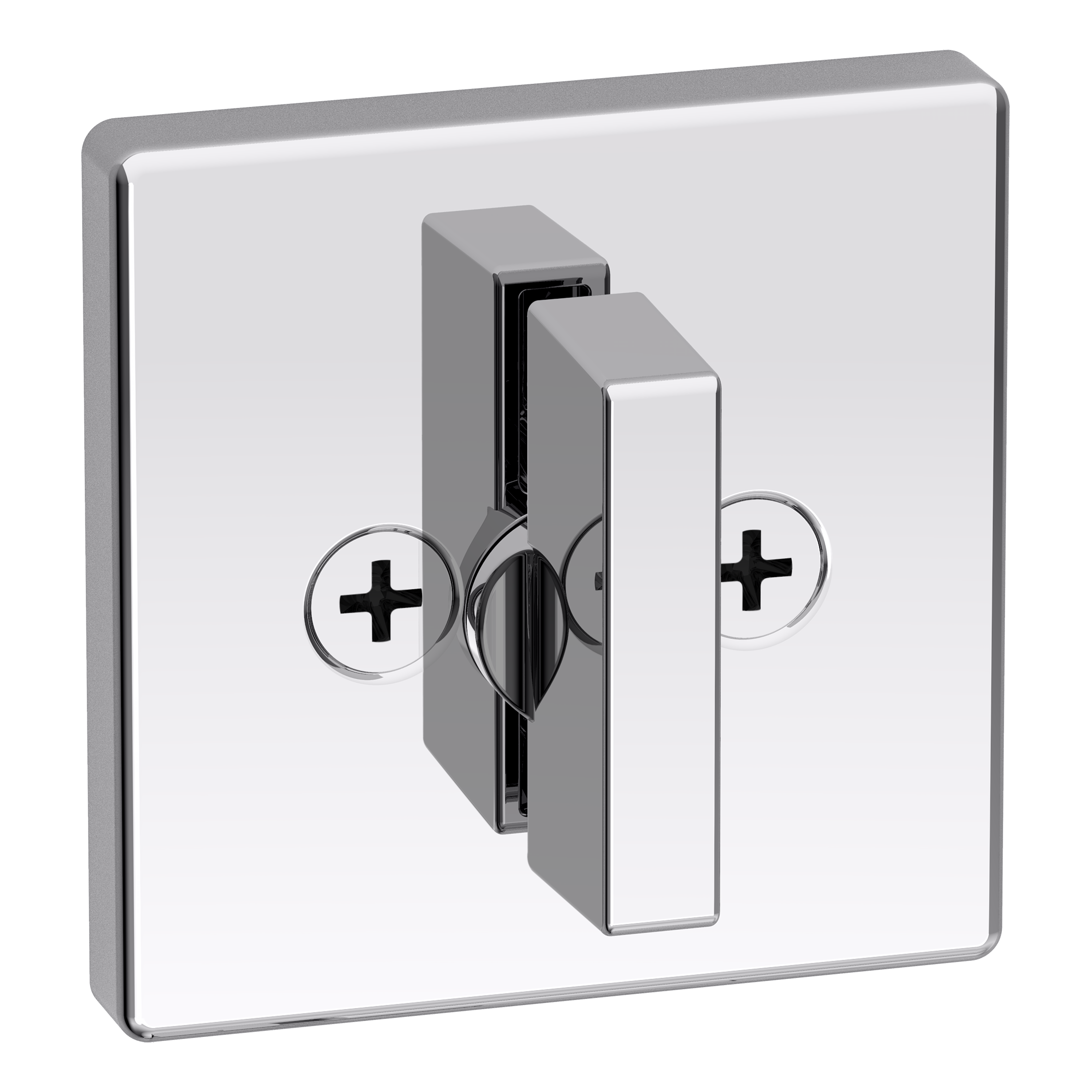

- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Assembled Height 3 Assembled Length 1-9/32 Assembled Width 2-13/16 Projection 1-9/32 Style Contemporary Deadbolt Throw Length 1 in. Cross Bore 2-1/8" Latch Type Round Corner Adjustable Latch Strike Code Default Entry Has SmartKey Yes Entry # Of Keys 2
