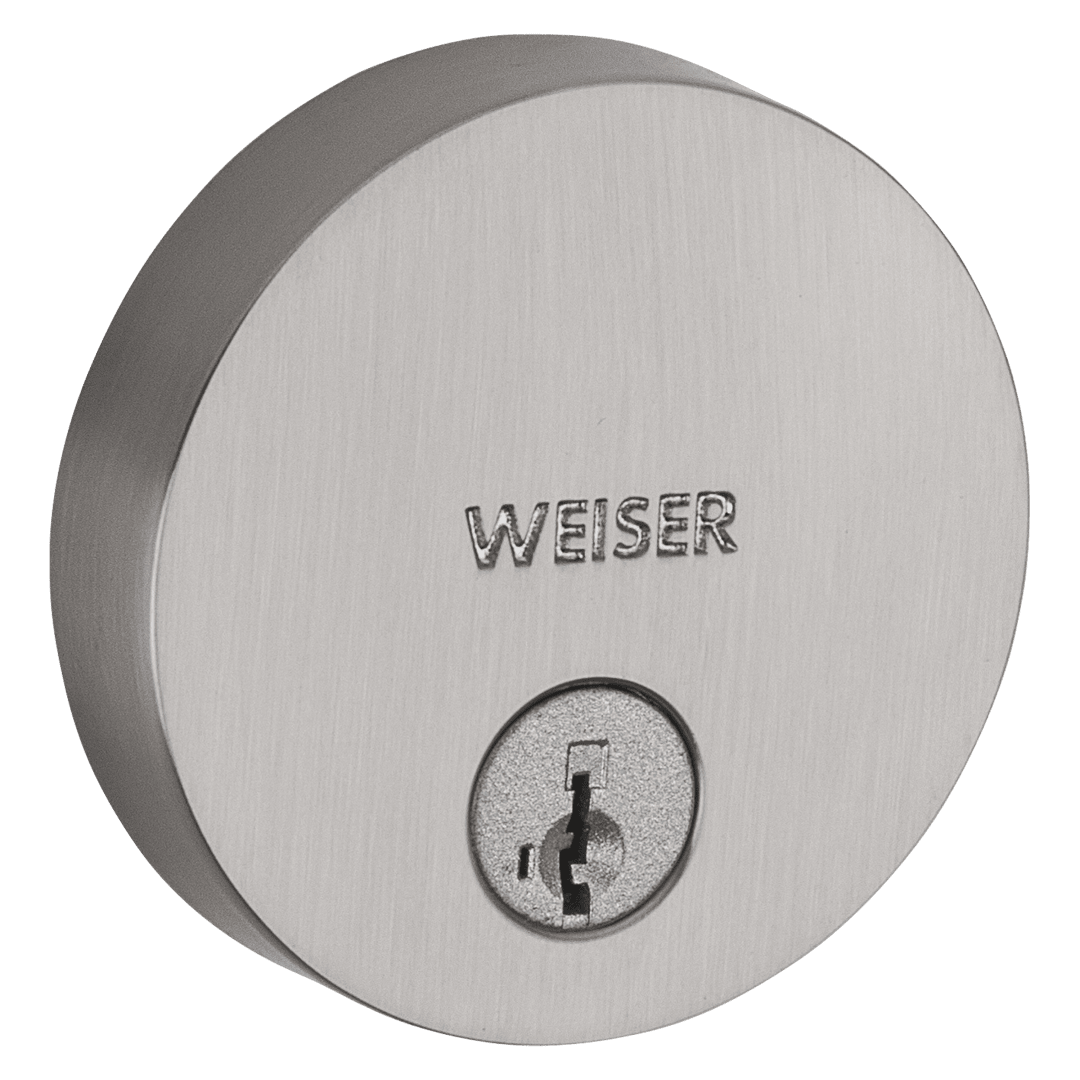

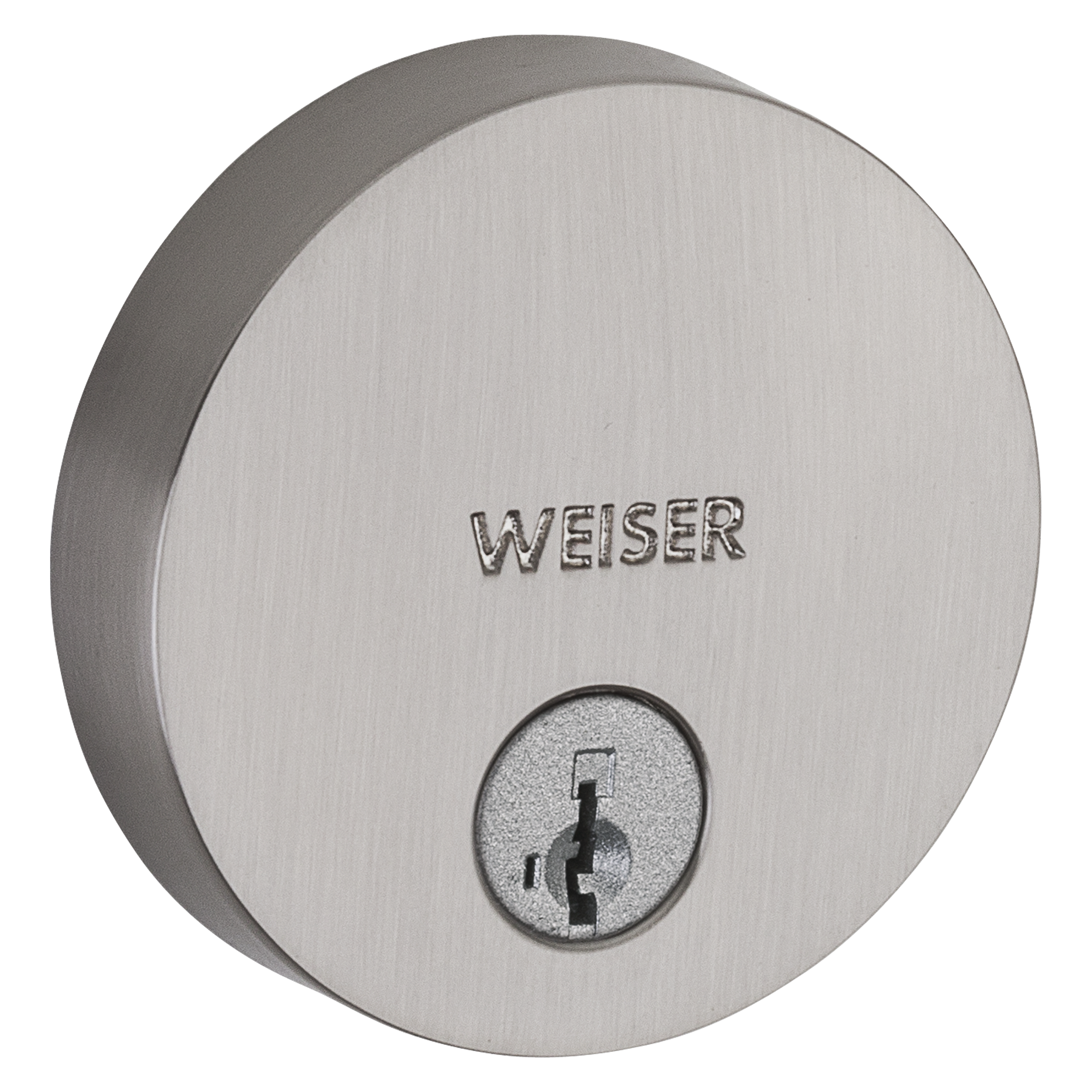

| Full Product Name | GD1471 Uptown Single Cylinder Deadbolt featuring SmartKey Security™ in Satin Nickel |
|---|
| Weiser Family | Uptown |
|---|
| Function | SINGLE CYLINDER |
|---|
| Product Type | Deadbolt |
|---|
| Web Description | With Weiser® you can blend simplicity with elegance. Whether you're looking for traditional, transitional or contemporary style, our selection and finishes will make it easy to find the right accent for your home. This single cylinder deadbolt can be locked or unlocked by a key on the outside, or the turn piece on the inside. The crisp, clean appearance of the Satin Nickel finish adds to the overall look of the product and brings a modern feel. |
|---|
| Bullets | - For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey® re-key technology; re-key the lock yourself in seconds in 3 easy steps
- Low profile 1/2 in. exterior depth for a sleek, modern look
- Features an adjustable latch to fit all standard door preparations

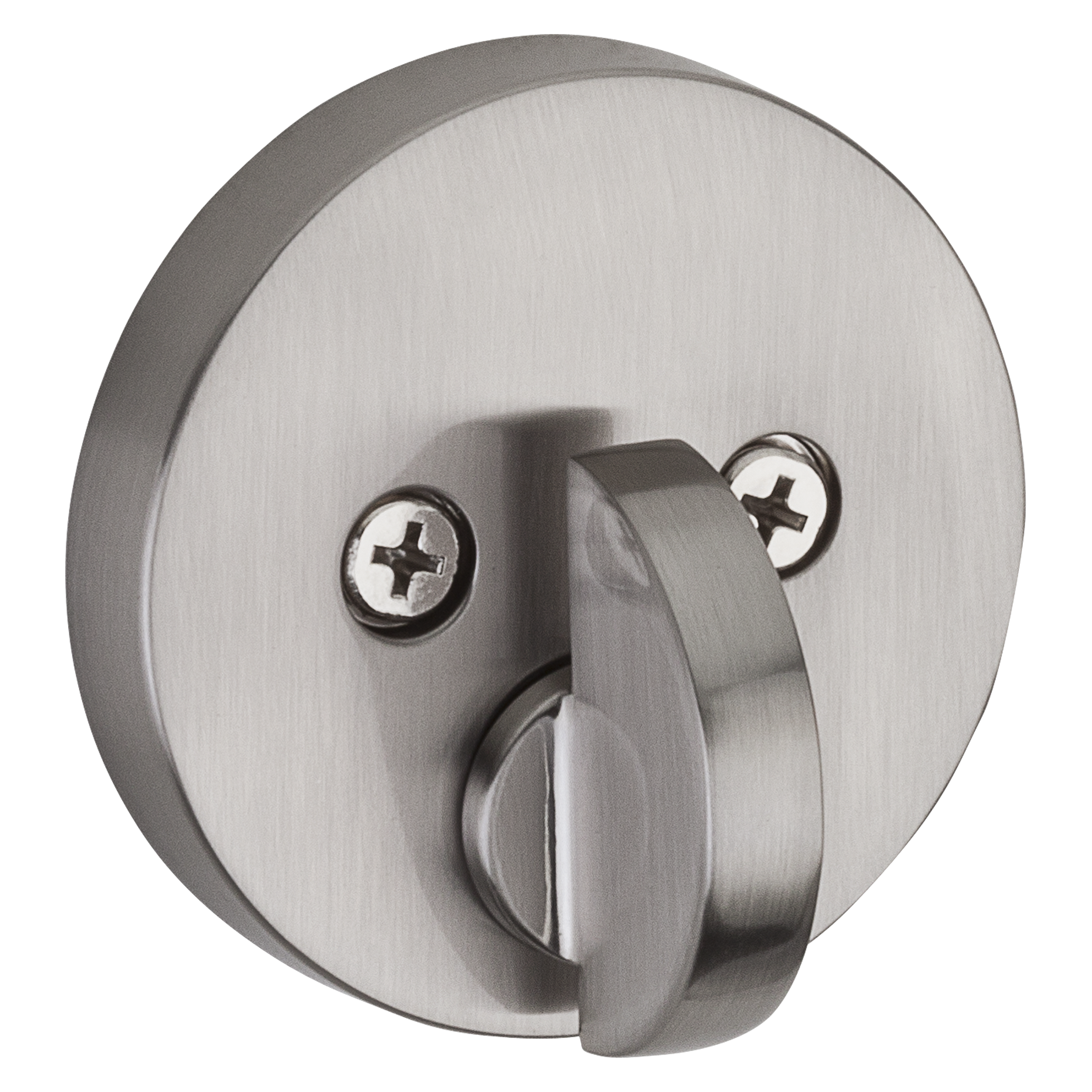

- Locking mechanism functions with turn piece on the interior of the lock
- 1 in. deadbolt throw
- ANSI/BHMA grade 1 certified
- Comes with 2 keys
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Retail Packaging Only - Available Online/ In-store
|
|---|
| Style | Contemporary |
|---|
| ANSI Grade | Grade 2 |
|---|
| ADA Compliant | Interior Turn Piece Only |
|---|
| Cross Bore | 2-1/8" |
|---|
| Latch Backset Size | Adjustable |
|---|
| Max Door Thickness | 1-3/4 |
|---|
| Min Door Thickness | 1-3/8 |
|---|
| UPC | 059184404258 |
|---|
| Case Qty | 4 |
|---|
| Each Shipping Depth | 18.11 |
|---|
| Each Shipping Height | 8.346 |
|---|
| Each Shipping Weight | 1.819 |
|---|
| Each Shipping Width | 5.315 |
|---|
| Case Shipping Depth | 18.11 |
|---|
| Case Shipping Height | 8.27 |
|---|
| Case Shipping Weight | 7.9 |
|---|
| Case Shipping Width | 5.51 |
|---|
| Pallet Qty | 360 |
|---|
| Instruction Sheet | https://images.salsify.com/image/upload/s--fICkFnke--/ffrg93vnx256kp29zuhy.pdf |
|---|
| Installation Guide | https://images.salsify.com/image/upload/s--pF6DH6N7--/aqq84mugwpdmztgon1br.pdf |
|---|
