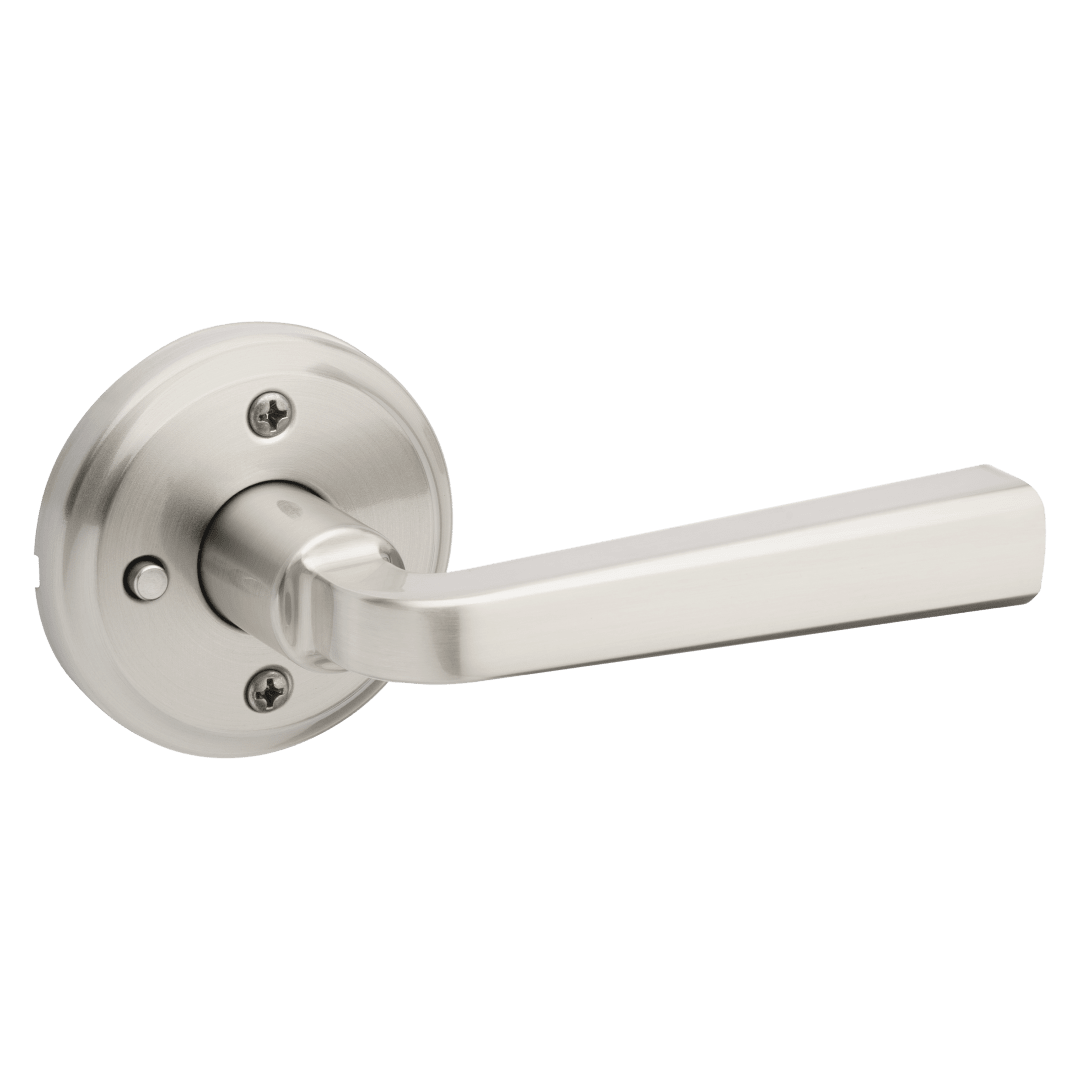

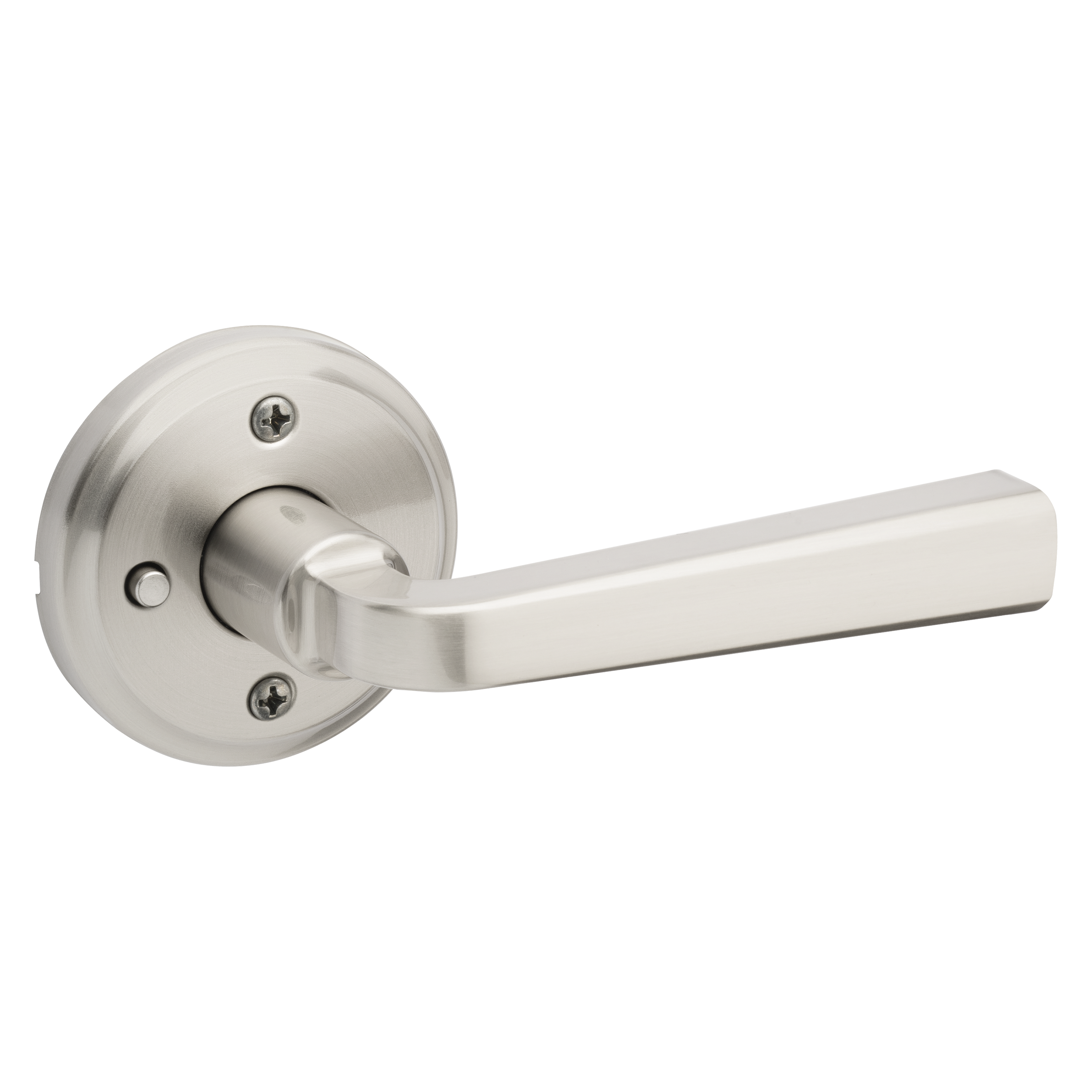

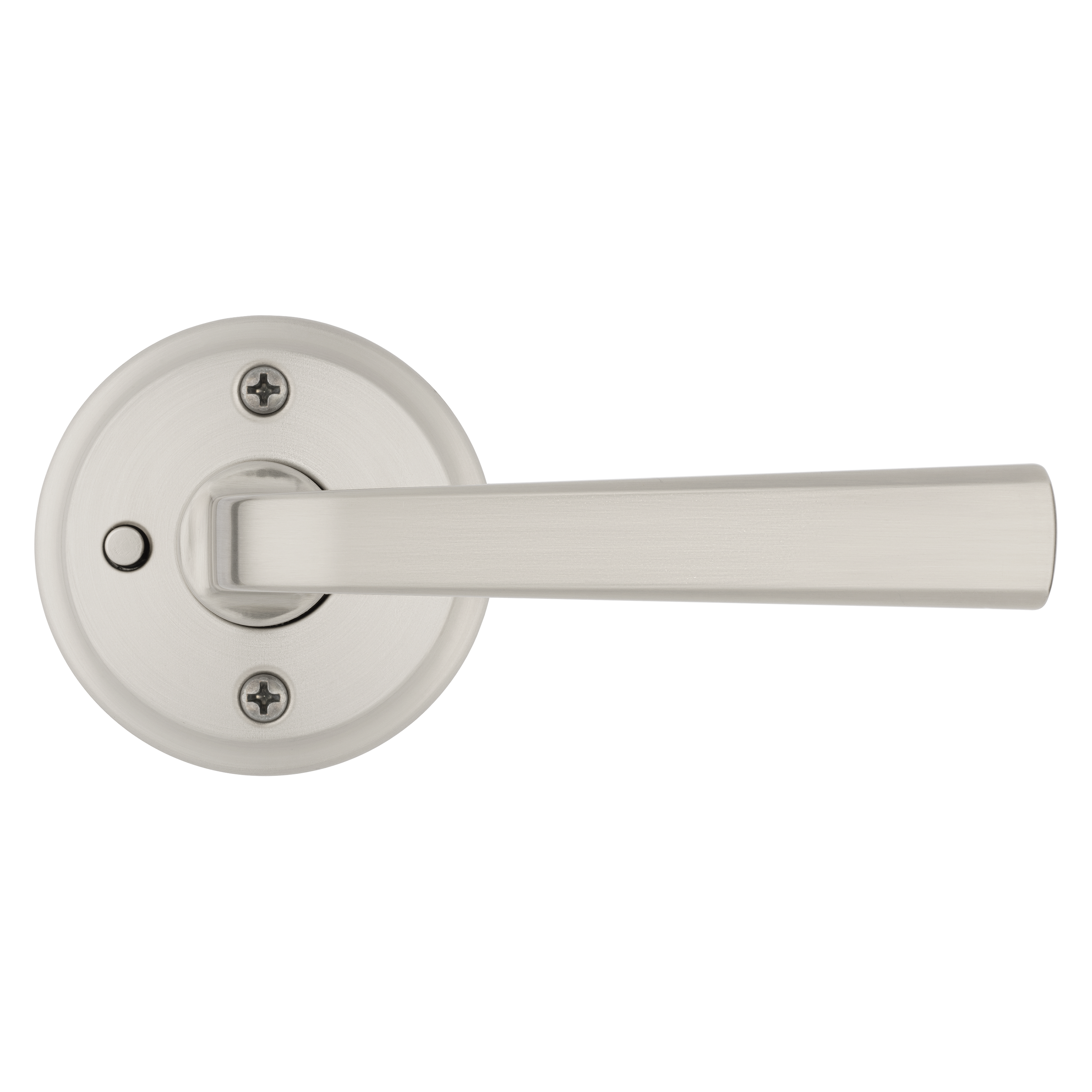

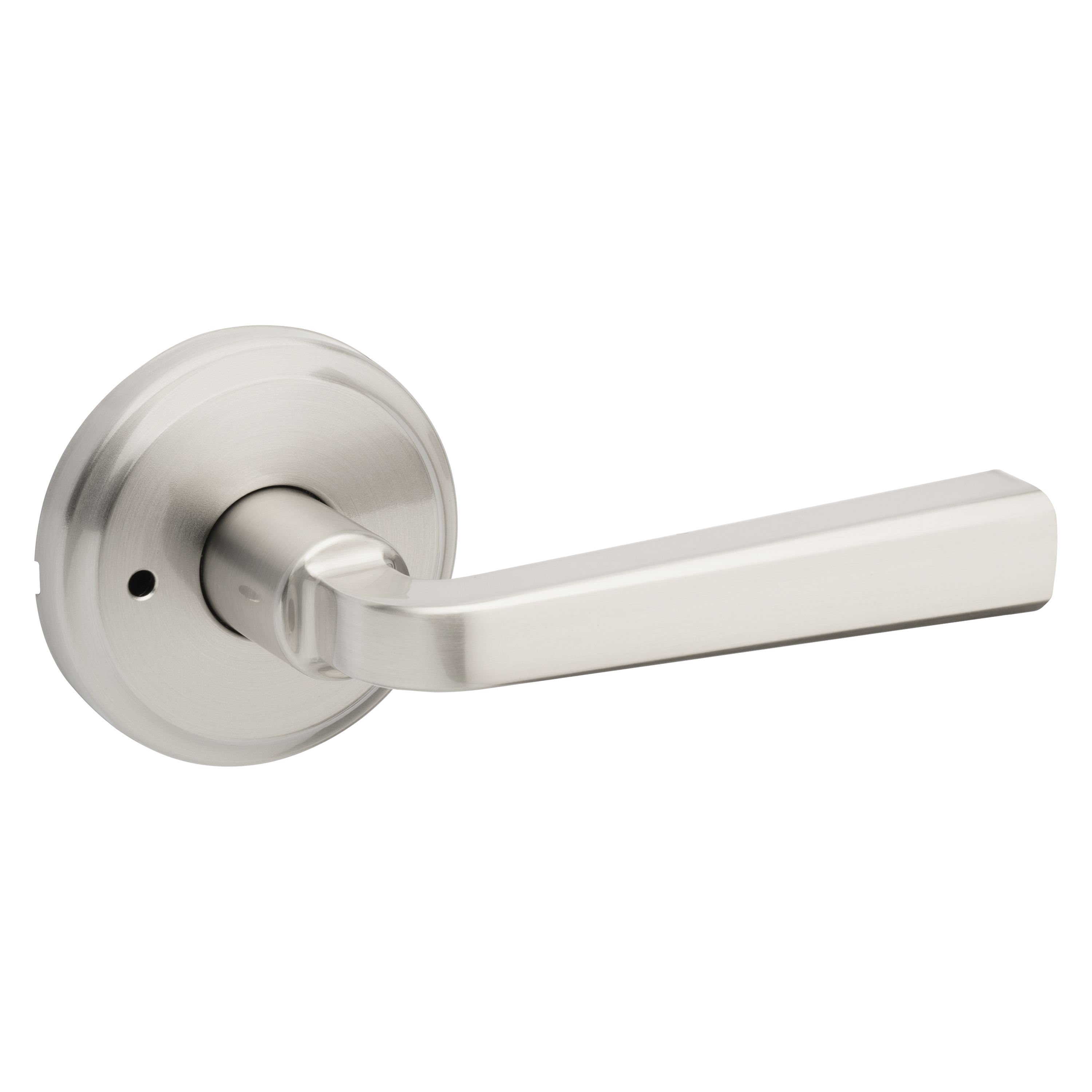

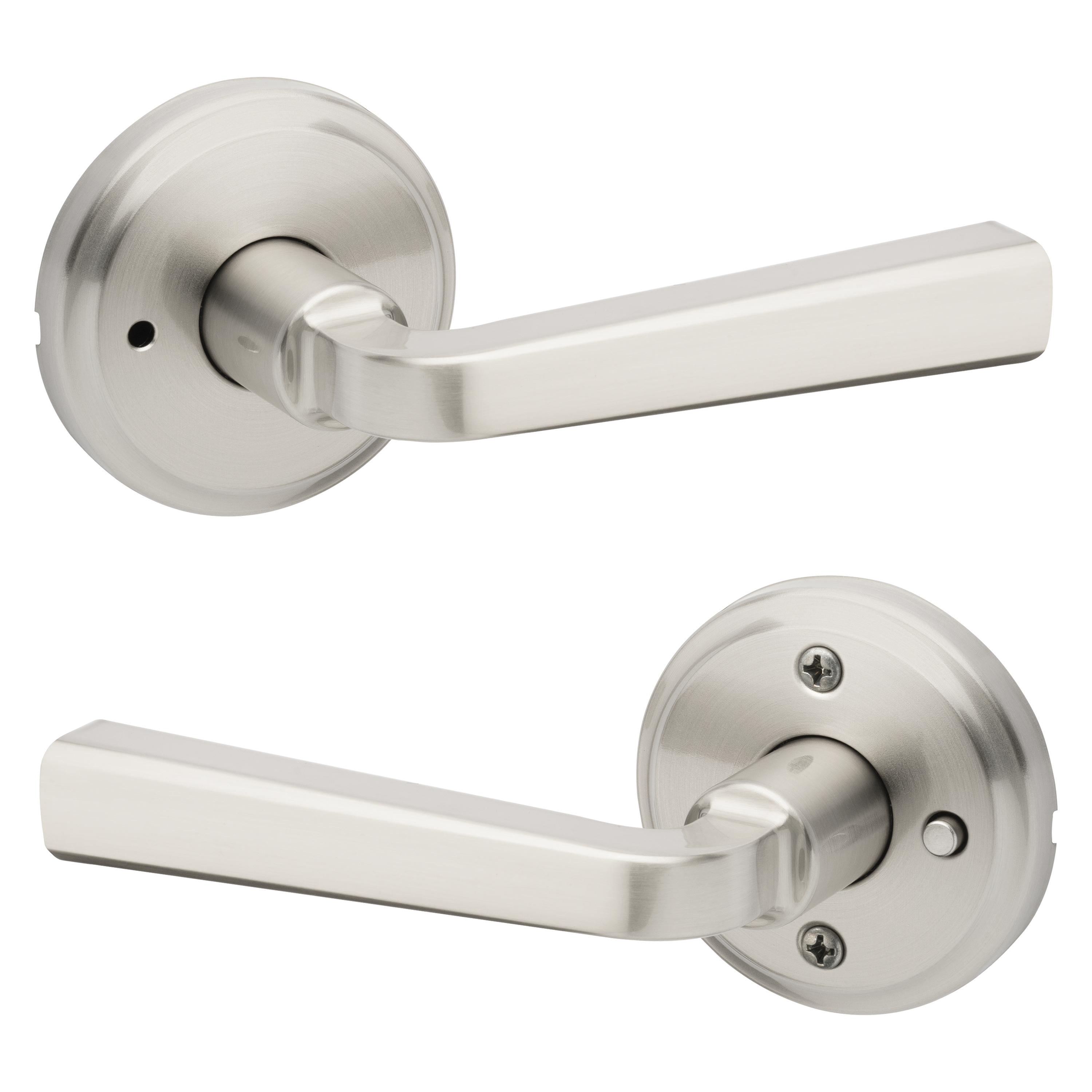

| Full Product Name | Trafford Bed/Bath Lever in Satin Nickel |
|---|
| Weiser Family | Trafford |
|---|
| Function | PRIVACY |
|---|
| Product Type | Lever |
|---|
| Web Description | Elevate your space with the timeless Trafford™ family. The unique soft curve adds a sophisticated touch to any home aesthetic, while the designer rosette imparts a warm and welcoming feel to your doors. Adorn your interior and exteriors with Trafford™ levers, and enjoy our highest level of security, easiest installation and peace of mind. |
|---|

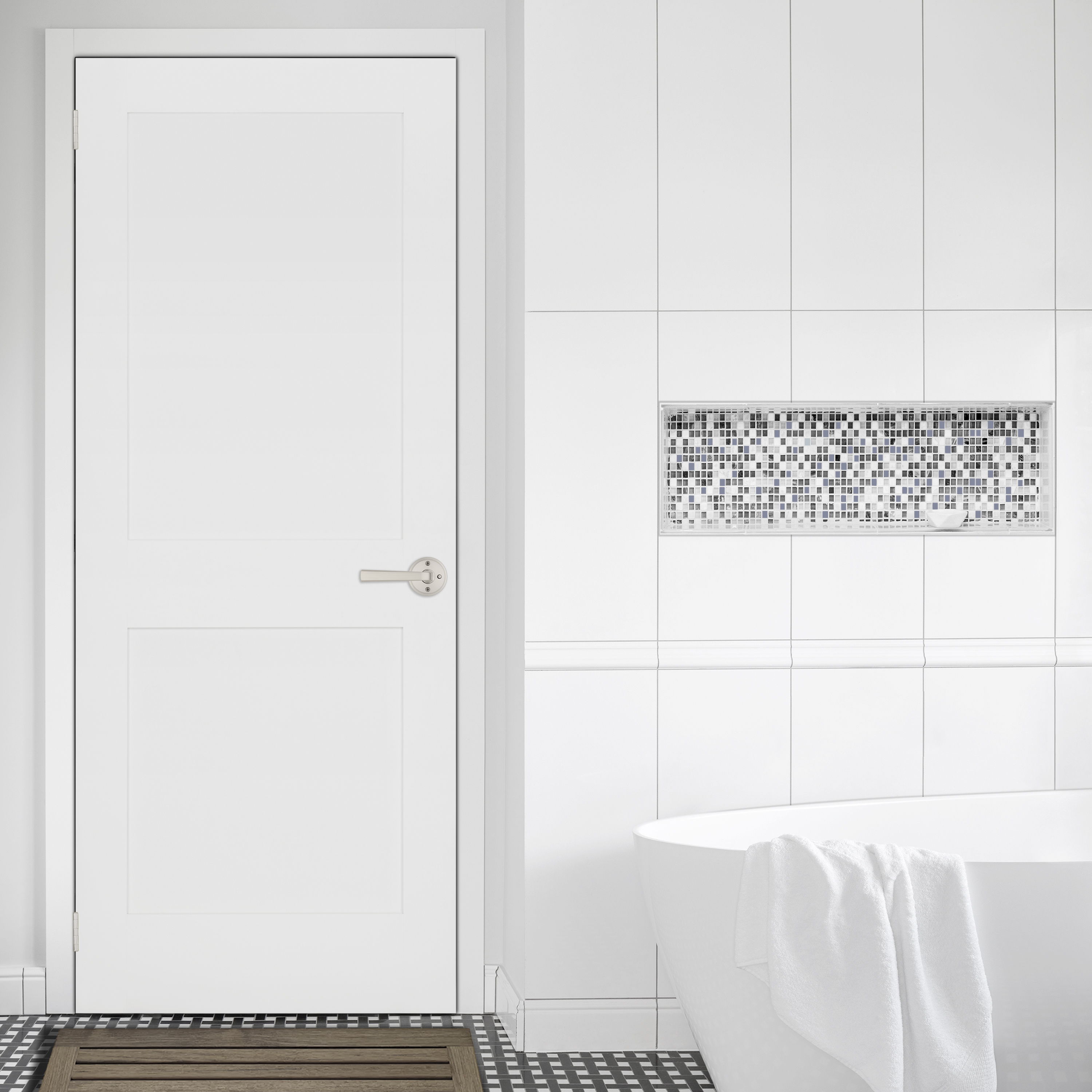

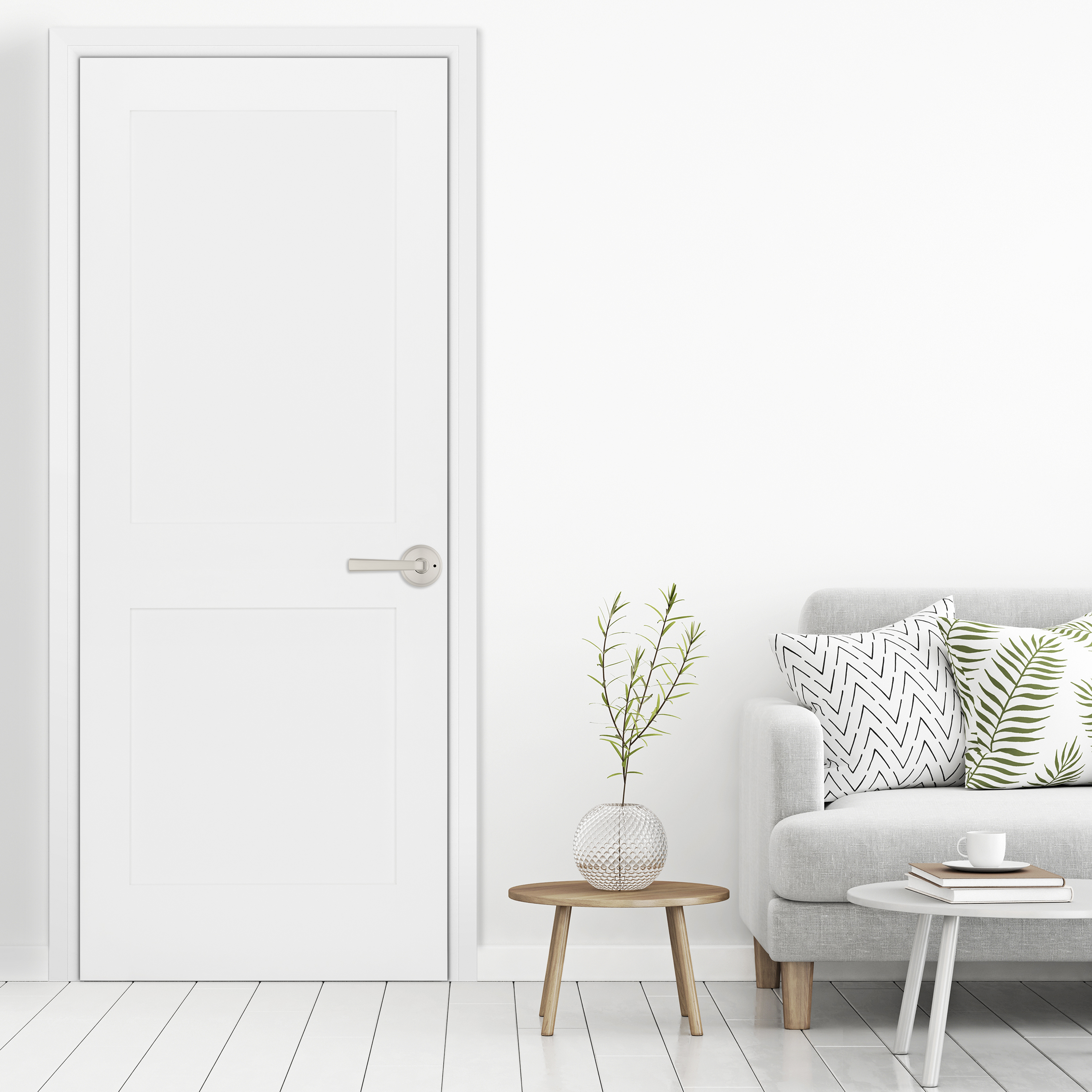

| Bullets | - For use on interior doors where a privacy locking function is required, such as a bedroom or bathroom

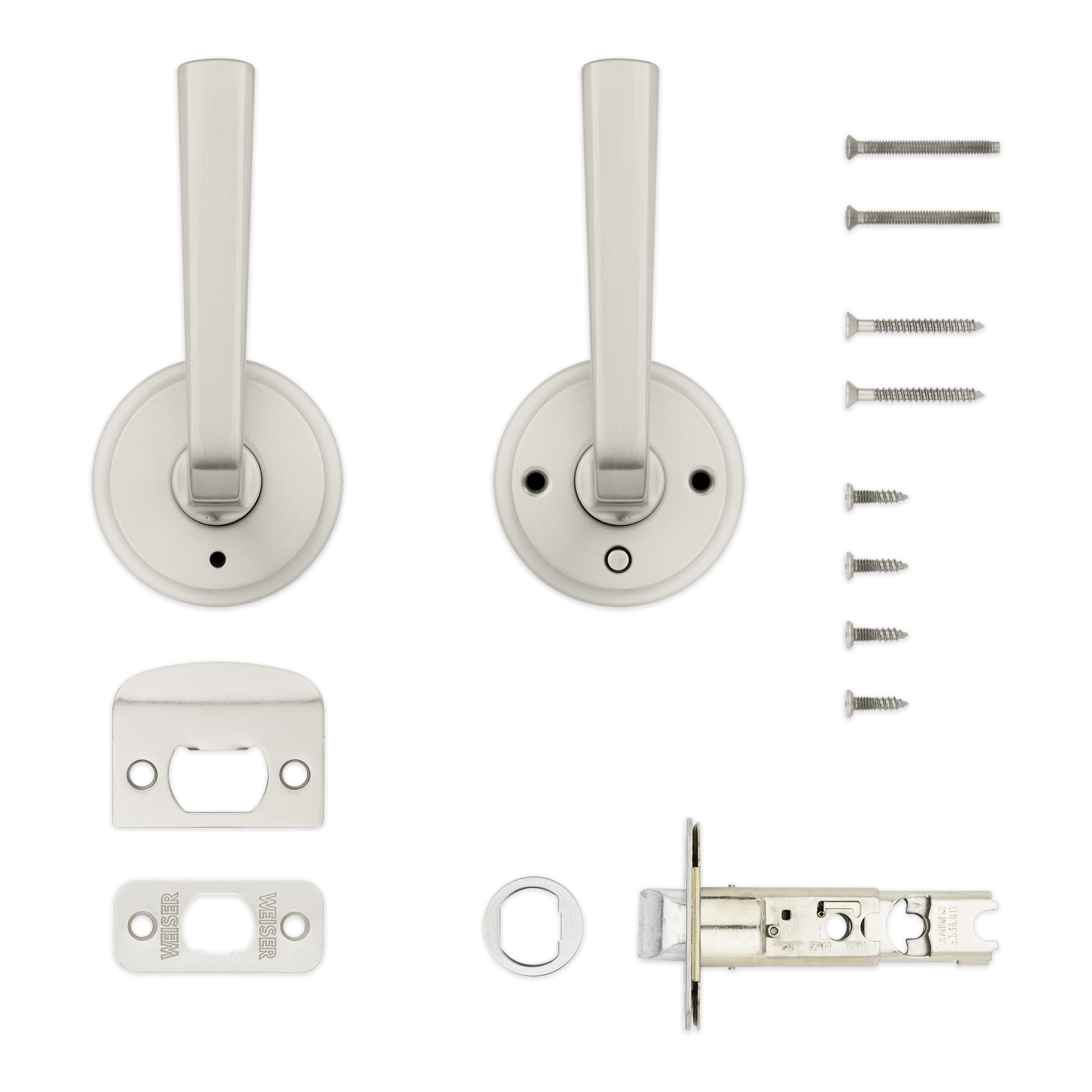

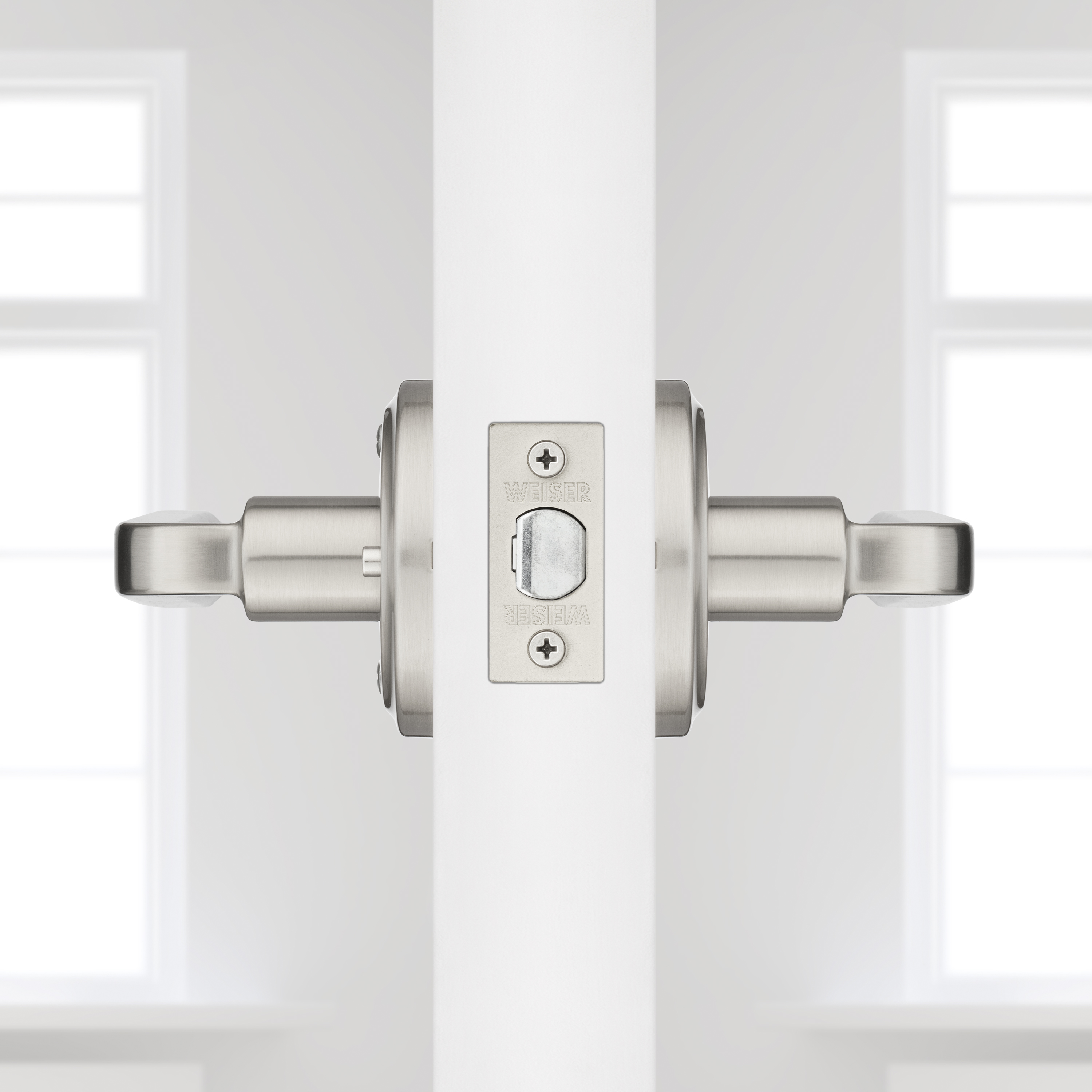

- Latch has 2 interchangeable faceplates; round corner and square corner
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

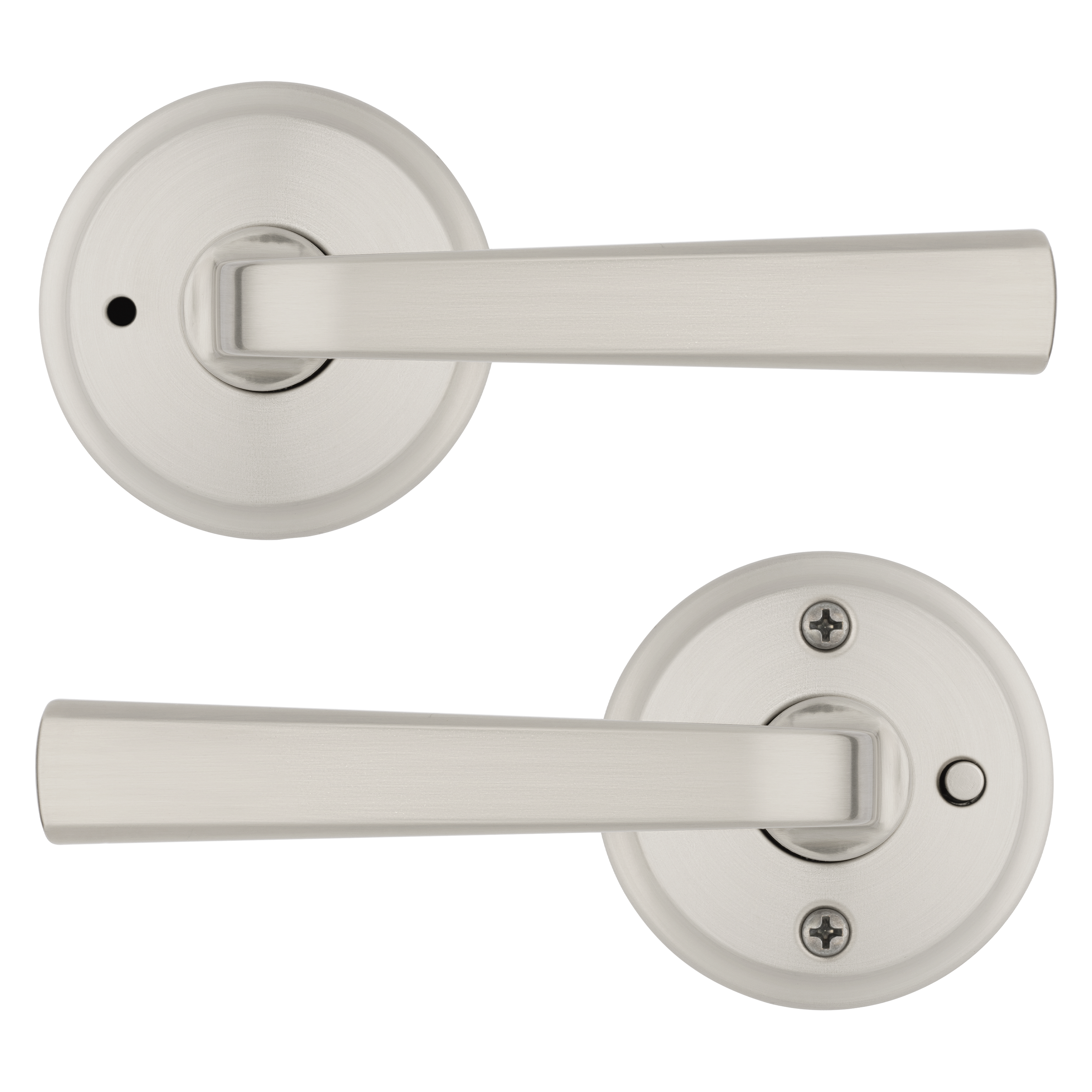

- Locking mechanism functions by pressing the push button on the interior of the lock
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Available in Retail and Wholesale Packaging
|
|---|
| Style | Traditional |
|---|
| ANSI Grade | Grade 2 |
|---|
| ADA Compliant | No |
|---|
| Cross Bore | 2-1/8" |
|---|
| Latch Backset Size | Adjustable |
|---|
| Max Door Thickness | 1-3/4 |
|---|
| Min Door Thickness | 1-3/8 |
|---|
| UPC | 059184476699 |
|---|
| Case Qty | 4 |
|---|
| Each Shipping Depth | 3.148 |
|---|
| Each Shipping Height | 9.329 |
|---|
| Each Shipping Weight | 1.782 |
|---|
| Each Shipping Width | 6.378 |
|---|
| Case Shipping Depth | 13.86 |
|---|
| Case Shipping Height | 9.92 |
|---|
| Case Shipping Weight | 7.774 |
|---|
| Case Shipping Width | 7.008 |
|---|
| Pallet Qty | 240 |
|---|
| Instruction Sheet | https://images.salsify.com/image/upload/s--jiUJhcWX--/uxc5foa6gwdoeqigybdk.pdf |
|---|
| Installation Guide | |
|---|
