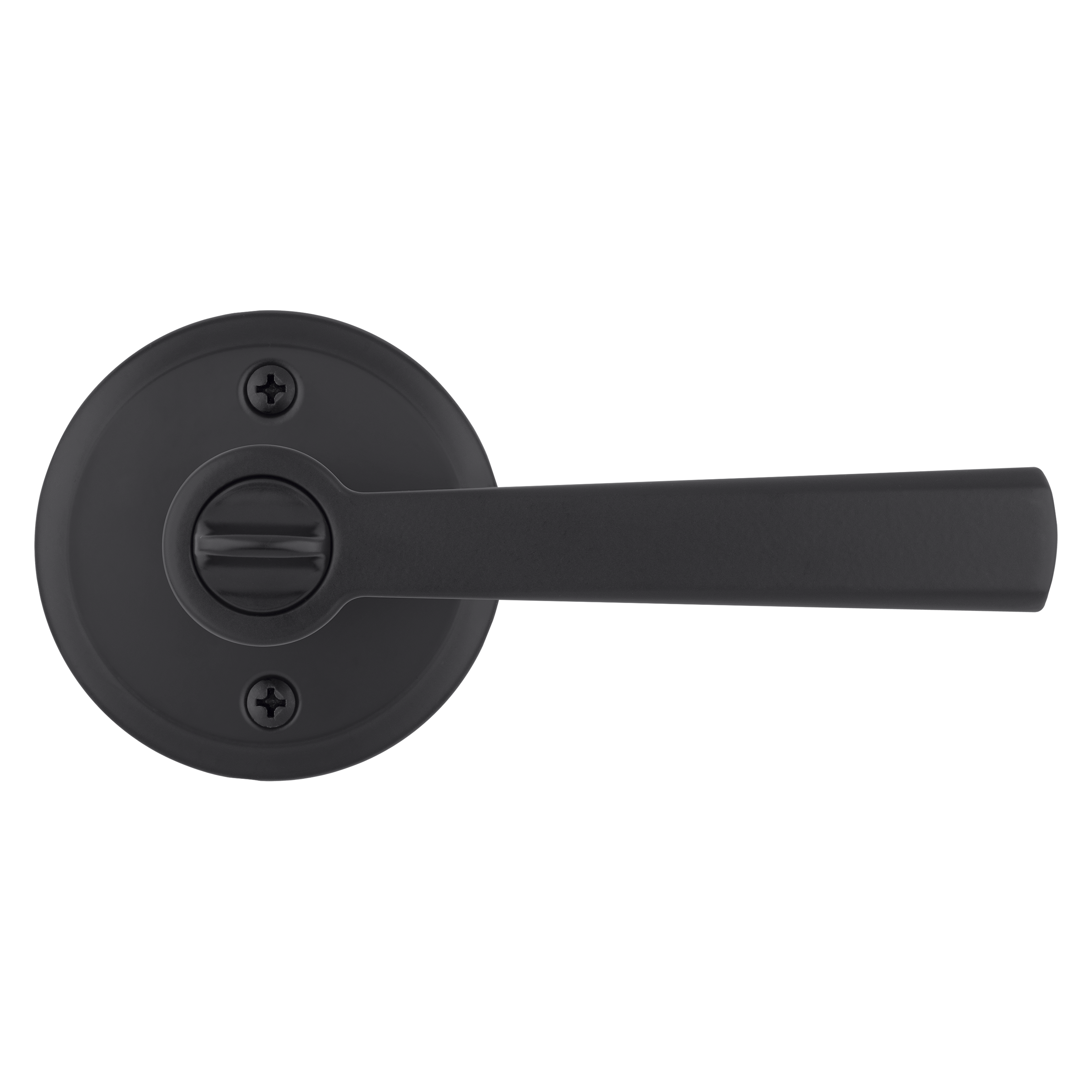

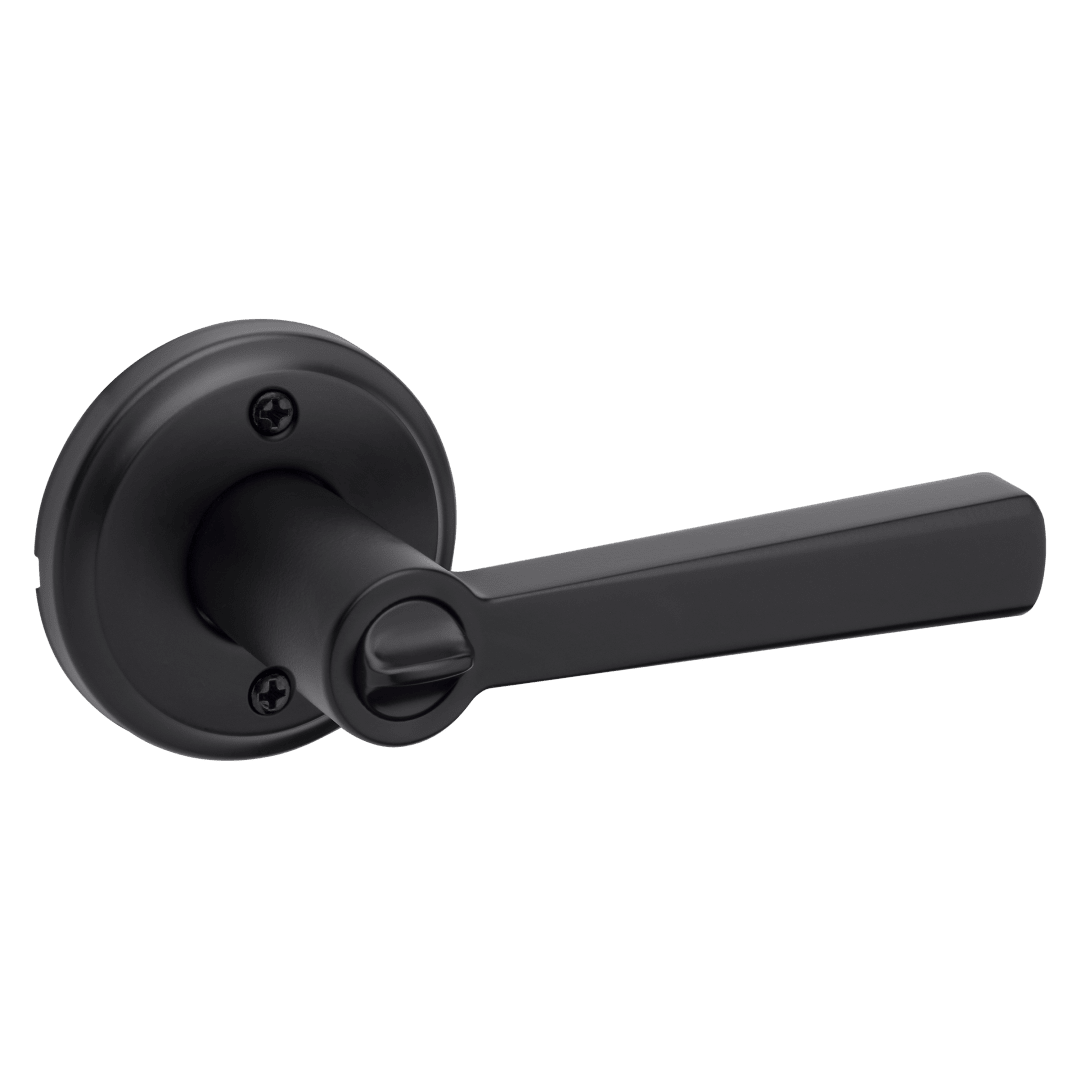

Trafford Keyed Entry Lever featuring SmartKey Security™ in Matte Black

Clipped

9GLA5350-194

Trafford Keyed Entry Lever featuring SmartKey Security™ in Matte Black

059184476743

Elevate your space with the timeless Trafford™ family. The unique soft curve adds a sophisticated touch to any home aesthetic, while the designer rosette imparts a warm and welcoming feel to your doors. Adorn your interior and exteriors with Trafford™ levers, and enjoy our highest level of security, easiest installation and peace of mind.

Finish

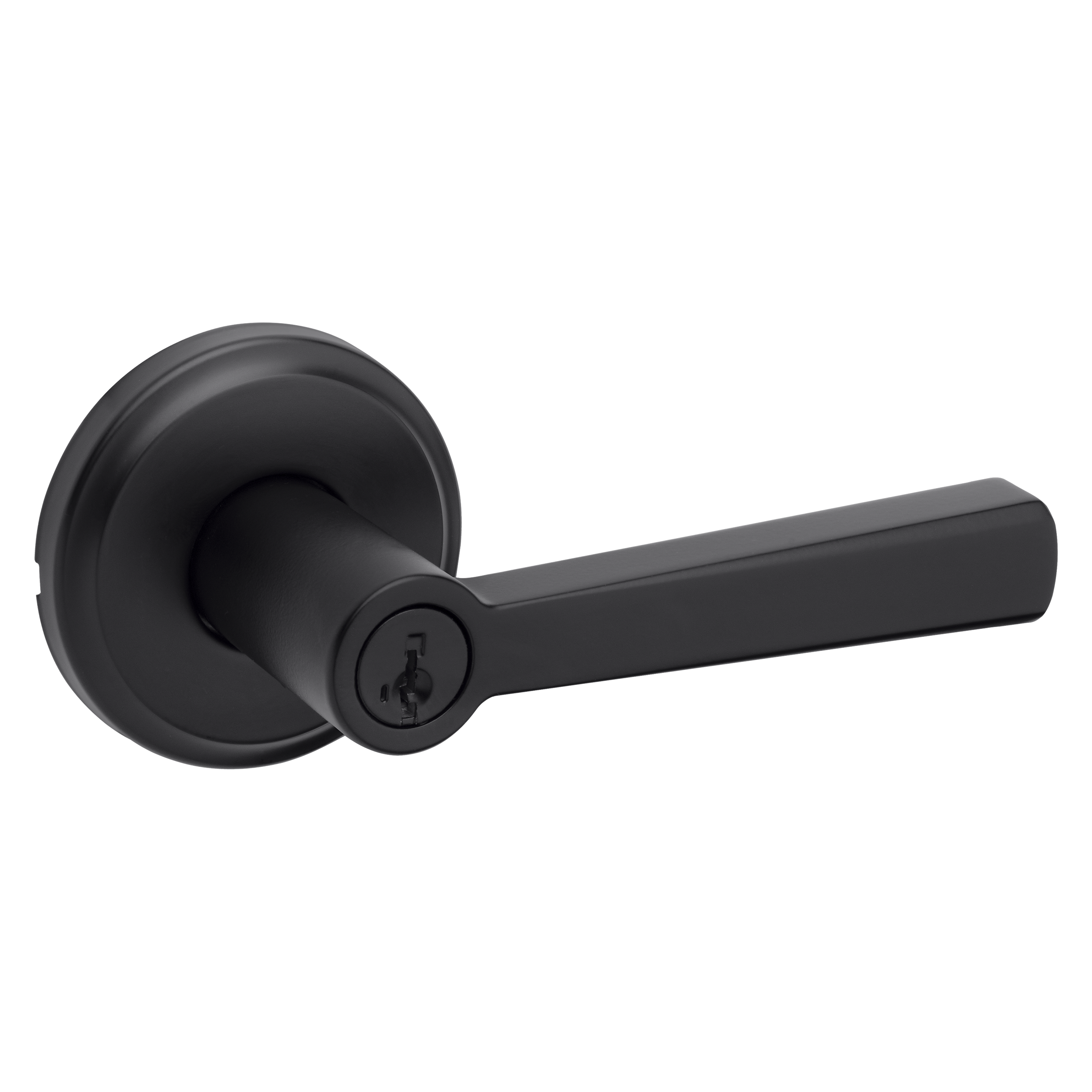

Primary

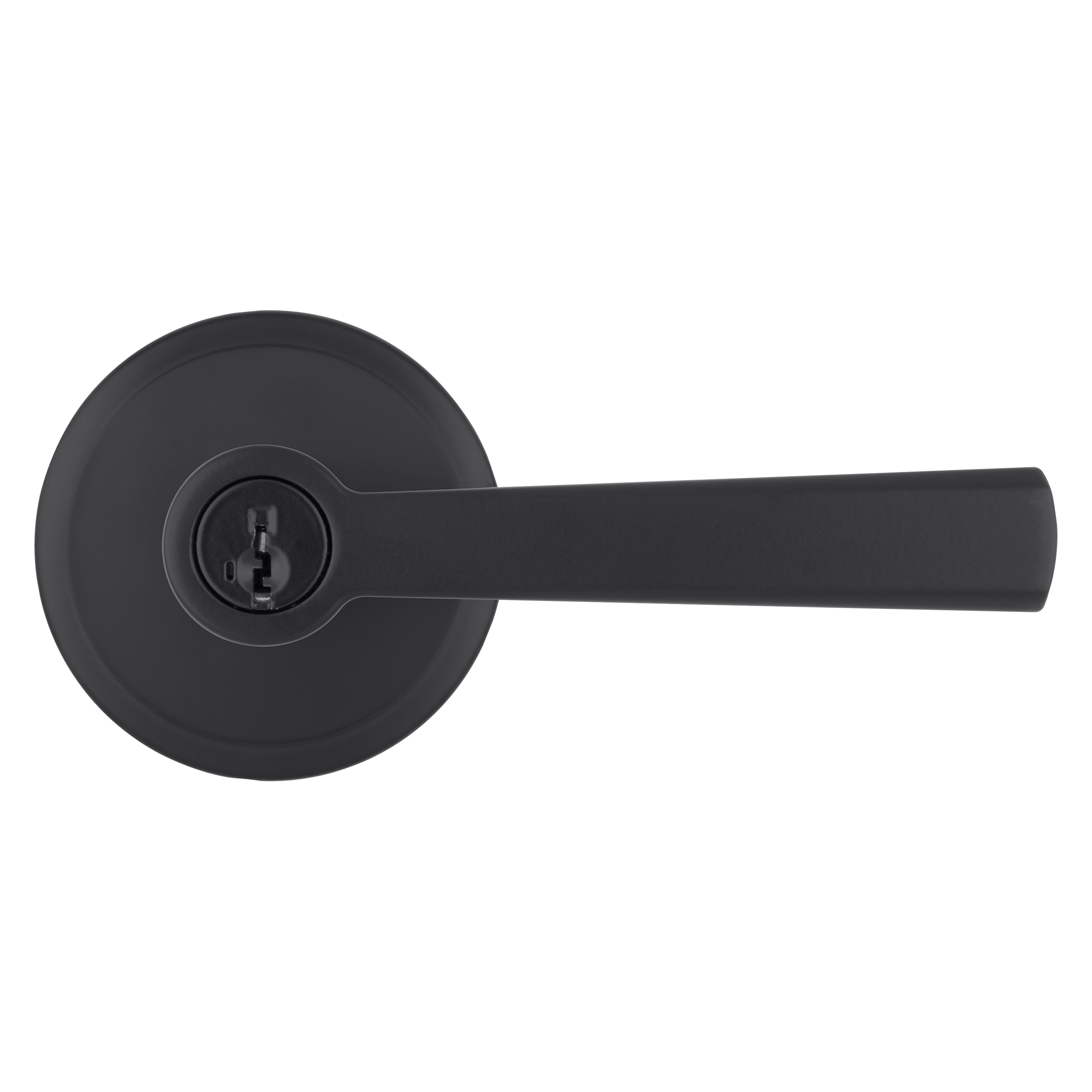

Clipped

Clipped

Clipped

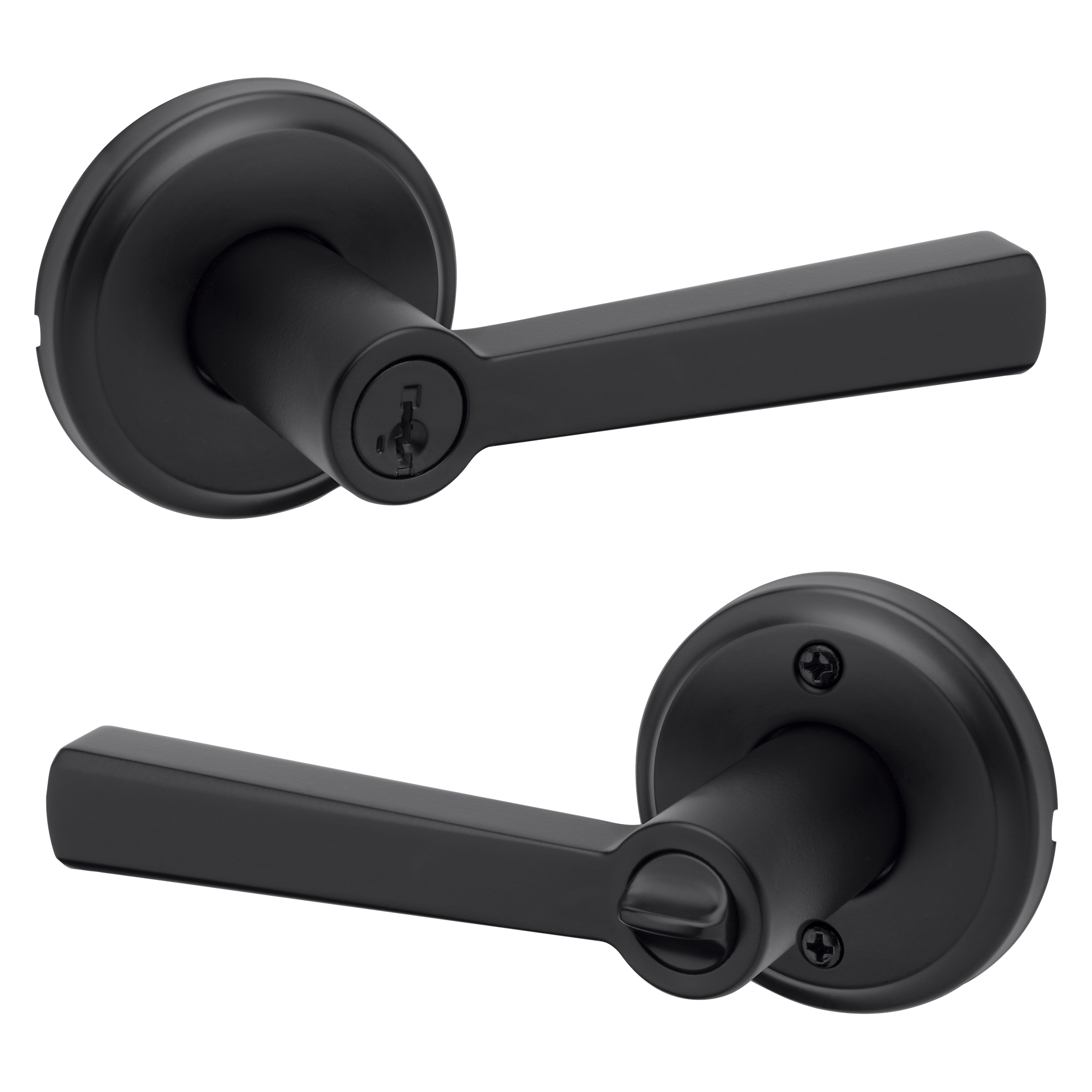

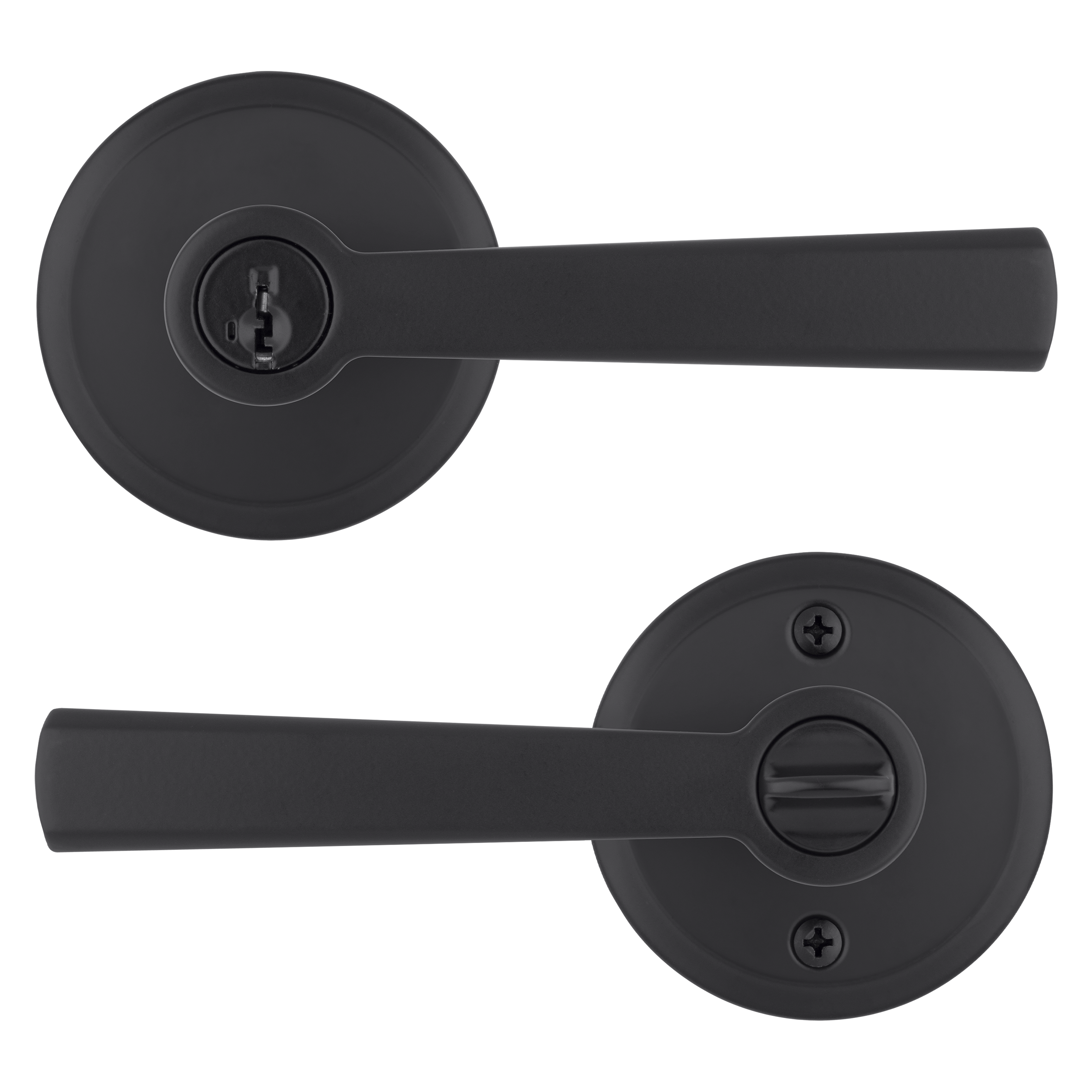

Combined

Combined

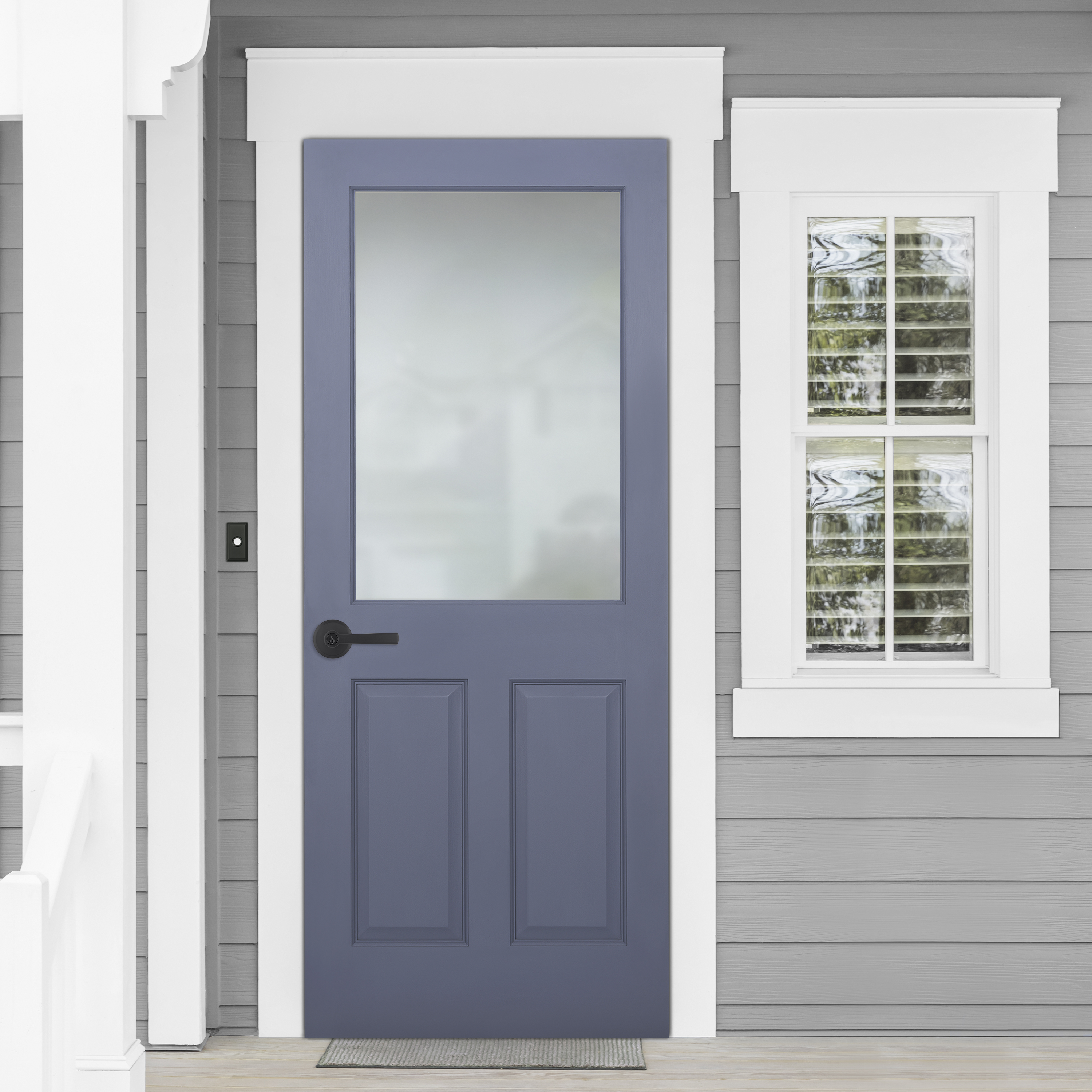

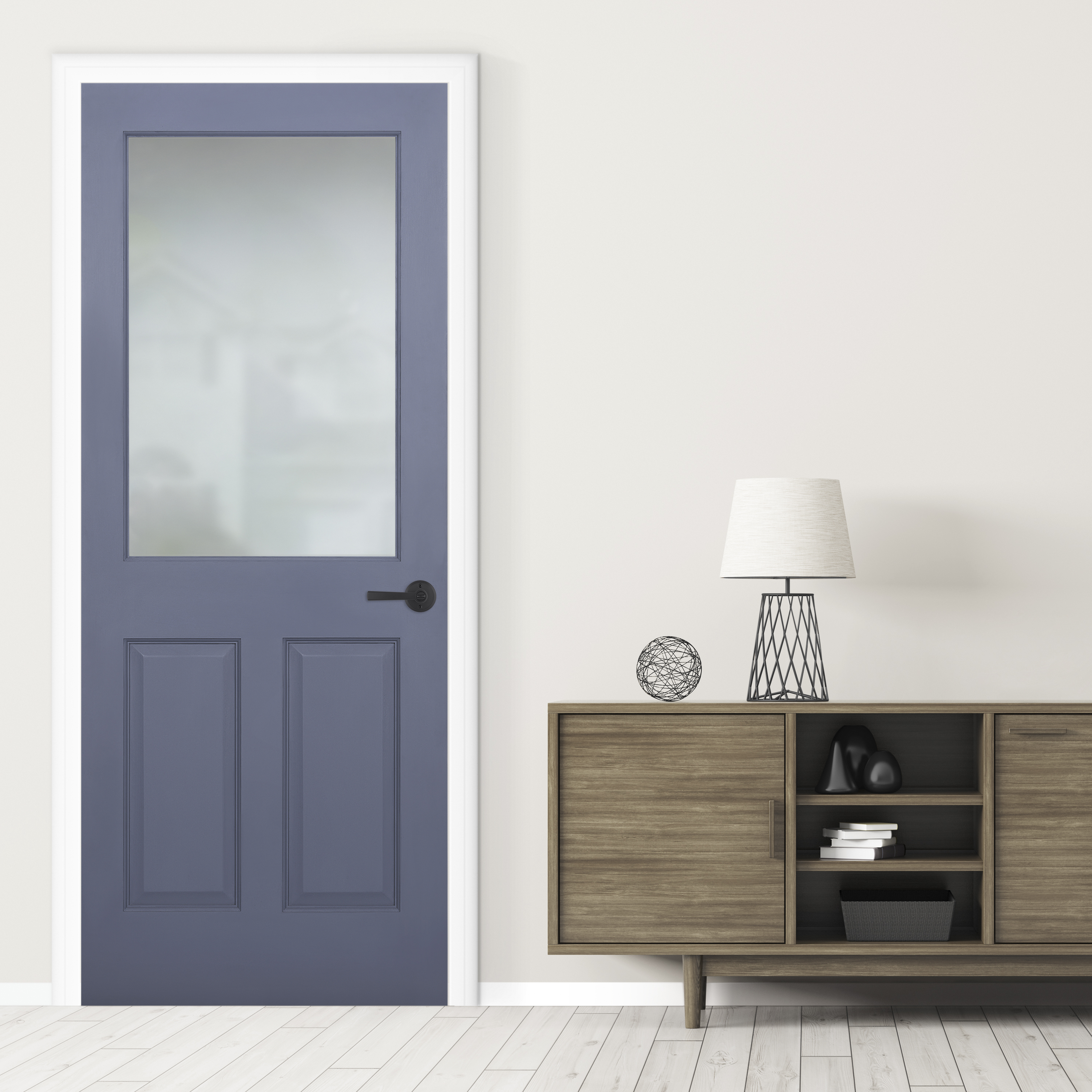

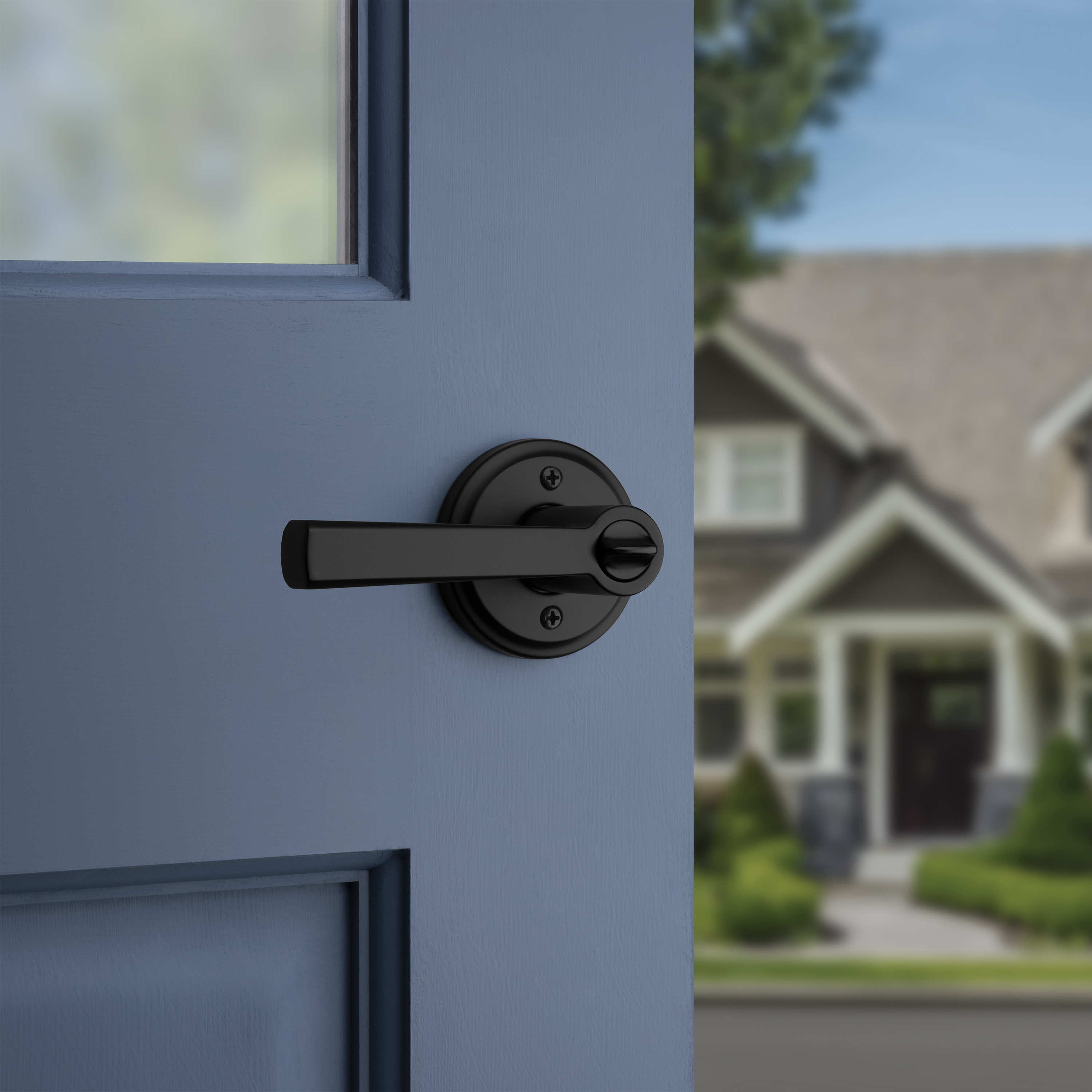

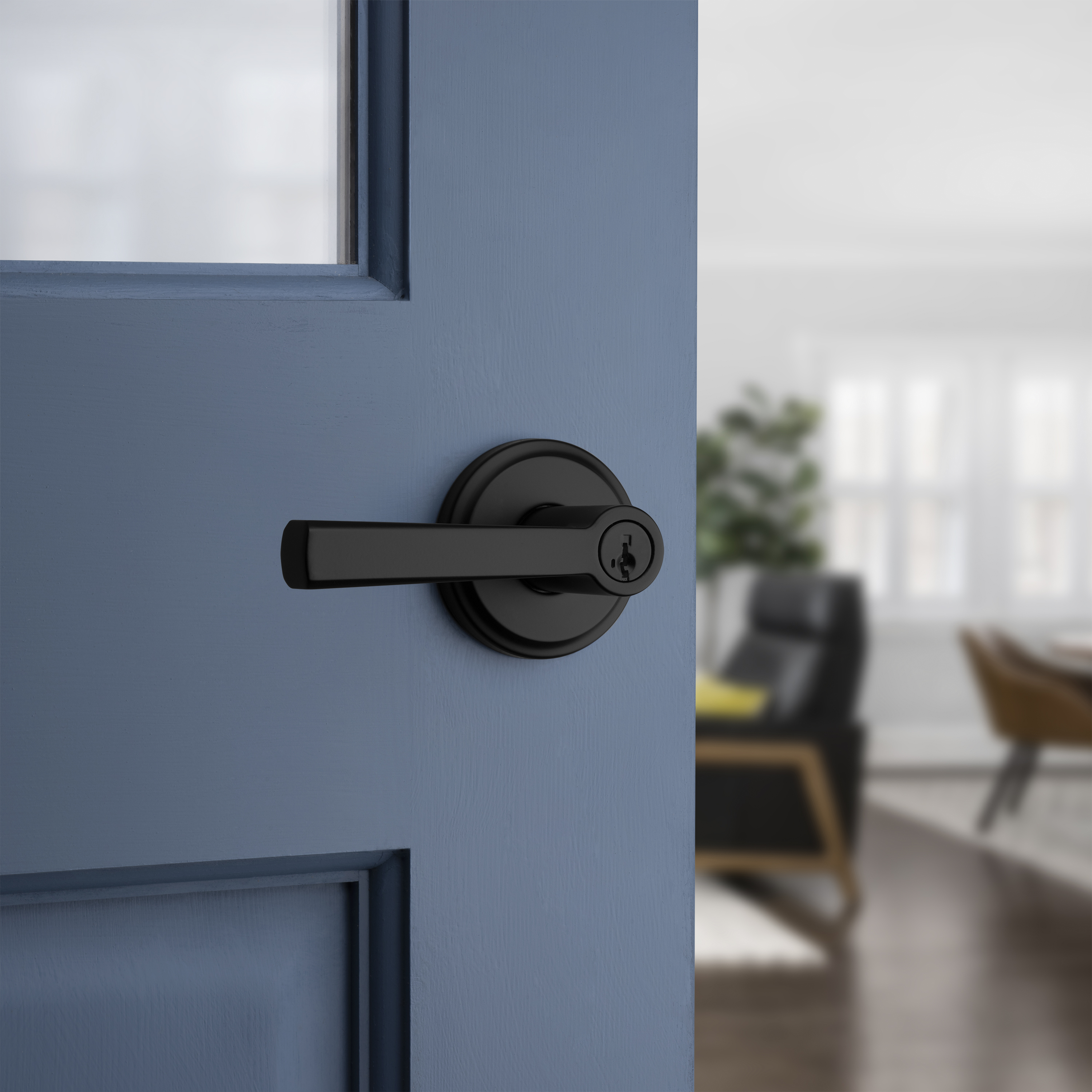

Vignette

Vignette

Vignette

Vignette

Vignette

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Installation Guide

Installation Guide

Instruction Sheet

Full Product Name	Trafford Keyed Entry Lever featuring SmartKey Security™ in Matte Black
Weiser Family	Trafford
Function	KEYED ENTRY
Product Type	Lever
Web Description	Elevate your space with the timeless Trafford™ family. The unique soft curve adds a sophisticated touch to any home aesthetic, while the designer rosette imparts a warm and welcoming feel to your doors. Adorn your interior and exteriors with Trafford™ levers, and enjoy our highest level of security, easiest installation and peace of mind.

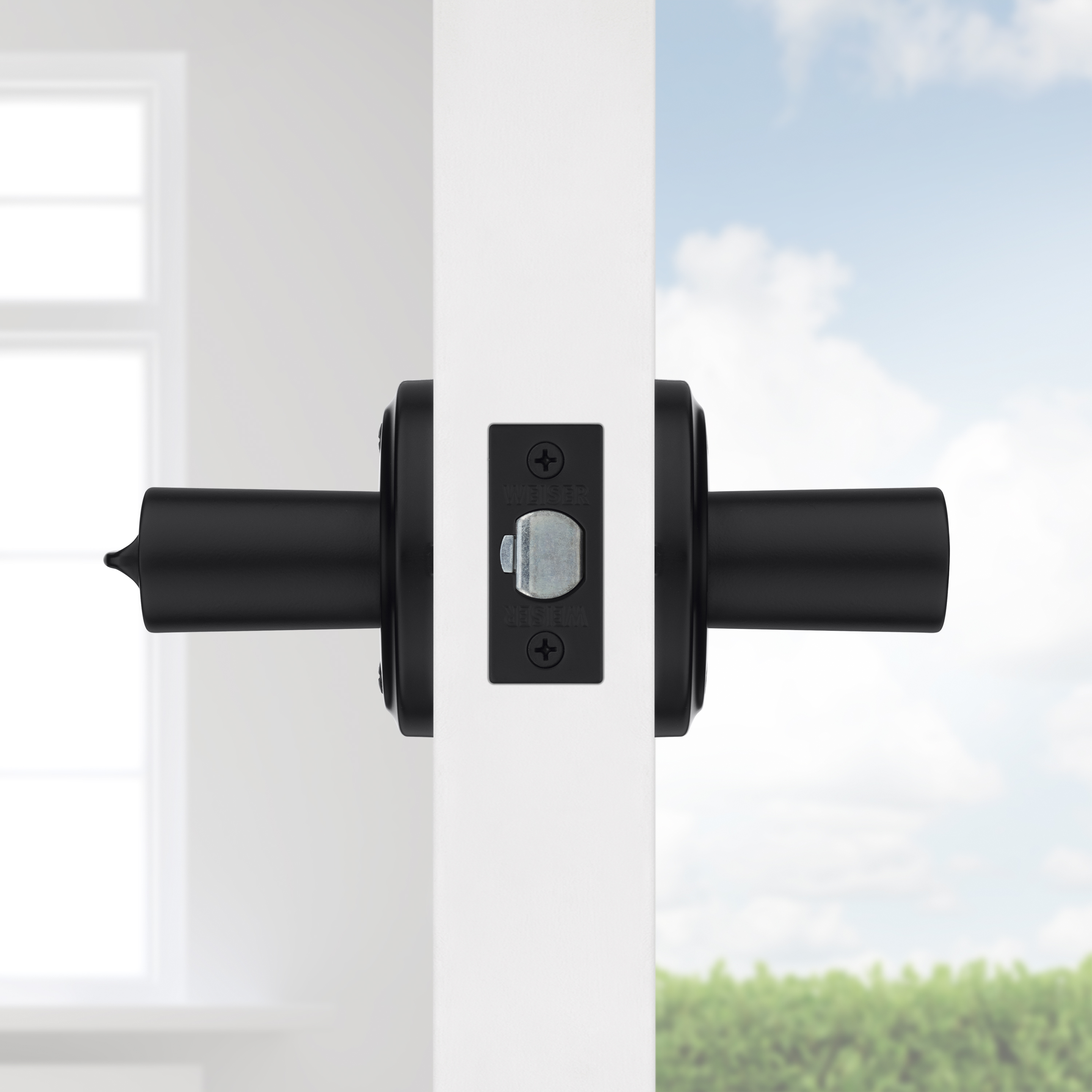

Bullets	For use on exterior doors where keyed entry and security is needed Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds. SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options Comes with 2 keys Latch has 2 interchangeable faceplates; round corner and square corner ANSI/BHMA grade 2 certified Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations Locking mechanism functions by pressing the push button on the interior of the lock Fully reversible lever, can be installed on both right handed and left handed doors Easily installs in minutes with just a screwdriver Lifetime mechanical and finish warranty Available in Retail and Wholesale Packaging
Style	Traditional
ANSI Grade	Grade 2
ADA Compliant	No
Cross Bore	2-1/8"
Latch Backset Size	Adjustable
Max Door Thickness	1-3/4
Min Door Thickness	1-3/8
UPC	059184476743
Case Qty	4
Each Shipping Depth	3.148
Each Shipping Height	9.33
Each Shipping Weight	1.962
Each Shipping Width	6.378
Case Shipping Depth	13.86
Case Shipping Height	9.92
Case Shipping Weight	8.473
Case Shipping Width	7.008
Pallet Qty	240
Instruction Sheet	https://images.salsify.com/image/upload/s--ALnXzFrO--/xjzhjva1peeh7bntlwml.pdf
Installation Guide	https://images.salsify.com/image/upload/s--WmDvRQay--/zxznz65wgvaqgvftbbp1.pdf https://images.salsify.com/image/upload/s--K9wR7u6S--/i41lfunb8qrkhhxchjyh.pdf
