Primary

93002-024

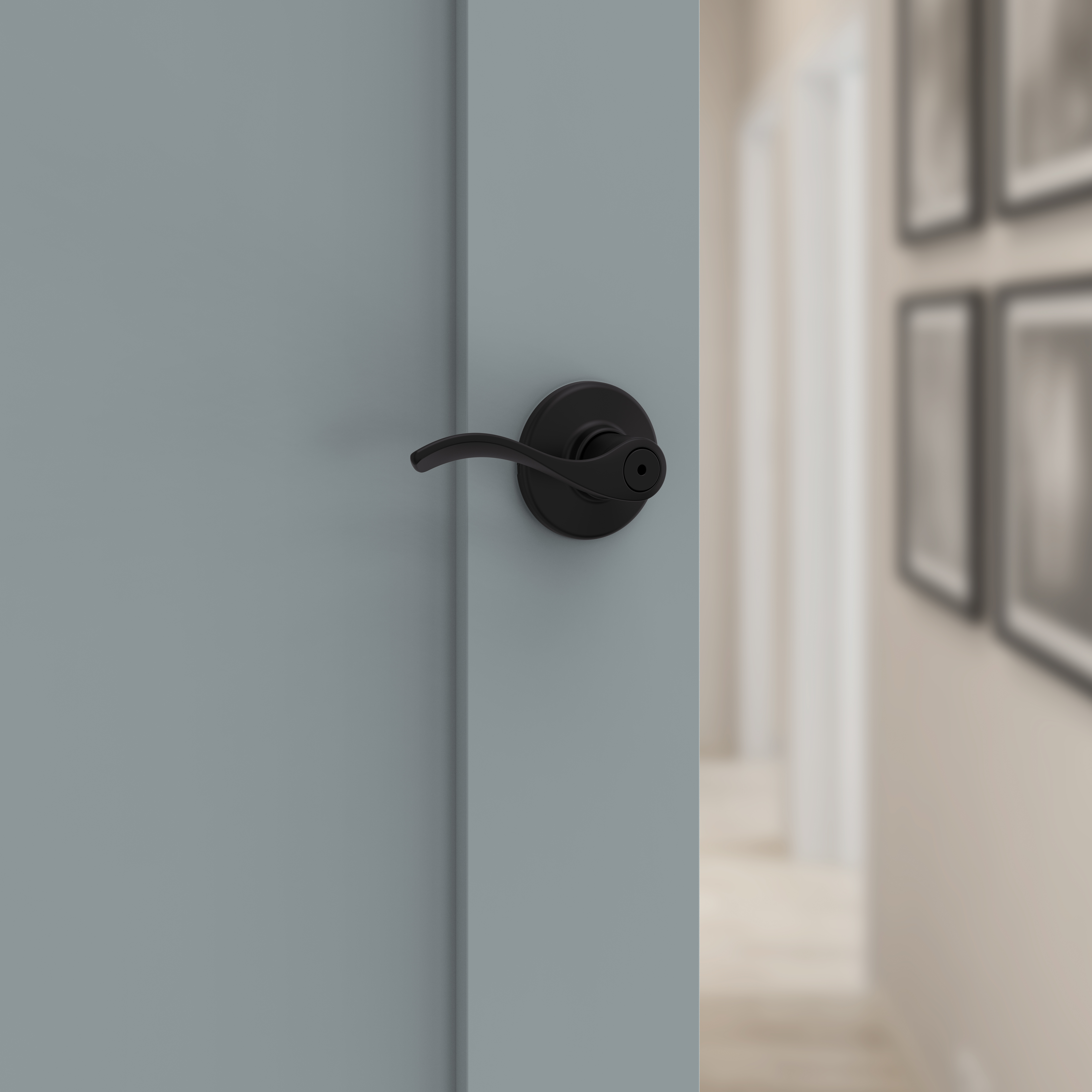

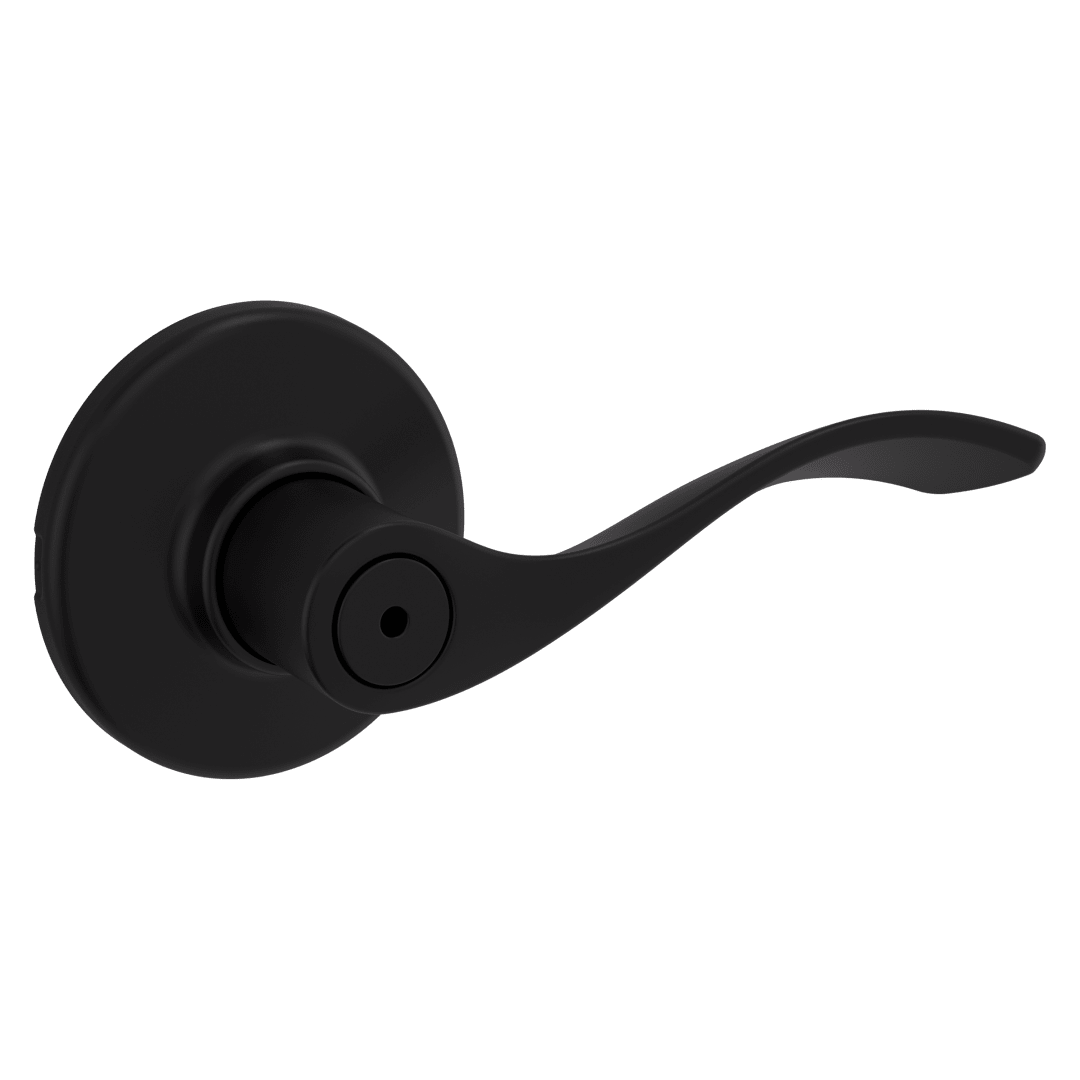

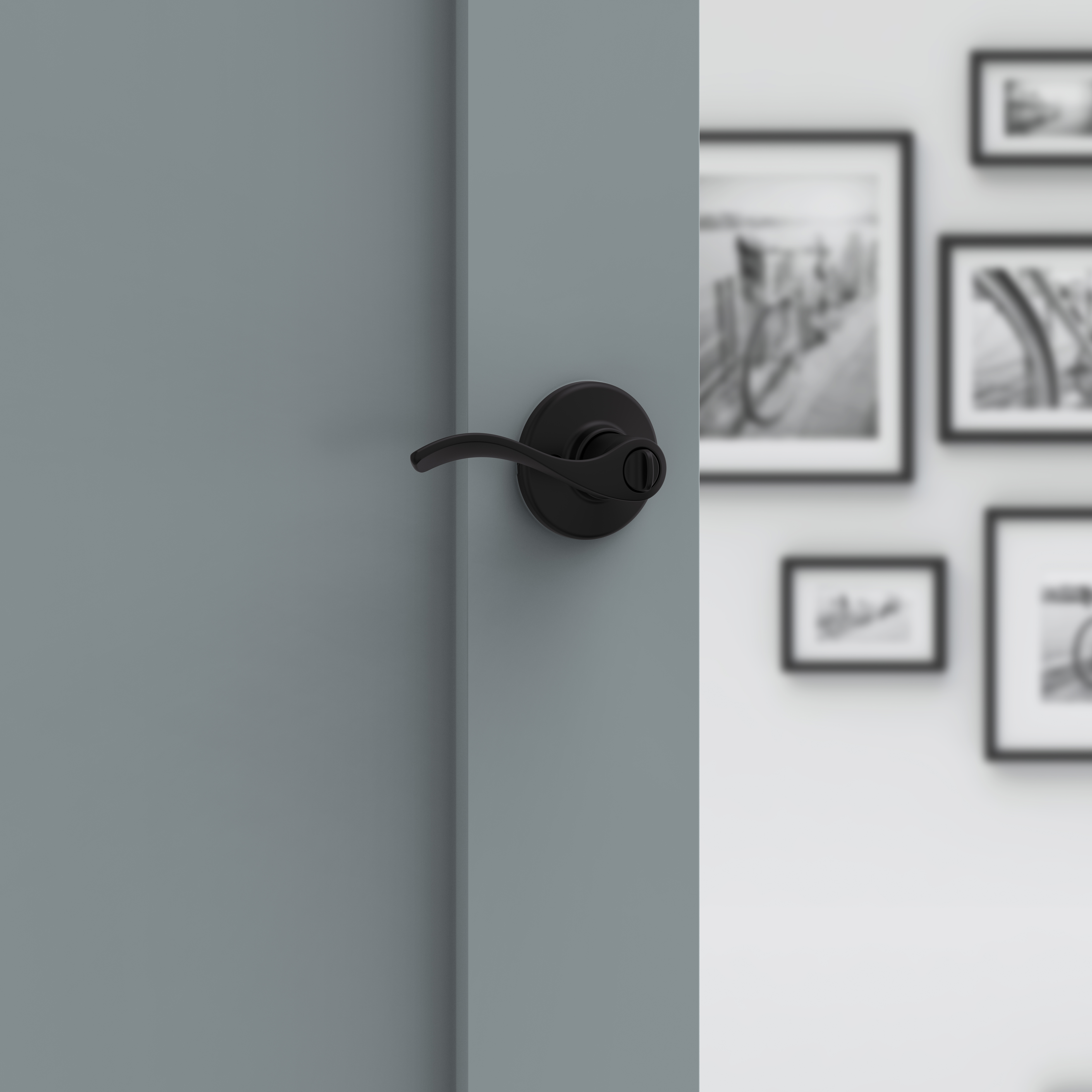

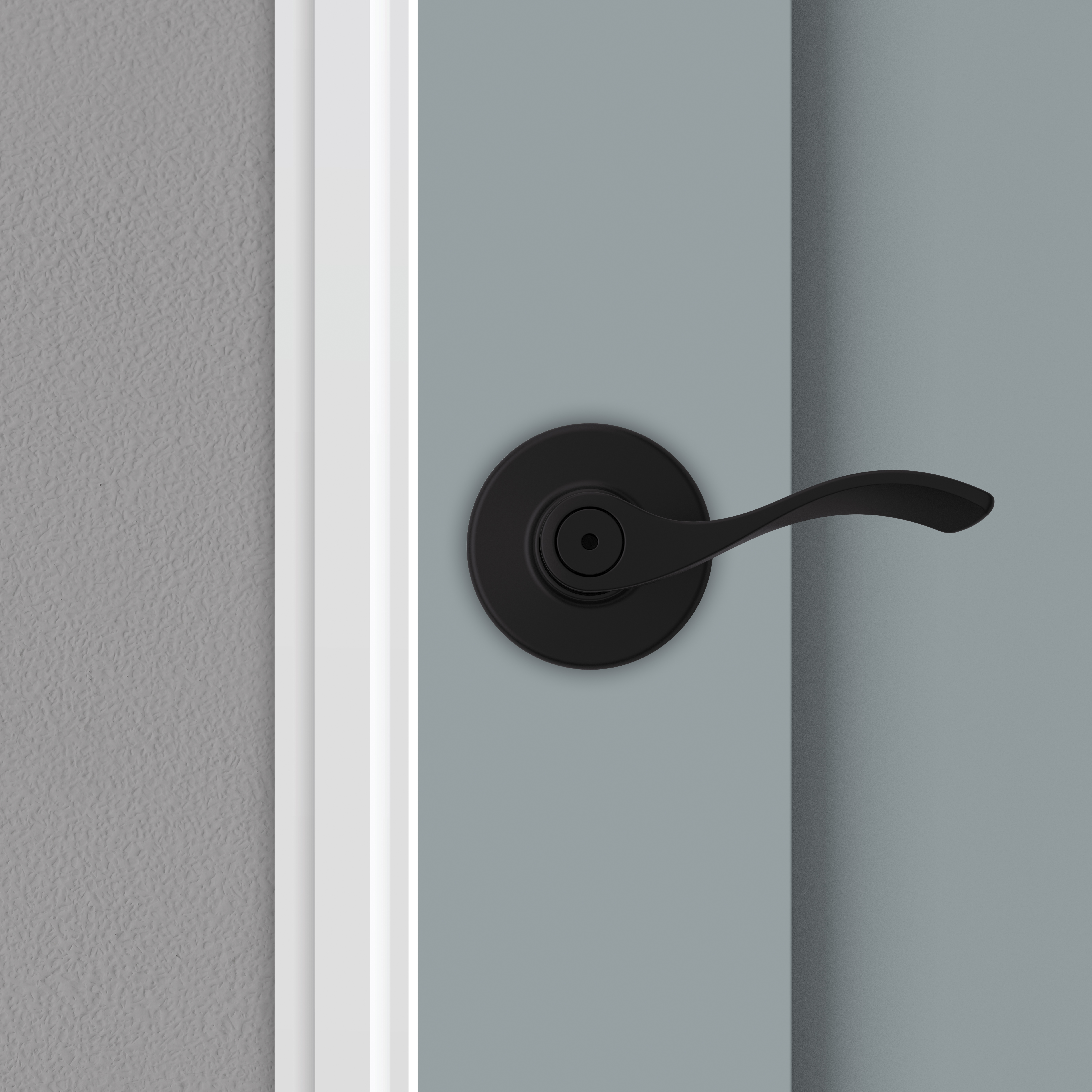

Balboa Bed/Bath Lever in Matte Black

300BL 514 6AL RCS V1

Locking Privacy: Use on doors requiring privacy, can be locked inside with a turn button and unlocked outside with provided release tool. Recommended for bedrooms and bathrooms
Never Sag Lever: Our exclusive design utilizes dual compression springs to keep the lever straight and horizontal over the lifetime of the handle without the risk of sagging
Easy Install: Do it yourself, installs in minutes with just a screwdriver, if door is missing a bottom handleset support hole you will need a drill, directions provided
Fits Standard Doors: Fits standard size doors 1-3/8" to 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation
Certified Trusted Quality: Security, Durability and Finish are Grade 3 BHMA certified, designed for reliable protection, providing peace of mind at home
Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details
Microban Protection: Kwikset’s door hardware is treated with Microban, this offers powerful product protection that is 99.9% cleaner than an unprotected surface

Lock Finish

Lock Function

Vignette

Vignette

Vignette

Vignette

Vignette

Combined

Combined

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Clipped

Clipped

Clipped

Clipped

Brand	Kwikset
Series	Security Series
Sales Status	ACTIVE
MFG Pro #	93002-024
Desc 1	300BL 514 6AL RCS V1
UPC	883351796095
Family	Balboa
Function	Privacy
Finish	Matte Black
Type	Lever
ANSI Grade	Grade 3
Hardware Type	Residential

Product Description

As the industry leader, Kwikset has provided trusted security for over 70 years and has become synonymous with security, peace of mind, style and innovation. The Balboa lever's wave style design is an attractive addition to any home. This passage knob/lever is best used on interior hall and closet applications where no locking is required, so the knob/lever is always free to turn. The knob/lever is reversible and mounts on both left and right handed doors.

Features

For use on interior doors where a privacy locking function is required, such as a bedroom or bathroom

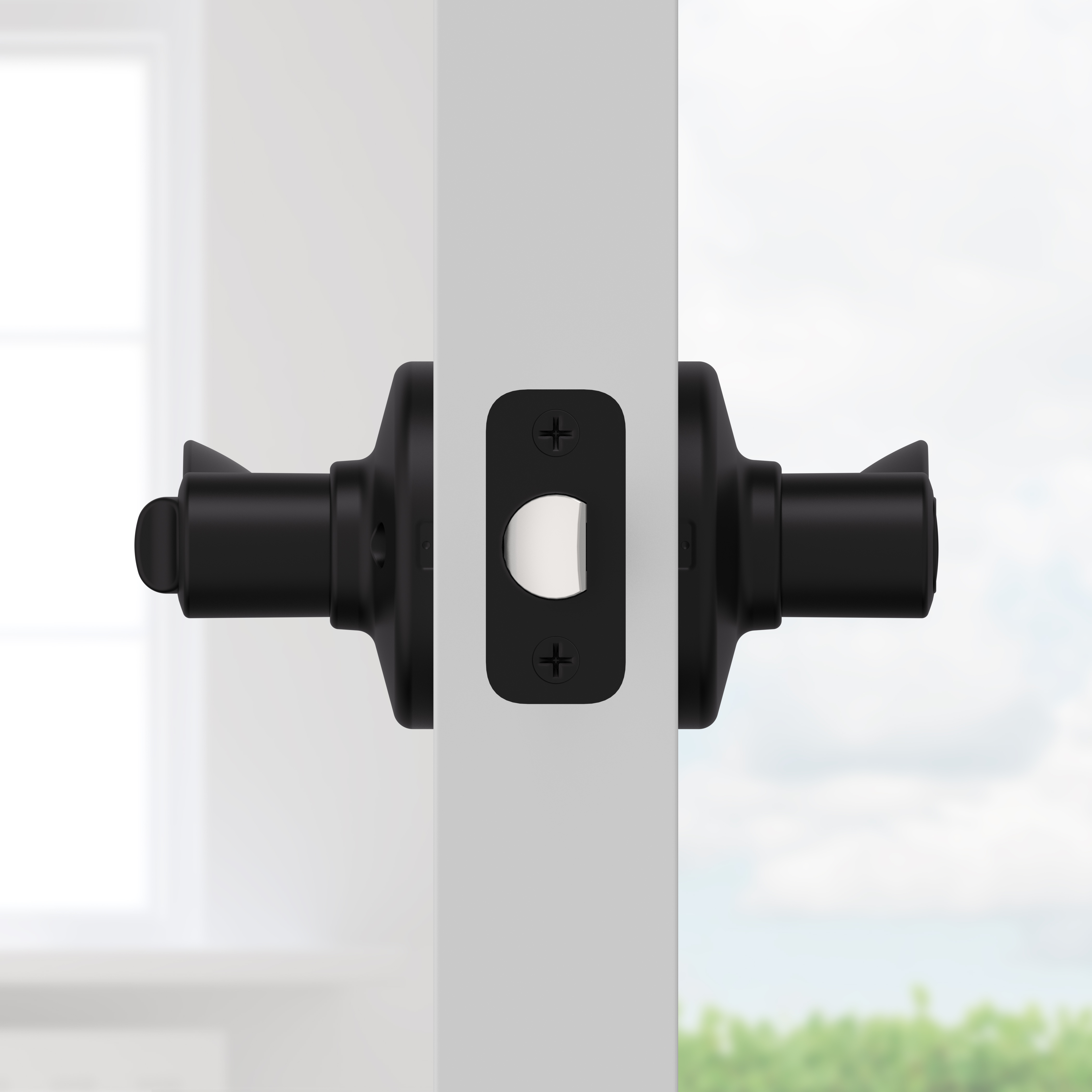

Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar
Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
ANSI/BHMA grade 3 certified
Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
Locking mechanism functions with turn piece on the interior of the lock
Fully reversible lever, can be installed on both right handed and left handed doors
Easily installs in minutes with just a screwdriver
Lifetime mechanical and finish warranty
Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Assembled Height 2-5/8
Assembled Width 2-5/8
Projection 1-3/16
Lever Grip Length 4-1/4
Lever Rose Shape Round
Style Traditional
Throw Length 1/2
Cross Bore 1"
Latch Type 6-Way Adjustable Latch
Strike Height 2-1/4
Strike Type Round Corner Strike
Strike Width 1-3/4
Strike Code RCS
Entry Has SmartKey No

Assembled Height	2-5/8
Assembled Width	2-5/8
Projection	1-3/16
Lever Grip Length	4-1/4

Lever Rose Shape	Round
Style	Traditional
Throw Length	1/2
Cross Bore	1"
Latch Type	6-Way Adjustable Latch
Strike Height	2-1/4
Strike Type	Round Corner Strike
Strike Width	1-3/4
Strike Code	RCS
Entry Has SmartKey	No
