94380-004

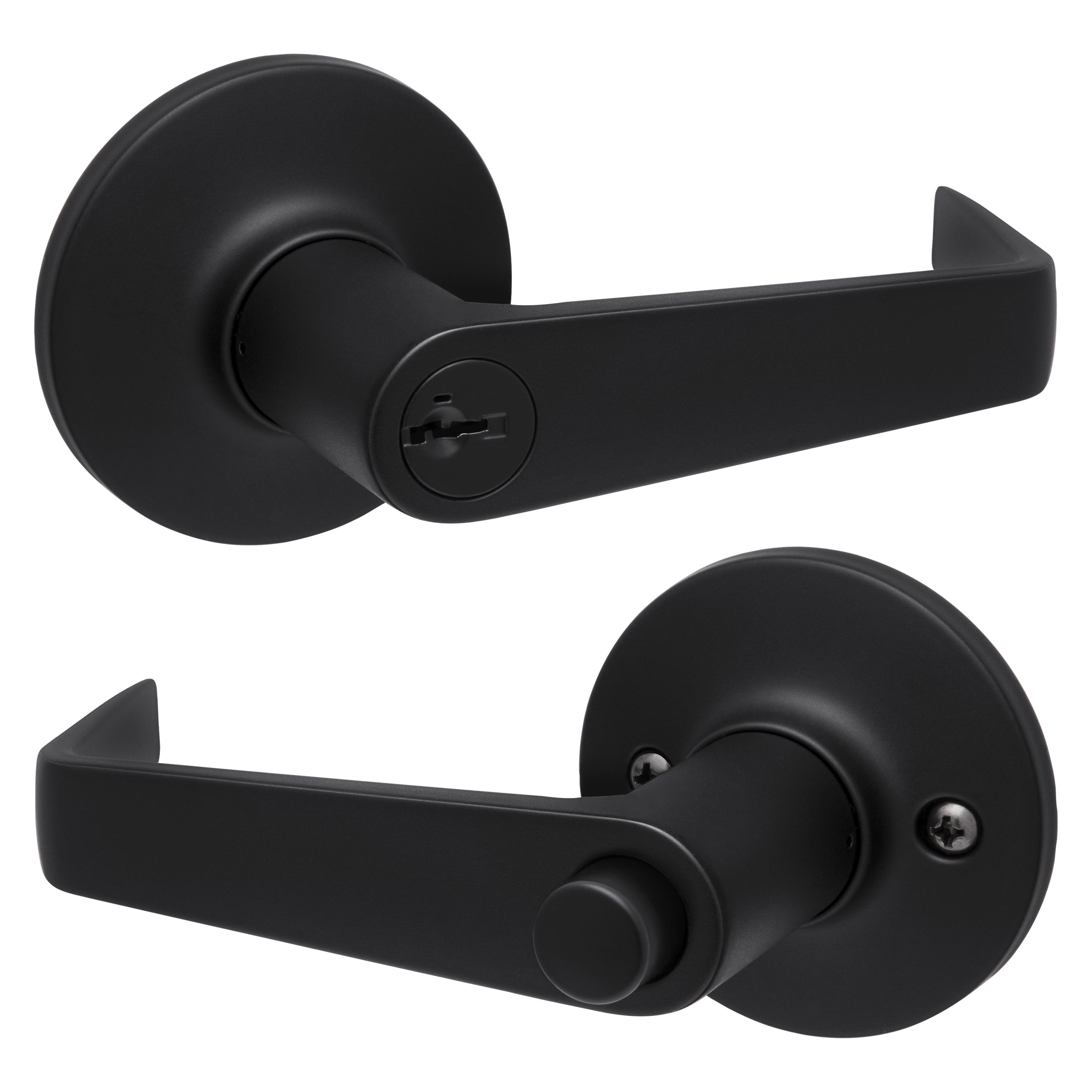

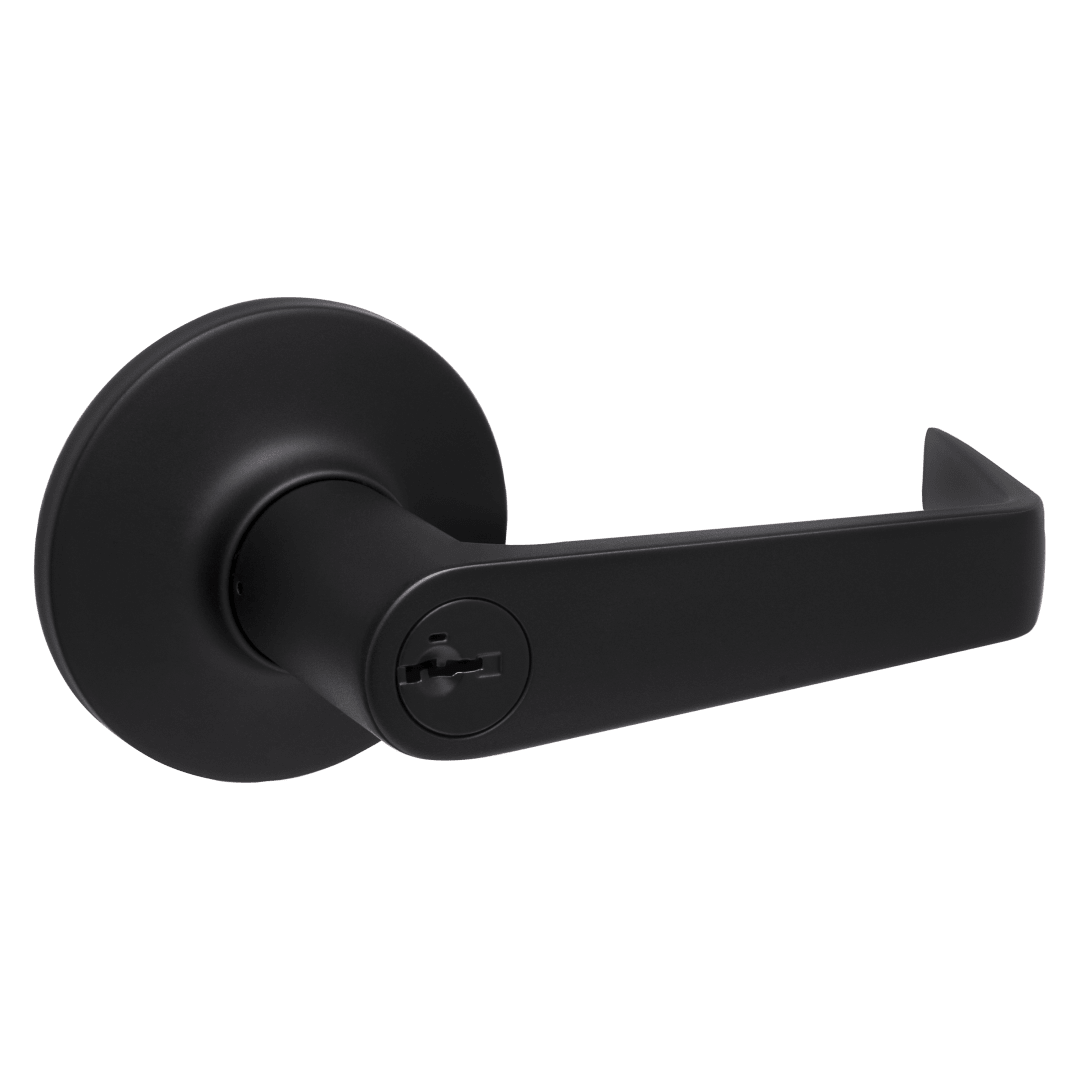

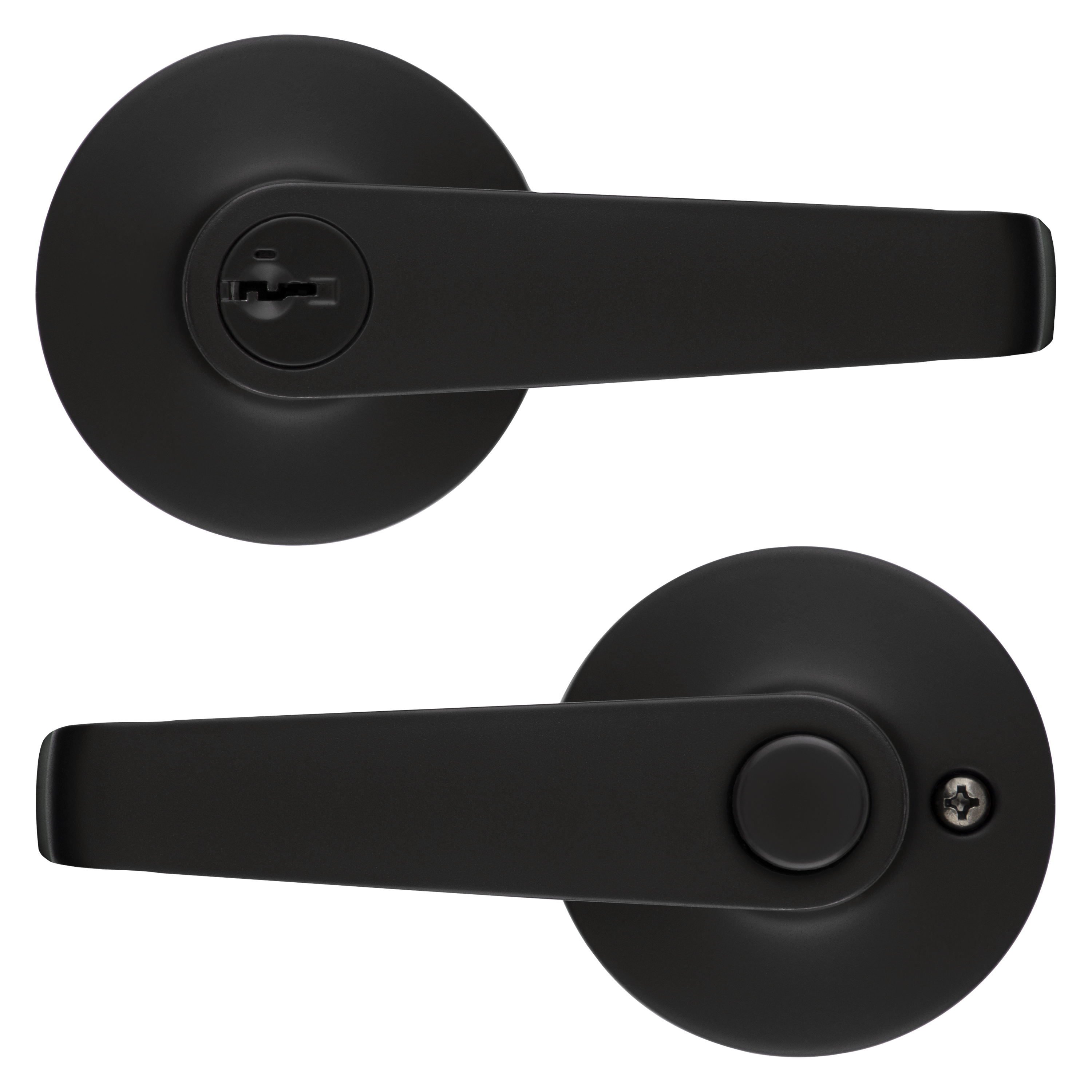

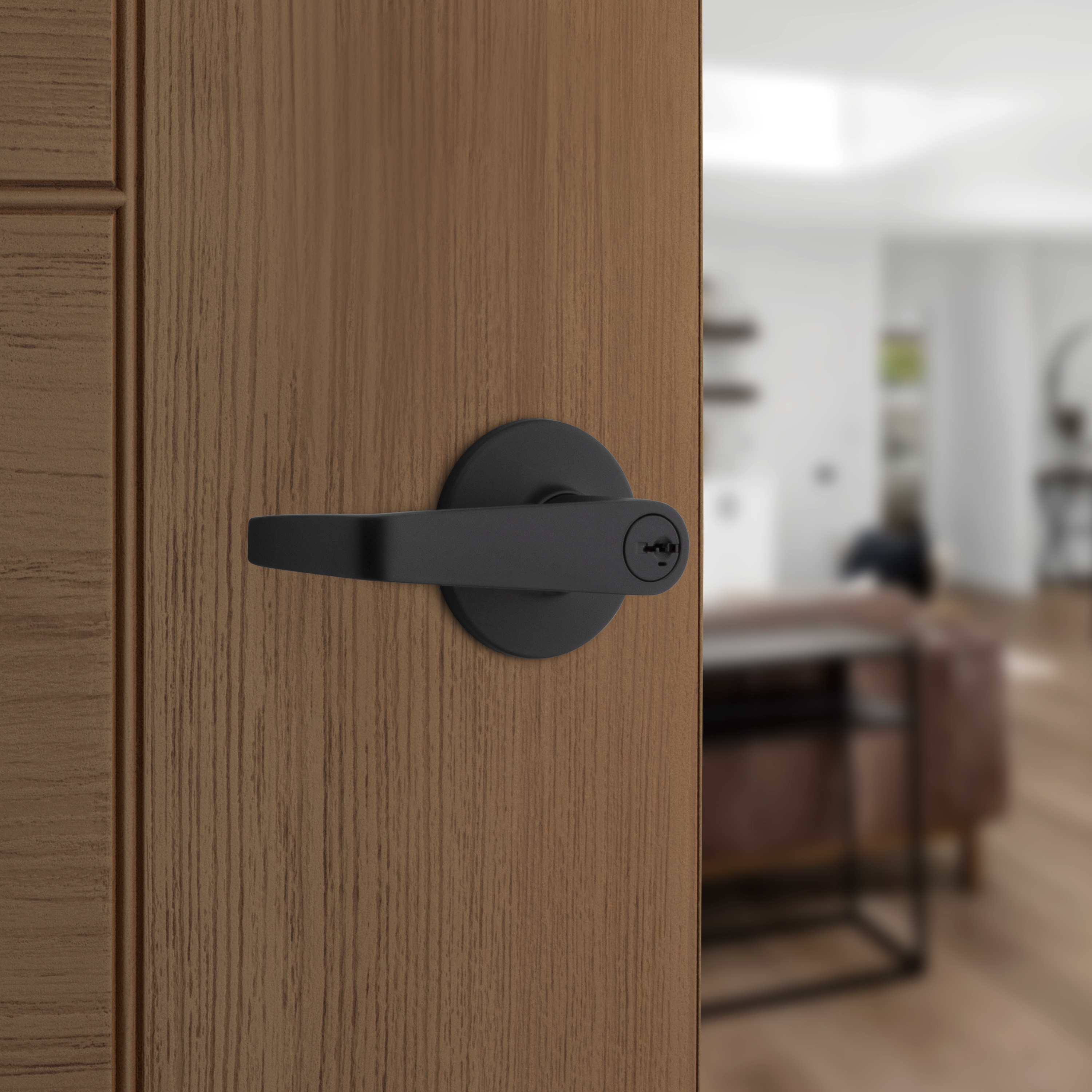

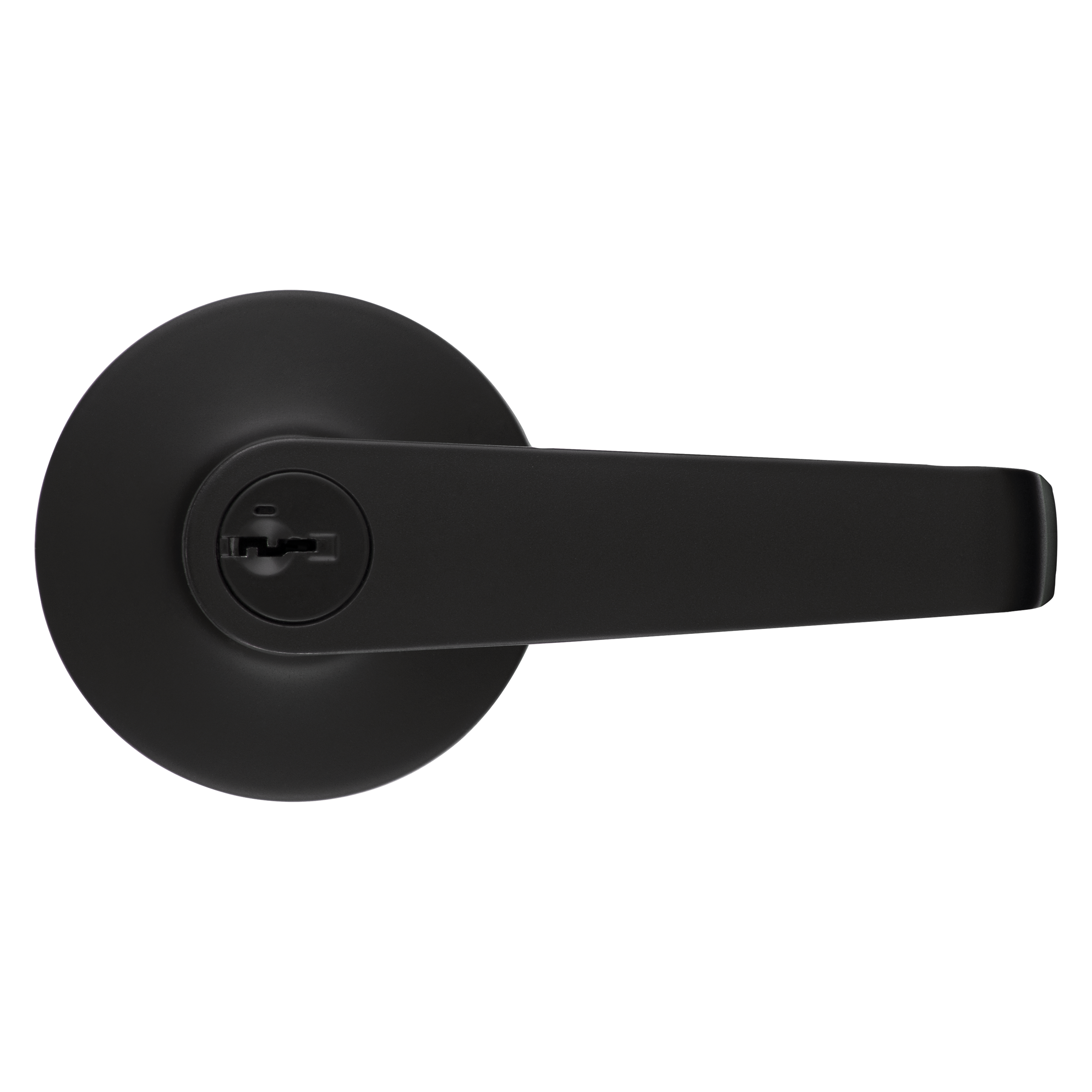

Carson Round Keyed Entry Lever in Matte Black featuring SmartKey Security
438CNL 514 SMT RCAL UL
| Brand | Kwikset |
|---|
| Series | Light Commercial |
|---|
| Sales Status | ACTIVE |
|---|
| MFG Pro # | 94380-004 |
|---|
| Desc 1 | 438CNL 514 SMT RCAL UL |
|---|
| Desc 2 | 3031 23155 LK |
|---|
| UPC | 883351924412 |
|---|
| Family | Carson |
|---|
| Function | Entry |
|---|
| Finish | Matte Black |
|---|
| Type | Lever |
|---|
| ANSI Grade | Grade 3 |
|---|
| Hardware Type | Commercial |
|---|

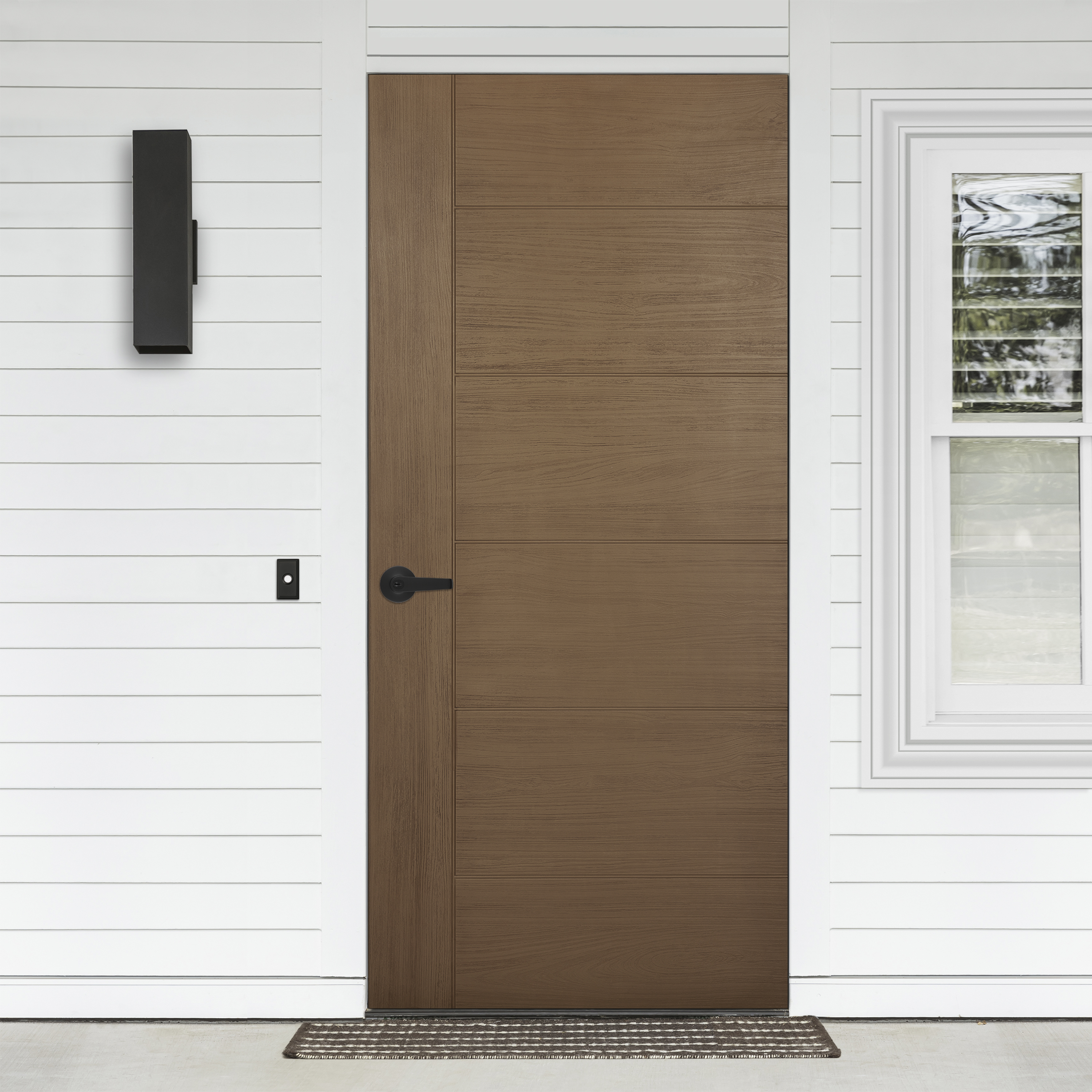

| Features | - For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Latch has round corner faceplate
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

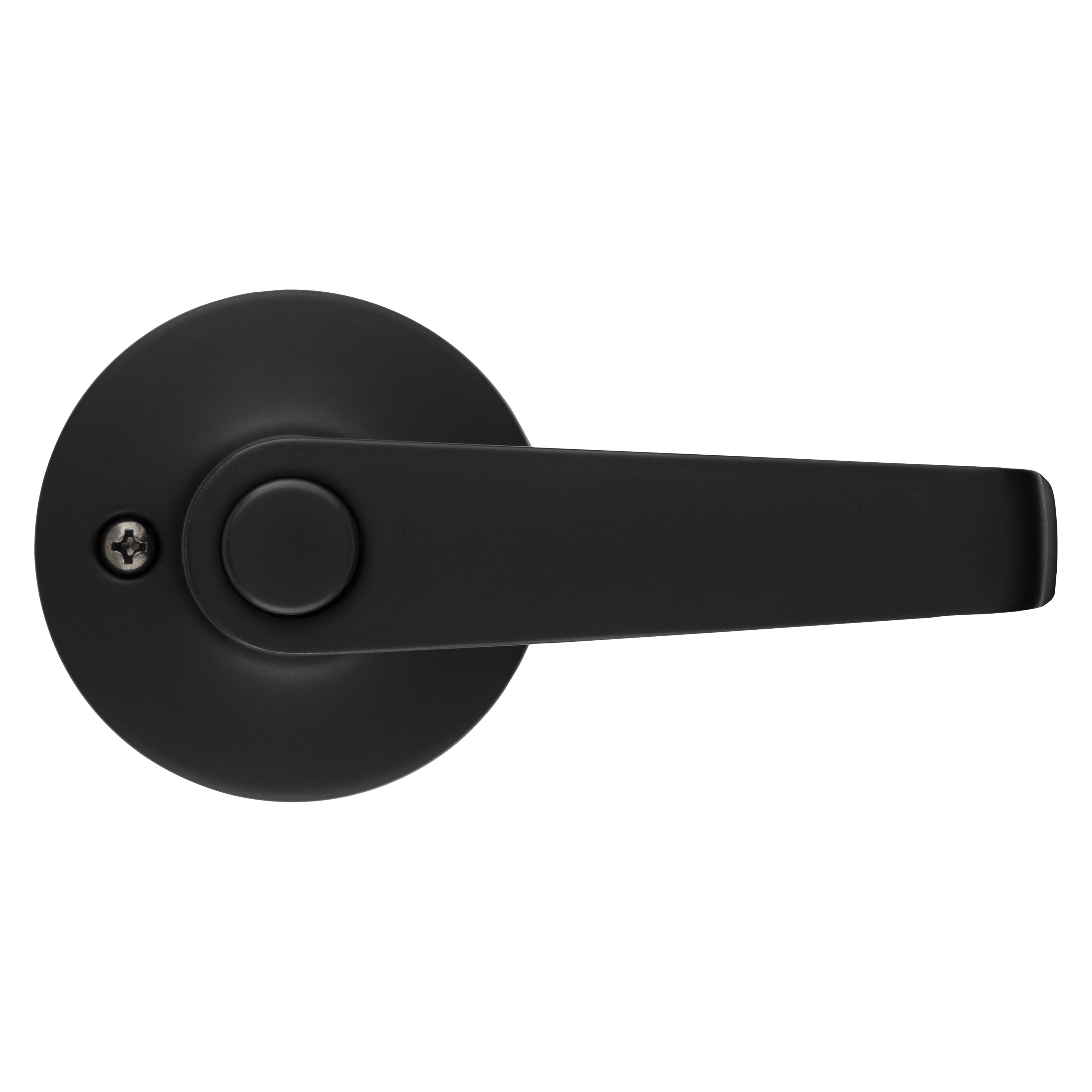

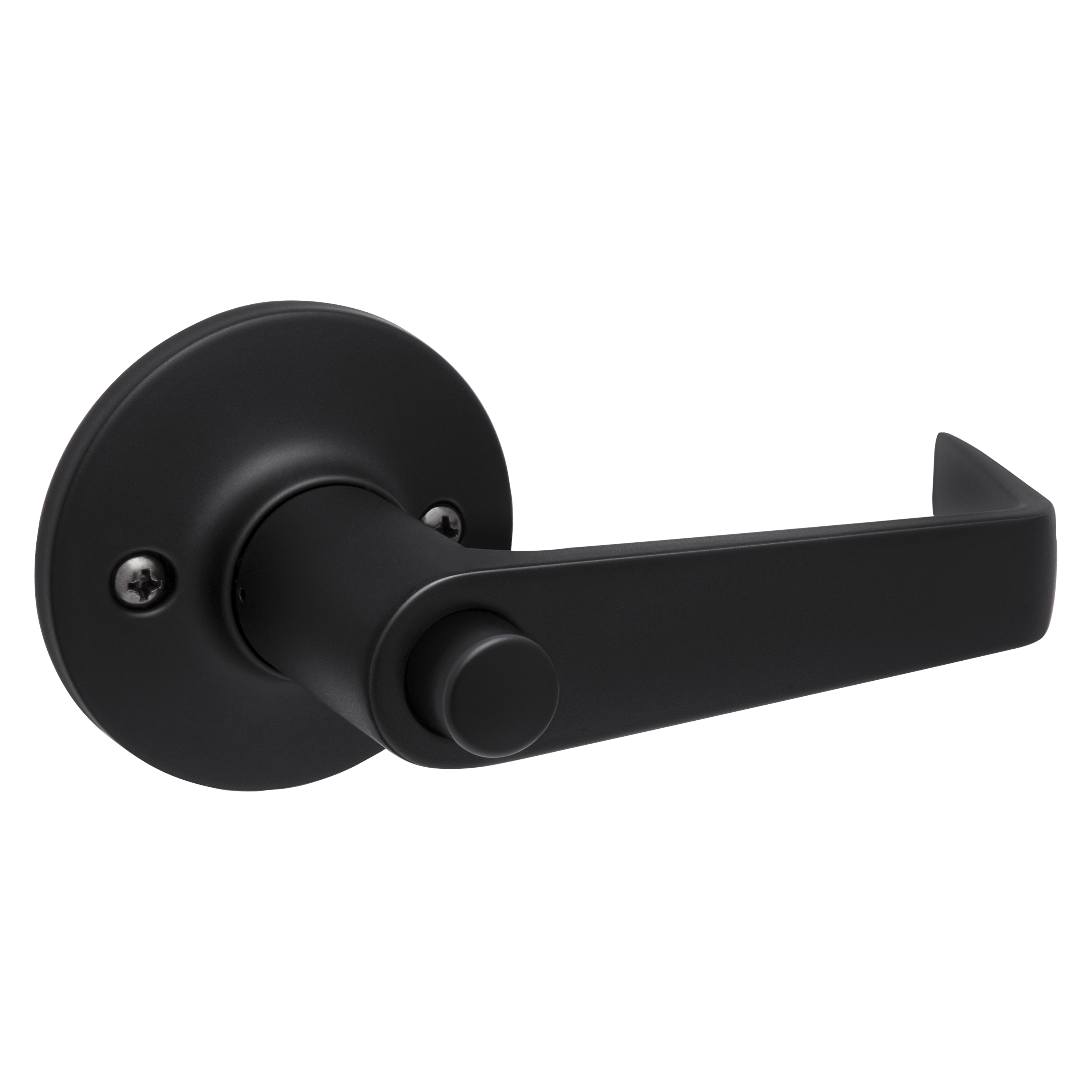

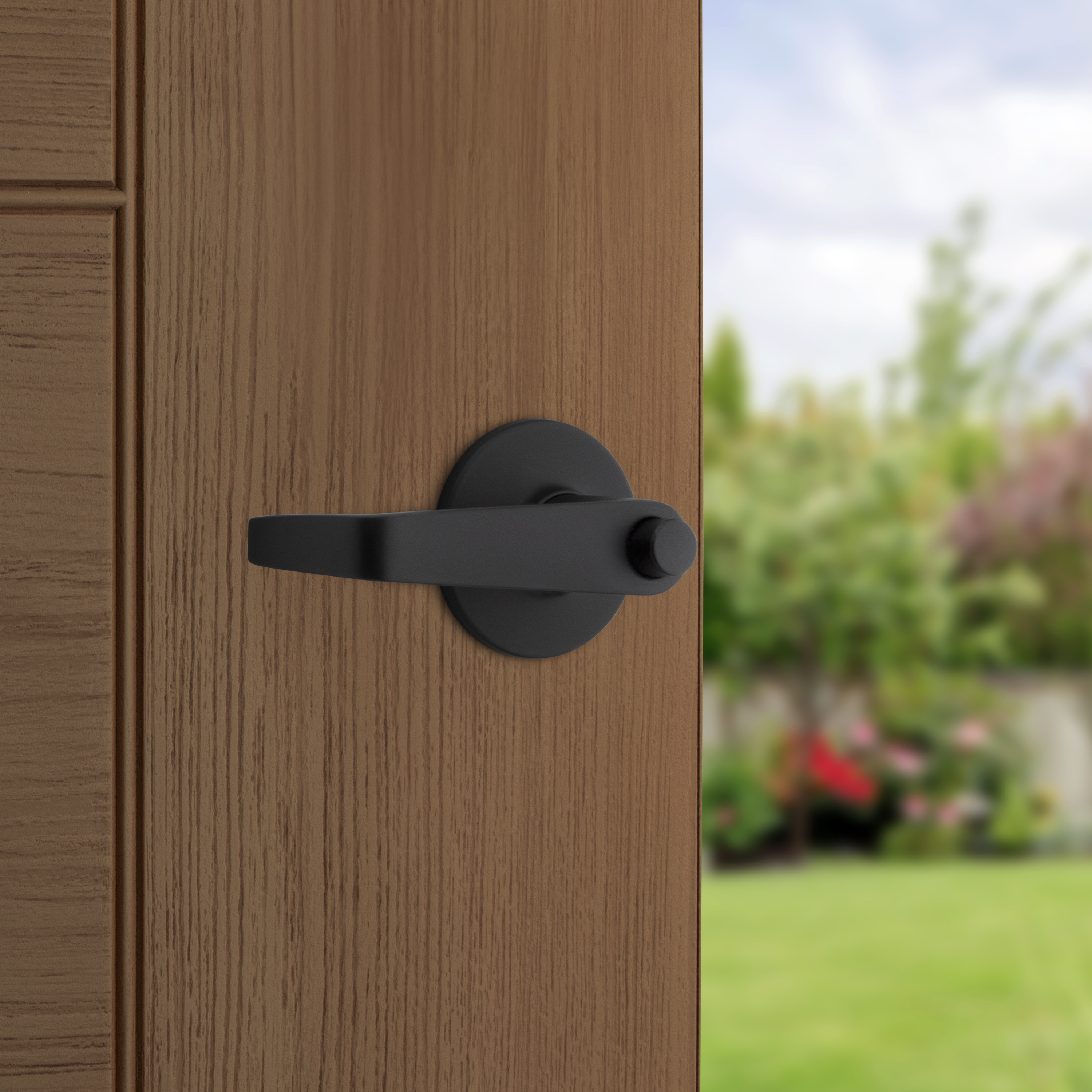

- Locking mechanism functions by pressing the push button on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime Mechanical, 5 Year Finish
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
|
|---|
| Assembled Height | 2-14/25 |
|---|
| Assembled Length | 2-31/100 |
|---|
| Assembled Width | 3-4/5 |
|---|
| Projection | 2-31/100 |
|---|
| Lever Grip Length | 3-4/5 |
|---|
| Lever Rose Shape | Round |
|---|
| Style | Transitional |
|---|
| Throw Length | 1/2 |
|---|
| Cross Bore | 1" |
|---|
| Latch Type | Round Corner Adjustable Latch |
|---|
| Strike Code | Default |
|---|
| Entry Has SmartKey | Yes |
|---|
| Entry # Of Keys | 2 |
|---|
