94389-002

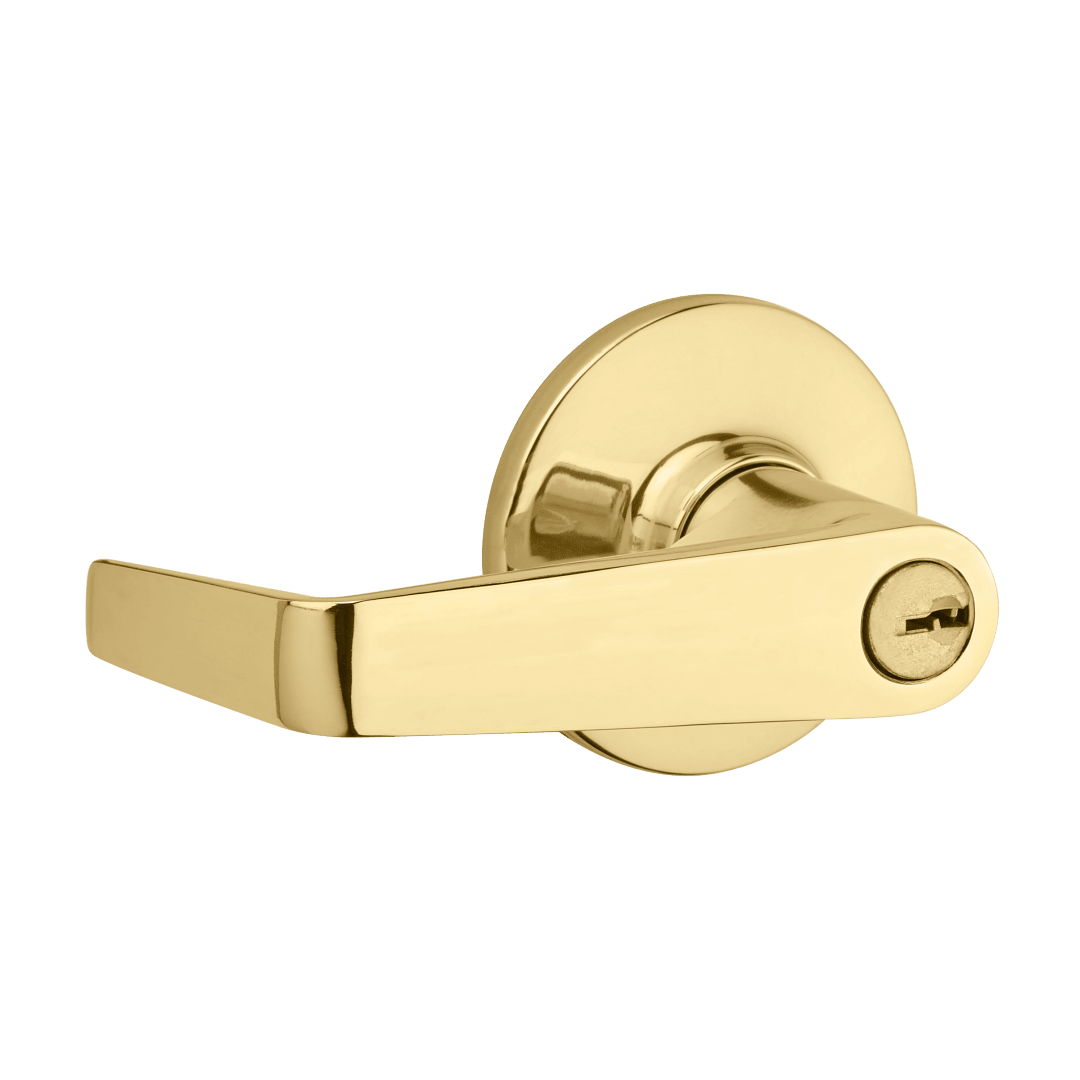

Carson Keyed Entry UL Lever in Polished Brass
438CNL 3 SCAL
- For use on exterior doors where keyed entry and security is needed
- Latch is 20 minute fire rated with square corner face
- Meets ADA/ANSI A117.1 requirements
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Locking mechanism functions by pressing the push button on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime Mechanical, 5 Year Finish
| Brand | Kwikset |
|---|
| Series | Light Commercial |
|---|
| Sales Status | OBSOLETE |
|---|
| MFG Pro # | 94389-002 |
|---|
| Desc 1 | 438CNL 3 SCAL |
|---|
| UPC | 883351483827 |
|---|
| Family | Carson |
|---|
| Function | Entry |
|---|
| Finish | Polished Brass |
|---|
| Type | Lever |
|---|
| ANSI Grade | Grade 3 |
|---|
| Hardware Type | Commercial |
|---|
| Assembled Height | 2-14/25 |
|---|
| Assembled Length | 2-31/100 |
|---|
| Assembled Width | 3-4/5 |
|---|
| Projection | 2-31/100 |
|---|
| Lever Grip Length | 3-4/5 |
|---|
| Lever Rose Shape | Round |
|---|
| Style | Transitional |
|---|
| Throw Length | 1/2 |
|---|
| Latch Backset Size | Adjustable |
|---|
| Latch Type | Square Corner FD |
|---|
| Strike Height | 2-3/4 |
|---|
| Strike Type | T Strike |
|---|
| Strike Width | 1-1/8 |
|---|
| Strike Code | 3028 |
|---|
| Entry # Of Keys | 2 |
|---|
