95080-004

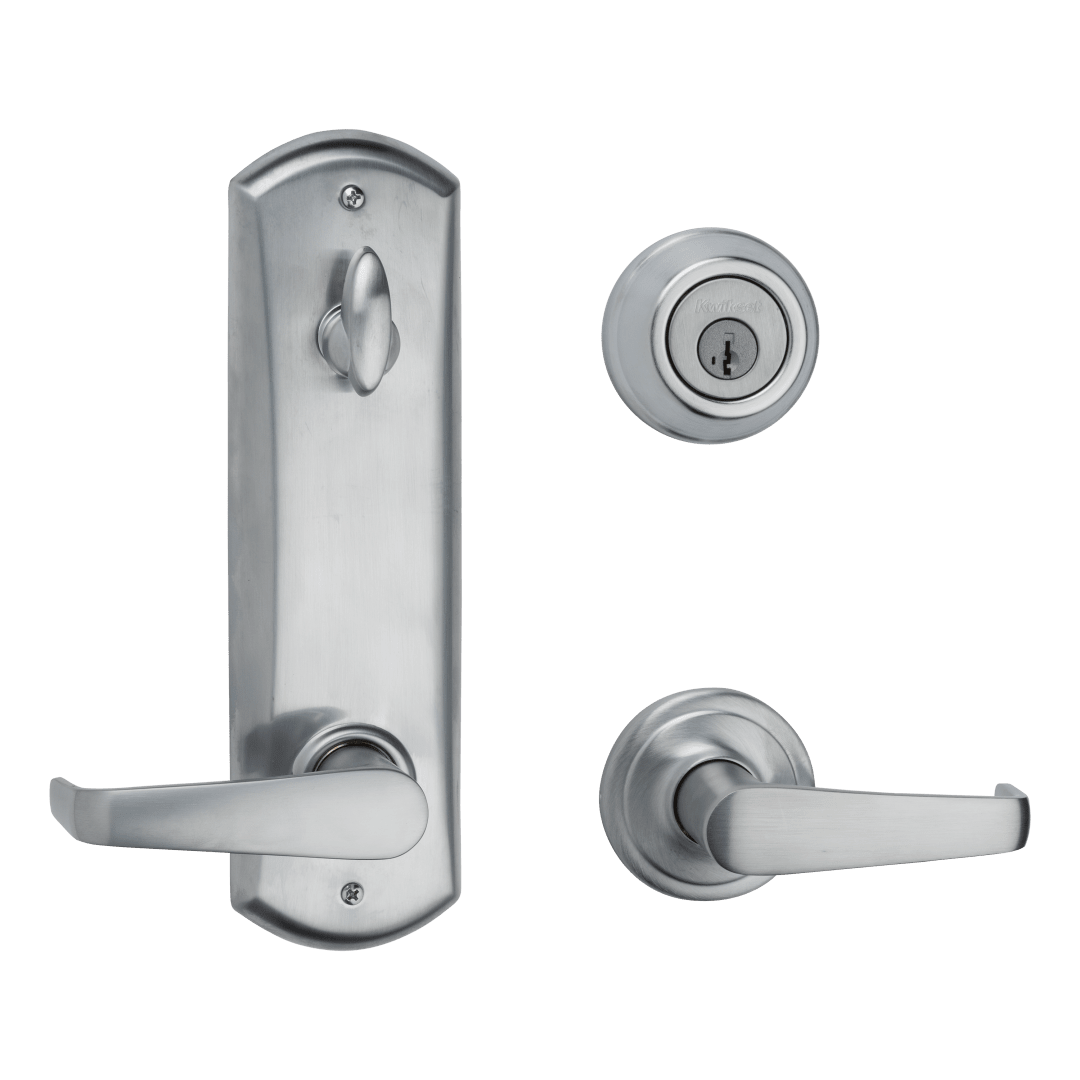

Kingston Round Interconnect Lever in Satin Chrome featuring SmartKey Security
508KNL 26D SMT 23/4 RCL
Combined
Combined
Clipped
Clipped
Brand Kwikset Series Light Commercial Sales Status ACTIVE MFG Pro # 95080-004 Desc 1 508KNL 26D SMT 23/4 RCL Desc 2 RCS 23155 LK UPC 883351925792 Family Kingston Function Interconnect Finish Satin Chrome Type Lever ANSI Grade Grade 3 Hardware Type Commercial Features - Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Latch has round corner faceplate
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- ANSI/BHMA grade 3 certified
- Latch has 2 3/4 in. backset
- 1 in. deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime Mechanical, 5 Year Finish
Assembled Height 2-9/16 Assembled Length 2-23/32 Assembled Width 5-1/8 Projection 1-24/25 Lever Grip Length 3-21/25 Lever Rose Shape Round Style Transitional Throw Length 1/2 Cross Bore 1" Strike Code Default Entry Has SmartKey Yes Entry # Of Keys 2
