Primary
96630-078

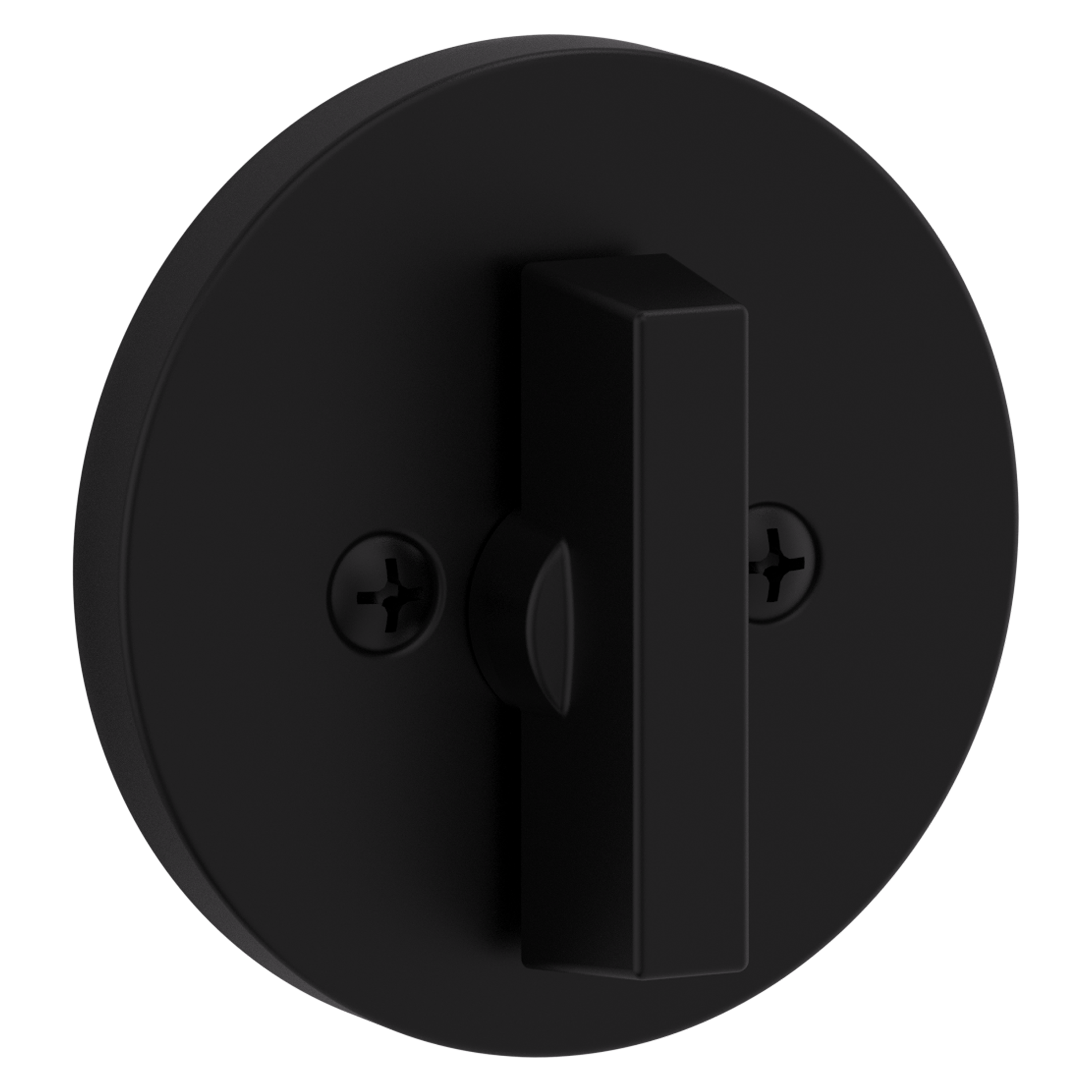

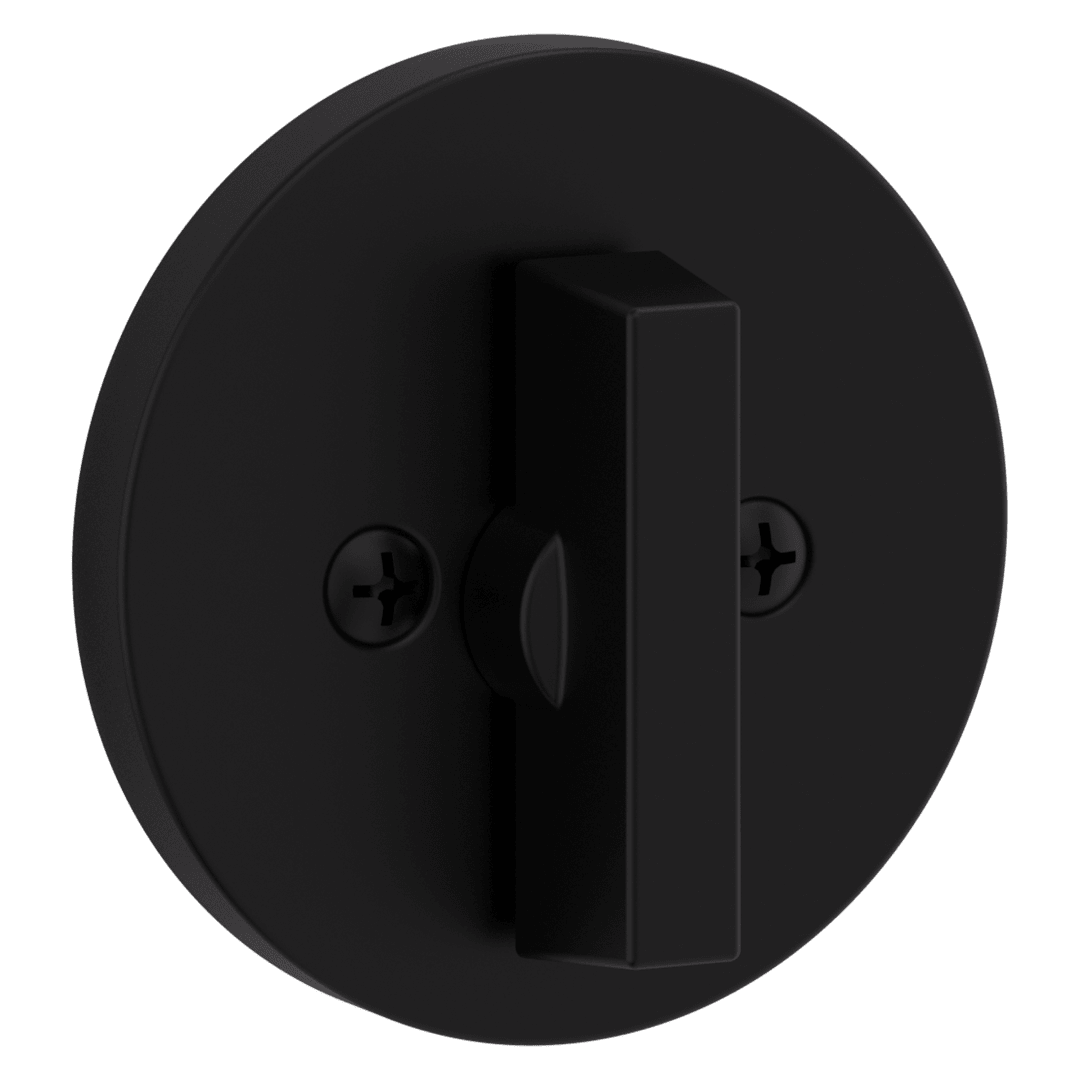

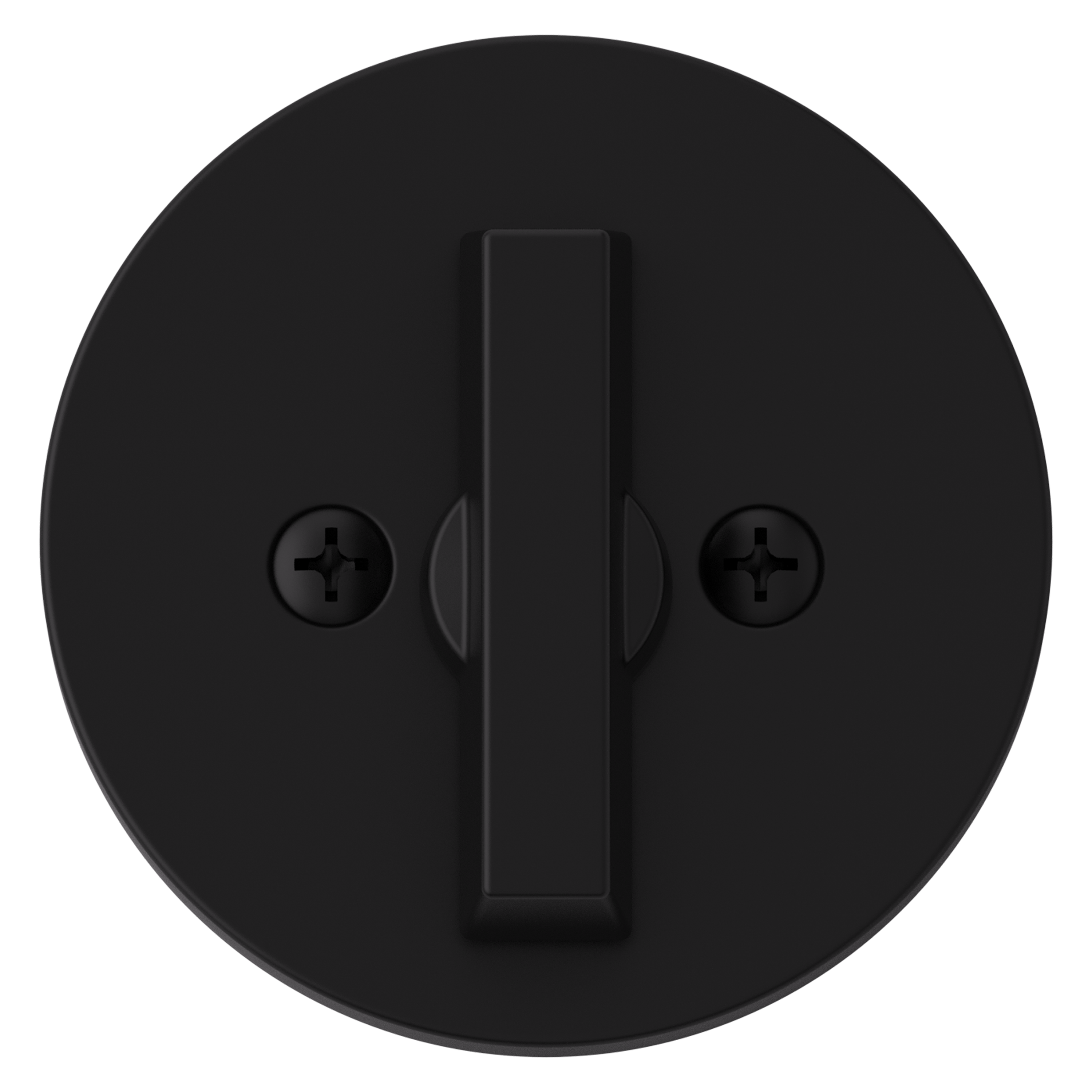

663 Unkeyed Deadbolt in Matte Black
663 514 2-3/8 RCL
Vignette
Vignette
Enhanced Gallery
Enhanced Gallery
Clipped
Clipped
Brand Kwikset Series Security Series Sales Status ACTIVE MFG Pro # 96630-078 Desc 1 663 514 2-3/8 RCL Desc 2 RCS/5303 UPC 883351934893 Family 600 Deadbolt Series Deadbolt Family 663 Deadbolt Function Unkeyed Finish Matte Black Type Deadbolt ANSI Grade Grade 3 Hardware Type Residential Features - Deadbolt operated by thumb turn on interior, no trim on exterior.
- Latch has round corner faceplate
- Deadbolt Latch has round corner faceplate
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 inch deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Assembled Height 2-1/2 Assembled Width 2-1/2 Projection 27/32 Style Traditional Throw Length 1/2 Deadbolt Throw Length 1 in. Cross Bore 1" Strike Code Default
