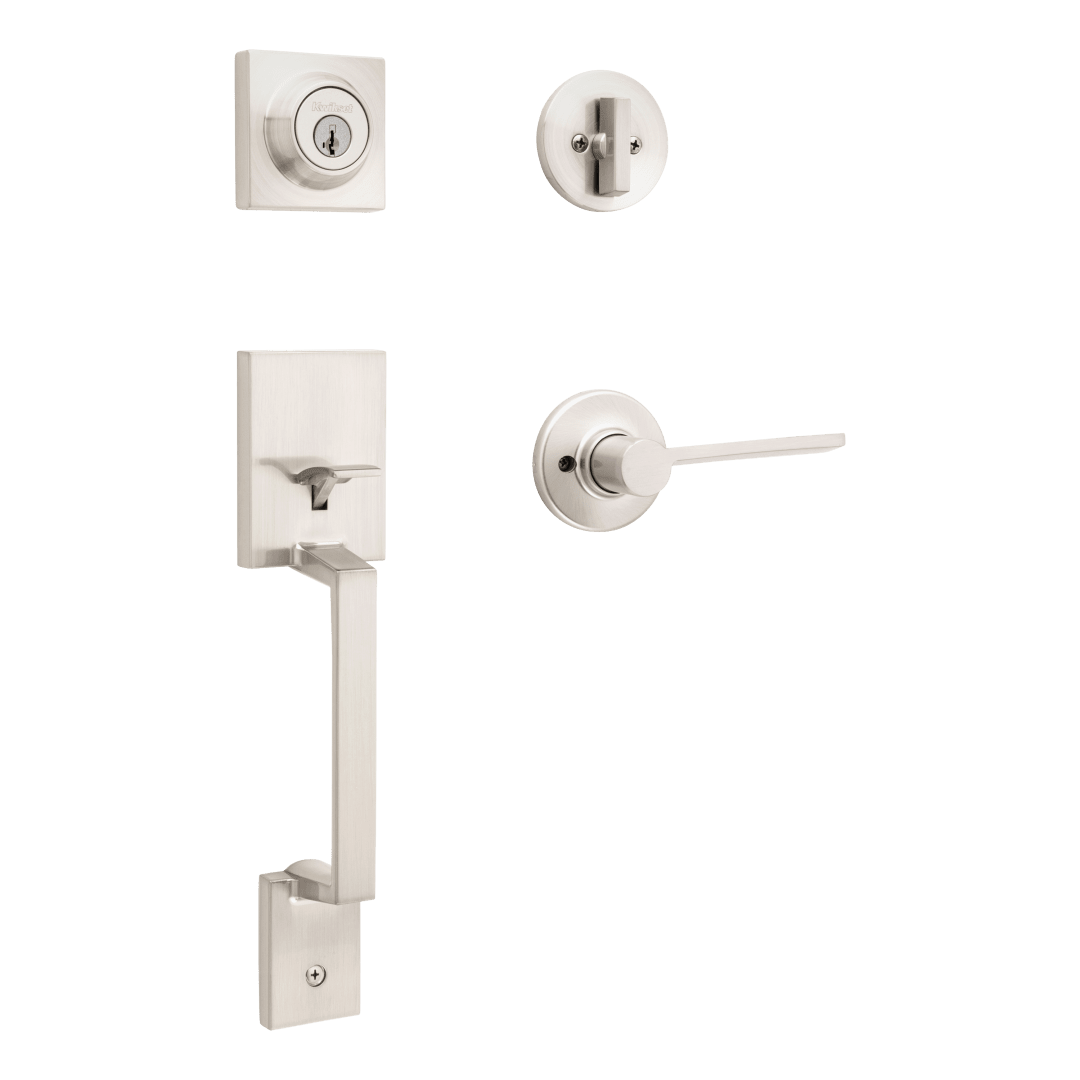

Amador Single Cylinder Handleset w/Ladera Lever in Satin Nickel

Primary

96870-151

Amador Single Cylinder Handleset w/Ladera Lever in Satin Nickel

687AMDXLRL RDT 15 SMT CP

Handlset with Deadbolt: Use on exterior front doors with two bore holes, comes with interior lever and locking deadbolt turn piece, key operated from outside
SmartKey Security: Kwikset’s SmartKey Security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
Easy Install: Do it yourself, installs in minutes with just a screwdriver, if door is missing a bottom handleset support hole you will need a drill, directions provided
Fits Standard Doors: Fits standard size doors 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation
Certified Trusted Quality: Security, Durability and Finish are Grade 3 BHMA certified, designed for reliable protection, providing peace of mind at home
Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details
Box Includes: Deadbolt, lever, Adjustable Latches with round and square front options or drive-in collar, round corner strikes, SmartKey tool, 2 Kwikset keys, screws and Allen wrench
Microban Protection: Kwikset’s door hardware is treated with Microban, this offers powerful product protection that is 99.9% cleaner than an unprotected surface

Lock Finish

Lock Function

Vignette

Vignette

Vignette

Vignette

Vignette

Combined

Combined

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Enhanced Gallery

Clipped

Clipped

Clipped

Clipped

Brand	Kwikset
Series	Security Series
Sales Status	ACTIVE
MFG Pro #	96870-151
Desc 1	687AMDXLRL RDT 15 SMT CP
UPC	883351749015
Family	Amador
Function	Single Cylinder
Finish	Satin Nickel
Type	Handleset
ANSI Grade	Handleset Grade 3
Hardware Type	Residential

Product Description

Amador has a refined, structural look with its simplistic modern design. Secure your front door with keyed entry handleset door locks, which come with a deadbolt and door handle exterior and interior. Recommended for exterior facing doors with two bore holes. Double door dummy door handles are also available in select families and finishes to give your entryway a stylish, cohesive look. Kwikset is the #1 selling U.S. lock brand*, protecting families with trusted security since 1946. Kwikset offers smart, simple, stylish and secure door hardware for every home or business need — from mechanical locks with patented SmartKey Security to innovative and flexible smart home technology. *YipitData Unit Share Report, 2026.

Features

For use on exterior doors where keyed entry and security is needed
Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
Comes with 2 keys
Latch has 2 interchangeable faceplates; round corner and square corner
Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
Handleset Deadbolt ANSI/BHMA Grade 3 Certified
Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
Includes full lip round strike
Includes round deadbolt strike
1/2 in. latch throw
1 inch deadbolt throw
Locking mechanism functions with turn piece on the interior of the lock
Easily installs in minutes with just a screwdriver
Lifetime mechanical and finish warranty

Assembled Height 17-15/32
Assembled Length 2-3/32
Assembled Width 2-25/32
Exterior Assembled Depth 2-25/32
Exterior Assembled Height 17-15/32
Exterior Assembled Width 6-13/32
Projection 2-25/32

Style	Traditional
Throw Length	.5
Deadbolt Throw Length	1 in.
Cross Bore	1"
Latch Type	4-Way
Strike Height	2-1/4
Strike Type	Full Lip Round Corner
Strike Width	1-3/4
Deadbolt Strike Height	2-1/4
Deadbolt Strike Width	1
Strike Code	Default
Interior Pack Collection	Ladera
Entry Has SmartKey	Yes
Entry # Of Keys	2

Assembled Height	17-15/32
Assembled Length	2-3/32
Assembled Width	2-25/32
Exterior Assembled Depth	2-25/32
Exterior Assembled Height	17-15/32
Exterior Assembled Width	6-13/32
Projection	2-25/32
