97330-005

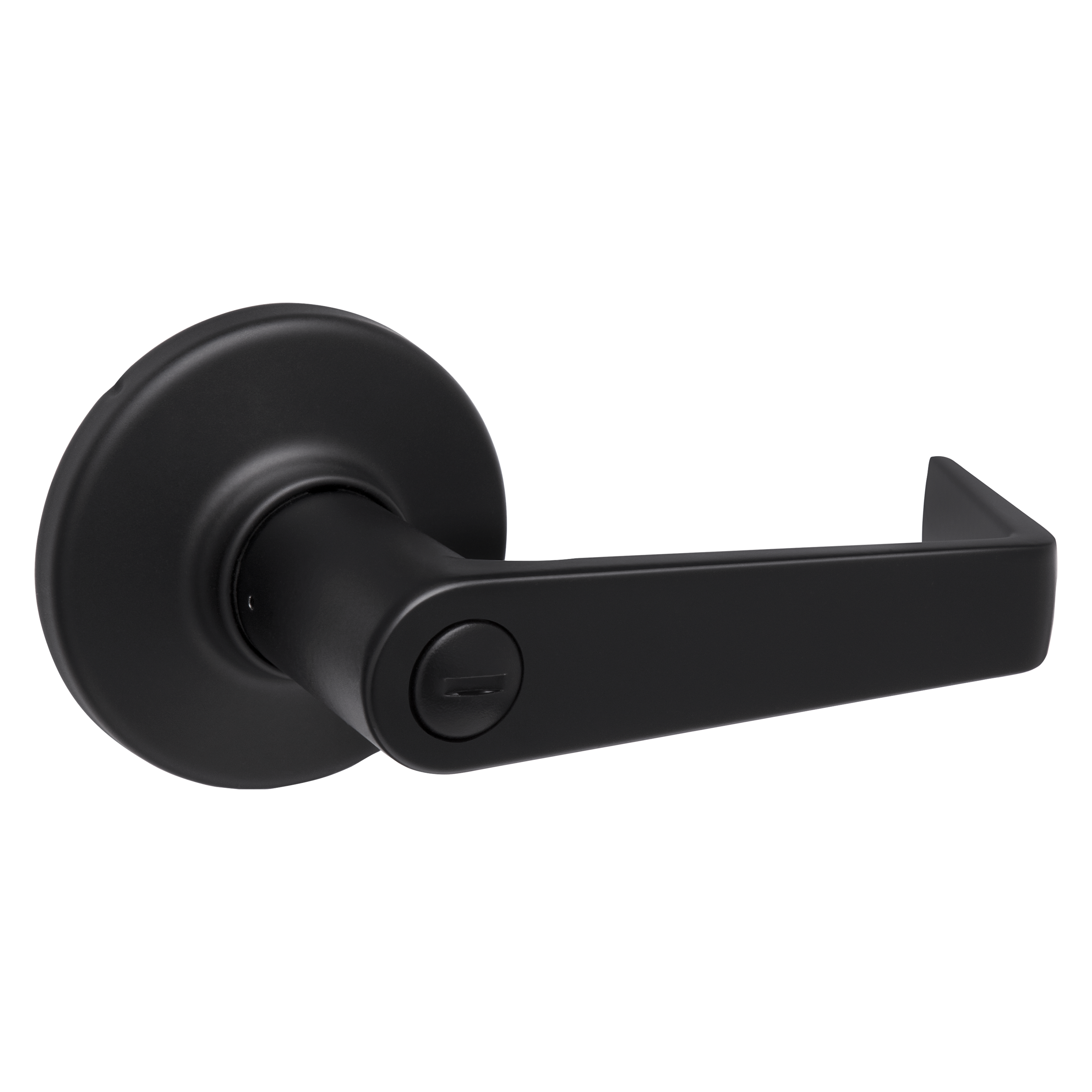

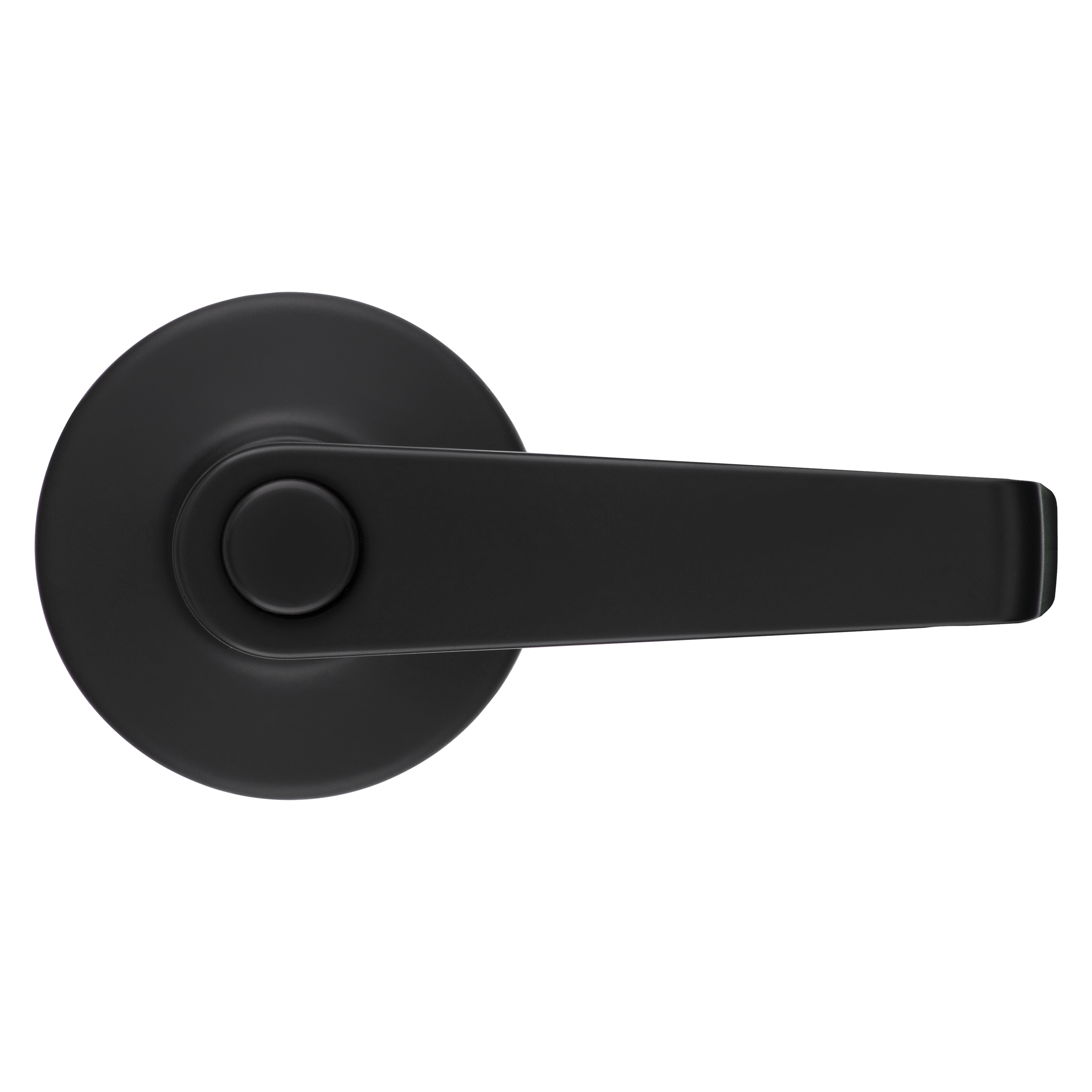

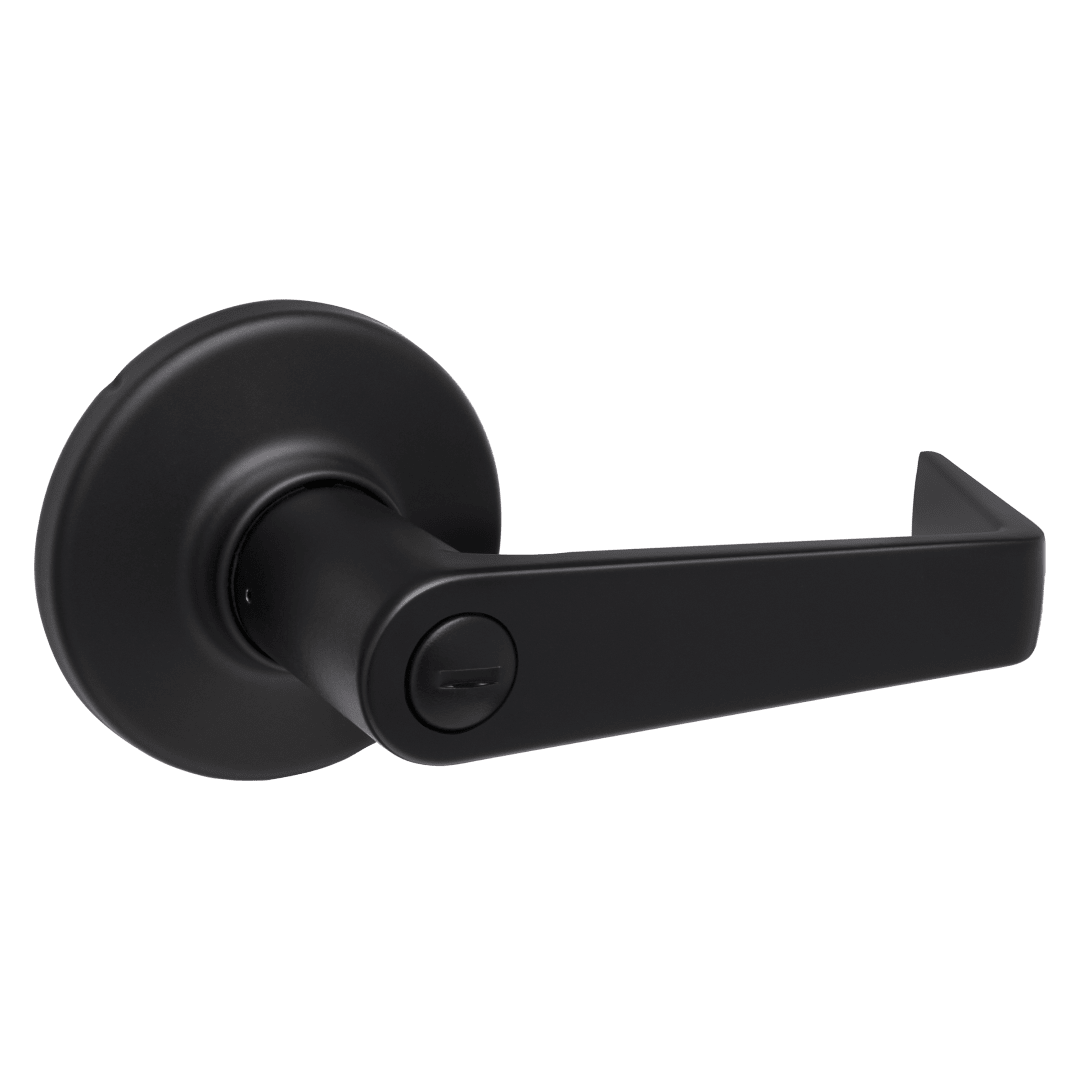

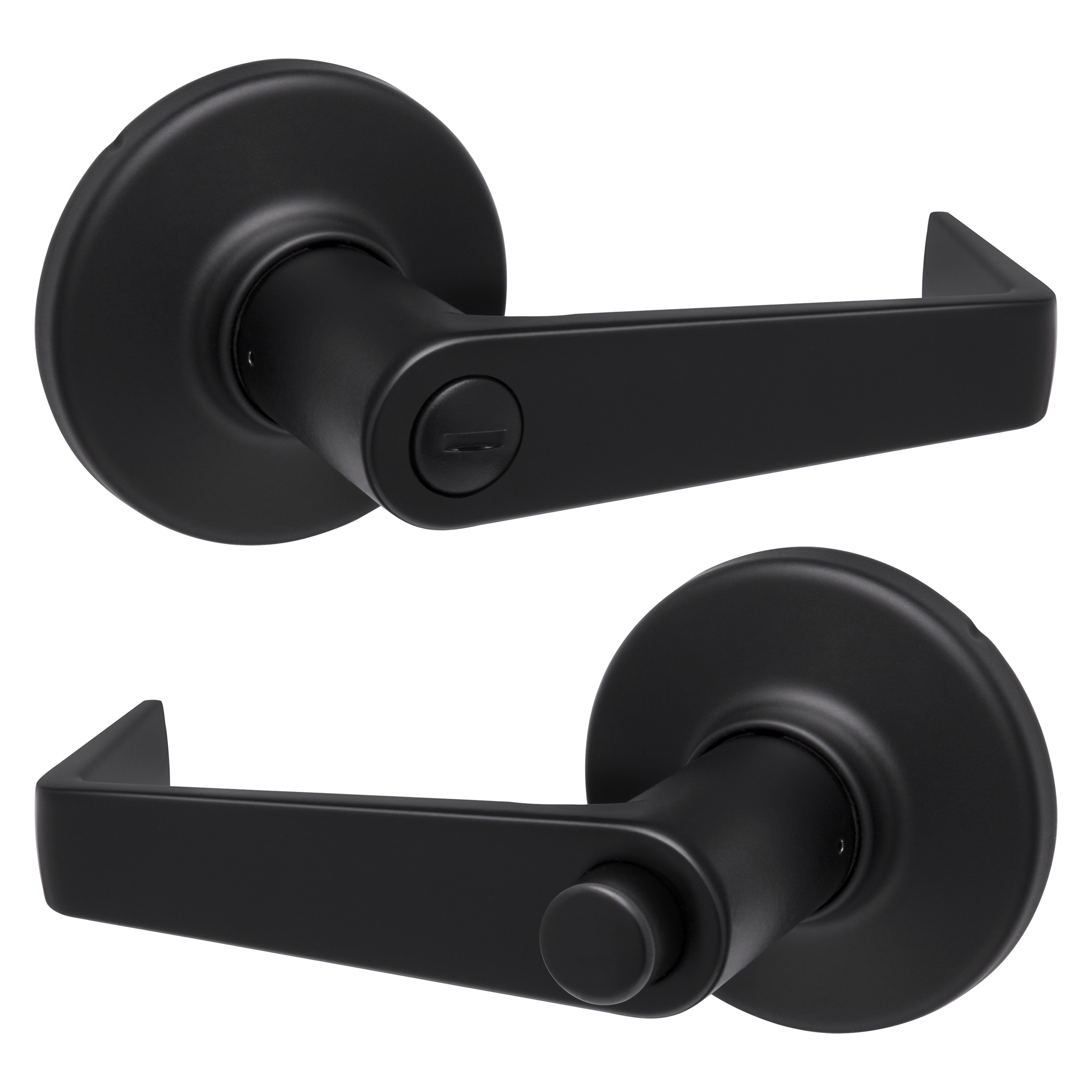

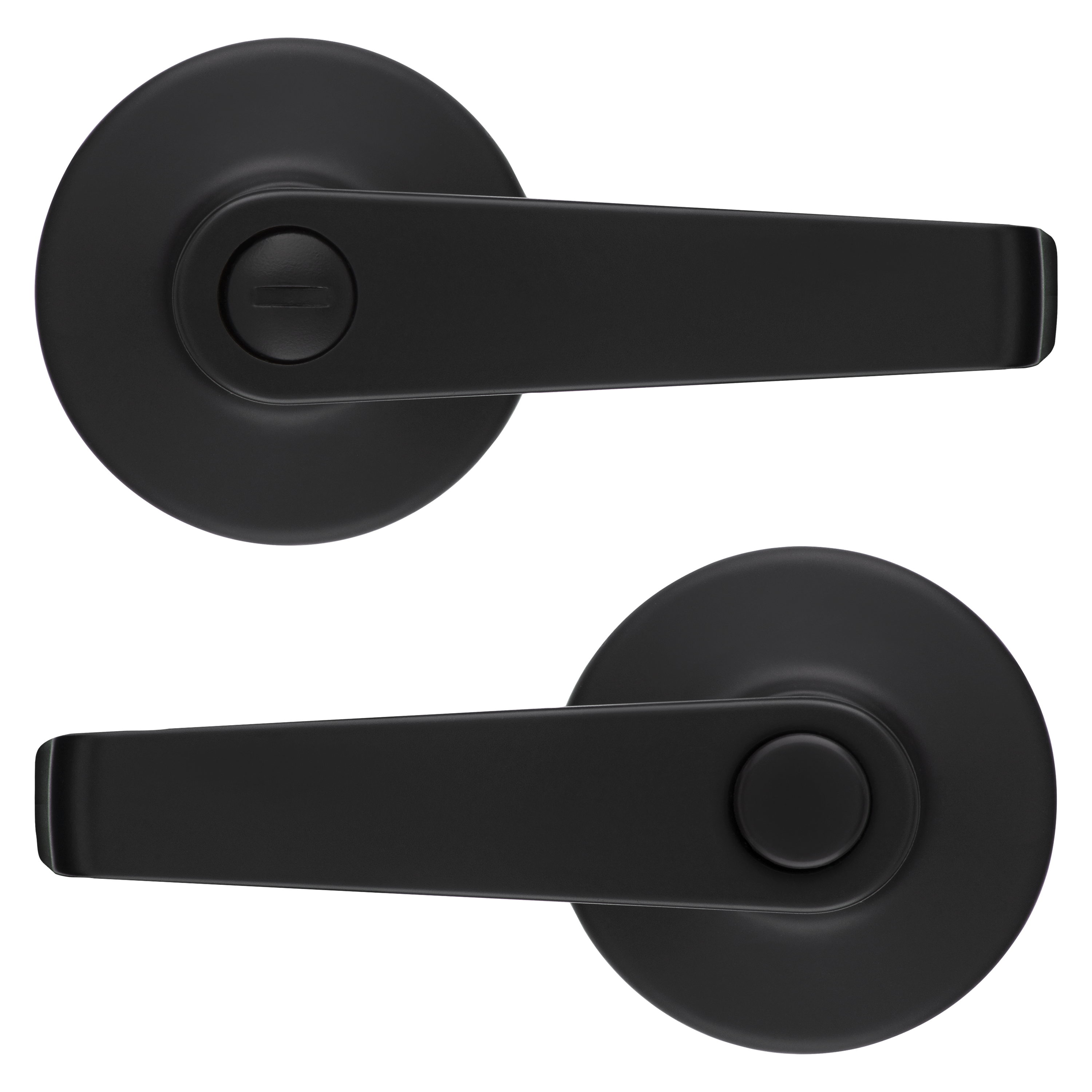

Kingston Round Bed/Bath Lever in Matte Black with Microban Protection
733KNL 514 RCAL UL 3031
Vignette
Vignette
Vignette
Vignette
Combined
Combined
Clipped
Clipped
Clipped
Clipped
Brand Kwikset Series Light Commercial Sales Status ACTIVE MFG Pro # 97330-005 Desc 1 733KNL 514 RCAL UL 3031 UPC 883351924245 Family Kingston Function Privacy Finish Matte Black Type Lever ANSI Grade Grade 2 Hardware Type Commercial Features - For use on interior doors where a privacy locking function is required, such as a bedroom or bathroom
- Latch has round corner faceplate
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Locking mechanism functions by pressing the push button on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime Mechanical, 5 Year Finish
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Assembled Height 2-9/16 Assembled Length 2-23/32 Assembled Width 5-1/8 Projection 2-2/5 Lever Grip Length 3-21/25 Lever Rose Shape Round Style Transitional Throw Length 1/2 Cross Bore 1" Latch Type Round Corner Adjustable Latch Strike Code Default
