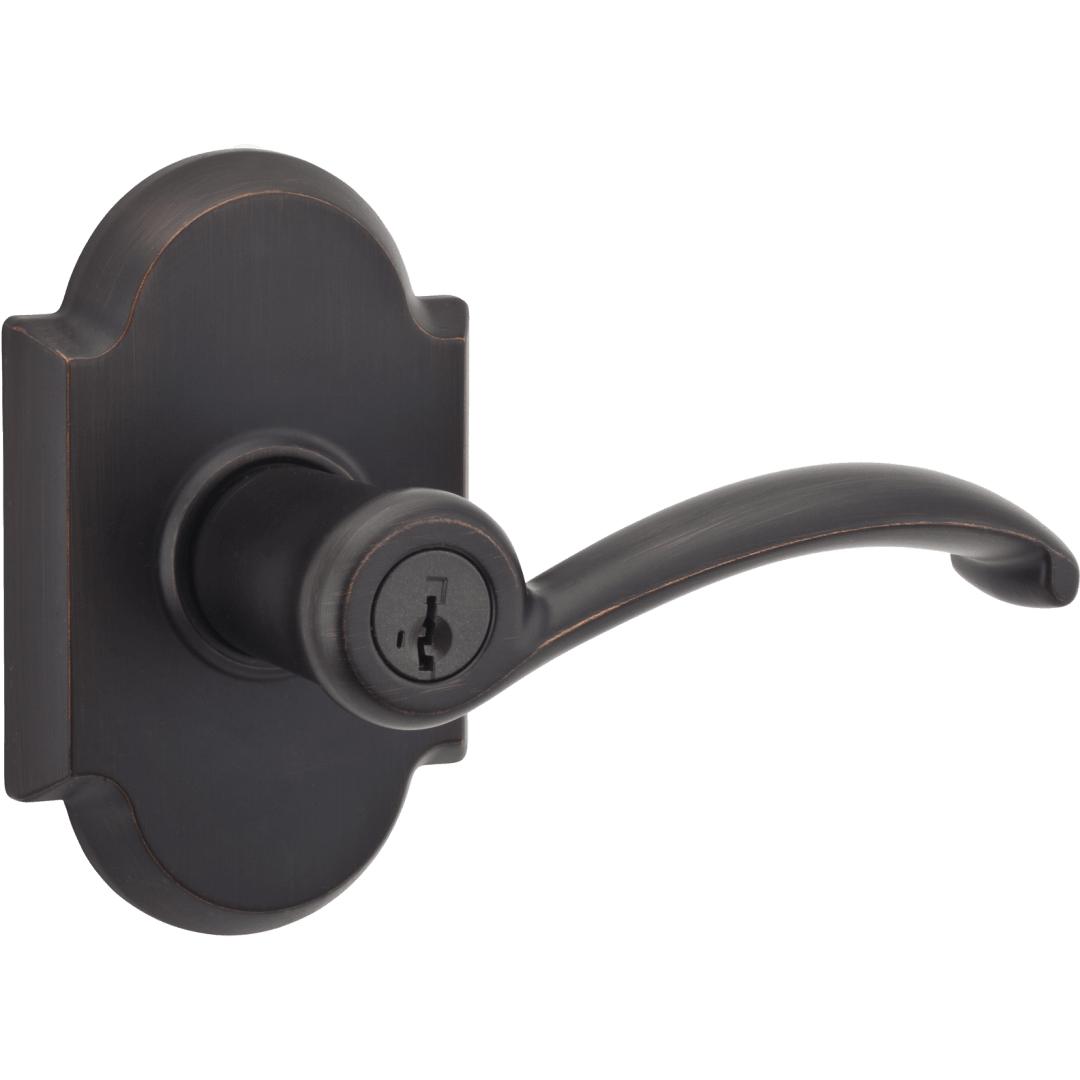

Austin Keyed Entry Lever featuring SmartKey Security™ in Venetian Bronze

740AUL 11P SMT 6AL RCS

Lock Finish

Lock Function

Vignette

Combined

Clipped

Clipped

Features

Designer style and superior security with this Kwikset Signature Series™ product
For use on exterior doors where keyed entry and security is needed
Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
Comes with 2 keys
Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar
ANSI/BHMA grade 2 certified
Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
1/2 in. latch throw
Locking mechanism functions with turn piece on the interior of the lock
Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
Fully reversible lever, can be installed on both right handed and left handed doors
Easily installs in minutes with just a screwdriver
Lifetime mechanical and finish warranty
Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Assembled Height 2-3/16
Assembled Width 2-3/16
Projection 2-3/4
Lever Grip Length 4-1/8
Lever Rose Shape Arched
Throw Length 1/2
Latch Type 6-Way Adjustable Latch
Strike Code RCS
Entry Has SmartKey Yes
Entry # Of Keys 2
