97560-005

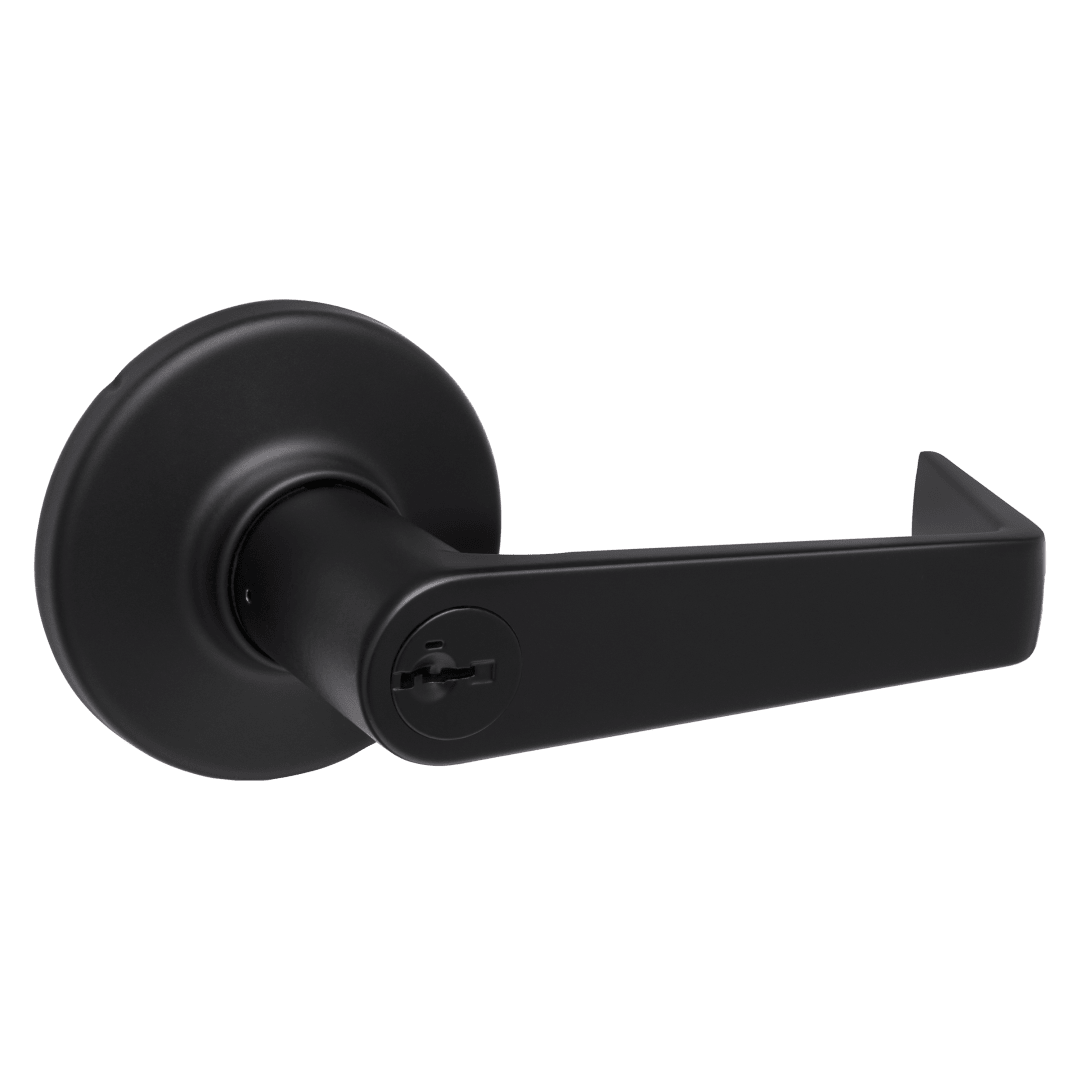

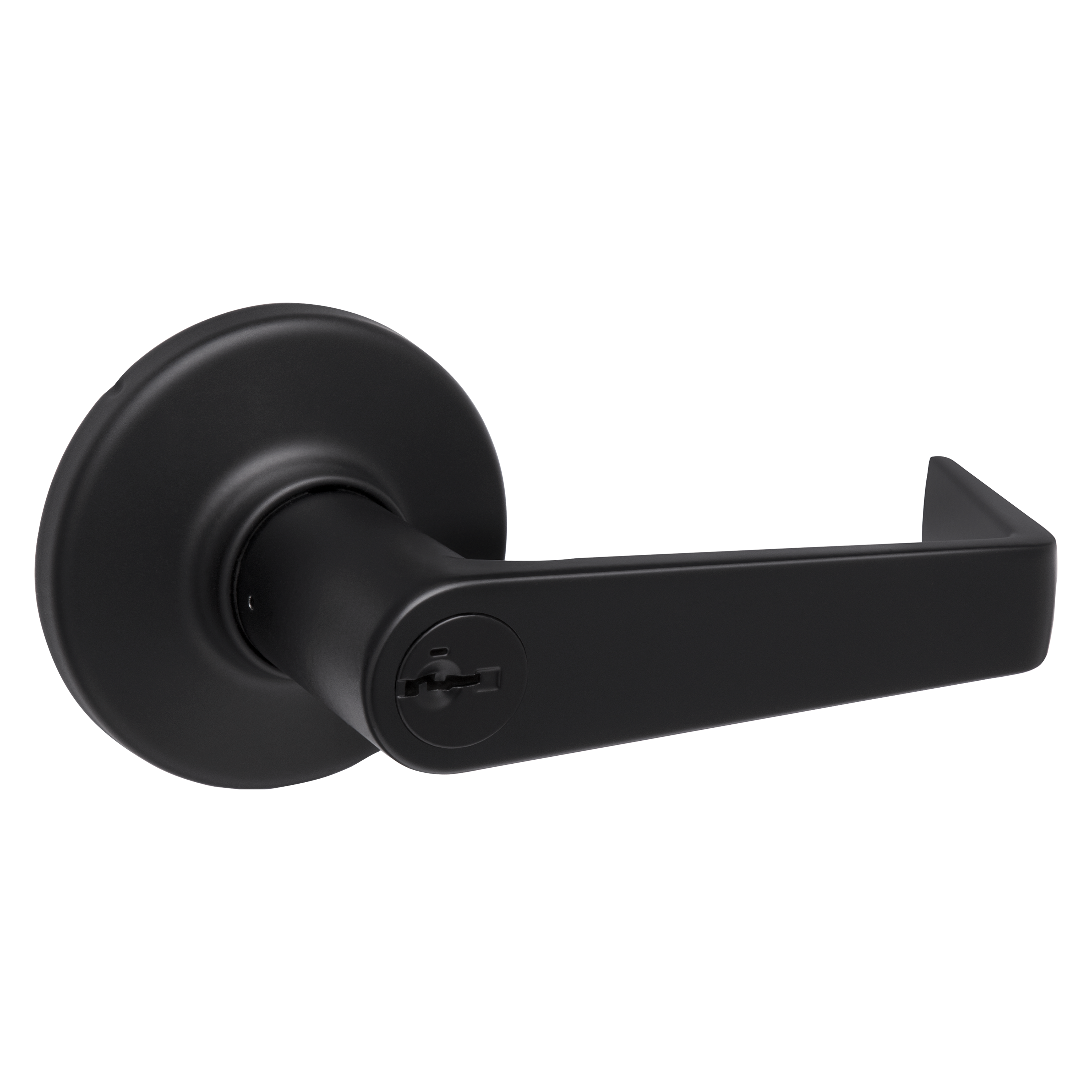

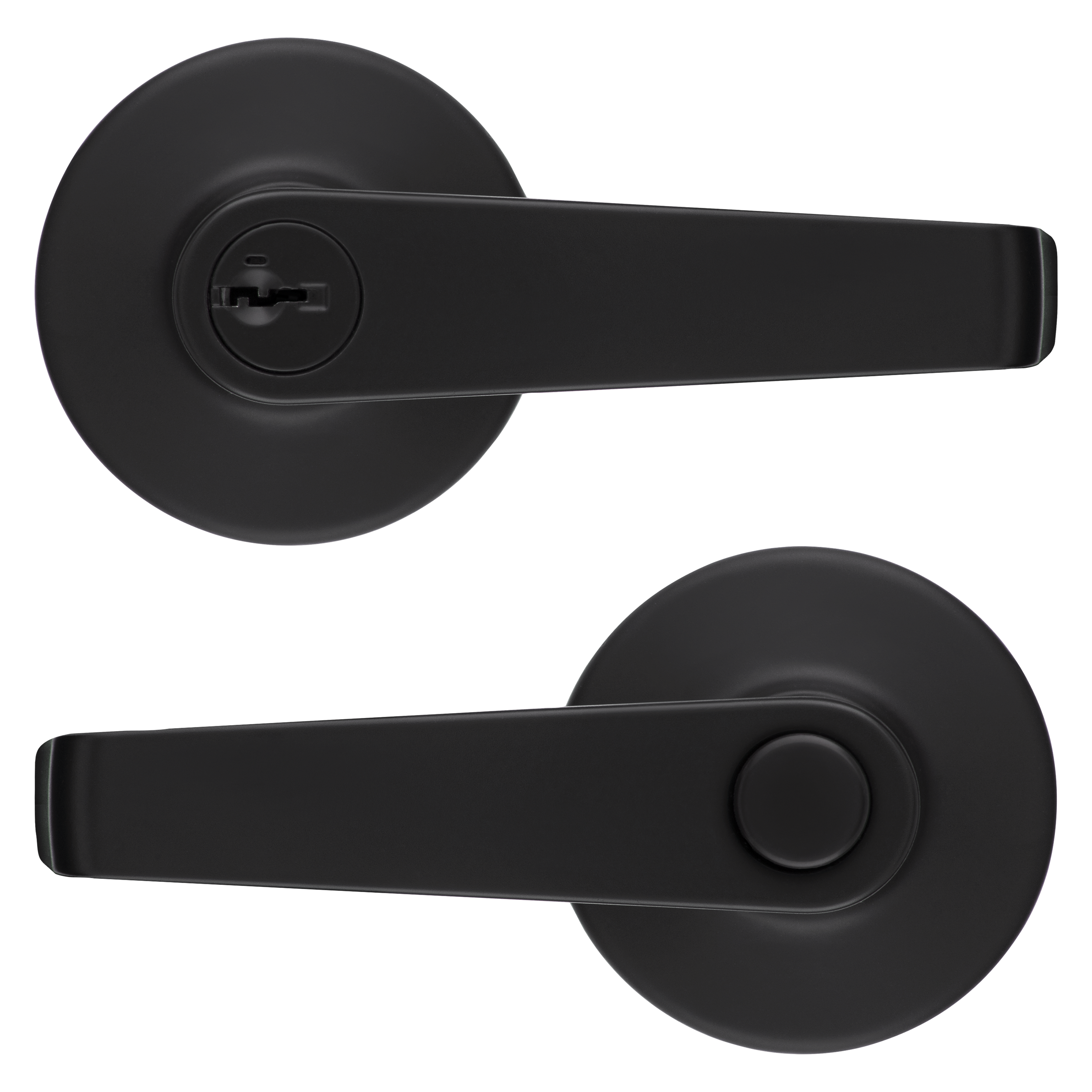

Kingston Round Keyed Entry Lever in Matte Black featuring SmartKey Security
756KNL 514 SMT RCAL UL

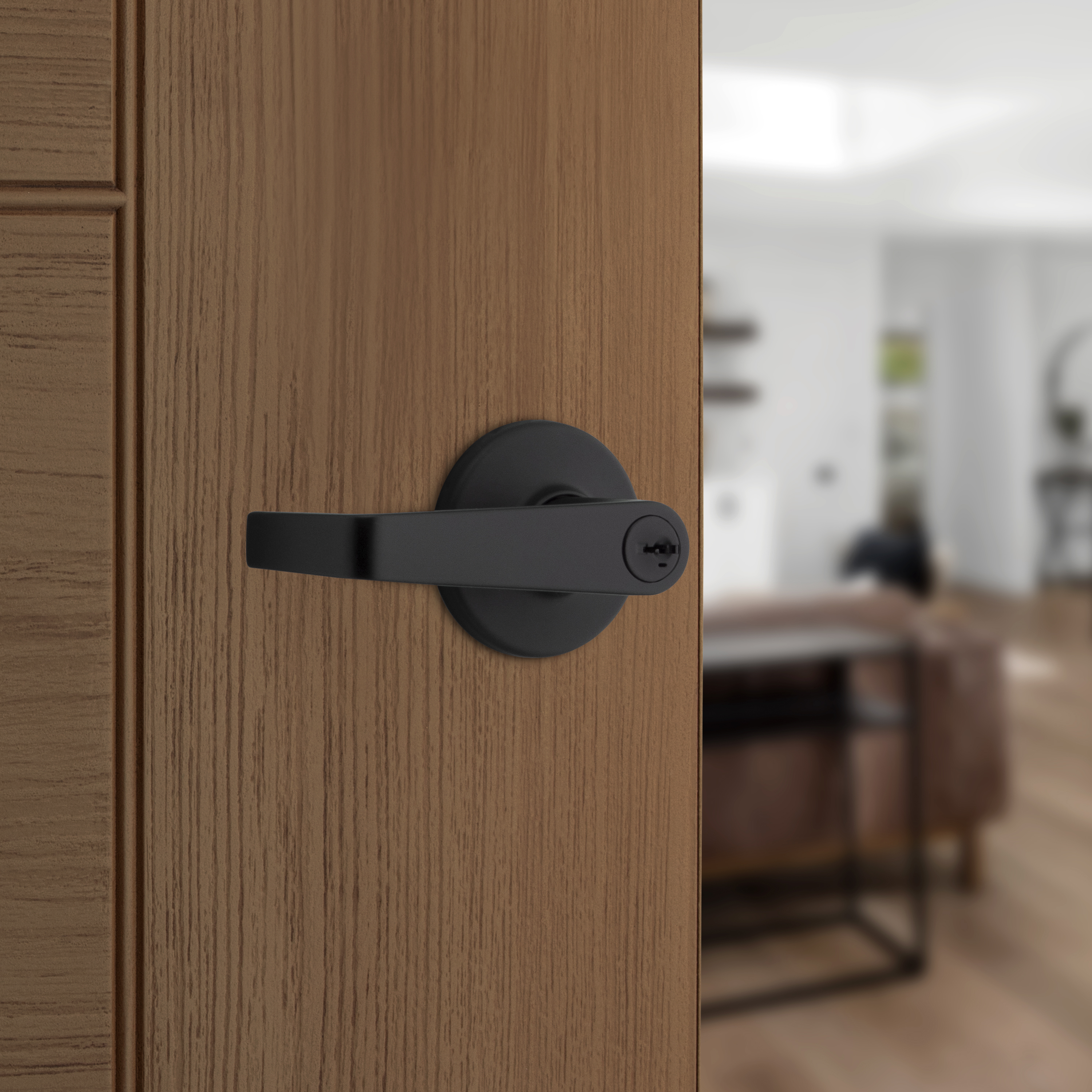

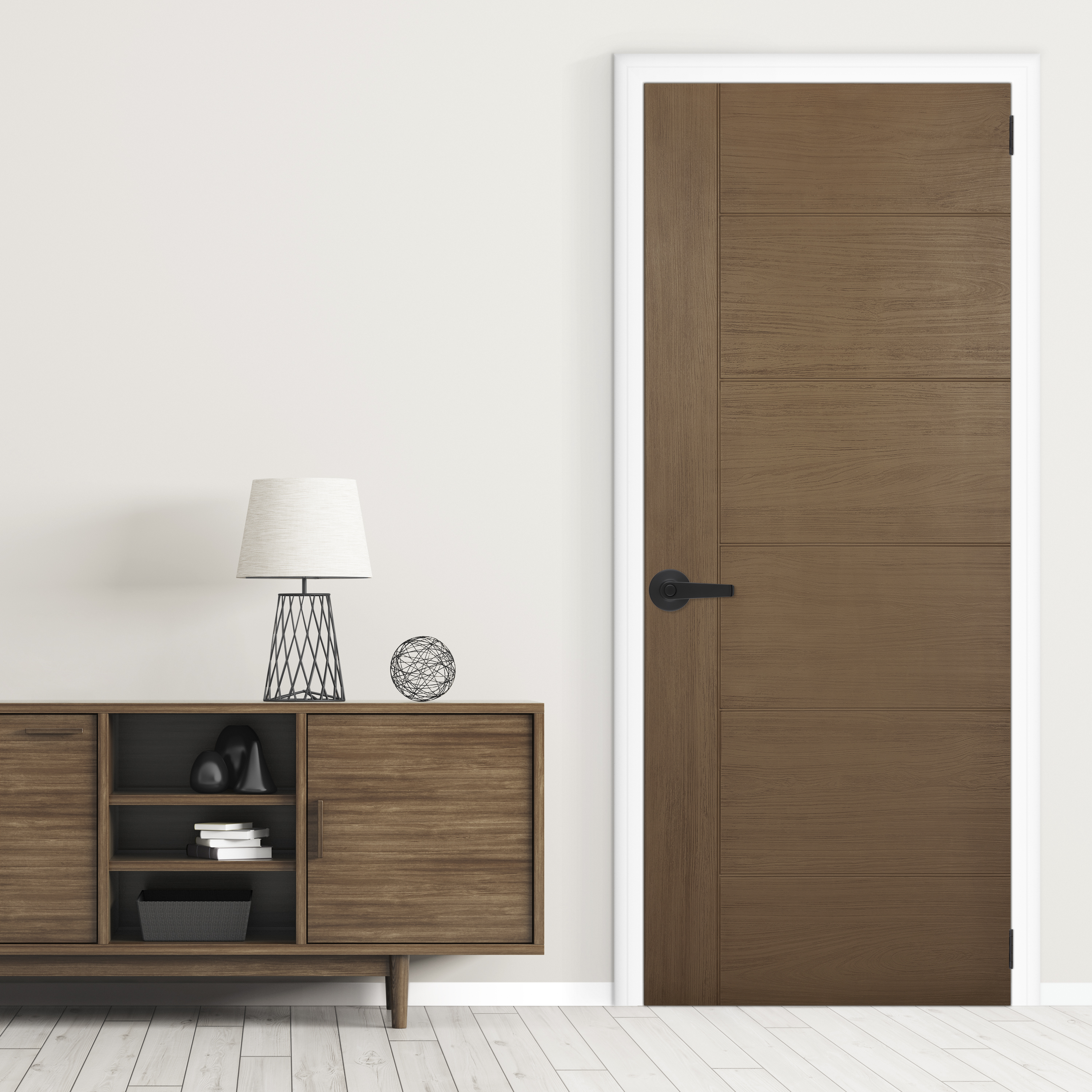

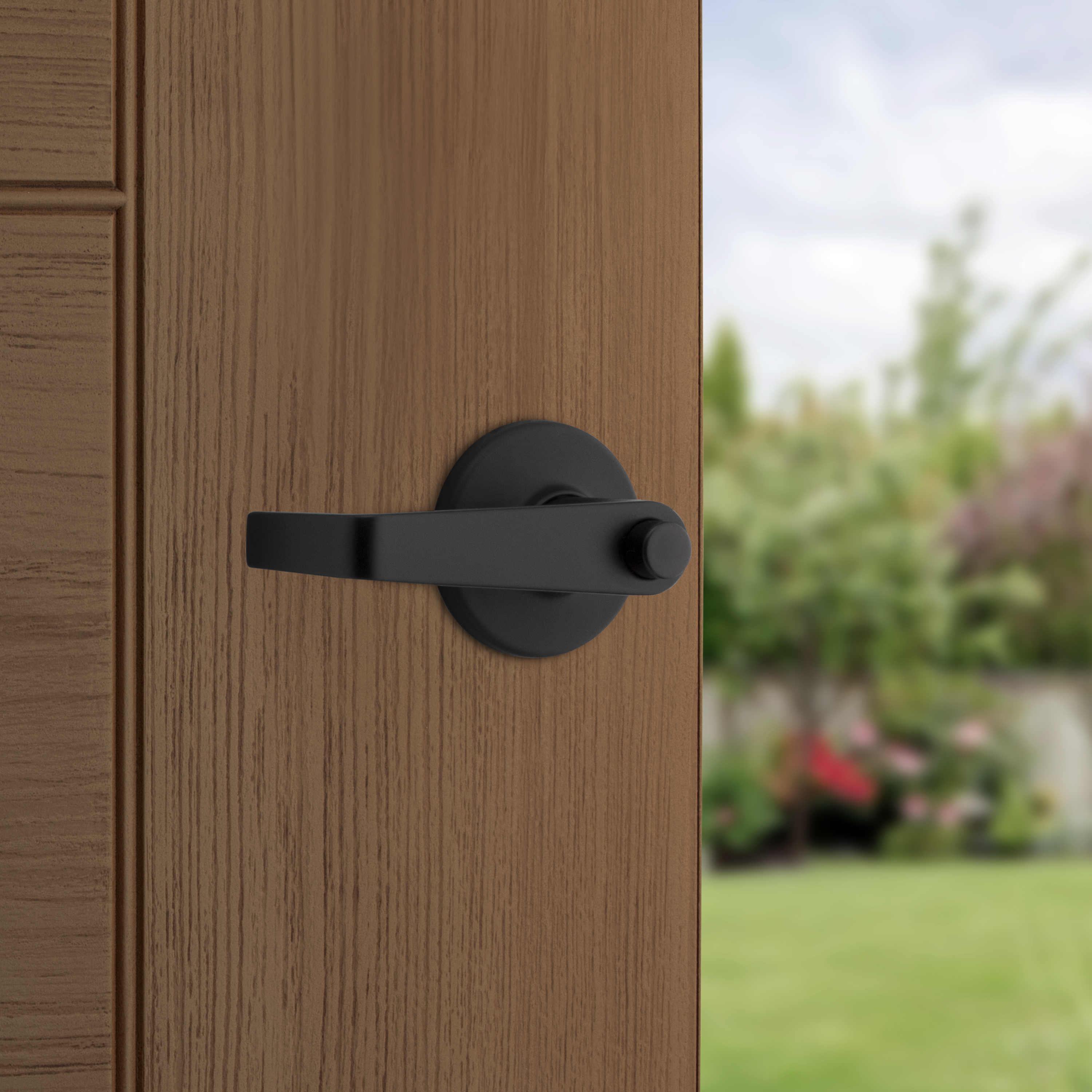

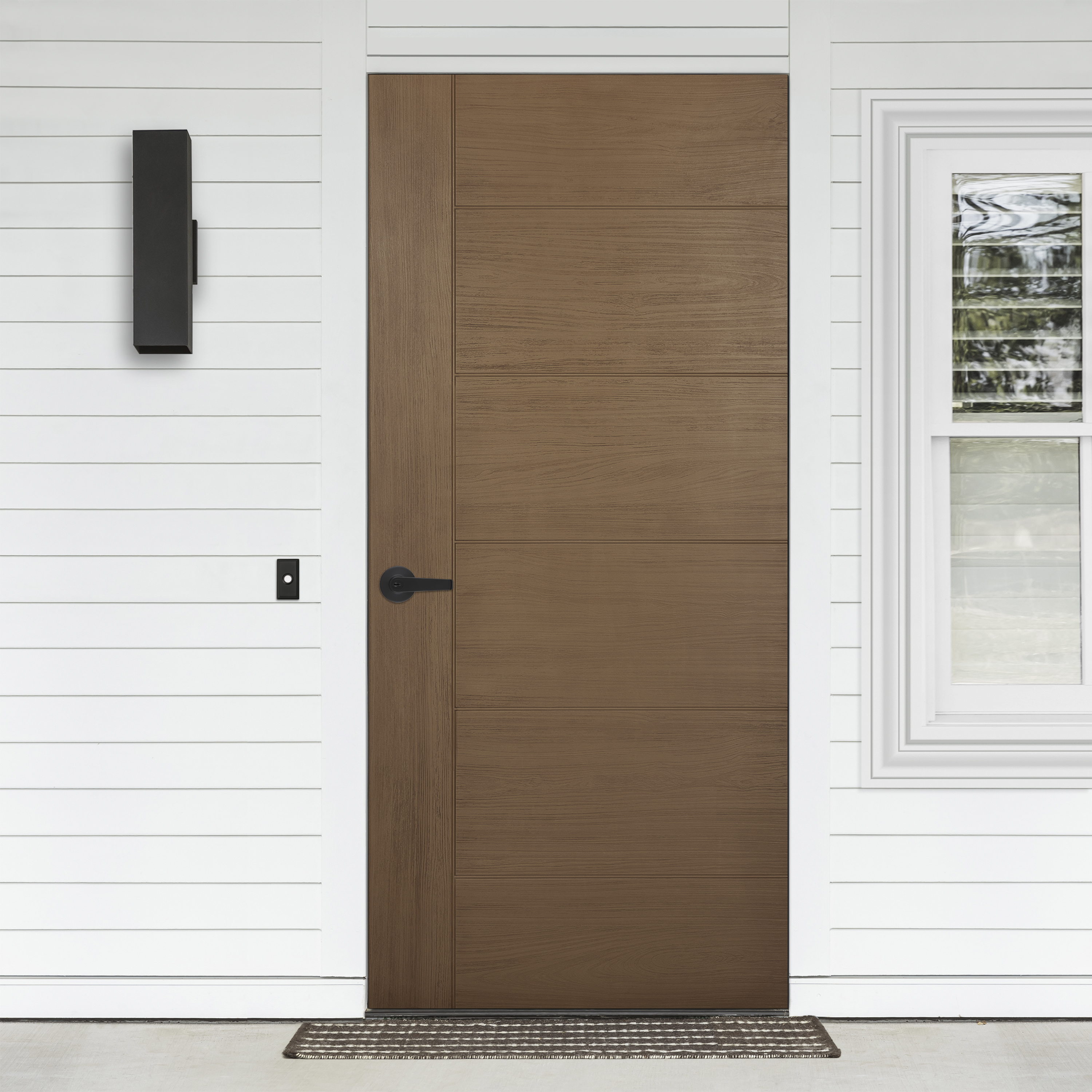

Vignette
Vignette
Vignette
Vignette

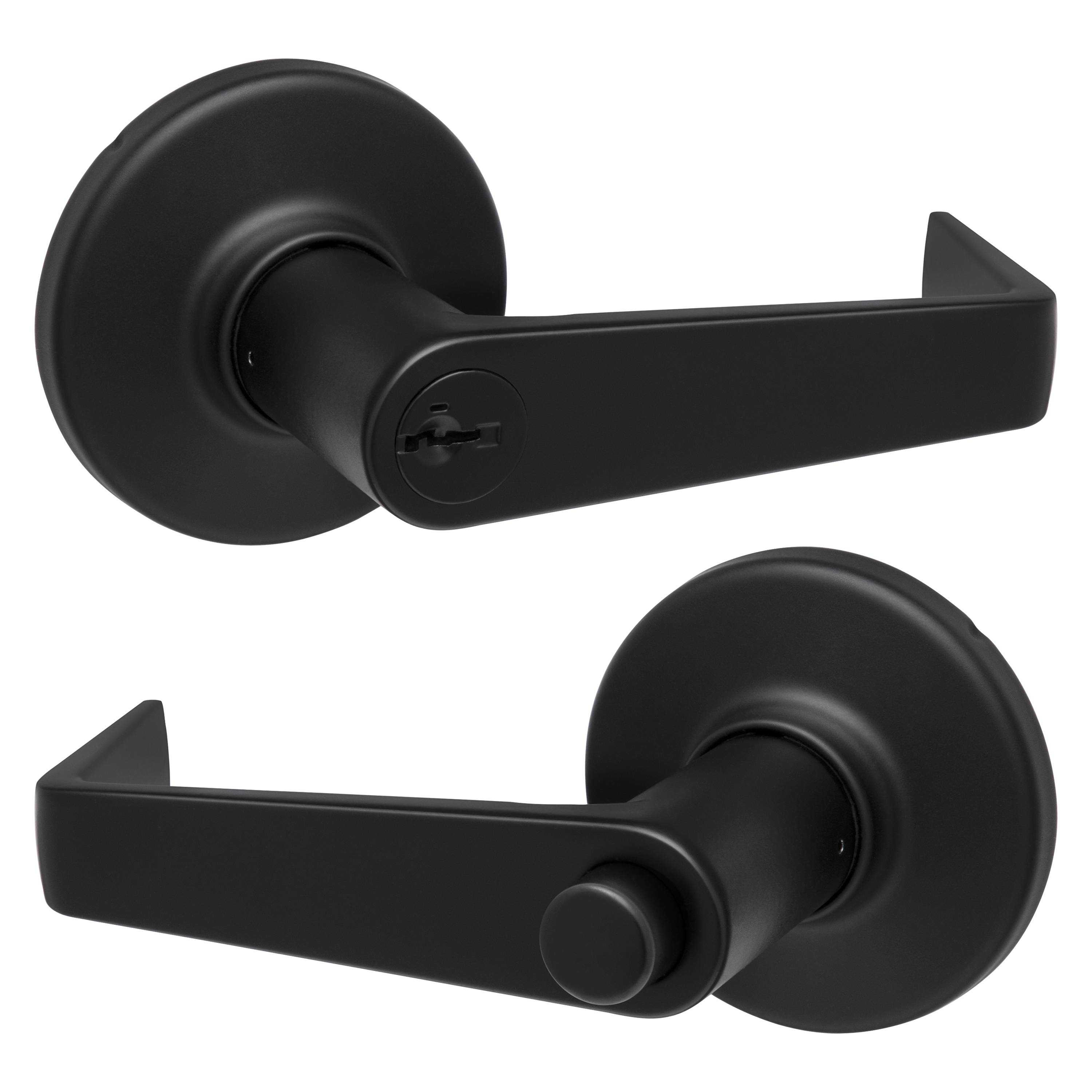

Combined
Combined
Clipped
Clipped
Clipped
Clipped
Brand Kwikset Series Light Commercial Sales Status ACTIVE MFG Pro # 97560-005 Desc 1 756KNL 514 SMT RCAL UL Desc 2 3031 23155 LK UPC 883351924252 Family Kingston Function Entry Finish Matte Black Type Lever ANSI Grade Grade 2 Hardware Type Commercial Features - For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Latch has round corner faceplate
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

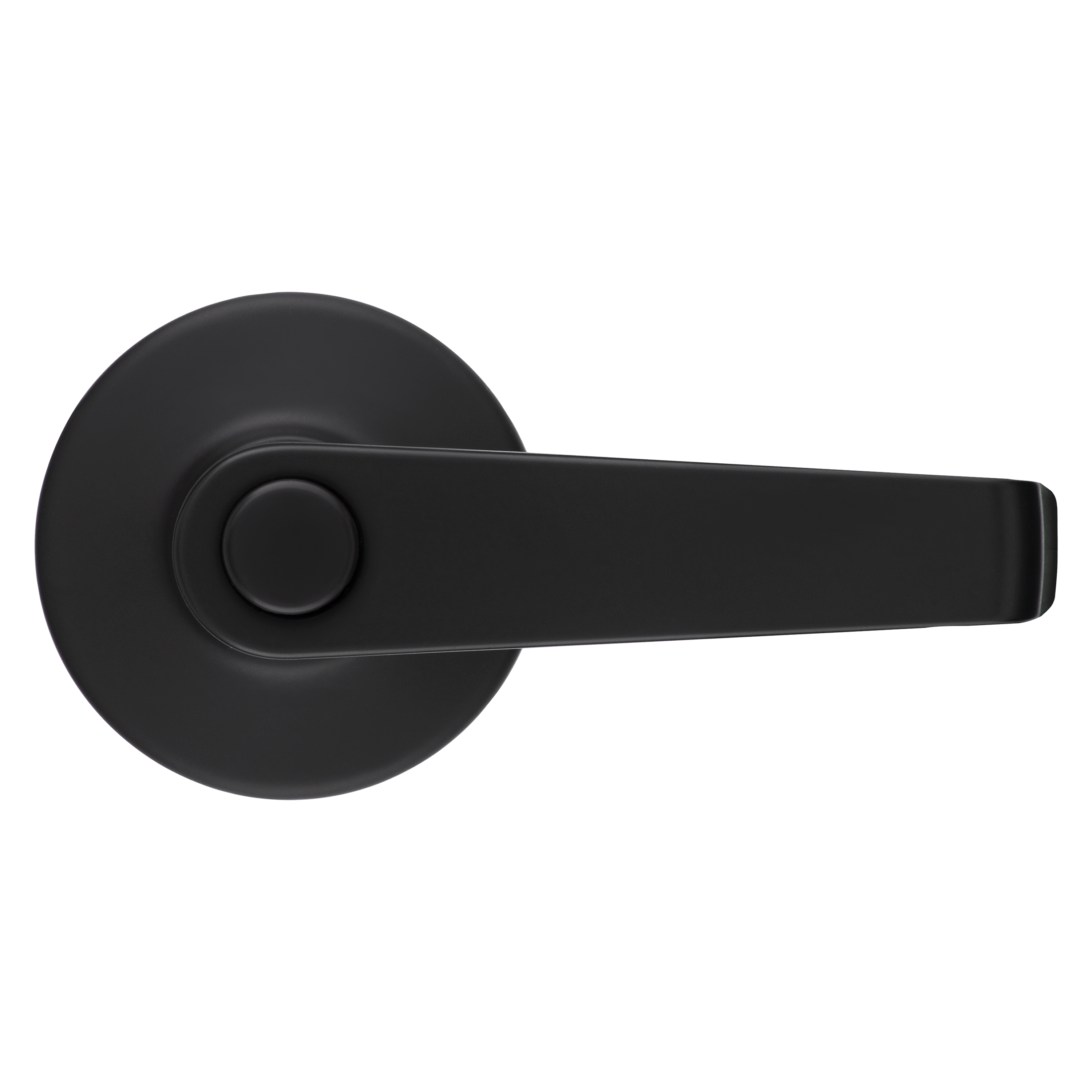

- Locking mechanism functions by pressing the push button on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime Mechanical, 5 Year Finish
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Assembled Height 2-9/16 Assembled Length 2-23/32 Assembled Width 5-1/8 Projection 2-2/5 Lever Grip Length 3-21/25 Lever Rose Shape Round Style Transitional Throw Length 1/2 Cross Bore 1" Latch Type Round Corner Adjustable Latch Strike Code Default Entry Has SmartKey Yes Entry # Of Keys 2
