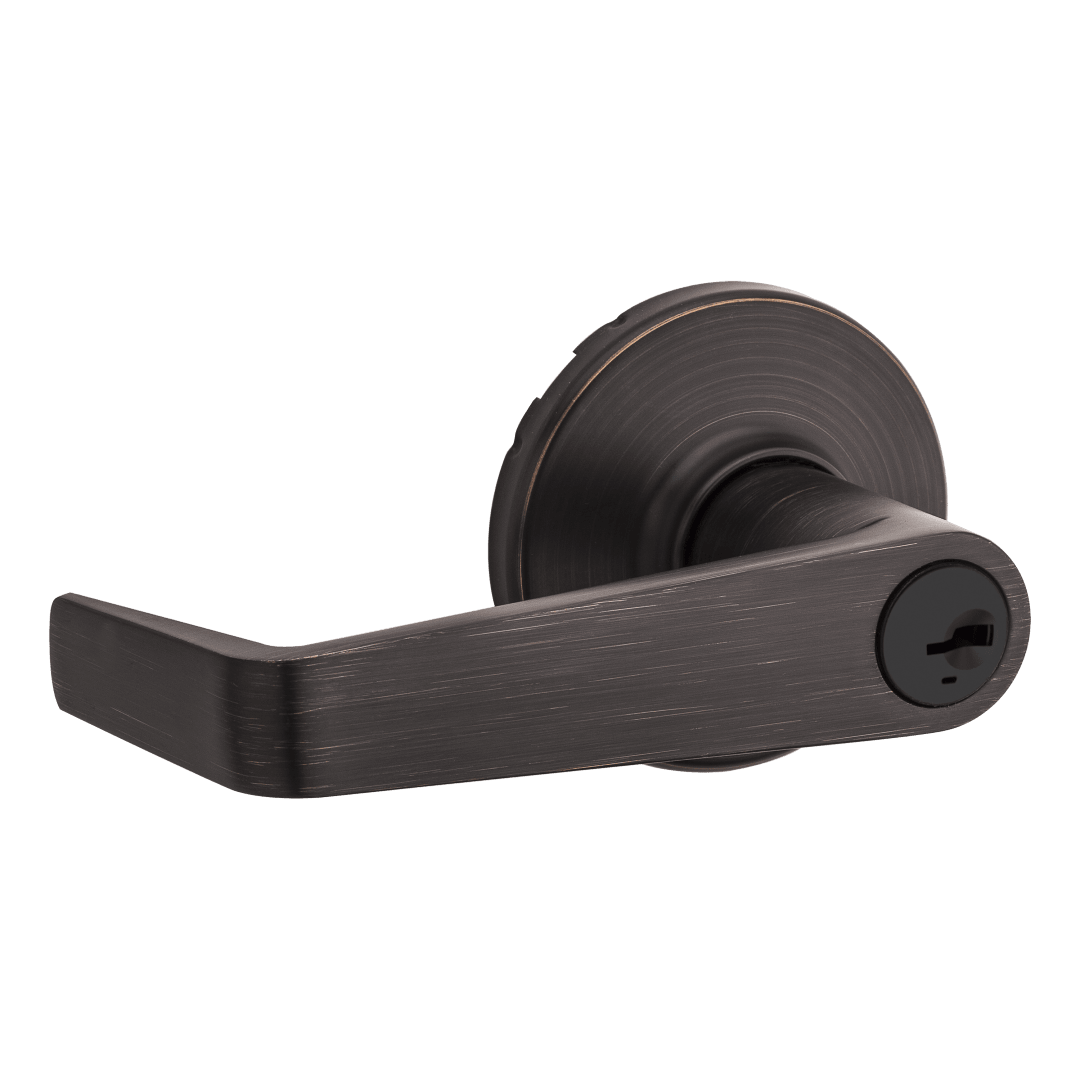

Kingston Round Keyed Entry Lever in Venetian Bronze featuring SmartKey Security UL Rated

756KNL 11P SMT RCAL UL

Lock Finish

Lock Function

Clipped

Features

For use on exterior doors where keyed entry and security is needed
Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
Comes with 2 keys
Latch has round corner faceplate
Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
ANSI/BHMA grade 2 certified
Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
Locking mechanism functions by pressing the push button on the interior of the lock
Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
Fully reversible lever, can be installed on both right handed and left handed doors
Easily installs in minutes with just a screwdriver
Lifetime Mechanical, 5 Year Finish
Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Assembled Height 2-9/16
Assembled Length 2-23/32
Assembled Width 5-1/8
Projection 2-2/5
Lever Grip Length 3-21/25
Lever Rose Shape Round
Style Transitional
Throw Length 1/2
Cross Bore 1"
Latch Type Round Corner Adjustable Latch
Strike Code Default
Entry Has SmartKey Yes
Entry # Of Keys 2

Lever Rose Shape	Round
Style	Transitional
Throw Length	1/2
Cross Bore	1"
Latch Type	Round Corner Adjustable Latch
Strike Code	Default
Entry Has SmartKey	Yes
Entry # Of Keys	2
