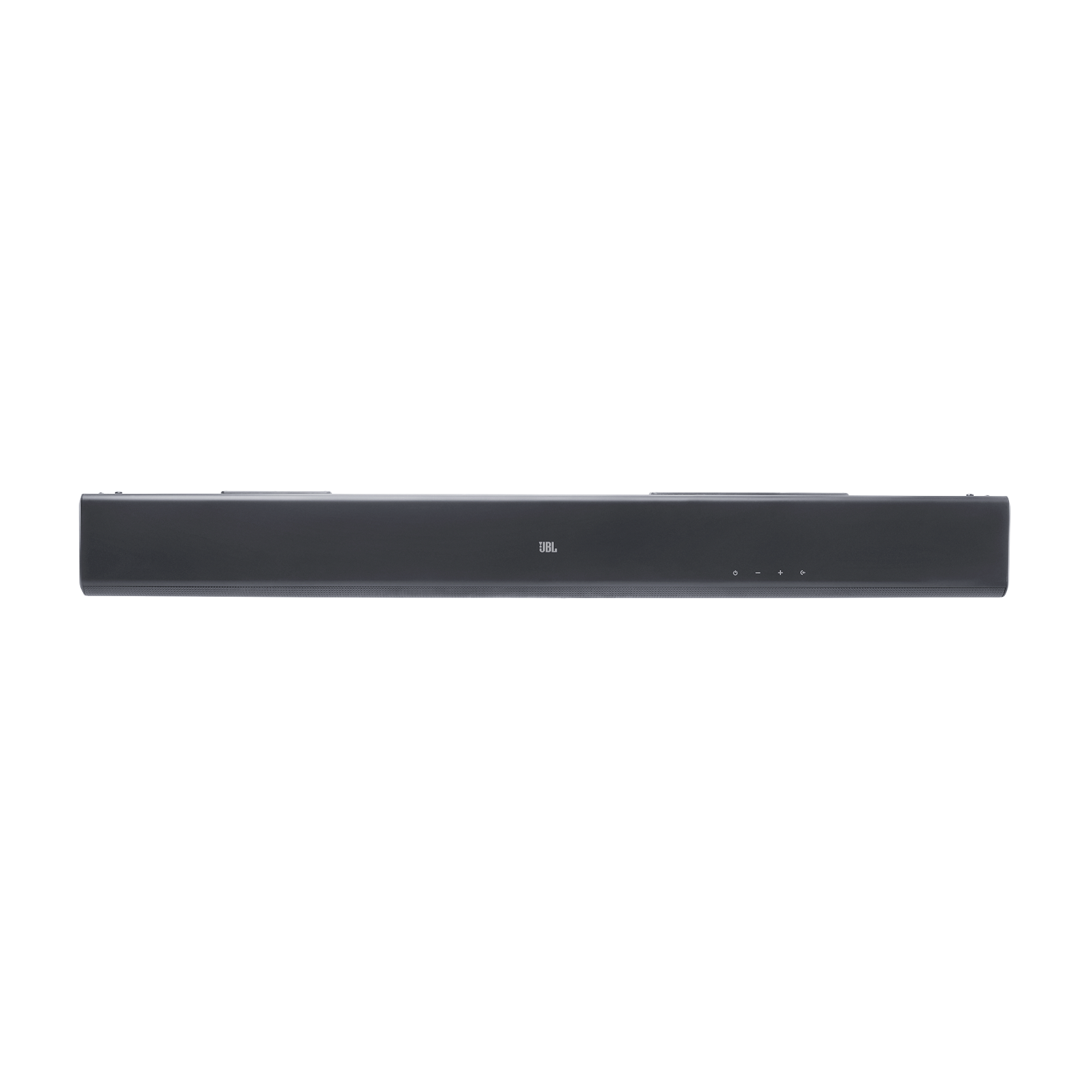

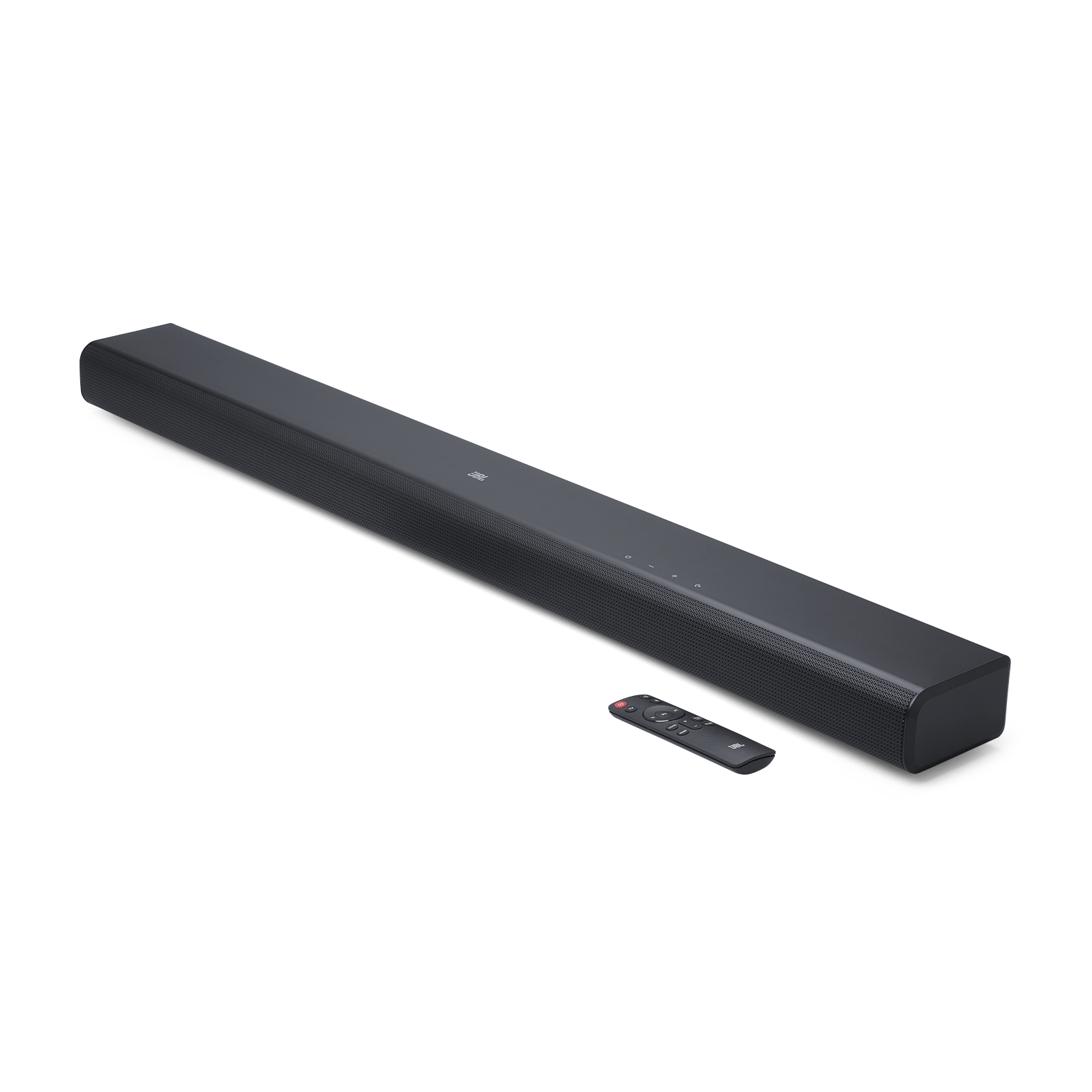

3.1 Channel Soundbar

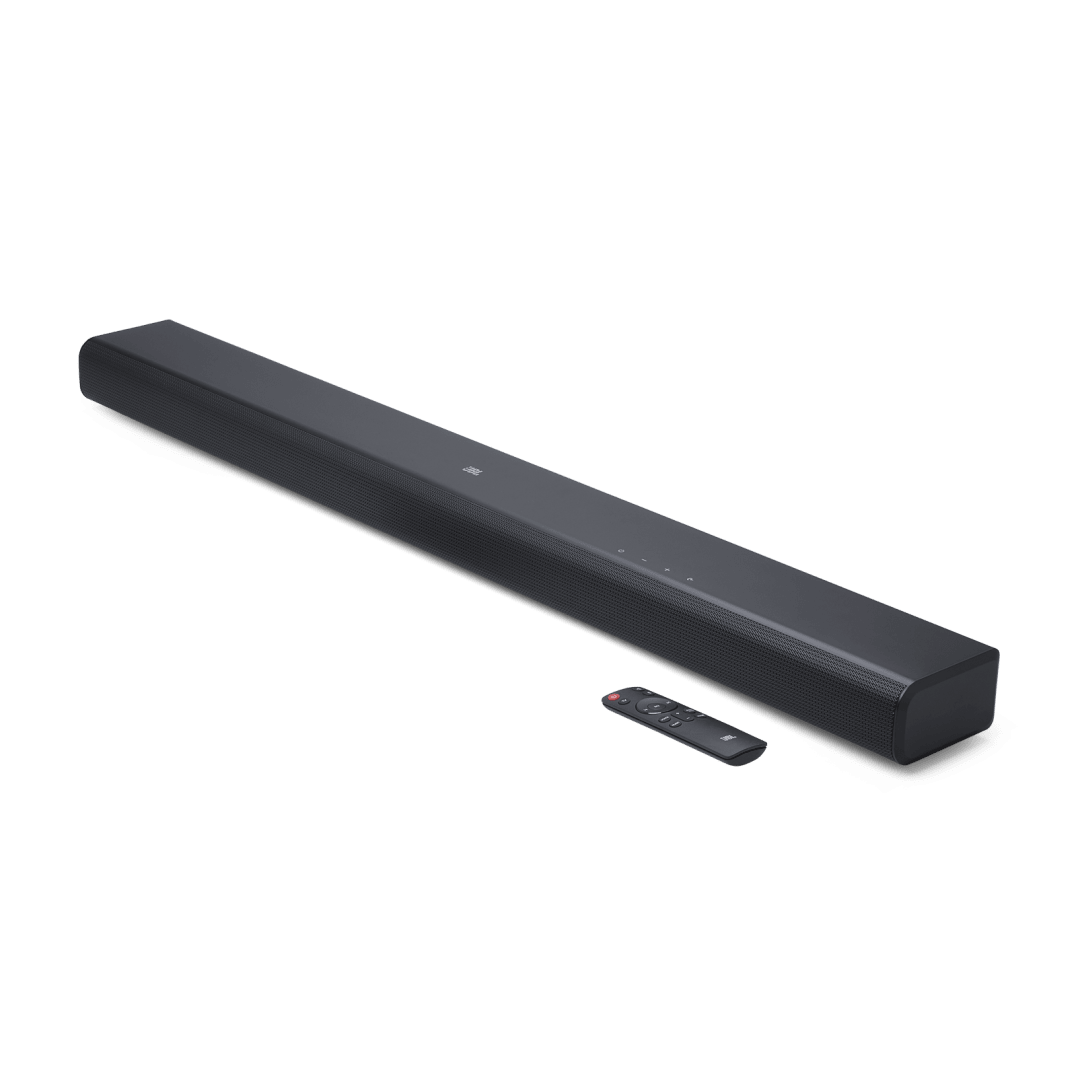

JBL Cinema SB510
JBLSB510BLKAS
- The JBL Cinema SB510 is a low-profile 3.1 channel all-in-one soundbar with a built-in subwoofer, delivering powerful Dolby Audio with deep bass.
Hero

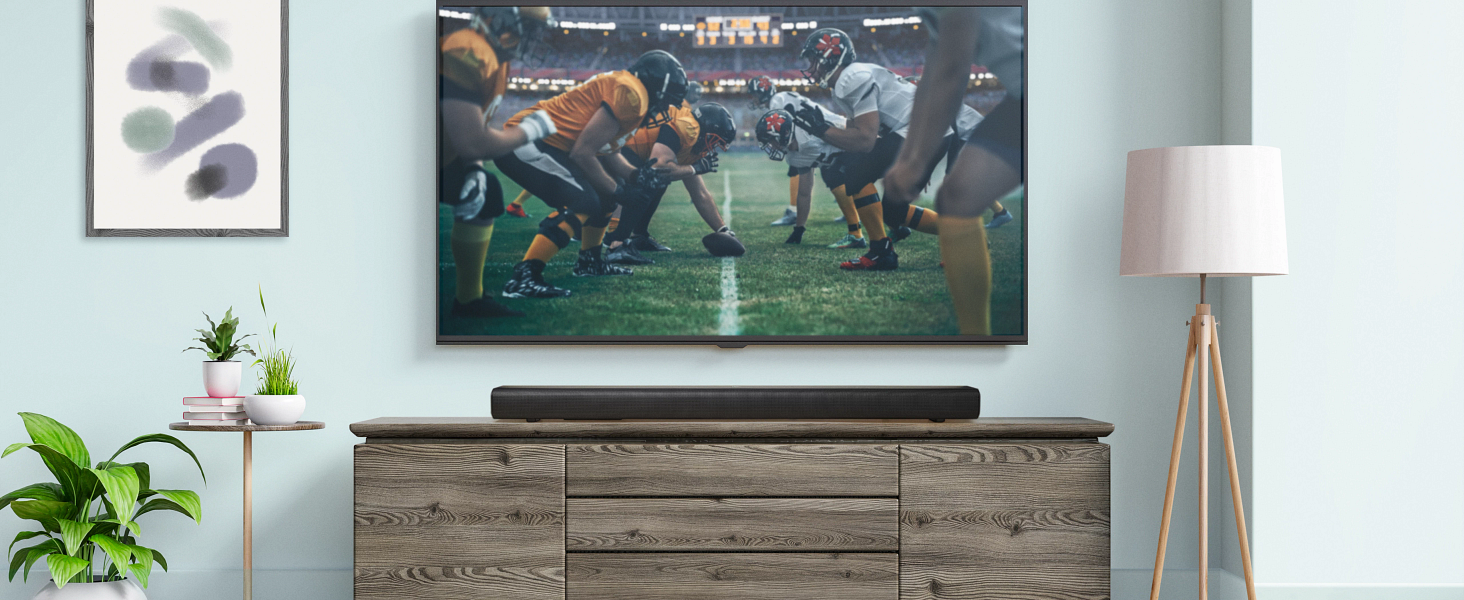

A+Premium Full Background Image - 1
A+Premium Full Background Image - 2
Youtube Hosted Video
Detailshot1
Detailshot2
Detailshot3
Detailshot4
Feature01_Icon
Feature01_Lifestyle
Feature02_Icon
Feature02_Lifestyle
Feature03_Icon
Feature03_Lifestyle
Feature04_Icon
Feature05_Icon
SwatchImage
Spec Sheet
Quick Start Guide_Multilingual

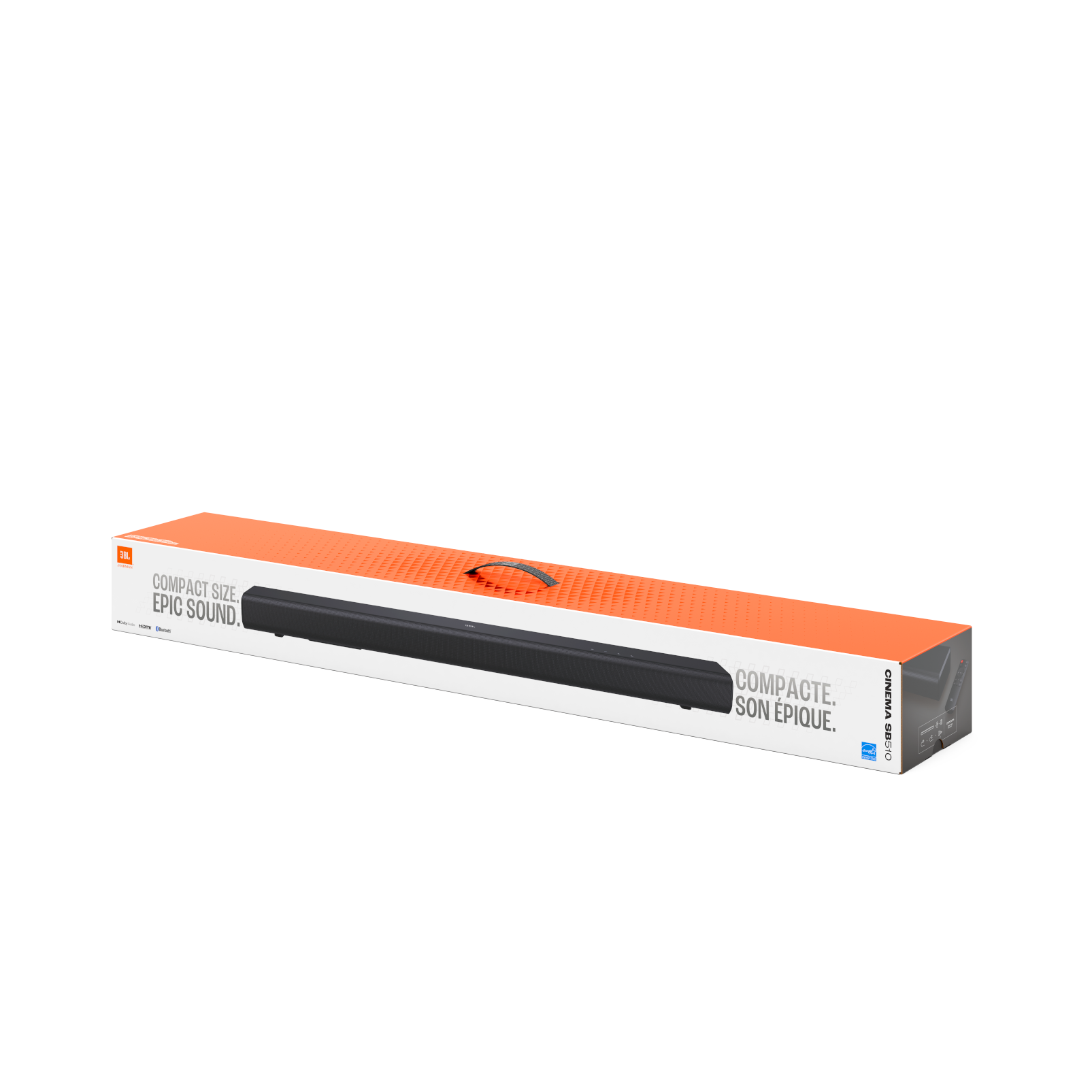

Box Image
Product ID JBLSB510BLKAS UPC 050036399098 EAN 1200130009136 GTIN - Global Trade Item Number 00050036399098 A+Premium Full Background Image - 1 https://images.salsify.com/image/upload/s--gv4sGka7--/hirbzrellnl4brcnebvx.png Descriptor 3.1 Channel Soundbar Description Title Compact size. Epic sound. Positioning Statement The JBL Cinema SB510 is an all-in-one 3.1 channel soundbar with a built-in subwoofer providing excellent bass, perfect for those who want great sound with a smaller footprint. Short description The JBL Cinema SB510 is a low-profile 3.1 channel all-in-one soundbar with a built-in subwoofer, delivering powerful Dolby Audio with deep bass. Long description The JBL Cinema SB510 is a 3.1 channel all-in-one soundbar with a built-in subwoofer. It delivers 200 watts of powerful Dolby Audio with deep bass, all in a hassle-free, compact design that fits neatly into any room. A dedicated center channel driver means TV and film dialogue is always crystal clear. Setup is easy using either one-cable HDMI ARC or optical connections, and convenient Bluetooth connectivity means you can use it for wireless music streaming from any device. AttributesAtAGlance - Dedicated center channel driver provides superior voice clarity
- Built-in subwoofer
- One cable connection with HDMI ARC
- Wireless music streaming via Bluetooth
- Dolby Audio embedded
Feature01_Descriptor Dedicated center channel driver provides superior voice clarity Feature01_ShortDescription A dedicated center channel delivers film and TV dialogue with amazing clarity. You'll never ask "What did they just say?" again. Feature02_Descriptor Built-in subwoofer Feature02_ShortDescription The built-in subwoofer delivers deep bass without the need for another box or extra cables to clutter up your space. Feature03_Descriptor One cable connection with HDMI ARC Feature03_ShortDescription The one cable HDMI ARC connection allows for the simplest set-up and a hassle-free user experience. Feature04_Descriptor Wireless music streaming via Bluetooth Feature04_ShortDescription Stream and enjoy all your music wirelessly from any mobile device. Feature05_Descriptor Dolby Audio embedded Feature05_ShortDescription Delivers powerful sound that enhances any movie experience. What's in the box - Soundbar
- Remote control with batteries
- Power cables (up to 4pcs depending on region SKUs)
- HDMI cable
- Wall-mount bracket kit with screws
- Quick start guide
- Warranty card
- Safety sheet
Product Color Black Product Video Link https://harman.widen.net/s/r5mttkhn9t/jbl_cinema_sb510_16x9_en_v7 Youtube Hosted Video https://youtu.be/mo7oLxMcviM General Specifications - Model: CINEMA SB510
- Sound system: 3.1 channel
- Power supply: 100 - 240V AC, ~ 50/60Hz
- Total speaker power output (Max @THD 1%): 200W
- Soundbar output power (Max @THD 1%): 150W
- Subwoofer output power (Max. @THD 1%): 50W
- Soundbar transducer: 3x (45 x 80) mm racetrack drivers
- Subwoofer transducer: 1x (70 x 88) mm, built-in subwoofer
- Standby power: < 0.5W
- Operating temperature: 0°C - 45 °C
Dimension Specifications - Soundbar dimensions (W x H x D): 950 x 67 x 105 mm / 37.4’’ x 2.6’’ x 4.1’’
- Soundbar weight: 3.5kg / 7.7 lbs
- Packaging dimensions (W x H x D): 1112 x 116 x 164 mm / 43.8" x 4.6" x 6.5"
- Packaging Weight: 5.0kg / 11.0 lbs
Audio Specifications - Frequency response: 55Hz-20kHz (-10dB)
- Audio inputs: 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
Control and Connection Specifications - USB port: Type A
- USB rating: 5V DC, 0.5A
- Supporting file formats: mp3
- MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate: 16 - 48 kHz
- Bluetooth version: 5.3
- Bluetooth profile: A2DP 1.3, AVRCP 1.6
- Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
- Bluetooth Max. transmitting power: <10 dBm (EIRP)
- Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK
ShippingWeight 11.01869076 ShippingWeight_Metric 5.01 ShippingHeight 4.5669316 ShippingLength 43.7795512 ShippingWidth 6.456696399999999 Beauty Carton Dimensions (l x w x h, in cm) 111.2 x 16.4 x 11.6 Beauty Carton Height (in.) 4.57 Beauty Carton Height (mm) 116 Beauty Carton Length (in) 43.78 Beauty Carton Length (mm) 1112 Beauty Carton Volume (CBM) 0.021154688 Beauty Carton Width (in) 6.46 Beauty Carton Width (mm) 164 Gross Weight (kg) 4.998 Gross Weight (lbs.) 11.01869076 Gross Weight lbs Calculated 11.014 Inner Ctn Volume (CBM) 0 Master Ctn Gross Weight (kg) 10.89 Master Ctn Gross Weight (lbs.) 24.01 Master Ctn Height (in.) 10.24 Master Ctn Height (mm) 260 Master Ctn Lenght (in.) 44.49 Master Ctn Lenght (mm) 1130 Master Ctn Volume (CBM) 0.0535 Master Ctn Width (in.) 7.17 Master Ctn Width (mm) 182 Net Weight (kg) 3.534 Net Weight (lbs) 7.79 Package Type Normal(Beauty Box) Qty Per Container (Master Carton) 20' Normal Cube 576 Qty per Inner Ctn N/A
