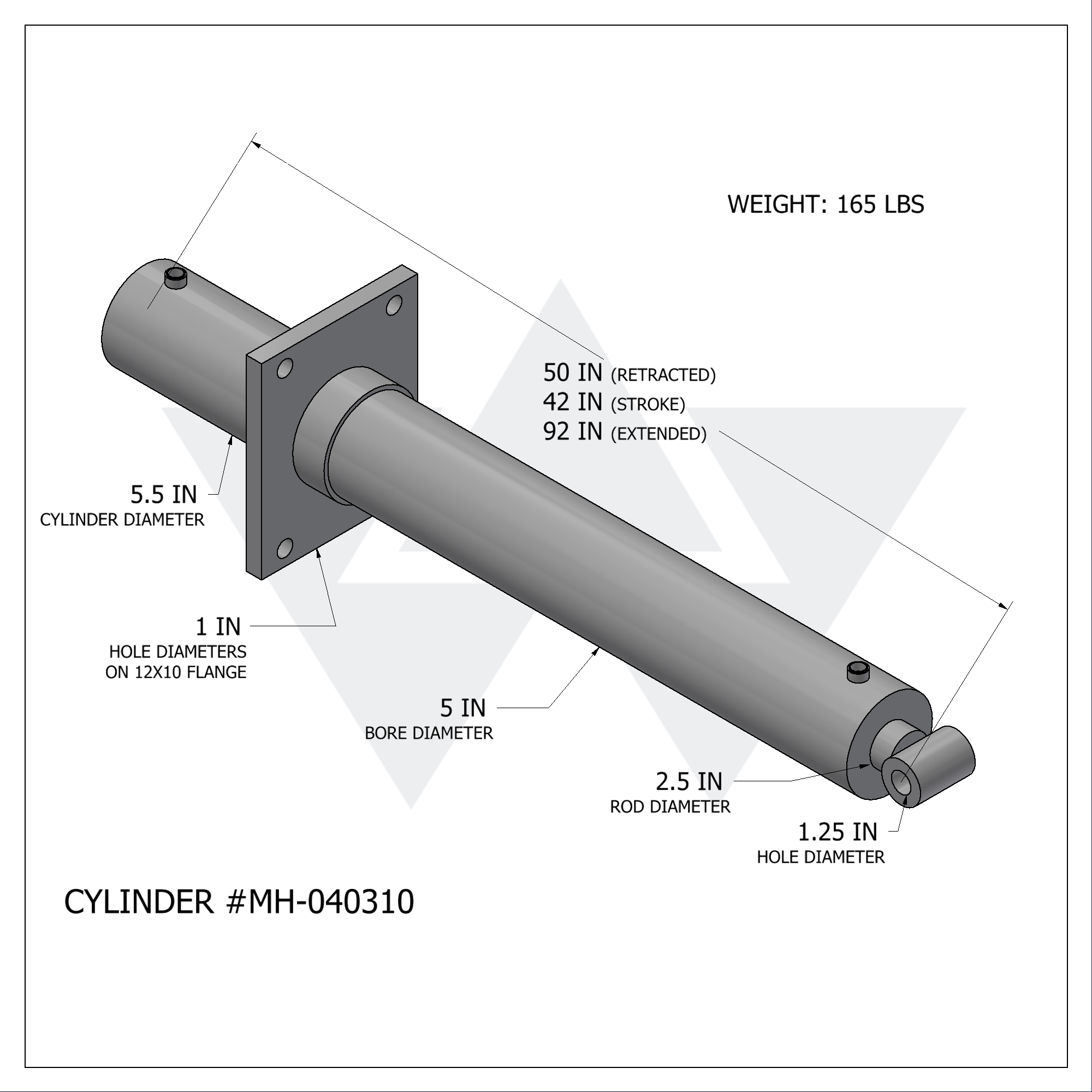

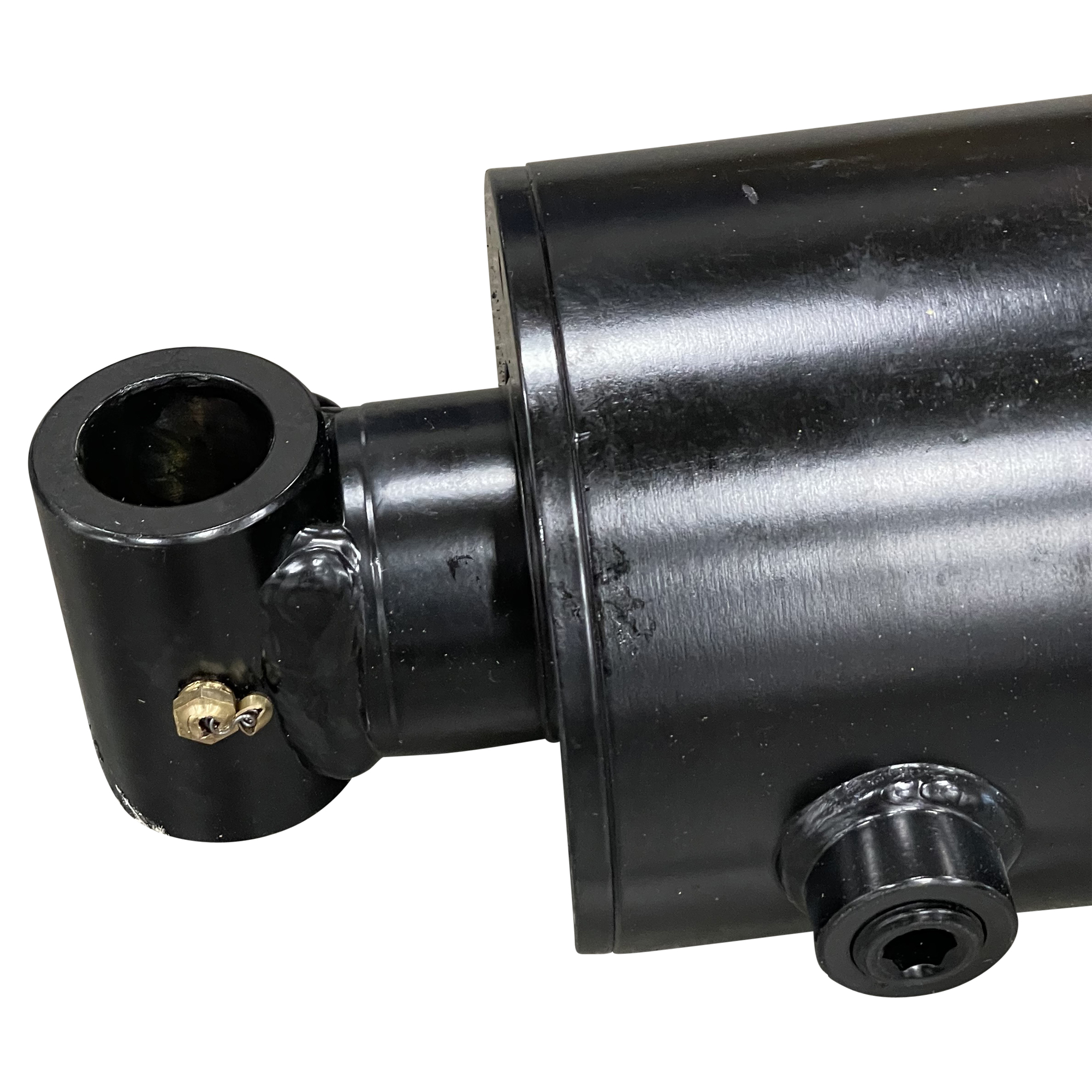

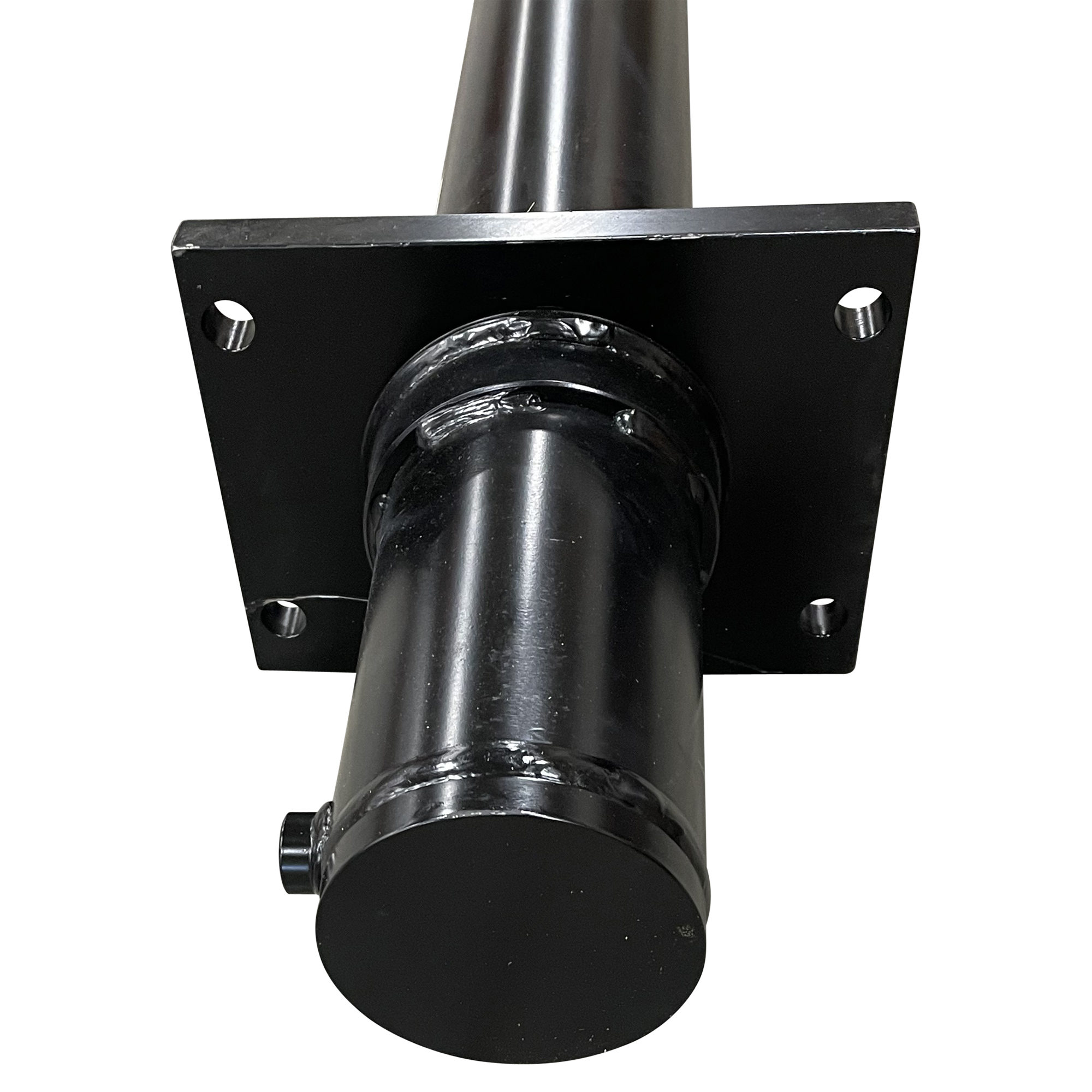

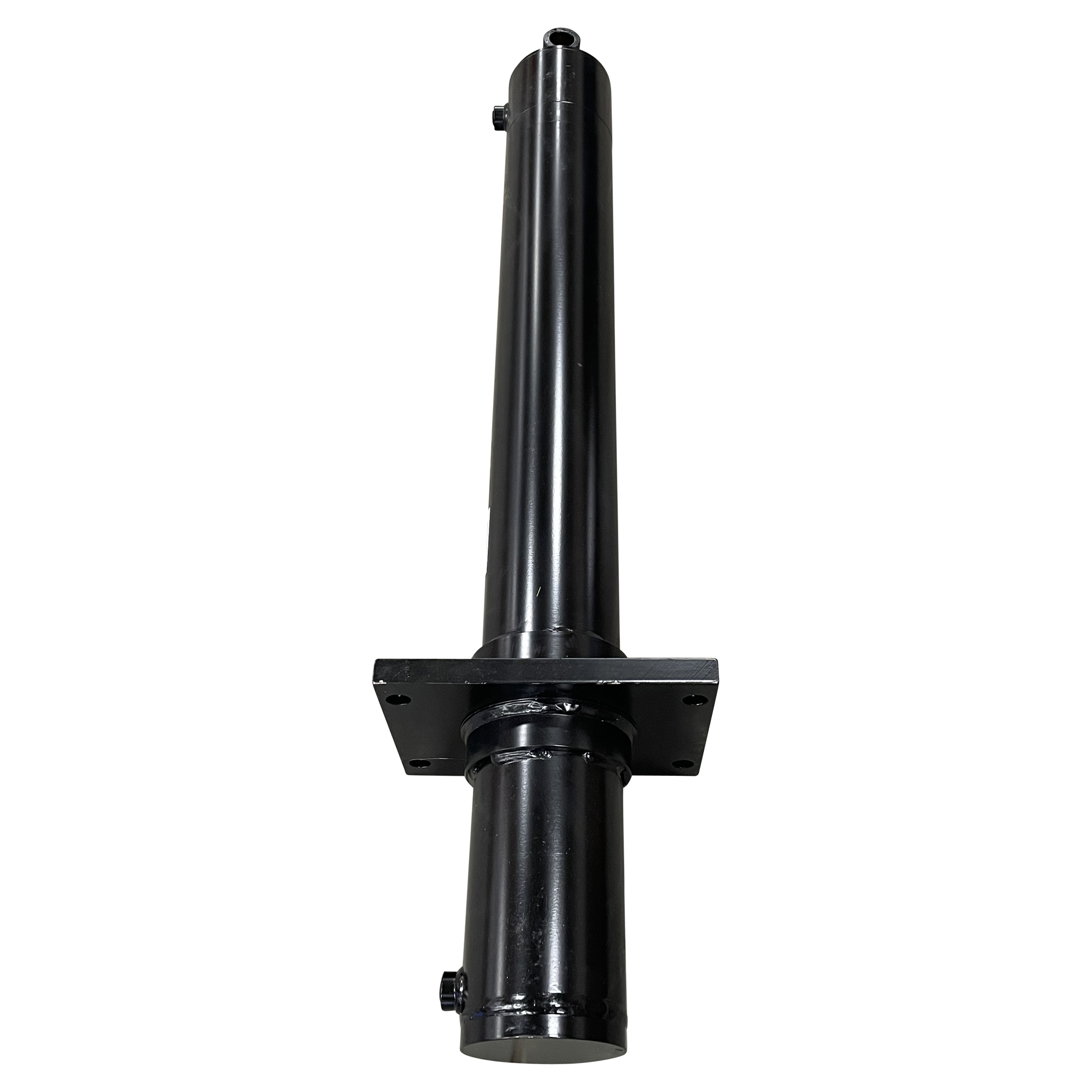

Wastebuilt® Replacement for Marathon Cylinder (Timer Style By-Pass Cylinder) (5" X 2.5" X 42")
Image_1Download

Wastebuilt® Replacement for Marathon Cylinder (Timer Style By-Pass Cylinder) (5" X 2.5" X 42")

Wastebuilt® Replacement for Marathon Cylinder (Timer Style By-Pass Cylinder) (5" X 2.5" X 42")

  • Wastebuilt.URLhttps://www.wastebuilt.com/mh-040310-wastebuiltr-replacement-for-marathon-cylinder-timer-style-by-pass-cylinder-5-x-25-x-42
    DivisionWastebuilt
    Product FamilyCompaction
    Product SetsCylinders
    MFG ItemMH-040310
    Product NameWastebuilt® Replacement for Marathon Cylinder (Timer Style By-Pass Cylinder) (5" X 2.5" X 42")
    MFG Brand NameMARATHON
    Cross Reference Condensed04-0310, 040310, ME-04-0310, MH-04-0310, MR04-0310
  • Product Depth (in.)52
    Product Width (in.)12
    Product Height (in.)12
  • Marketing CopyMarathon cylinders help with consistent compaction. Specifically designed for a compactor.
    Bullet01Right-Hand compactors are set up with the operator facing the trash feeder opening on the left side and the compaction portion on the right. This will move the compaction ram in the extension direction to the right.
    Bullet02These cylinders were built with only one set of hydraulic ports versus the standard OEM cylinder having two sets of ports for the various equipment it is used on. The current ports are fine for the vertical baler equipment and right-hand compactors. For left-hand setup compactors, the hydraulic hoses may need to be rerun or modified to fit the distance to the port connections.
    Bullet03Fits Marathon RJ100SC and RJ250VL
