Pioneer™ Roller Assembly for Roller On Gantry
Image_1Download

Pioneer™ Roller Assembly for Roller On Gantry

Pioneer™ Roller Assembly for Roller On Gantry

  • Wastebuilt.URLhttps://www.wastebuilt.com/p2-h7002-pioneer-roller-assembly-for-roller-on-gantry
    DivisionWastebuilt
    Product Family
    • Roll Off Truck
    • Roll-Off Tarp Parts
    • Roll-Off Container Systems
    MFG ItemP2-H7002
    Product NamePioneer™ Roller Assembly for Roller On Gantry
    MFG Brand NamePIONEER
    Cross Reference CondensedP2-H-7002, P2-7002, M8-1182284, H7002, H-7002, 1226992
  • Product Depth (in.)100

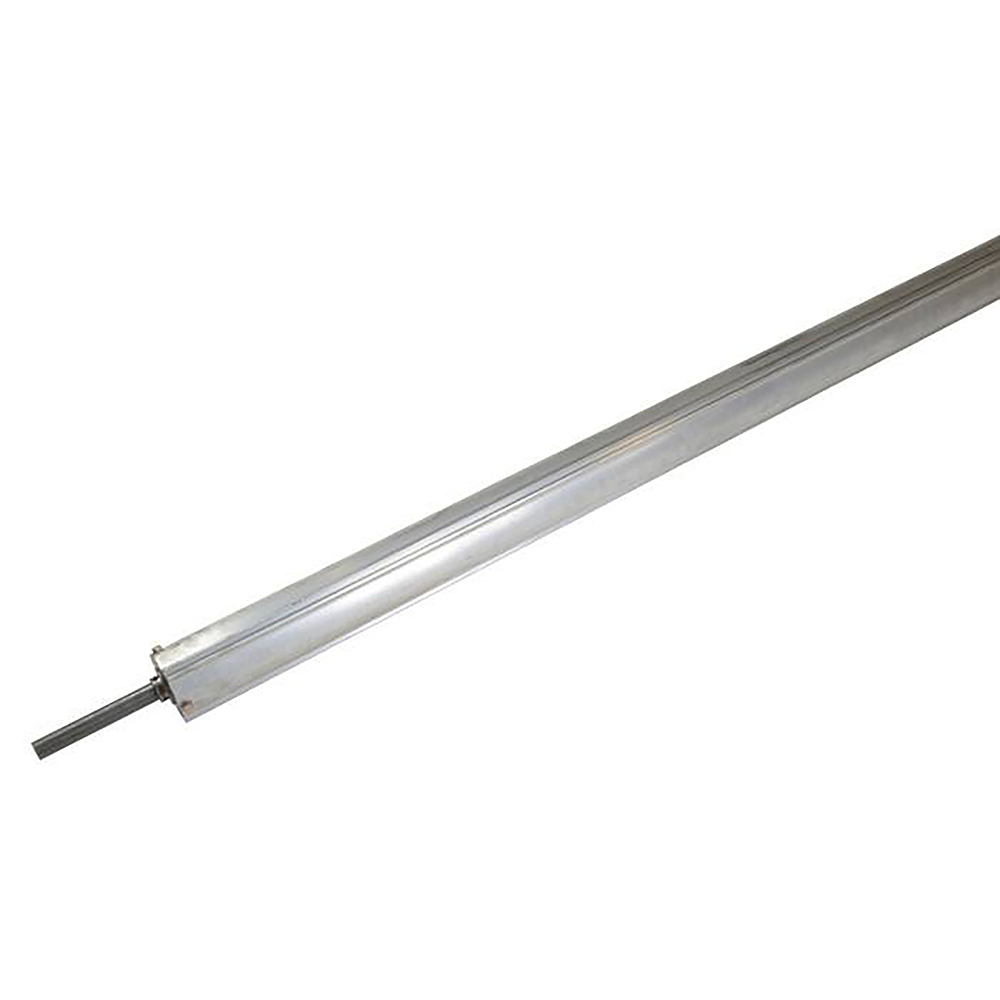

  • Marketing CopyDesigned for use with the Rack n’ Pinion system by Pioneer, the OEM #H7002 roller assembly is an essential part of the “Strong Arm” tarping system. This spring-loaded roller assembly creates a fluid rolling action and can be mounted to pivot arms on both stationary and adjustable gantry roll rests. Built using high-strength steel, you can be confident this roller assembly will go the distance and support your tarp system with smooth operation day in and day out. H7002 Parts Include:
    14201HHCS: 1/4-20 x 1in HHCS Gr. 8 (Qty: 1)
    14202HHCS5: 1/4-20 X 2in HHCS Gr. 5 (Qty: 1)
    14STOVERLCKN: 1/4-20 Stoverlock Nut (Qty: 2)
    H7003-1: Roller, Outer Tube, Alum 88" (Qty: 1)
    H7004: Roll, Shaft (Short) (Qty: 1)
    H7005A-1: Spacer, w/Bearing - R&P Roller (Qty: 2)
    H7008: Roll, Spring (.192 wire) (Qty: 1)
    K0113: 5/16 x3/4 hex bolt gr. 8 (Qty: 6)
    K0365B: 5/16 Lock Washer (Qty: 6)
    PLD: DECAL - Pre Load - H7002 Rolle (Qty: 1)
    ROT0116: 1/4 Lock Washer (Qty: 2)
