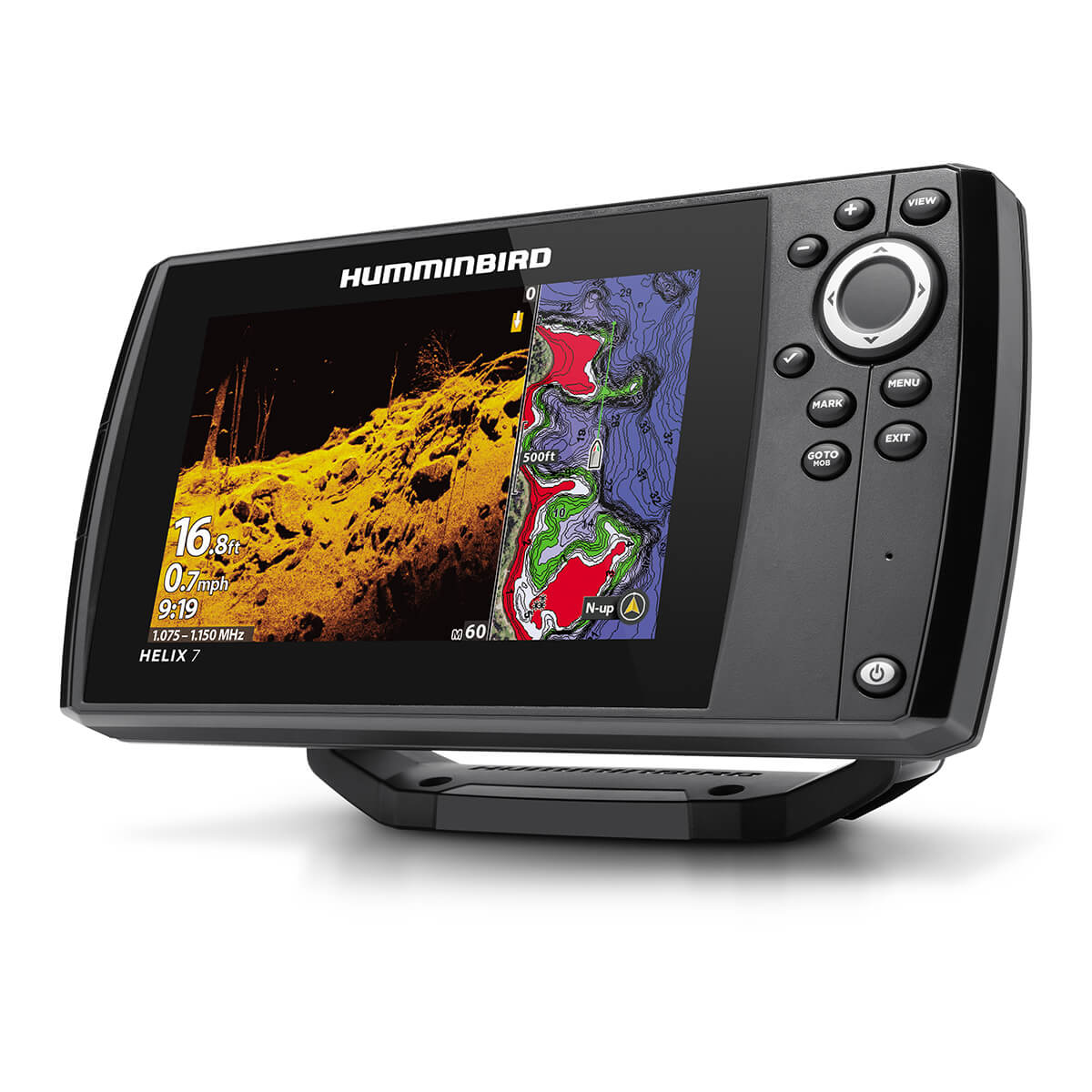

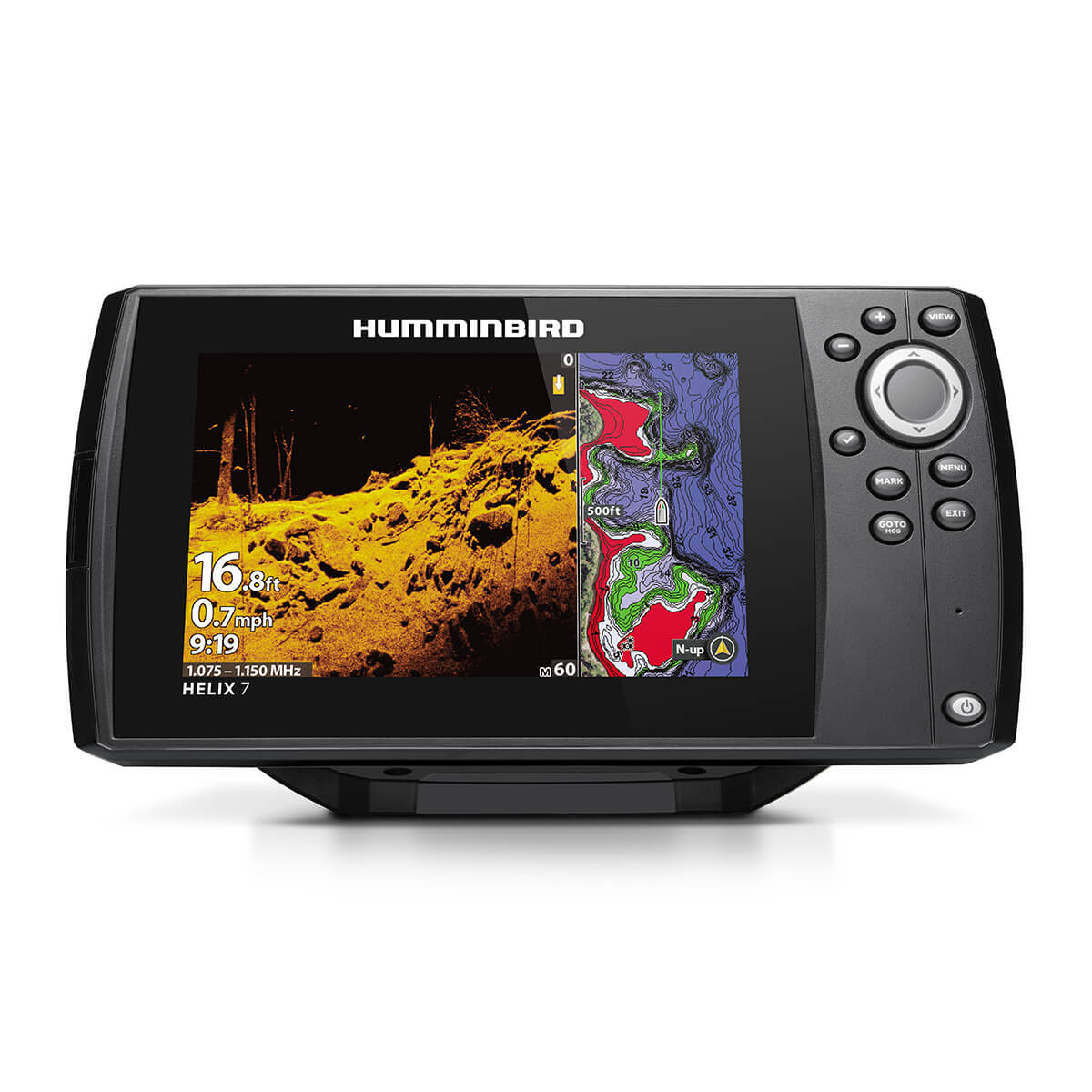

HELIX 7 CHIRP MEGA DI GPS G4
Primary ImageDownload

HELIX 7 CHIRP MEGA DI GPS G4

  • Brand (JDE)Humminbird
    Product NameHELIX 7 CHIRP MEGA DI GPS G4
    Product Code411610-1
    UPC0082324056147
    MSRP $USD649.99
    Amazon ASINB09B1PYQGL
    WalMart WIN596828783
  • OverviewThe HELIX 7 CHIRP MEGA DI GPS G4 fish finder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish.
    Included ComponentsFish finder control head; Power cable; XNT 9 HW MDI 75 T transom-mount transducer; Mounting hardware; Gimbal mounting bracket
  • Feature 1Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
    Feature 2MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar.
    Feature 3Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
    Feature 4Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
    Feature 5Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
    Feature 6AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
    Feature 7Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware.
    Feature 81-Year Limited Warranty
  • SeriesHELIX
    Display Size - Diagonal7 in
    Display Pixel Matrix1024H x 600V
    Memory Card SlotSingle Micro SD
    Features
    • Built In GPS
    • Built In Mapping
    • Dual Spectrum CHIRP
    • Down Imaging
    • MEGA Imaging
    Power Draw800 mA
    Power Input10.8-20 VDC
    Power Output Peak-to-Peak4000 Watts
    Power Output RMS500 Watts
    Screen Snap ShotIncluded
    Mount StandardGimbal
    Mount-Standard Size10.54 in W x 5.8 in H x 3.68 in D
    Mount-OptionalIn-Dash Mounting Kit
    Mount-Optional Size10.54 in W x 5.44 in H x 1.13 in D
    Transducer Mount LocationTransom
    GPS ChartplottingIncluded
    GPS ReceiverInternal
    GPS TrackplottingIncluded
    Waypoints, Routes, Tracks/Points2,750, 47, 50/20,000
    NMEA2000Not Supported
    Target Separation2.5 in
    Noise Rejection6 Steps
    Upgradable SoftwareYes
    View Preset KeysNo
    X-Press Menu SystemYes
    Custom Digital ReadoutYes
    Custom View SelectionsNo
    Display Colors Grayscale16-Bit
    Display TypeColor TFT
    SpeedIncluded
    TemperatureBuilt In
    Temperature AlarmYes
    Temperature GraphYes
    Transducer IncludedXNT 9 HW MDI 75 T
    Humminbird BasemapIncluded
    Warranty1 year Manufacturer
    Country of OriginUNITED STATES
    Prop 65 TextThis product can expose you to chemicals including 1,3-Butadiene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  • Compatible With
    • AIS
    • AutoPilot
    • Minn Kota US2 Sonar
    • Minn Kota Built-In MEGA DI
    MEGA 360 Imaging CompatibilityNo
    MEGA Live CompatibilityNo
    LakeMaster CompatibilityYes
    CoastMaster CompatibilityYes
    Navionics Gold/HotMaps CompatibilityYes
    Navionics Platinum + CompatibilityYes
    Platinum CompatibilityYes
    Minn Kota i-Pilot Link CompatibilityNo
    Minn Kota Talon Shallow Water Anchor CompatibilityNo
    Radar CompatibilityNo
    5-Port Ethernet Switch CompatibilityNo
    AIS CompatibilityOptional
    Autopilot CompatibilityYes
    Heading Sensor GPS CompatibilityYes
    HDMI CompatibleNo
  • Sonar-Standard
    • Dual Spectrum CHIRP
    • MEGA Down Imaging
    Sonar-Coverage20°, 42°, 60° & (2) 86° @ -10dB
    Sonar-Optional50/83/200 kHz
    CHIRP - Frequencies Supported
    • Full Mode (150-220 kHz)
    • Narrow Mode (180-240 kHz)
    • Wide Mode (140-200 kHz)
    • Optional (28-250 kHz)
    Sonar-Frequencies Supported50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
    Depth-Sonar
    • 1,200 ft (standard transducer)
    • 3,500 ft (optional 50 kHz)
    CHIRP - Imaging-Frequencies Supported
    • 455 kHz (440-500 kHz)
    • MEGA DI (1075-1150 kHz)
    Depth-Down Imaging
    • 125 ft (MEGA)
    • 350 ft (455 kHz)
    Sonar RecordingIncluded
  • Carton Length4.5
    Carton Width17
    Carton Height14
    Shipping Weight (lbs)5.7
    Units per Container [Case Pack]2
  • Product Length3.06
    Product Width10.54
    Product Height5.44
    Product Weight (lbs)2.1
