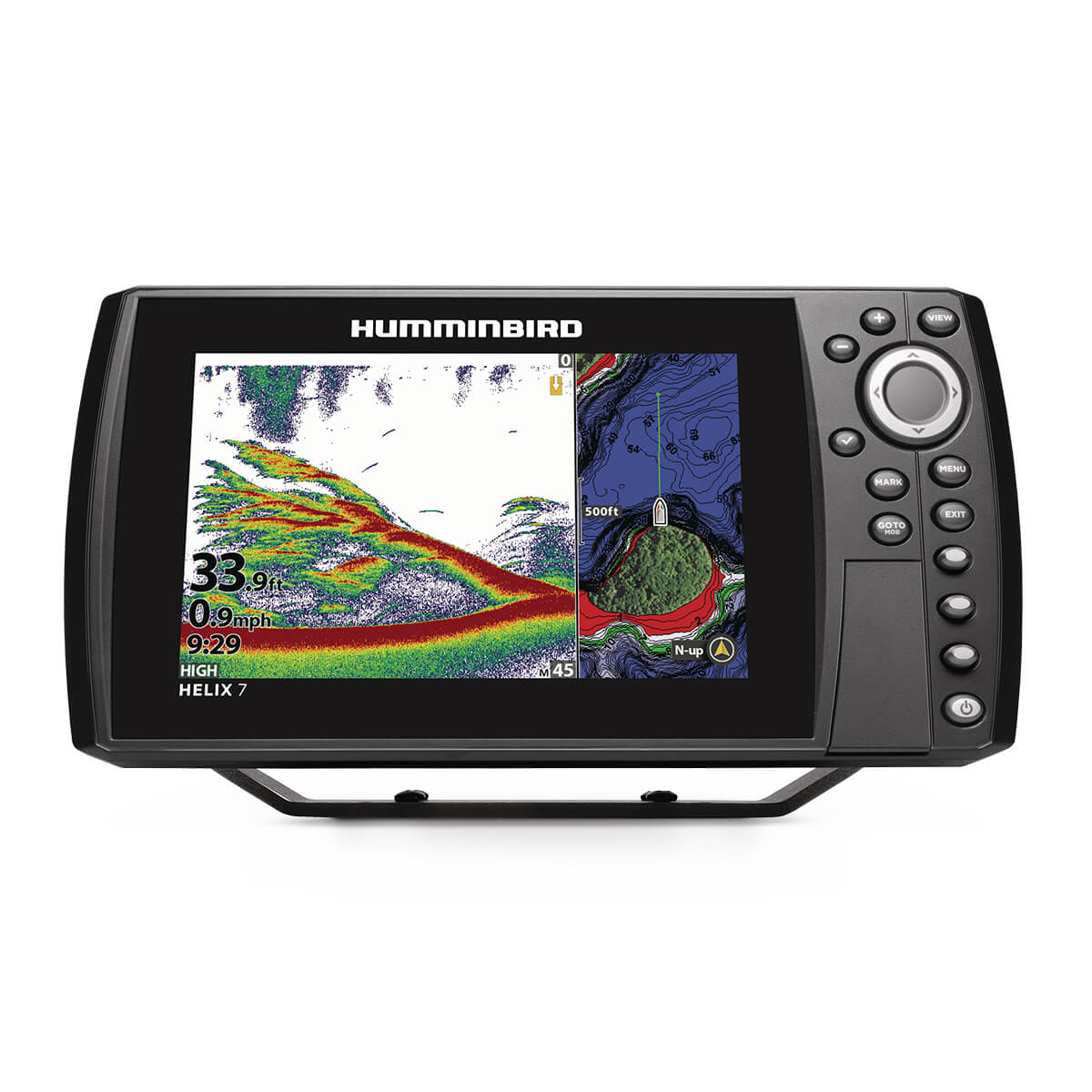

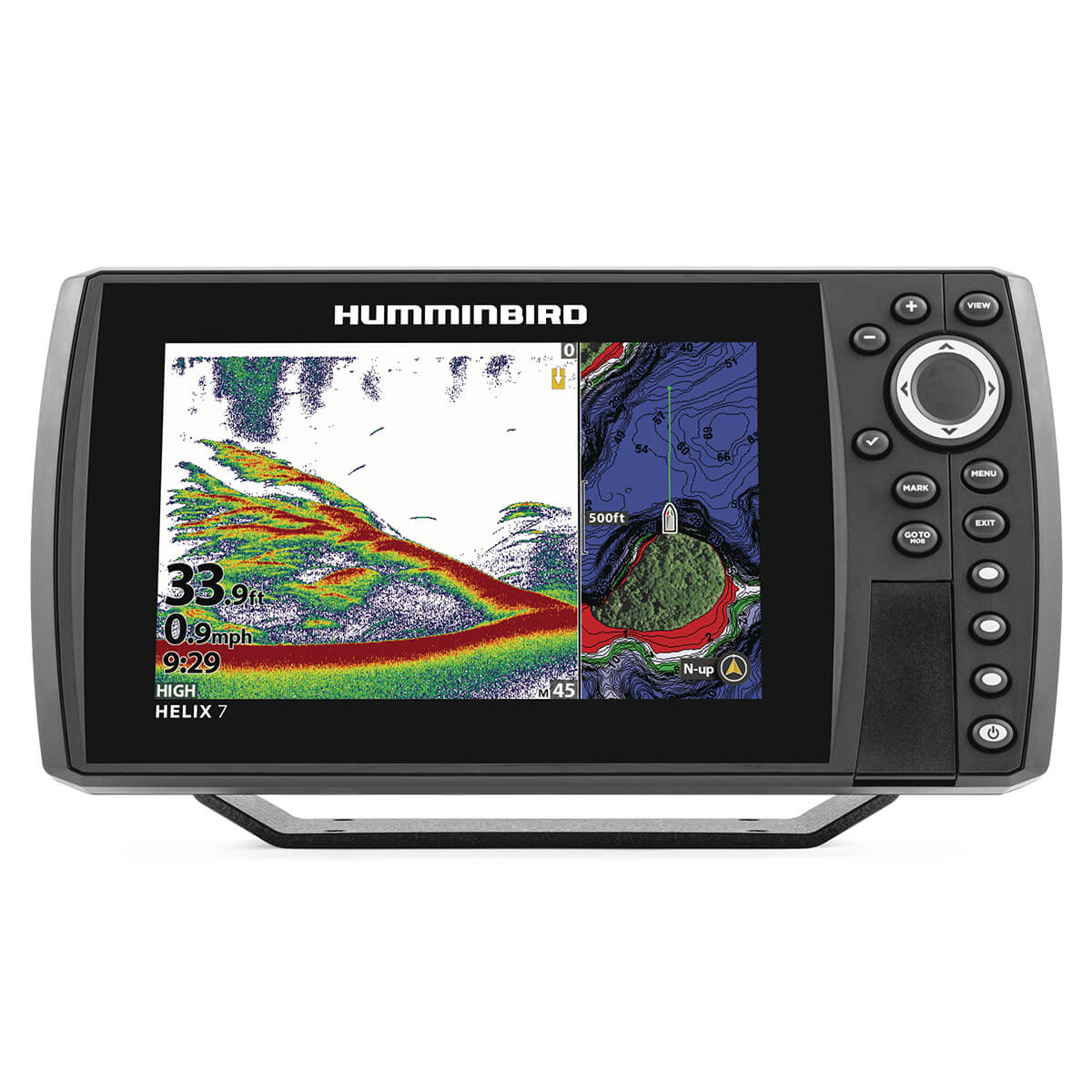

HELIX 7 CHIRP GPS G4N
Brand (JDE) Humminbird Product Name HELIX 7 CHIRP GPS G4N Product Code 411630-1 UPC 0082324056208 MSRP $USD 699.99 Amazon ASIN B09B1PJLJP Overview The HELIX 7 CHIRP GPS G4N fish finder features Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips. Included Components Fish finder control head; Power cable; XNT 9 HW T transom-mount transducer; Mounting hardware; Gimbal mounting bracket Feature 1 Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions. Feature 2 Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail. Feature 3 Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Feature 4 Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. Feature 5 AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity. Feature 6 One-Boat Network Compatible: These Humminbird models seamlessly integrate and communicate with other Humminbird and Minn Kota products to unlock more features and capabilities for anglers everywhere. Make the most of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network. Feature 7 Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar. Feature 8 Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird. Feature 9 NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking. Feature 10 Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware. Feature 11 1-Year Limited Warranty Series HELIX Display Size - Diagonal 7 in Display Pixel Matrix 1024H x 600V Memory Card Slot Dual Micro SD Features - Built In GPS
- Built In Mapping
- Dual Spectrum CHIRP
- Bluetooth
- Networking
Power Draw 800 mA Power Input 10.8-20 VDC Power Output Peak-to-Peak 4000 Watts Power Output RMS 500 Watts Screen Snap Shot Included Mount Standard Gimbal Mount-Standard Size 10.54 in W x 5.8 in H x 3.68 in D Mount-Optional In-Dash Mounting Kit Mount-Optional Size 10.54 in W x 5.44 in H x 1.13 in D Transducer Mount Location Transom GPS Chartplotting Included GPS Receiver Internal GPS Trackplotting Included Waypoints, Routes, Tracks/Points 2,750, 47, 50/20,000 NMEA2000 Included Target Separation 2.5 in Noise Rejection 6 Steps Upgradable Software Yes View Preset Keys Yes X-Press Menu System Yes Custom Digital Readout Yes Custom View Selections No Display Colors Grayscale 16-Bit Display Type Color TFT Speed Included Temperature Built In Temperature Alarm Yes Temperature Graph Yes Transducer Included XNT 9 HW T Humminbird Basemap Included Warranty 1 year Manufacturer Country of Origin UNITED STATES Prop 65 Text This product can expose you to chemicals including 1,3-Butadiene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Compatible With - AIS
- AutoPilot
- Minn Kota US2 Sonar
- One-Boat Network
- Minn Kota i-Pilot Link
- Minn Kota Talon/Raptor
- NMEA 2000
- Radar
MEGA 360 Imaging Compatibility No MEGA Live Compatibility No LakeMaster Compatibility Yes CoastMaster Compatibility Yes Navionics Gold/HotMaps Compatibility Yes Navionics Platinum + Compatibility Yes Platinum Compatibility Yes Minn Kota i-Pilot Link Compatibility No Minn Kota Talon Shallow Water Anchor Compatibility No Radar Compatibility Yes 5-Port Ethernet Switch Compatibility Yes AIS Compatibility Optional Autopilot Compatibility Yes Heading Sensor GPS Compatibility Yes HDMI Compatible No Sonar-Standard Dual Spectrum CHIRP Sonar-Coverage 20°, 42° & 60° @ -10dB Sonar-Optional 50/83/200 kHz CHIRP - Frequencies Supported - Full Mode (150-220 kHz)
- Narrow Mode (180-240 kHz)
- Wide Mode (140-200 kHz)
- Optional (28-250 kHz)
Sonar-Frequencies Supported 50/80/200 kHz & HW DSC CHIRP Depth-Sonar - 1,200 ft (standard transducer)
- 3,500 ft (optional 50 kHz)
Sonar Recording Included Carton Length 4.5 Carton Width 17 Carton Height 14 Shipping Weight (lbs) 5.7 Units per Container [Case Pack] 2 Product Length 3.08 Product Width 10.54 Product Height 5.44 Product Weight (lbs) 2.4
