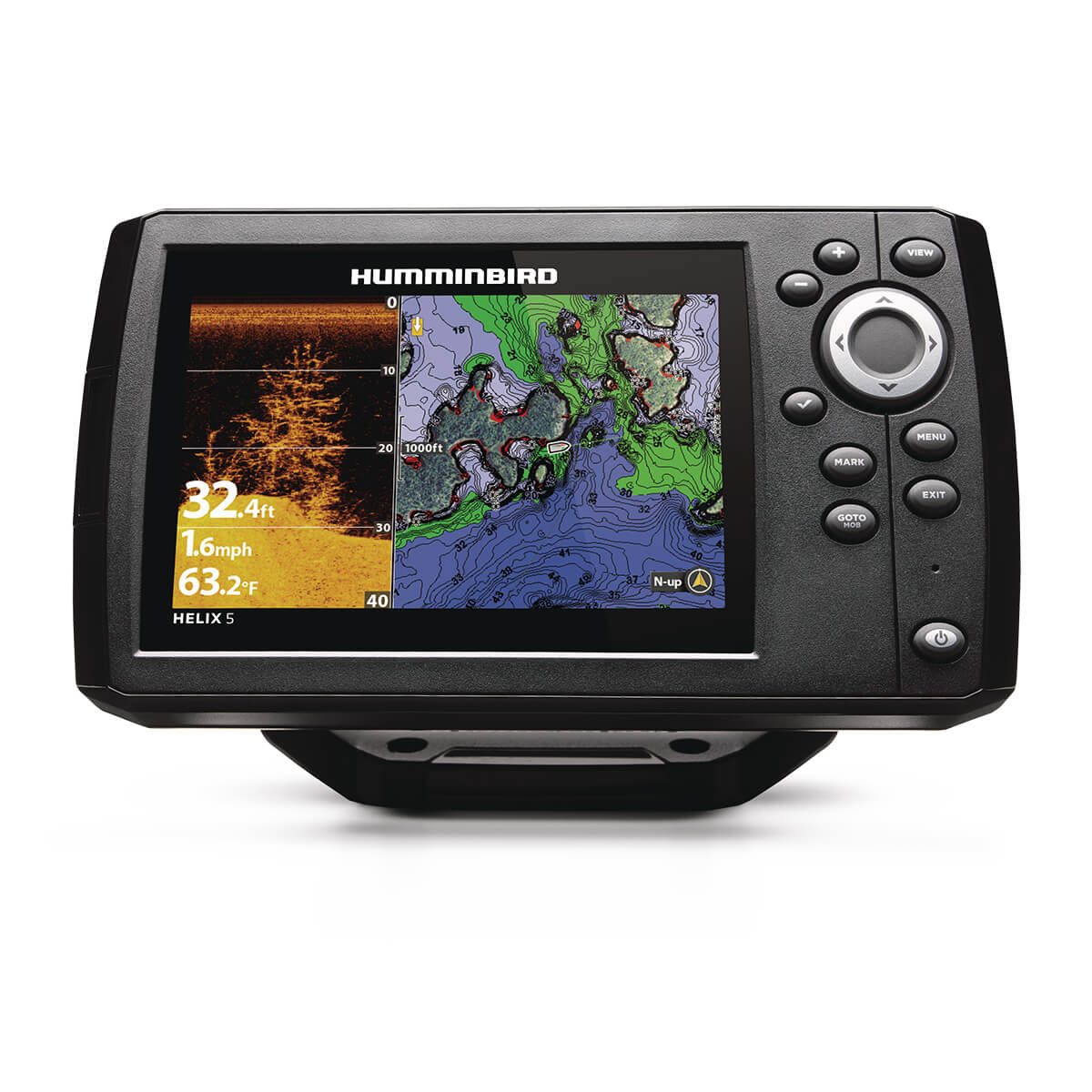

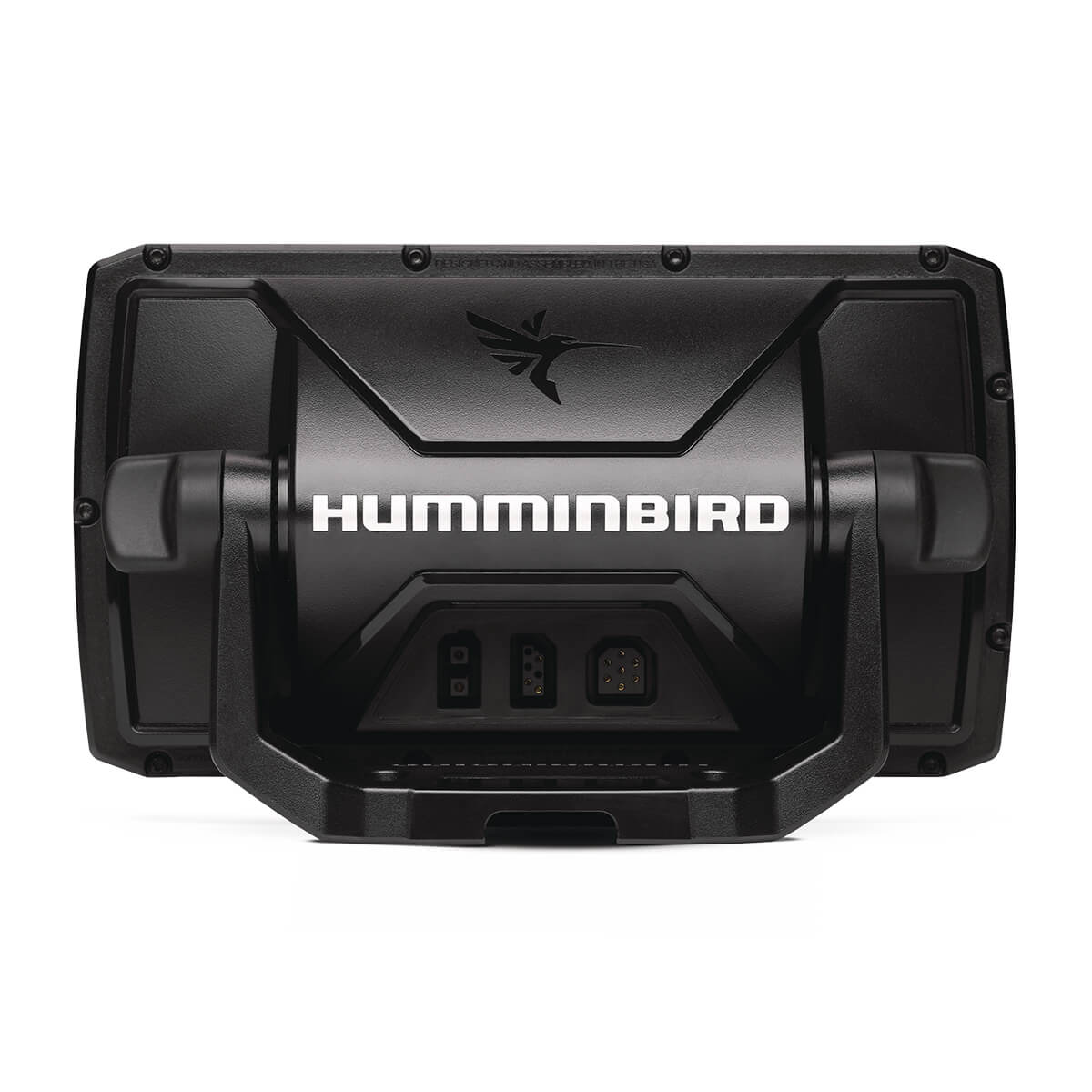

HELIX 5 CHIRP DI GPS G3
Brand (JDE) Humminbird Product Name HELIX 5 CHIRP DI GPS G3 Product Code 411670-1 UPC 0082324056321 MSRP $USD 399.99 Amazon ASIN B09B1MYNQ3 WalMart WIN 596828777 Overview If fishing is in your DNA, there's no such thing as "too early" or "too far." The HELIX® 5 Series answers the call with an uncompromising 5" widescreen, color display. This HELIX 5 CHIRP DI GPS G3 model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts. Included Components Fish finder control head; Power cable; XNT 9 HW DI T transom-mount transducer; Mounting hardware; Gimbal mounting bracket Feature 1 Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions. Feature 2 CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging Sonar means that you'll see great detail to make finding the fish simple and easy. Feature 3 Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail. Feature 4 Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Feature 5 Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. Feature 6 AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity. Feature 7 Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware. Feature 8 1-Year Limited Warranty Series HELIX Display Size - Diagonal 5 in Display Pixel Matrix 800H x 480V Memory Card Slot Single Micro SD Features - Built In GPS
- Built In Mapping
- Dual Spectrum CHIRP
- Down Imaging
Power Draw 615 mA Power Input 10.8-20 VDC Power Output Peak-to-Peak 4000 Watts Power Output RMS 500 Watts Screen Snap Shot Included Mount Standard Gimbal Mount-Standard Size 7.55 in W x 4.64 in H x 3.3 in D Mount-Optional In-Dash Mounting Kit Mount-Optional Size 7.55 in W x 4.28 in H x 1.13 in D Transducer Mount Location Transom GPS Chartplotting Included GPS Receiver Internal GPS Trackplotting Included Waypoints, Routes, Tracks/Points 2,750, 45, 50/20,000 NMEA2000 Not Supported Target Separation 2.5 in Noise Rejection 6 Steps Upgradable Software Yes View Preset Keys No X-Press Menu System Yes Custom Digital Readout Yes Custom View Selections No Display Colors Grayscale 16-Bit Display Type Color TFT Speed Included Temperature Built In Temperature Alarm Yes Temperature Graph Yes Transducer Included XNT 9 HW DI T Humminbird Basemap Included Warranty 1 year Manufacturer Country of Origin UNITED STATES Prop 65 Text This product can expose you to chemicals including 1,3-Butadiene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Compatible With - AIS
- AutoPilot
- Minn Kota US2 Sonar
MEGA 360 Imaging Compatibility No MEGA Live Compatibility No LakeMaster Compatibility Yes CoastMaster Compatibility Yes Navionics Gold/HotMaps Compatibility Yes Navionics Platinum + Compatibility Yes Platinum Compatibility Yes Minn Kota i-Pilot Link Compatibility No Minn Kota Talon Shallow Water Anchor Compatibility No Radar Compatibility No 5-Port Ethernet Switch Compatibility No AIS Compatibility Not Supported Autopilot Compatibility No Heading Sensor GPS Compatibility No HDMI Compatible No Sonar-Standard - Dual Spectrum CHIRP
- CHIRP Down Imaging
Sonar-Coverage 20°, 42° & 60° @ -10dB Sonar-Optional 50/83/200 kHz CHIRP - Frequencies Supported - Full Mode (150-220 kHz)
- Narrow Mode (180-240 kHz)
- Wide Mode (140-200 kHz)
- Optional (28-250 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz and HW DSC CHIRP Depth-Sonar - 1,200 ft (standard transducer)
- 3,000 ft (optional 50 kHz)
CHIRP - Imaging-Frequencies Supported 455 kHz (440-500 kHz) Depth-Down Imaging 350 ft (455 kHz) Sonar Recording Included Carton Length 4.75 Carton Width 15.75 Carton Height 9.63 Shipping Weight (lbs) 4 Units per Container [Case Pack] 2
