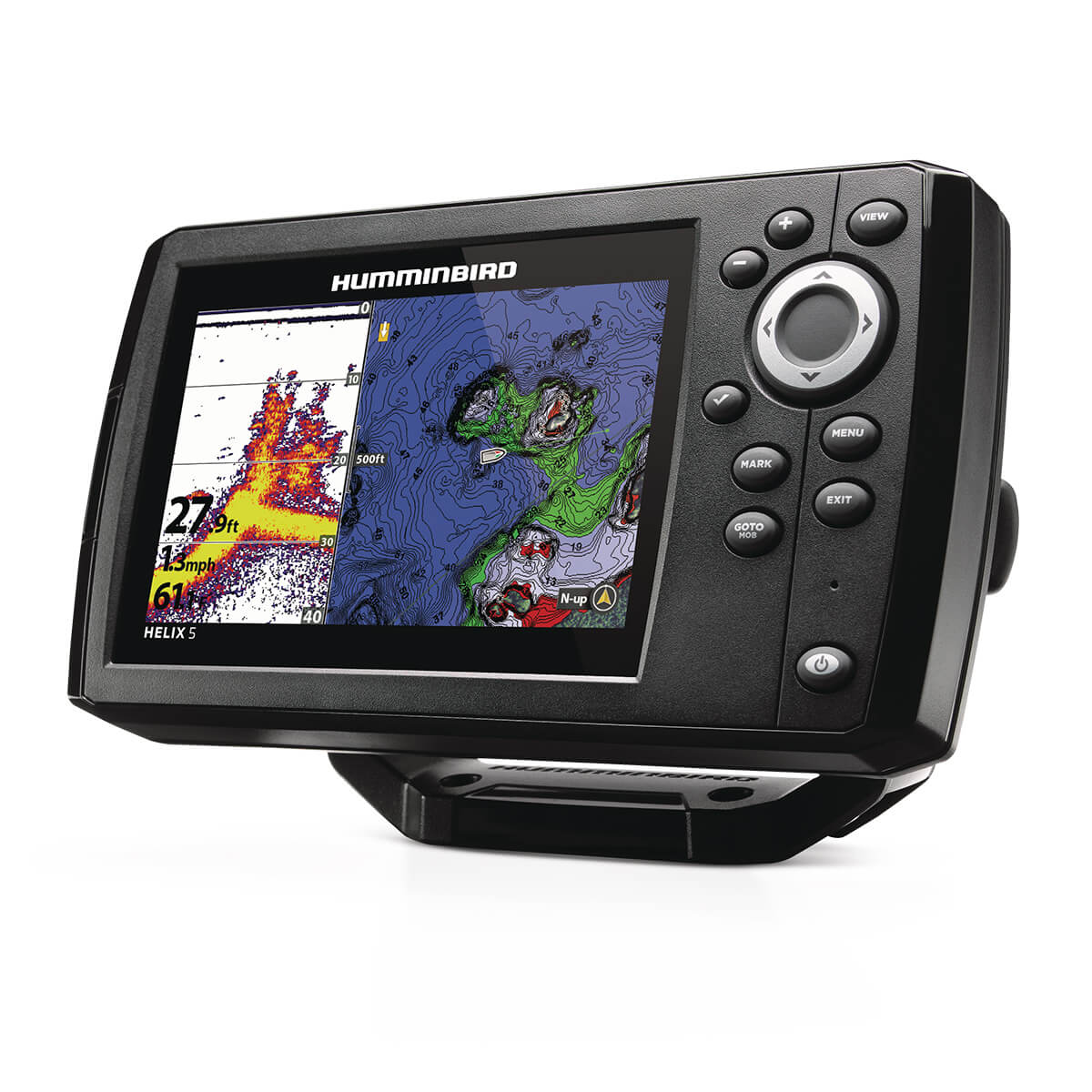

HELIX 5 CHIRP GPS G3 PT
Primary ImageDownload

HELIX 5 CHIRP GPS G3 PT

  • Brand (JDE)Humminbird
    Product NameHELIX 5 CHIRP GPS G3 PT
    Product Code411680-1
    UPC0082324056314
    MSRP $USD499.99
    Amazon ASINB09B1N6Q5X
  • OverviewIf fishing is in your DNA, there's no such thing as "too early" or "too far." The HELIX® 5 Series answers the call with an uncompromising 5" widescreen, color display. This HELIX 5 CHIRP GPS G3 PT model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts. Take all of these features on the go thanks to a portable shuttle, battery, charger and suction cup transducer.
    Included ComponentsFish finder control head; Power cable; XNT 9 HW T suction cup mount transducer; Mounting hardware; Gimbal mounting bracket; Shuttle bag; 7Ah AGM battery and charger
  • Feature 1Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.

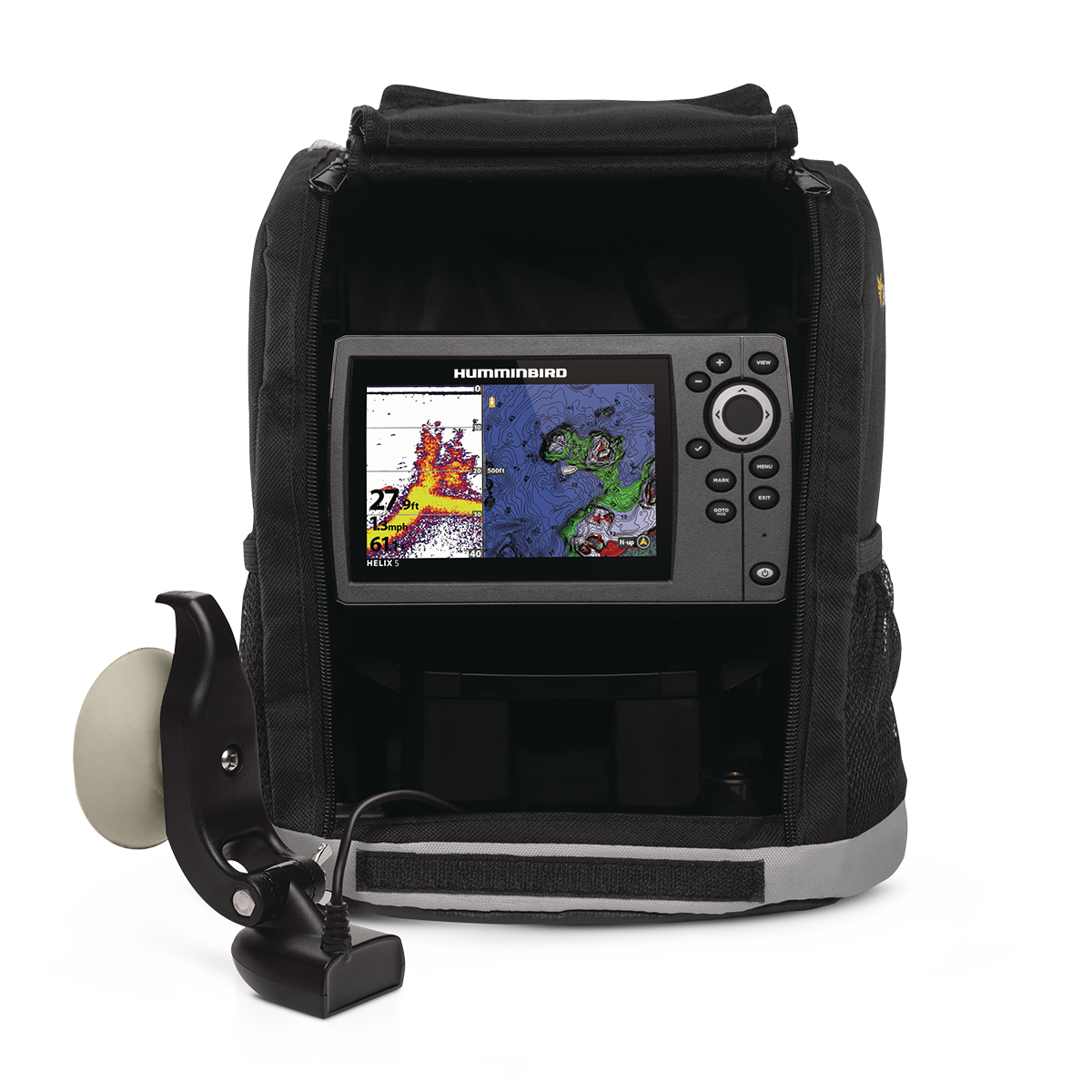

    Feature 2Portable Carrying Case: Take your fishing system on the go. The soft-sided carrying case protects your Humminbird for safe transport.
    Feature 3Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
    Feature 4Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
    Feature 5Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
    Feature 6AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
    Feature 7Includes control head, shuttle, bag, 7Ah AGM battery, battery charger, suction cup mount transducer, power cable, gimbal mounting bracket and mounting hardware.
    Feature 81-Year Limited Warranty
  • SeriesHELIX
    Display Size - Diagonal5 in
    Display Pixel Matrix800H x 480V
    Memory Card SlotSingle Micro SD
    Features
    • Built In GPS
    • Built In Mapping
    • Dual Spectrum CHIRP
    • Portable
    Power Draw615 mA
    Power Input10.8-20 VDC
    Power Output Peak-to-Peak4000 Watts
    Power Output RMS500 Watts
    Screen Snap ShotIncluded
    Mount StandardPortable
    Mount-OptionalIn-Dash Mounting Kit
    Mount-Optional Size7.55 in W x 4.28 in H x 1.13 in D
    Transducer Mount LocationPortable
    GPS ChartplottingIncluded
    GPS ReceiverInternal
    GPS TrackplottingIncluded
    Waypoints, Routes, Tracks/Points2,750, 45, 50/20,000
    NMEA2000Not Supported
    Target Separation2.5 in
    Noise Rejection6 Steps
    Battery Included12V 7 Amp Hours
    Upgradable SoftwareYes
    View Preset KeysNo
    X-Press Menu SystemYes
    Custom Digital ReadoutYes
    Custom View SelectionsNo
    Display Colors Grayscale16-Bit
    Display TypeColor TFT
    SpeedIncluded
    TemperatureBuilt In
    Temperature AlarmYes
    Temperature GraphYes
    Transducer IncludedXNT 9 HW T
    Humminbird BasemapIncluded
    Warranty1 year Manufacturer
    Country of OriginUNITED STATES
    Prop 65 TextThis product can expose you to chemicals including 1,3-Butadiene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  • Compatible With
    • AIS
    • AutoPilot
    • Minn Kota US2 Sonar
    MEGA 360 Imaging CompatibilityNo
    MEGA Live CompatibilityNo
    LakeMaster CompatibilityYes
    CoastMaster CompatibilityYes
    Navionics Gold/HotMaps CompatibilityYes
    Navionics Platinum + CompatibilityYes
    Platinum CompatibilityYes
    Minn Kota i-Pilot Link CompatibilityNo
    Minn Kota Talon Shallow Water Anchor CompatibilityNo
    Radar CompatibilityNo
    5-Port Ethernet Switch CompatibilityNo
    AIS CompatibilityNot Supported
    Autopilot CompatibilityNo
    Heading Sensor GPS CompatibilityNo
    HDMI CompatibleNo
  • Sonar-StandardDual Spectrum CHIRP
    Sonar-Coverage20°, 42° & 60° @ -10dB
    Sonar-Optional50/83/200 kHz
    CHIRP - Frequencies Supported
    • Full Mode (150-220 kHz)
    • Narrow Mode (180-240 kHz)
    • Wide Mode (140-200 kHz)
    • Optional (28-250 kHz)
    Sonar-Frequencies Supported50/80/200 kHz & HW DSC CHIRP
    Depth-Sonar
    • 1,200 ft (standard transducer)
    • 3,000 ft (optional 50 kHz)
    Sonar RecordingIncluded
  • Carton Length5
    Carton Width13.25
    Carton Height12
    Shipping Weight (lbs)12.5
    Units per Container [Case Pack]2
