ICE HELIX 5 CHIRP G3

  • Brand (JDE)Humminbird
    Product NameICE HELIX 5 CHIRP G3
    Product Code411720-1
    UPC0082324056710
    MSRP $USD429.99
    Amazon ASINB09FRF1GM9
    WalMart WIN665901491
  • OverviewThe ICE HELIX 5 CHIRP G3 gives you a deeper understanding of what's below the ICE, with exclusive features you won't find on any other ICE sonar unit. Utilize crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode and unprecedented viewing options specifically for the ICE angler. You'll watch it all take shape on a full color, 5" HD LCD display.

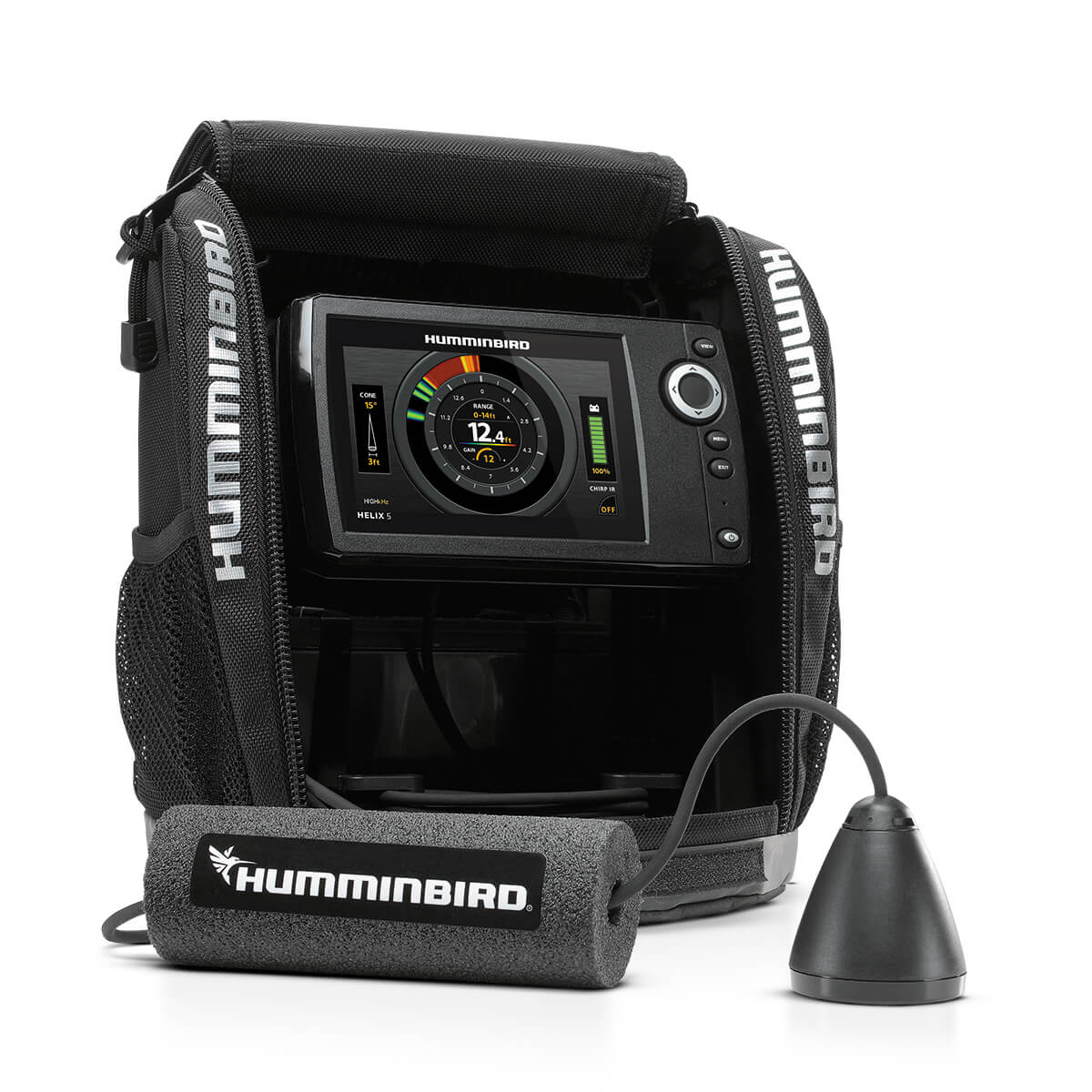

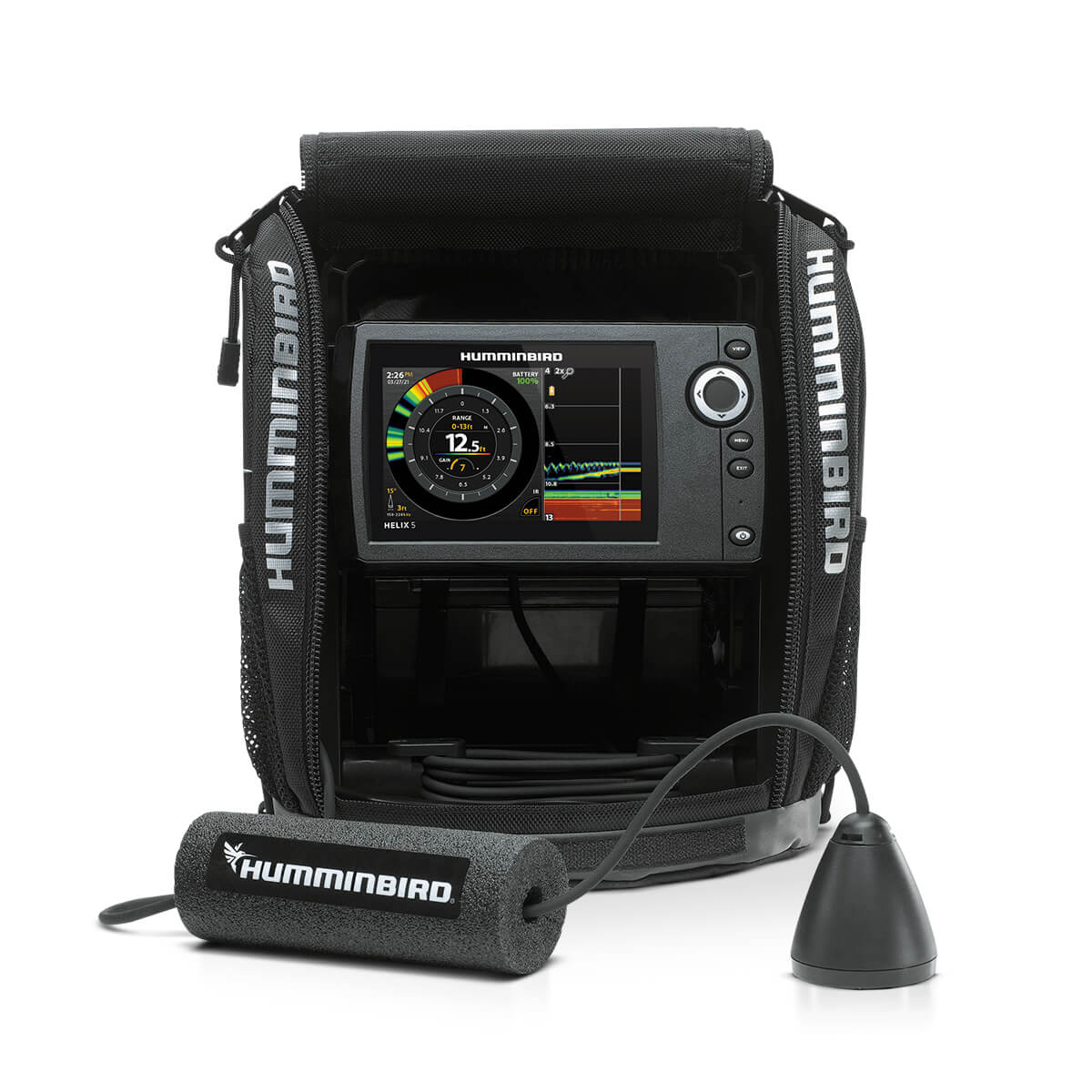

    Included ComponentsFish finder control head; Power cable; XI 9 1521 ice transducer with 8 ft Cable; ICE shuttle; Applicable hardware; 9Ah battery and charger; Portable bag
  • Feature 1See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".
    Feature 2Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
    Feature 3Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view.
    Feature 4The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time.
    Feature 5Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
    Feature 6The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
    Feature 7The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts.
    Feature 8ICE HELIX 5 CHIRP G3 fish finder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable and portable bag.
    Feature 91-Year Limited Warranty.
  • SeriesICE
    Display Size - Diagonal5 in
    Display Pixel Matrix800H x 480V
    Memory Card SlotNone
    Features
    • Dual Spectrum CHIRP
    • Interference Rejection
    • Jig Charge Mode
    • Portable
    Power Draw615 mA
    Power Input10.8-20 VDC
    Power Output Peak-to-Peak4000 Watts
    Power Output RMS500 Watts
    Screen Snap ShotNot Supported
    Mount StandardPortable
    Transducer Mount LocationPortable
    GPS ChartplottingNot Supported
    GPS ReceiverNot Supported
    GPS TrackplottingNot Supported
    NMEA2000Not Supported
    Target Separation3/4 in
    Interference Rejection6 Modes
    Battery Included12V 9 Amp Hours
    Gain20 Steps
    Upgradable SoftwareNo
    View Preset KeysNo
    X-Press Menu SystemYes
    Custom Digital ReadoutYes
    Custom View SelectionsYes
    Display Colors Grayscale256 Color
    Display TypeLCD
    SpeedNot Supported
    TemperatureNot Supported
    Temperature AlarmYes
    Temperature GraphNo
    Transducer IncludedXI 9 1521
    Humminbird BasemapNot Supported
    Warranty1 year Manufacturer
    Country of OriginUNITED STATES
    Prop 65 TextThis product can expose you to chemicals including 1,3-Butadiene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  • MEGA 360 Imaging CompatibilityNo
    MEGA Live CompatibilityNo
    LakeMaster CompatibilityNo
    CoastMaster CompatibilityNo
    Navionics Gold/HotMaps CompatibilityNo
    Navionics Platinum + CompatibilityNo
    Platinum CompatibilityNo
    Minn Kota i-Pilot Link CompatibilityNo
    Minn Kota Talon Shallow Water Anchor CompatibilityNo
    Radar CompatibilityNo
    5-Port Ethernet Switch CompatibilityNo
    AIS CompatibilityNot Supported
    Autopilot CompatibilityNo
    Heading Sensor GPS CompatibilityNo
    HDMI CompatibleNo
  • Sonar-StandardDual Spectrum CHIRP
    Sonar-Coverage15° & 21° @ -3dB
    Sonar-Optional50/83/200 kHz
    CHIRP - Frequencies Supported
    • Full Mode (150-220 kHz)
    • Narrow Mode (180-240 kHz)
    • Wide Mode (140-200 kHz)
    • Optional (28-250 kHz)
    Sonar-Frequencies Supported50/80/200 kHz & HW DSC CHIRP
    Depth-Sonar400 ft
    Sonar RecordingNot Supported
  • Case Carton Length8.5
    Case Carton Width15.19
    Case Carton Height12.25
  • Carton Length8.5
    Carton Width15.19
    Carton Height12.25
    Shipping Weight (lbs)13.6
    Units per Container [Case Pack]2
  • Product Length4.75
    Product Width15.75
    Product Height9.63
    Product Weight (lbs)3.6
