Primary Image
ICE HELIX 5 CHIRP GPS G3

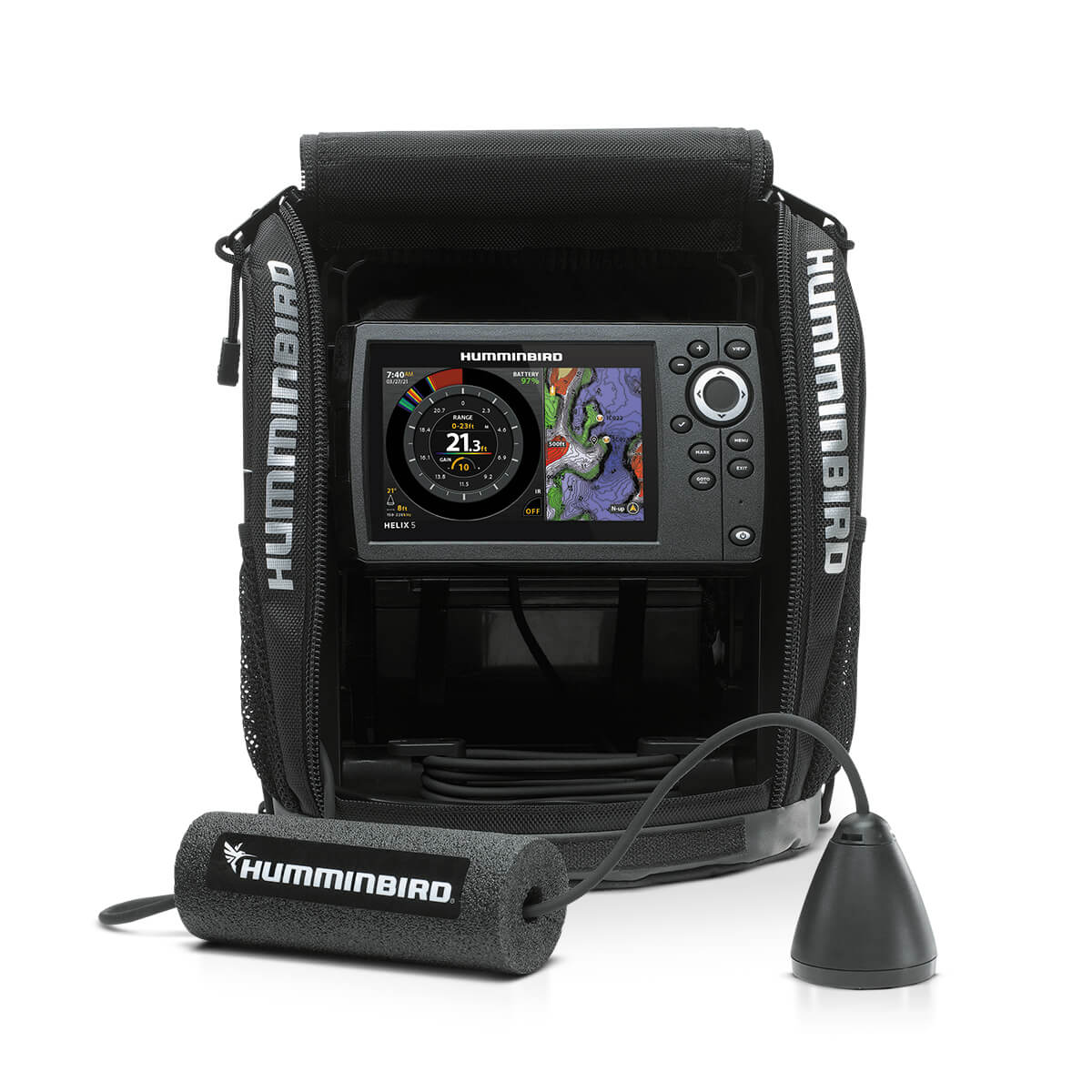

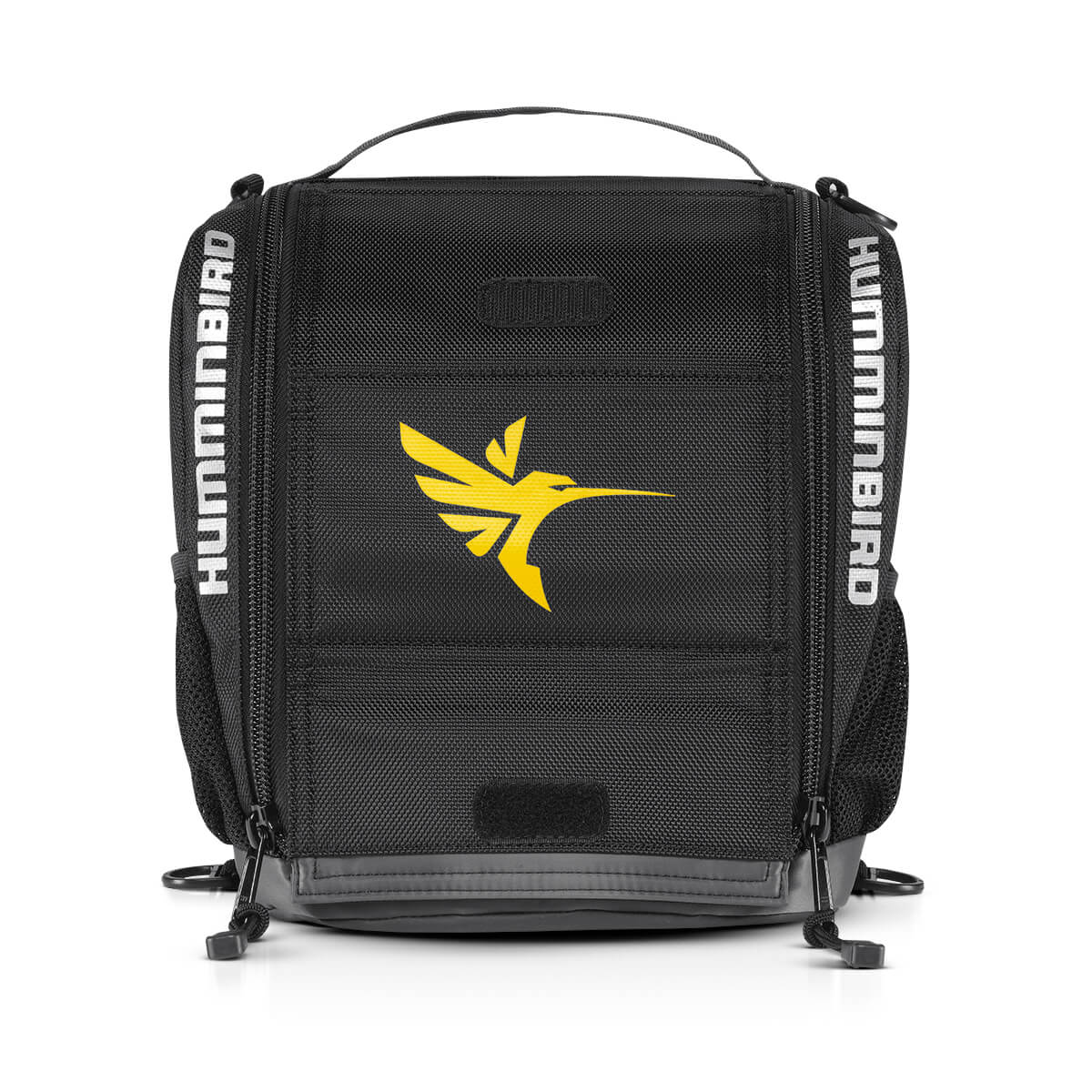

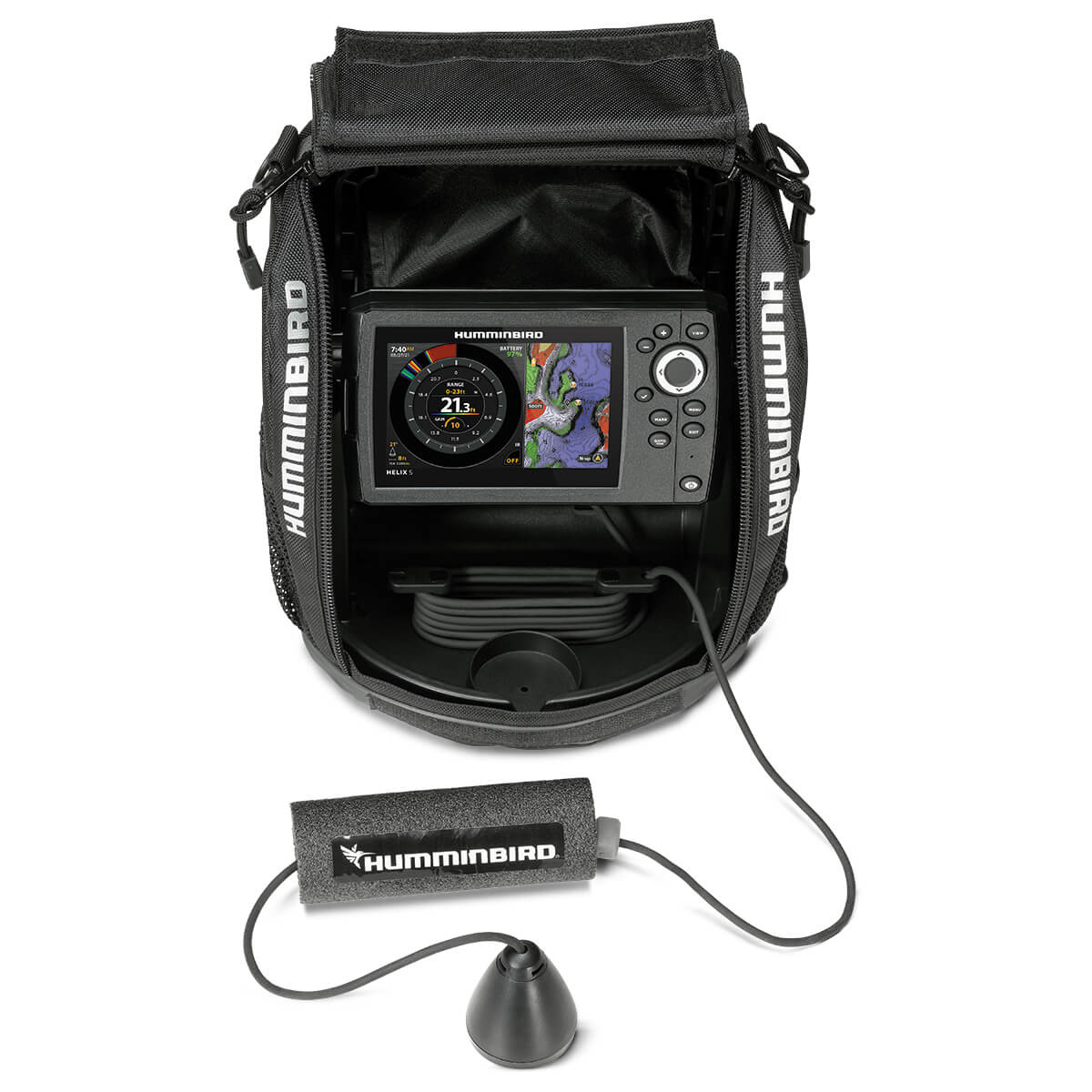

Brand (JDE) Humminbird Product Name ICE HELIX 5 CHIRP GPS G3 Product Code 411730-1 UPC 0082324056703 MSRP $USD 529.99 Amazon ASIN B09FRCSTVC WalMart WIN 665901492 Overview The ICE HELIX 5 CHIRP GPS G3 will not only help you catch the fish, it will help you find where to catch them. Take advantage of outstanding features like Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird® Basemap and compatibility with both LakeMaster® or Navionics® maps for precision fishing. Additional features designed specifically for the ICE angler, including AutoChart Live ICE, Jig Charge Mode and split-screen views separate this unit from all others on the ICE. Take it all in on an ultra-bright 5" full color HD LCD display. Included Components Fish finder control head; Power cable; XI 9 1521 ice transducer with 8 ft Cable; ICE shuttle; Applicable hardware; 9Ah battery and charger; Portable bag Feature 1 See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4". Feature 2 Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes. Feature 3 Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view. Feature 4 Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks. Feature 5 Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, daymarkers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes. Feature 6 Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight and Water Level Offset. Feature 7 Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX. Feature 8 The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time. Feature 9 Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly. Feature 10 The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management. Feature 11 The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts. Feature 12 ICE HELIX 5 CHIRP GPS G3 fish finder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable and portable bag. Feature 13 1-Year Limited Warranty. Series ICE Display Size - Diagonal 5 in Display Pixel Matrix 800H x 480V Memory Card Slot Single Micro SD Features - Dual Spectrum CHIRP
- Interference Rejection
- Jig Charge Mode
- Portable
- Built In GPS
- Built In Mapping
- AutoChart Live Ice
Power Draw 615 mA Power Input 10.8-20 VDC Power Output Peak-to-Peak 4000 Watts Power Output RMS 500 Watts Screen Snap Shot Included Mount Standard Portable Transducer Mount Location Portable GPS Chartplotting Included GPS Receiver Internal GPS Trackplotting Included Waypoints, Routes, Tracks/Points 2,500, 47, 50/20,000 NMEA2000 Not Supported Target Separation 3/4 in Interference Rejection 6 Modes Battery Included 12V 9 Amp Hours Gain 20 Steps Upgradable Software Yes View Preset Keys No X-Press Menu System Yes Custom Digital Readout Yes Custom View Selections Yes Display Colors Grayscale 256 Color Display Type LCD Speed Included Temperature Built In Temperature Alarm Yes Temperature Graph No Transducer Included XI 9 1521 Humminbird Basemap Included Warranty 1 year Manufacturer Country of Origin UNITED STATES Prop 65 Text This product can expose you to chemicals including 1,3-Butadiene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. MEGA 360 Imaging Compatibility No MEGA Live Compatibility No LakeMaster Compatibility Yes CoastMaster Compatibility Yes Navionics Gold/HotMaps Compatibility Yes Navionics Platinum + Compatibility Yes Platinum Compatibility Yes Minn Kota i-Pilot Link Compatibility No Minn Kota Talon Shallow Water Anchor Compatibility No Radar Compatibility No 5-Port Ethernet Switch Compatibility No AIS Compatibility Not Supported Autopilot Compatibility No Heading Sensor GPS Compatibility Yes HDMI Compatible No Sonar-Standard Dual Spectrum CHIRP Sonar-Coverage 15° & 21° @ -3dB Sonar-Optional 50/83/200 kHz CHIRP - Frequencies Supported - Full Mode (150-220 kHz)
- Narrow Mode (180-240 kHz)
- Wide Mode (140-200 kHz)
- Optional (28-250 kHz)
Sonar-Frequencies Supported 50/80/200 kHz & HW DSC CHIRP Depth-Sonar 400 ft Sonar Recording Included Case Carton Length 8.5 Case Carton Width 15.19 Case Carton Height 12.25 Carton Length 8.5 Carton Width 15.19 Carton Height 12.25 Shipping Weight (lbs) 13.6 Units per Container [Case Pack] 2 Product Length 4.75 Product Width 15.75 Product Height 9.63 Product Weight (lbs) 3.6
