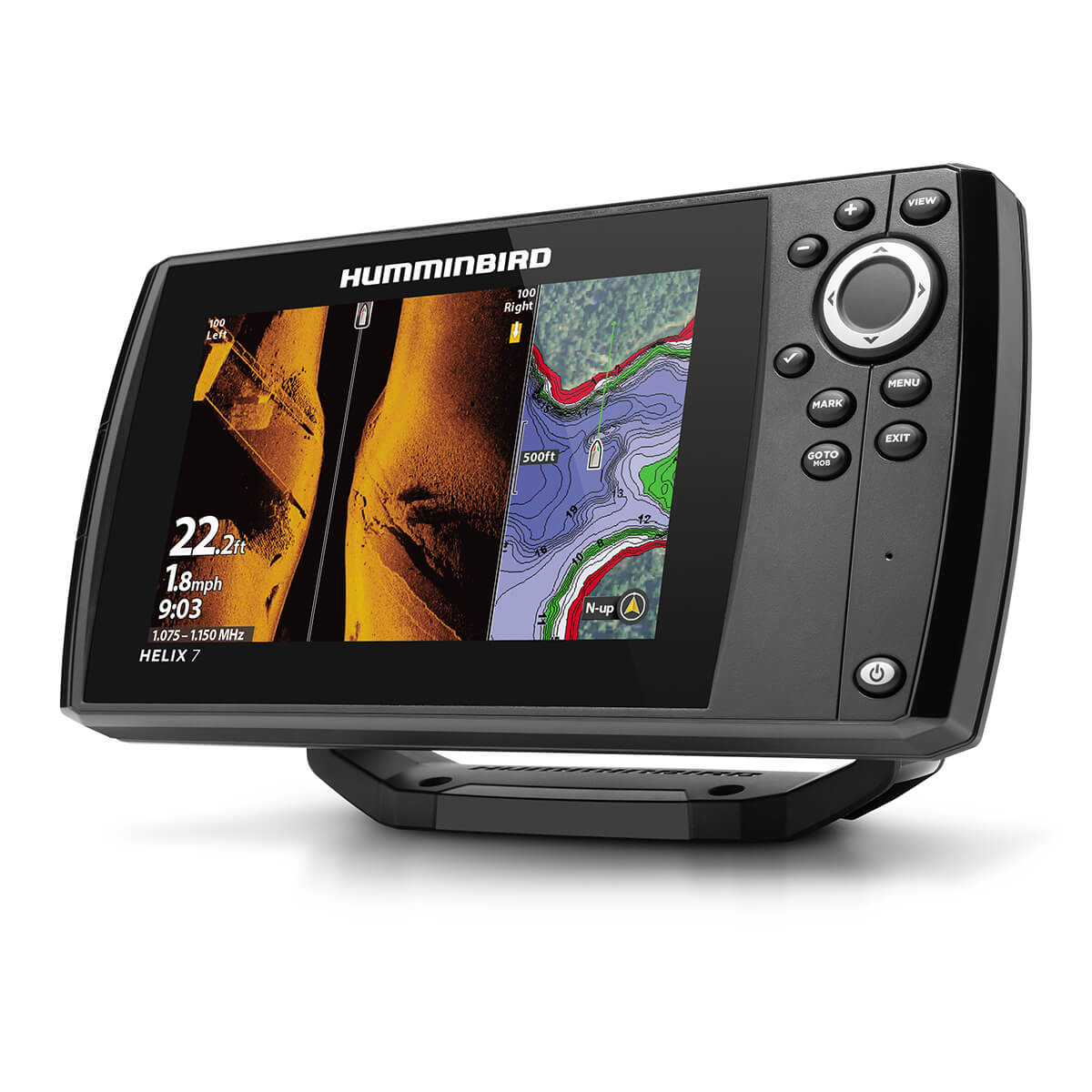

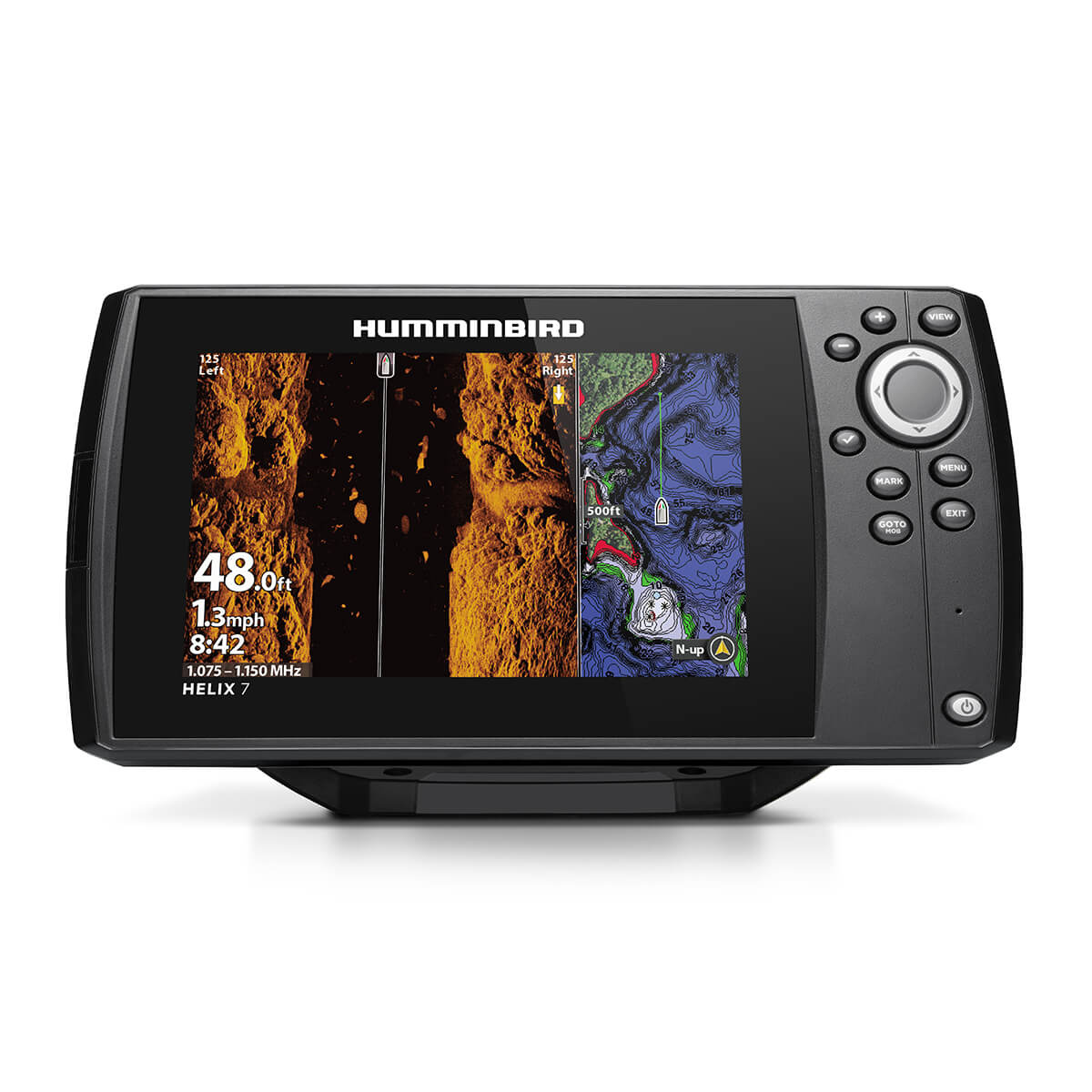

HELIX 7 MSI GPS G4
Brand (JDE) Humminbird Product Name HELIX 7 MSI GPS G4 Product Code 411930-1 UPC 0082324058295 MSRP $USD 799.99 Amazon ASIN B0CG6P1TD5 Overview The HELIX 7 MEGA SI GPS G4 fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. Included Components Fish finder control head; Power cable; XNT 9 HW MSI 150 T transom-mount transducer; Mounting hardware; Gimbal mounting bracket Feature 1 Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions. Feature 2 MEGA Side Imaging: See the world below like never before with crystal-clear viewing out to 125 feet on either side of your boat. You'll unlock new details with up to 3X more detail than standard Side Imaging sonar. Feature 3 MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar. Feature 4 Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail. Feature 5 Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Feature 6 Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. Feature 7 AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity. Feature 8 Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware. Feature 9 1-Year Limited Warranty Series HELIX Display Size - Diagonal 7 in Display Pixel Matrix 1024H x 600V Memory Card Slot Single Micro SD Features - Built In GPS
- Built In Mapping
- MEGA Imaging
- Side Imaging
- Down Imaging
- Dual Spectrum CHIRP
Power Draw 800 mA Power Input 10.8-20 VDC Power Output Peak-to-Peak 4000 Watts Power Output RMS 500 Watts Screen Snap Shot Included Mount Standard Gimbal Mount-Standard Size 10.54 in W x 5.8 in H x 3.68 in D Mount-Optional In-Dash Mounting Kit Mount-Optional Size 10.54 in W x 5.44 in H x 1.13 in D Transducer Mount Location Transom GPS Chartplotting Included GPS Receiver Internal GPS Trackplotting Included Waypoints, Routes, Tracks/Points 2,750, 47, 50/20,000 NMEA2000 Not Supported Target Separation 2.5 in Interference Rejection 6 Modes Noise Rejection 6 Steps Upgradable Software Yes View Preset Keys No X-Press Menu System Yes Custom Digital Readout Yes Custom View Selections No Display Colors Grayscale 16-Bit Display Type Color TFT Speed Included Temperature Built In Temperature Alarm Yes Temperature Graph Yes Transducer Included XNT 9 HW MSI 150 T Humminbird Basemap Included Warranty 1 year Manufacturer Country of Origin UNITED STATES Prop 65 Text This product can expose you to chemicals including 1,3-Butadiene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Compatible With - AIS
- AutoPilot
- Minn Kota US2 Sonar
- Minn Kota Built-In MEGA DI
MEGA 360 Imaging Compatibility No MEGA Live Compatibility No LakeMaster Compatibility Yes CoastMaster Compatibility Yes Navionics Gold/HotMaps Compatibility Yes Navionics Platinum + Compatibility Yes Platinum Compatibility Yes Minn Kota i-Pilot Link Compatibility No Minn Kota Talon Shallow Water Anchor Compatibility No Radar Compatibility No 5-Port Ethernet Switch Compatibility No AIS Compatibility Optional Autopilot Compatibility Yes Heading Sensor GPS Compatibility Yes HDMI Compatible No Sonar-Standard - Dual Spectrum CHIRP
- MEGA Down Imaging
- MEGA Side Imaging
Sonar-Coverage 20°, 42°, 60° & (2) 86° @ -10dB Sonar-Optional 53 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported - 83/200 (75-155/130-250 kHz)
- Full Mode (150-220 kHz)
- Narrow Mode (180-240 kHz)
- Wide Mode (140-200 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz & 1.2 MHz Depth-Sonar - 1,200 ft (standard transducer)
- 3,500 ft (optional 50 kHz)
CHIRP - Imaging-Frequencies Supported - 455 kHz (440-500 kHz)
- MEGA DI (1075-1150 kHz)
- MEGA SI (1075-1150 kHz)
Depth-Down Imaging - 400 ft (455 kHz)
- 75 ft (MEGA)
Range-Side Imaging (Side-To-Side) - 800 ft (455 kHz)
- 250 ft (MEGA)
Sonar Recording Included Carton Length 4.5 Carton Width 17 Carton Height 14 Shipping Weight (lbs) 5.7 Units per Container [Case Pack] 2 Product Length 3.06 Product Width 10.54 Product Height 5.44 Product Weight (lbs) 2.1
