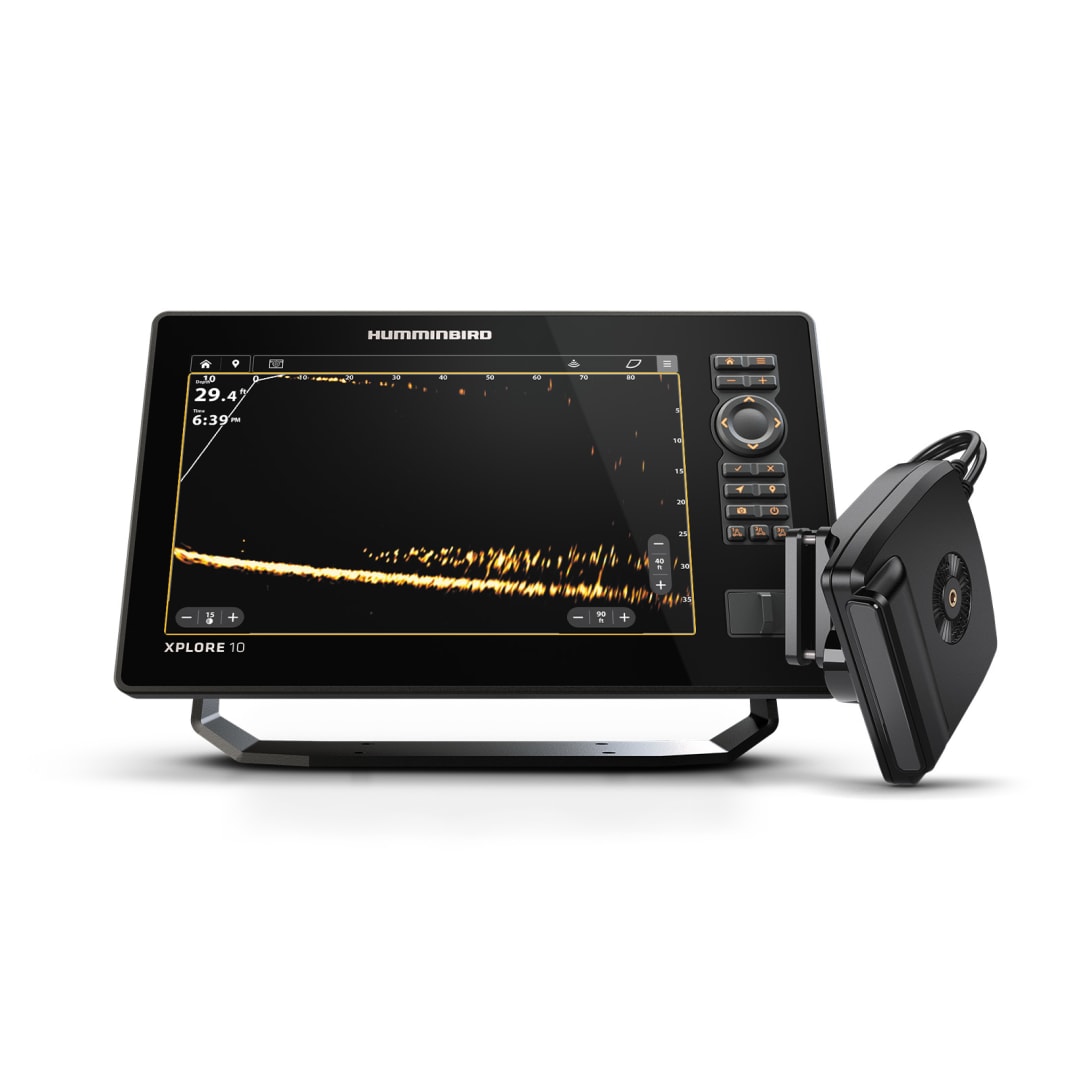

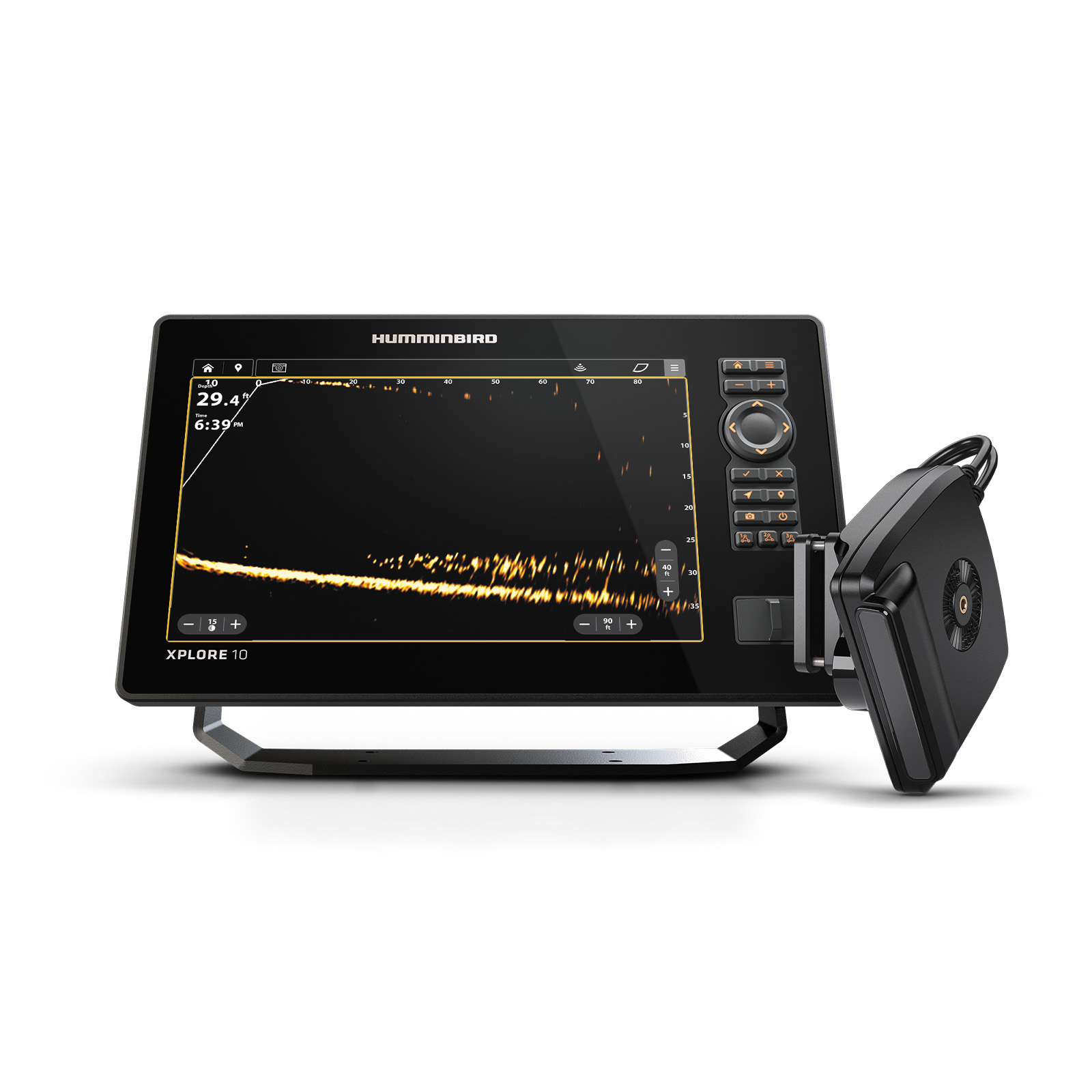

ICE XPLORE 10 + MEGA Live 2 Bundle
Brand (JDE) Humminbird Product Name ICE XPLORE 10 + MEGA Live 2 Bundle Product Code 412360-1 UPC 0082324061530 MSRP $USD 3499.99 Overview Take your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle delivering next-gen clarity, helping anglers catch more fish and enjoy every moment on the ice. Built for hardwater, this bundle delivers unmatched clarity, precision, and control beneath the ice. The XPLORE Series fish finder combines a vivid touchscreen display with intuitive mapping and sonar features, while the MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail. Outfitted with right-sized, cold-weather-ready cables and accessories tailored for ice fishing, this bundle is ready to hit the ice when you are. Included Components XPLORE fish finder; 18” Power cable with spade connectors and inline fuse; Premium Silicone cover; Gimbal bracket; Xplore Map Card, MEGA Live 2 Transducer; Compact Pole-mount; 5' Ethernet Cable, 4' Power cable with spade connectors and inline fuse Feature 1 XPLORE Series and MEGA Live 2 deliver ultra-detailed views in real-time, making it easier to find and stay on fish. Feature 2 Includes ice-specific cable lengths, inline fuses and connectors for hassle-free setup and reliability in cold conditions. Feature 3 Streamlined features and functionality, for a custom ice experience. Flip back to Open Water Mode when it’s time to move your XPLORE and MEGA Live 2 to your boat. Feature 4 Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom. Feature 5 Ice XPLORE fish finders come with LakeMaster® mapping with features like SmartStrike® to keep you on the fish. Feature 6 Pre-matched components streamline compatibility and installation, ready for your choice of ice shuttle and pole for full on-ice functionality. Feature 7 Ice XPLORE includes a 2-year limited warranty (Additional third year of warranty is available with product registration). MEGA Live 2 is covered by a 2-year warranty. Feature 8 XPLORE units now support advanced 2D flasher modes for enhanced vertical jigging and ice fishing visibility. (Requires XI 14 transducer). Feature 9 XPLORE fish finder; 18” Power cable with spade connectors and inline fuse; Premium Silicone cover; Gimbal bracket; XPLORE Map Card; MEGA Live 2 Transducer; Compact Pole-mount; 5' Ethernet Cable; 4' Power cable with spade connectors and inline fuse Series XPLORE Display Size - Diagonal 10.1 in Display Pixel Matrix 1280 x 720 Memory Card Slot Dual Micro SD Features - Touch Screen
- All Season
- Bluetooth
- Built In GPS
- Built In Mapping
- Dual Spectrum CHIRP
- MEGA Imaging+
- MEGA Live Imaging
- Networking
- Wi-Fi
Power Draw 2.2 Amps Power Input 10.8-20 VDC Power Output Peak-to-Peak 8000 Watts Power Output RMS 1000 Watts Screen Snap Shot Included Mount Standard Gimbal Mount-Optional In-Dash Mounting Kit Mount-Optional Size 12.098 in W x 7.702 in H x 3.891 in D Transducer Mount Location Portable GPS Chartplotting Included GPS Receiver Internal GPS Trackplotting Included Waypoints, Routes, Tracks/Points 10,000, 50, 50/20,000 NMEA2000 Included Target Separation 2.5 in Upgradable Software Yes View Preset Keys Yes X-Press Menu System Yes Custom Digital Readout Yes Custom View Selections Yes Display Colors Grayscale 24-Bit Display Type Color TFT Speed Included Temperature Built In Temperature Alarm Yes Temperature Graph Yes Transducer Included MEGA Live Imaging Humminbird Basemap Included Warranty XPLORE: Three-Year Warranty with Registration, MEGA Live 2: Two-Year Warranty Country of Origin UNITED STATES Prop 65 Text Cancer and Reproductive Harm - www.P65Warnings.ca.gov Compatible With - Minn Kota i-Pilot Link
- Minn Kota US2 Sonar
- NMEA 2000
- One-Boat Network
- Radar
- MEGA Live 2
MEGA 360 Imaging Compatibility Yes MEGA Live Compatibility Yes LakeMaster Compatibility Yes CoastMaster Compatibility Yes Navionics Gold/HotMaps Compatibility Yes Navionics Platinum + Compatibility Yes Platinum Compatibility Yes Minn Kota i-Pilot Link Compatibility Yes Minn Kota Talon Shallow Water Anchor Compatibility Yes Radar Compatibility Yes 5-Port Ethernet Switch Compatibility Yes AIS Compatibility Optional Autopilot Compatibility No Heading Sensor GPS Compatibility No HDMI Compatible No Sonar-Standard - MEGA Down Imaging
- MEGA Down Imaging+
- MEGA Side Imaging
- MEGA Side Imaging+
Sonar-Coverage 20°, 42°, 60° & (2) 86° @ -10dB Sonar-Optional 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low Live Sonar Coverage 20 degrees x 120 degrees CHIRP - Frequencies Supported - Full Mode (150-220 kHz)
- Narrow Mode (180-240 kHz)
- Wide Mode (140-200 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA Depth-Sonar - 1,200 ft (standard transducer)
- 3,500 ft (optional 50 kHz)
CHIRP - Imaging-Frequencies Supported - 455 kHz DI+ (420-520 kHz)
- 455 kHz SI+ (405-505 kHz)
- Compact MEGA SI+ (1100-1200 kHz)
Depth-Down Imaging - 400 ft (455 kHz)
- 200 ft (MEGA)
Range-Side Imaging (Side-To-Side) - 800 ft (455 kHz)
- 400 ft (MEGA)
Sonar Recording Included Carton Length 10.5 Carton Width 15.5 Carton Height 10 Shipping Weight (lbs) 10.9 Units per Container [Case Pack] 1 Case Cartons Per Layer 8 Layers per Pallet 5 Product Length 7.25 Product Width 3.3 Product Height 12.1 Product Weight (lbs) 4.75
