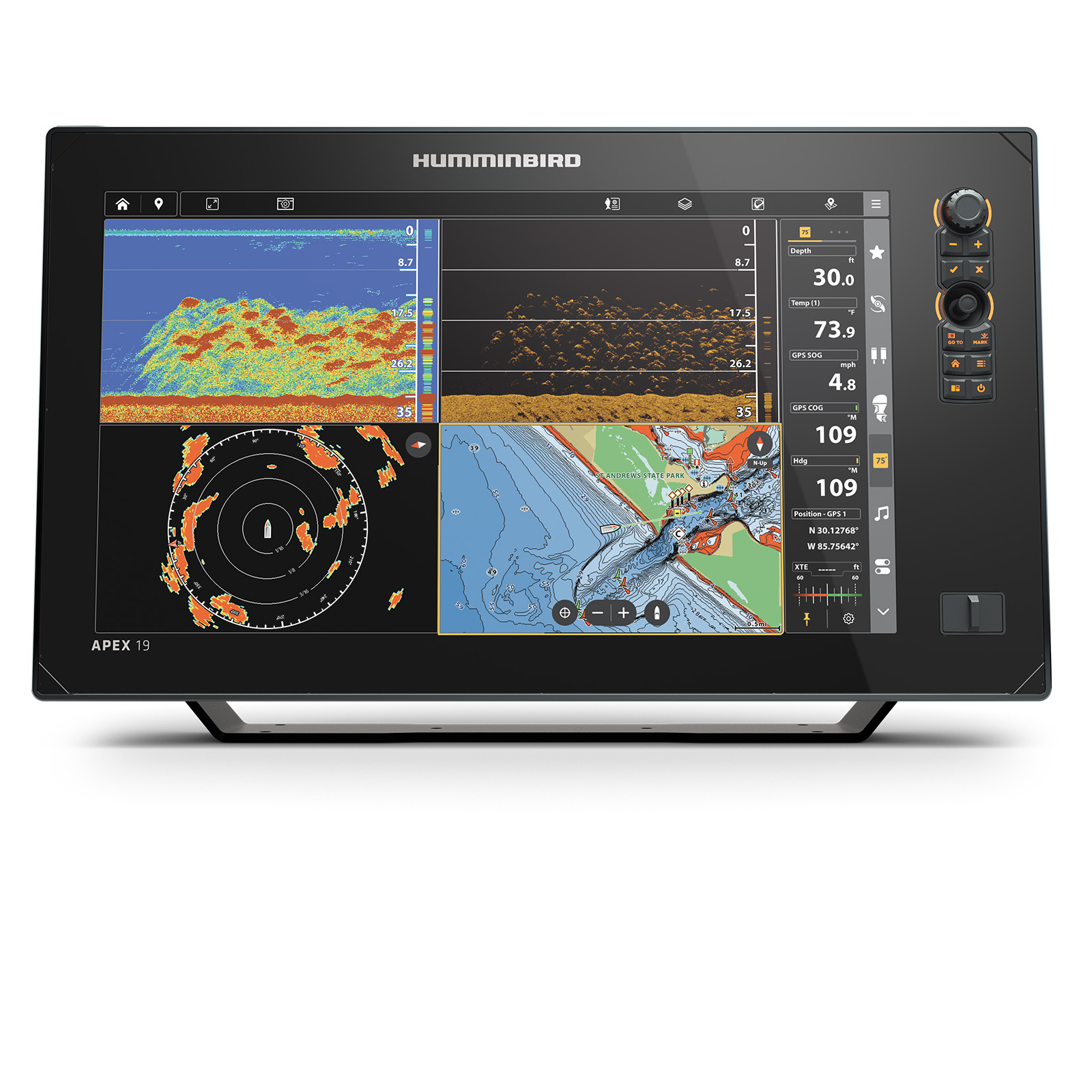

APEX 19 MEGA SI+ CHARTPLOTTER
Brand (JDE) Humminbird Product Name APEX 19 MEGA SI+ CHARTPLOTTER Product Code 411240-1VX UPC 0082324061653 MSRP $USD 4699.99 Amazon ASIN B0FTXHYRBH WalMart WIN 681255096 Overview The APEX 19 MSI+ Chartplotter provides the clearest sonar imaging on the sharpest multi-function display that anglers have ever seen. See it all with a 18.5" Full-HD touchscreen that provides a customized display of information from advanced network options like NMEA 2000®, HDMI In/Out, WiFi and Bluetooth®. Find your fishing spots faster with included LakeMaster® and CoastMaster® VX Maps. Navigate over 13,000 lakes, waterways, and coastal waters in the United States and Canada with confidence. Tools like 1-foot contours and depth and shallow water highlights help you traverse waters with certainty. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. Add the power of the One-Boat Network™ to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota®, and reach new depths with wireless Cannon® Optimum™ downrigger control. The APEX Series is a new kind of MFD that will take you fishing to a new level. Included Components Fish finder control head; Power cable; XM 14 HW MSI T transom-mount transducer; Mounting hardware; Gimbal mounting bracket; Unit cover Feature 1 APEX delivers eye-popping detail with a 1920H x 1080V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you. Feature 2 Navigate over 13,000 lakes, waterways, and coastal waters in the United States and Canada safely and with confidence. Tools like 1-foot contours, depth and shallow water highlights help you traverse waters with certainty. Feature 3 Equipped with MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity. Feature 4 Dual sonar ports offer connection with any Humminbird sonar options, as well as a dedicated port for 2D CHIRP transducers up to 2kW. Integrated transducer ID provides fast and simple installation of Airmar® transducers. Feature 5 Utilize an intuitive user interface and sidebar menu which provide customizable settings and view combinations to make your fishing experience all your own. Feature 6 Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Feature 7 Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. Feature 8 Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity. Feature 9 Seamlessly integrate and communicate with Minn Kota motors and Cannon Optimum downriggers to unlock more features and capabilities for anglers everywhere. Make the most of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network®. Feature 10 Build a powerful, professional-grade fishing system with dual Ethernet ports on APEX chartplotters. Easily network products without the need for an external network hub, allowing the connection of multiple control heads and Ethernet accessories like Minn Kota Advanced GPS Motors and Humminbird CHIRP Radar. Feature 11 See it all with independent HDMI In and HDMI Out ports on APEX. Connect and view accessory camera and video sources, as well as output to accessory displays for more viewing and rigging options. Feature 12 Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App. Feature 13 Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking. Feature 14 Includes control head, Lakemaster and Coastmaster U.S./Canada VX Map Card, screen cover, transom mount transducer, mounting hardware, power cable, and gimbal mounting bracket. Product comes with 2-Year Limited Warranty. Feature 15 APEX's low-profile design provides a sleek look at the helm when installed with the included front-mount in-dash kit. Feature 16 If indash mounted, an external GPS antenna is required to ensure accurate positioning and navigation. Feature 17 Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom (Sold Separately). Feature 18 Connect and manage Humminbird and Minn Kota products together, with future Wi‑Fi updates allowing you to update fish finders, trolling motors, and anchors from a single XPLORE unit. Feature 19 2-Year Limited Warranty Series APEX Display Size - Diagonal 18.5 in Display Pixel Matrix 1920H x 1080V Memory Card Slot Dual Micro SD Features - Built In GPS
- Built In Mapping
- Down Imaging
- Dual Spectrum CHIRP
- MEGA Imaging+
- Networking
- Side Imaging
- Touch Screen
- Wi-Fi
- MEGA Live Imaging
Power Draw 4.4 Amps Power Input 10.8-20 VDC Power Output Peak-to-Peak 8000 Watts Power Output RMS 1000 Watts Screen Snap Shot Included Mount Standard Gimbal Mount-Standard Size 20.27 in W x 12.58 in H x 4.95 in D Mount-Optional In-Dash Mounting Kit Mount-Optional Size 20.27 in W x 11.66 in H x 0.51 in D Transducer Mount Location Transom GPS Chartplotting Included GPS Receiver Internal GPS Trackplotting Included Waypoints, Routes, Tracks/Points 10,000, 50, 50/20,000 NMEA2000 Included Target Separation 2.5 in Upgradable Software Yes View Preset Keys Yes X-Press Menu System No Custom Digital Readout Yes Custom View Selections Yes Display Colors Grayscale 16-Bit Display Type Color TFT Speed Included Temperature Built In Temperature Alarm Yes Temperature Graph Yes Transducer Included XM 14 HW MSI T Humminbird Basemap Included Warranty 2 year Manufacturer Country of Origin UNITED STATES Prop 65 Text Cancer and Reproductive Harm - www.P65Warnings.ca.gov Compatible With - AIS
- AutoPilot
- HDMI In/Out
- MEGA 360
- MEGA Live
- Minn Kota Built-In MEGA DI
- Minn Kota Built-In MEGA SI
- Minn Kota i-Pilot Link
- Minn Kota Talon/Raptor
- Minn Kota US2 Sonar
- NMEA 2000
- One-Boat Network
- Radar
- MEGA Live 2
MEGA 360 Imaging Compatibility Yes MEGA Live Compatibility Yes LakeMaster Compatibility Yes CoastMaster Compatibility Yes Navionics Gold/HotMaps Compatibility Yes Navionics Platinum + Compatibility Yes Platinum Compatibility Yes Minn Kota i-Pilot Link Compatibility Yes Minn Kota Talon Shallow Water Anchor Compatibility Yes Radar Compatibility Yes 5-Port Ethernet Switch Compatibility Yes AIS Compatibility Optional Autopilot Compatibility Yes Heading Sensor GPS Compatibility Yes HDMI Compatible Yes Sonar-Standard - Dual Spectrum CHIRP
- MEGA Down Imaging+
- MEGA Side Imaging+
Sonar-Coverage 20°, 42°, 60° & (2) 86° @ -10dB Sonar-Optional 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low CHIRP - Frequencies Supported - Full Mode (150-220 kHz)
- Narrow Mode (180-240 kHz)
- Wide Mode (140-200 kHz)
- Optional Deepwater (28-250 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA Depth-Sonar - 1,200 ft (standard transducer)
- 3,500 ft (optional Airmar CHIRP)
CHIRP - Imaging-Frequencies Supported - 455 kHz DI+ (420-520 kHz)
- 455 kHz SI+ (405-505 kHz)
- 800 kHz DI+ (800-860 kHz)
- 800 kHz SI+ (780-840 kHz)
- MEGA DI+ (1100-1200 kHz)
- MEGA SI+ (1050-1175 kHz)
Depth-Down Imaging - 125 ft (800 kHz)
- 250 ft (MEGA)
- 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side) - 800 ft (455 kHz)
- 250 ft (800 kHz)
- 500 ft (MEGA)
Sonar Recording Included Carton Length 17 Carton Width 27.5 Carton Height 12.3 Shipping Weight (lbs) 30 Units per Container [Case Pack] 1 Case Cartons Per Layer 3 Layers per Pallet 4 Product Length 11.66 Product Width 5.33 Product Height 20.27 Product Weight (lbs) 13.5
