| Title 1 | Compatible With Select HELIX |
|---|
| Feature 1 | HELIX 15 MEGA SI+ GPS G4N, HELIX 15 MEGA DI+ GPS G4N, HELIX 12 MEGA SI+ GPS G4N, HELIX 12 MEGA SI+ GPS G3N, HELIX 12 MEGA DI+ GPS G4N, HELIX 12 MEGA DI+ GPS G3N, HELIX 10 MEGA SI+ GPS G4N, HELIX 10 MEGA SI+ GPS G3N, HELIX 10 MEGA DI+ GPS G4N, HELIX 10 MEGA DI+ GPS G3N, HELIX 9 MEGA SI+ GPS G4N, HELIX 9 MEGA SI+ GPS G3N, HELIX 9 MEGA DI+ GPS G4N, HELIX 9 MEGA DI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 8 MEGA SI+ GPS G3N |
|---|
| Title 2 | Compatible With Other Fish Finders |
|---|
| Feature 2 | All XPLORE, APEX and all SOLIX G2/G3 models |
|---|
| Title 3 | Compatible With Ultrex |
|---|
| Feature 3 | All Minn Kota Ultrex and Ultrex QUEST 45" - 52" trolling motor models |
|---|
| Title 4 | What's Included |
|---|

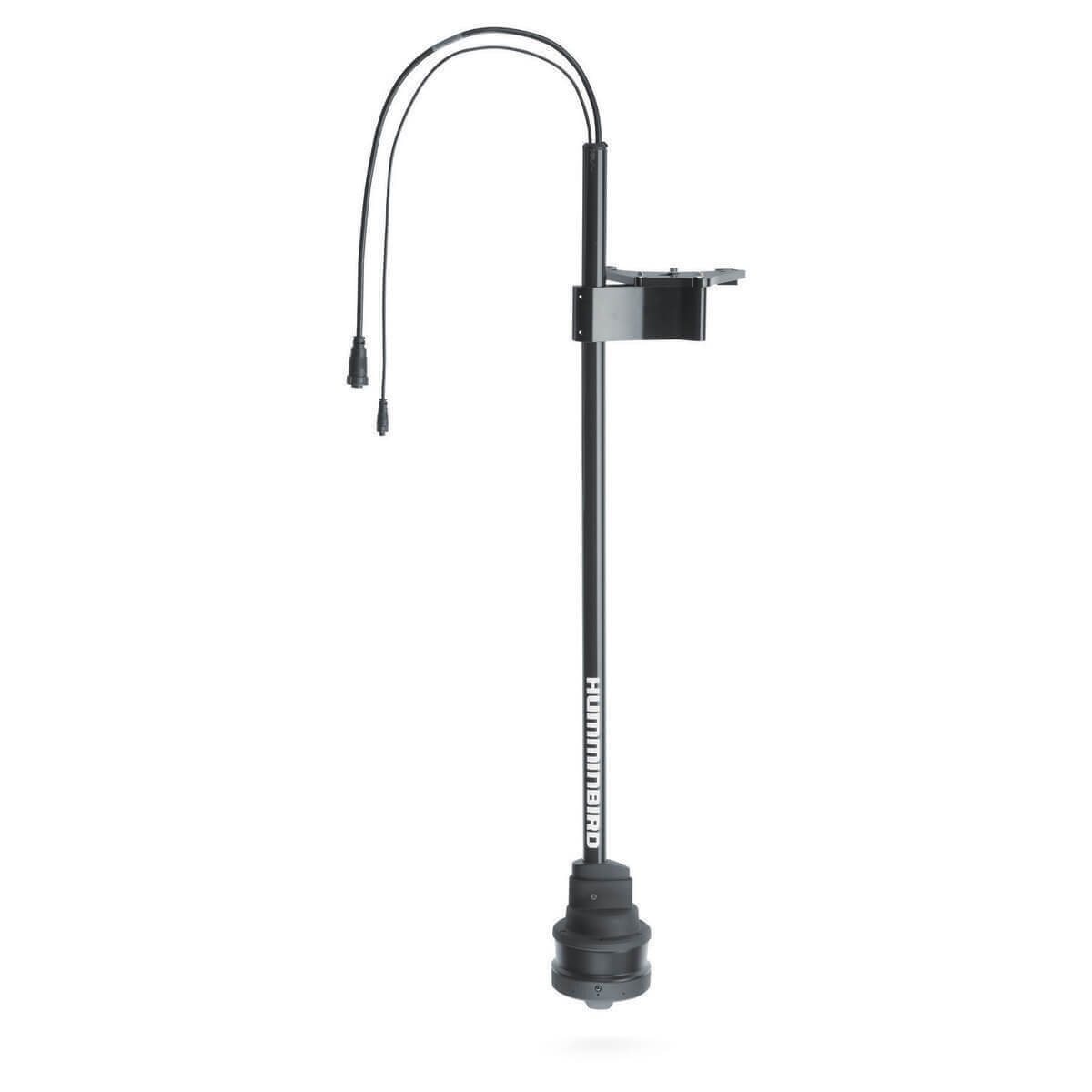

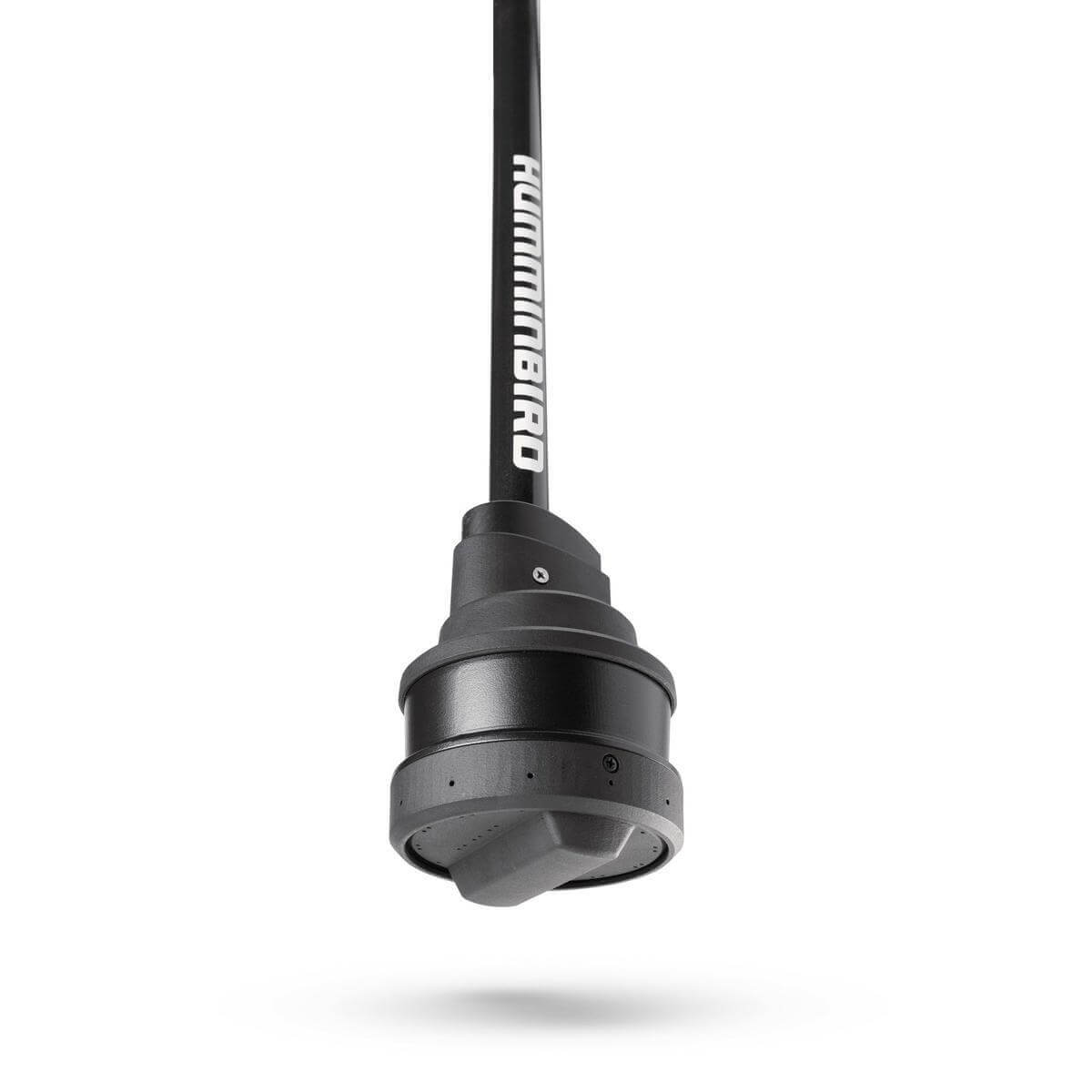

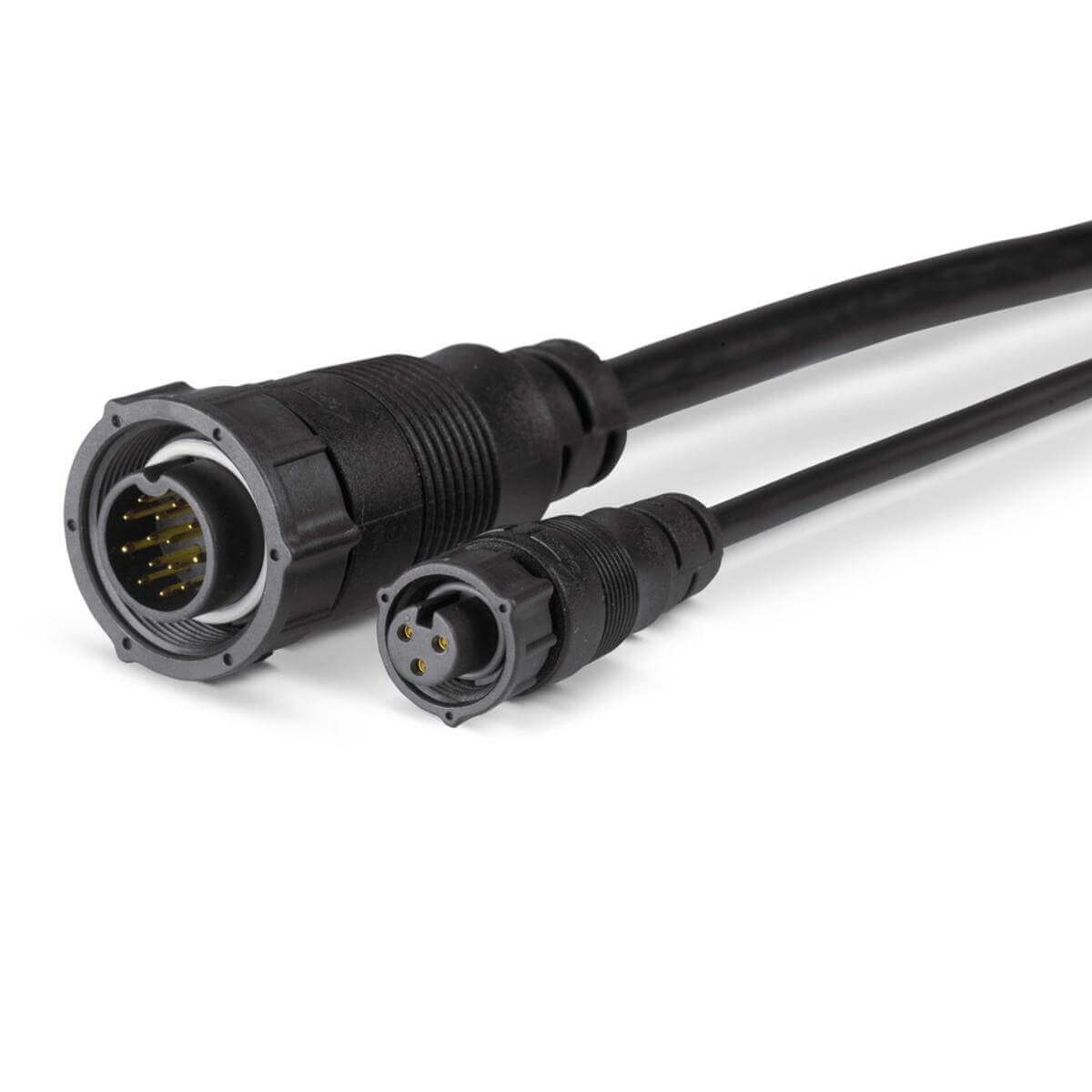

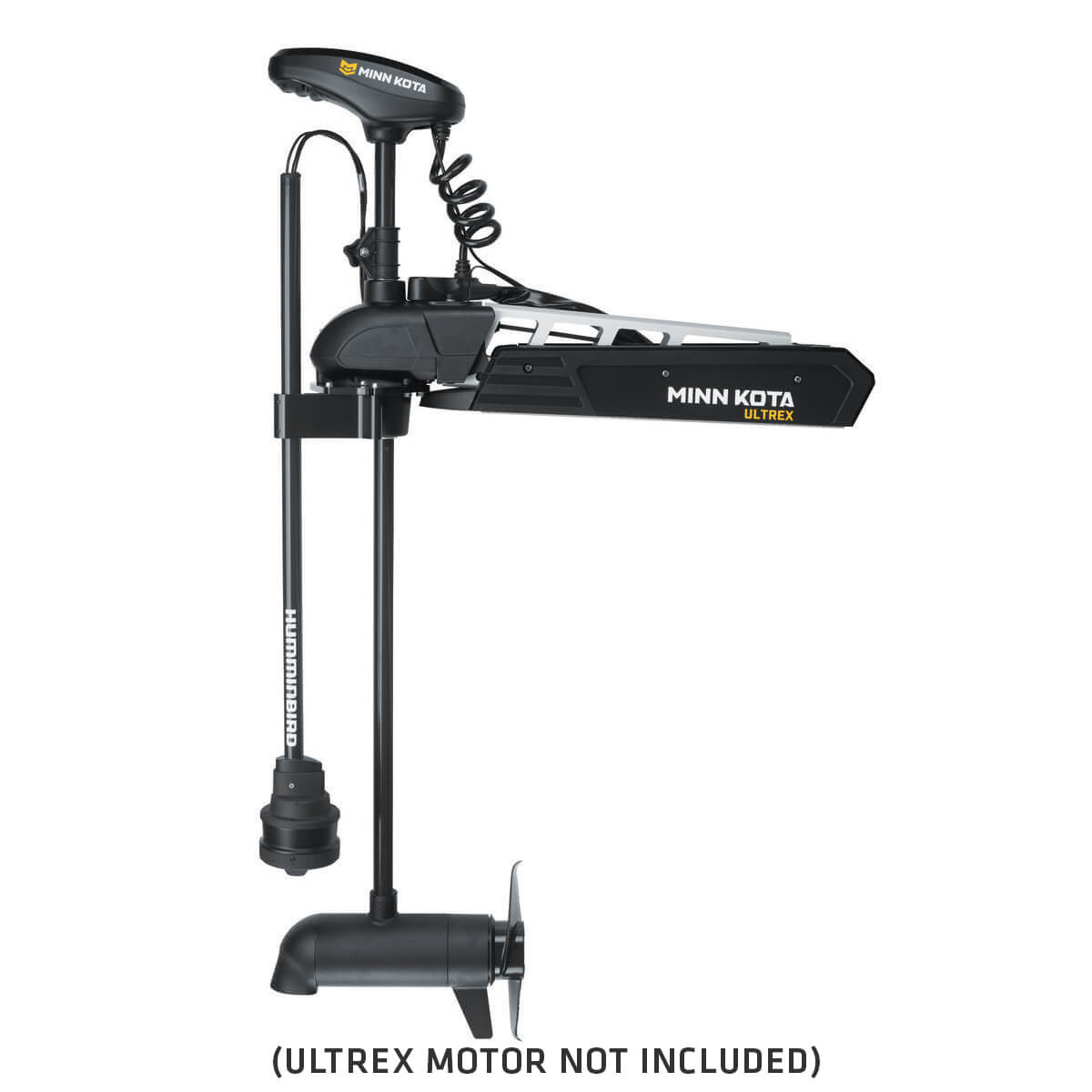

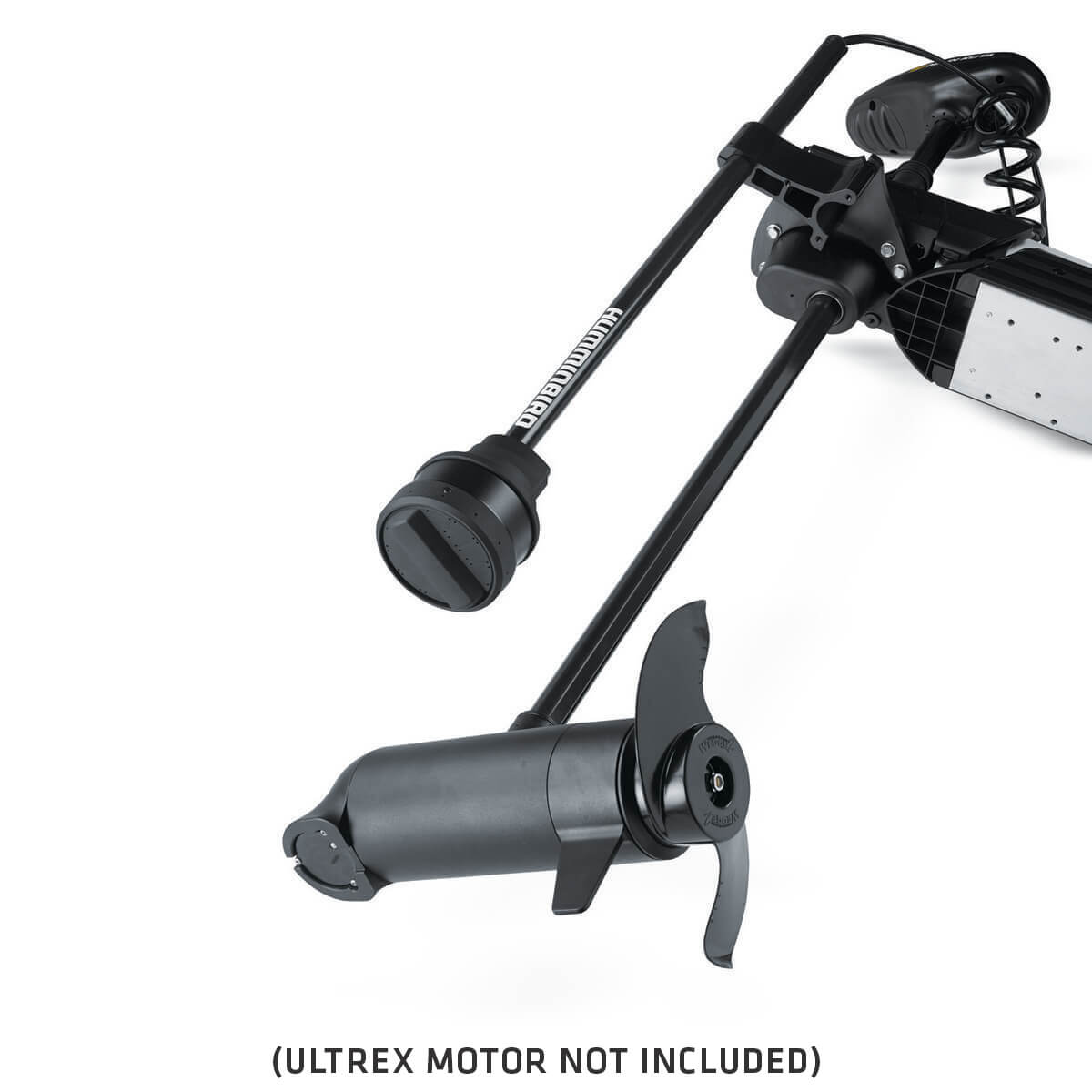

| Feature 4 | Ultrex bow-mount MEGA 360 Imaging transducer with attached power cable and transducer cable, 10' SOLIX transducer cable, 10' HELIX transducer adapter cable, 10' MEGA 360 power cable and an easy to mount MEGA 360 Imaging - Ultrex mounting bracket (Minn Kota Ultrex trolling motor sold separately) |
|---|
| Title 5 | Around Your Boat |
|---|

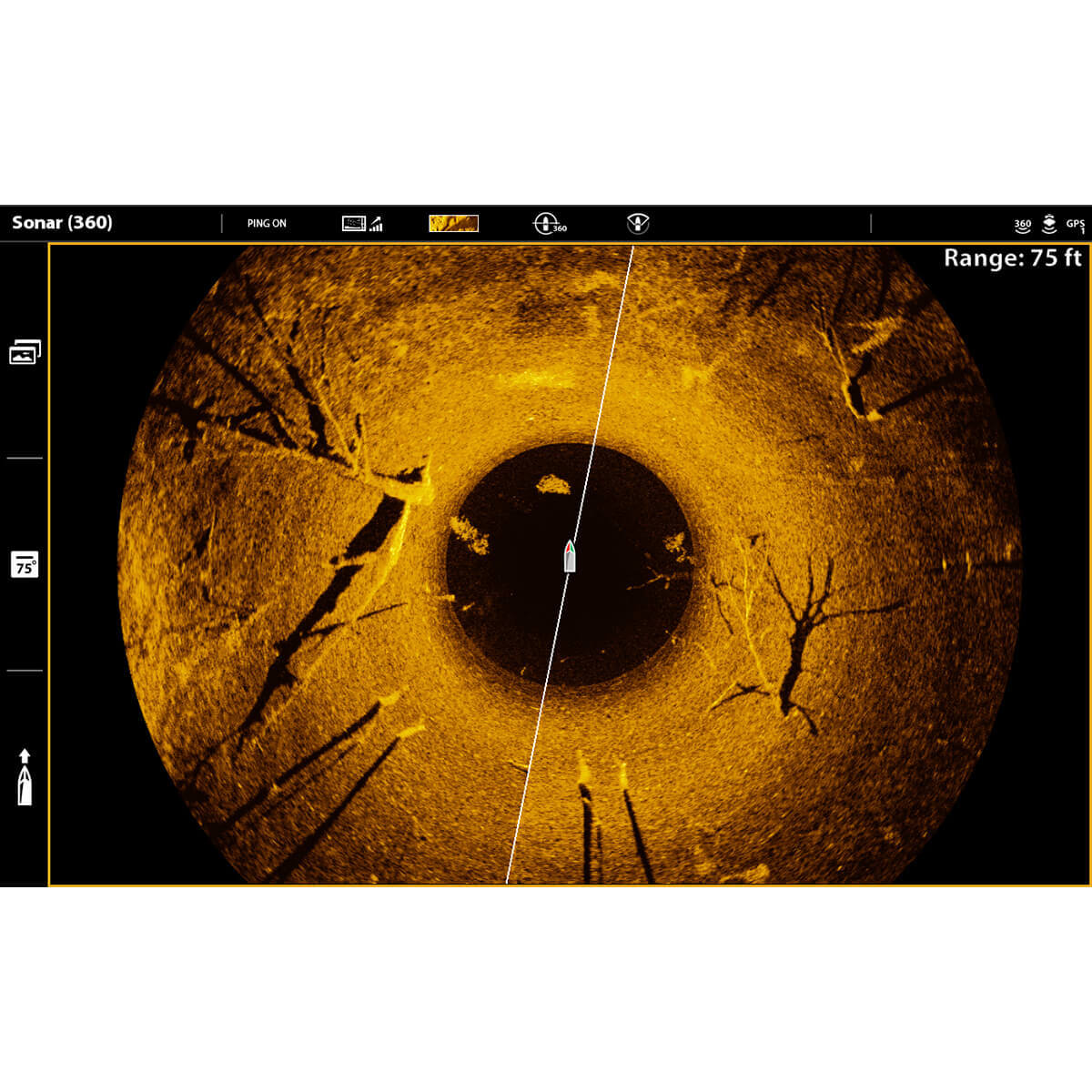

| Feature 5 | The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range to reveal the world below in picture-like detail all the way around your boat. |
|---|
| Title 6 | Independently Mounted |
|---|

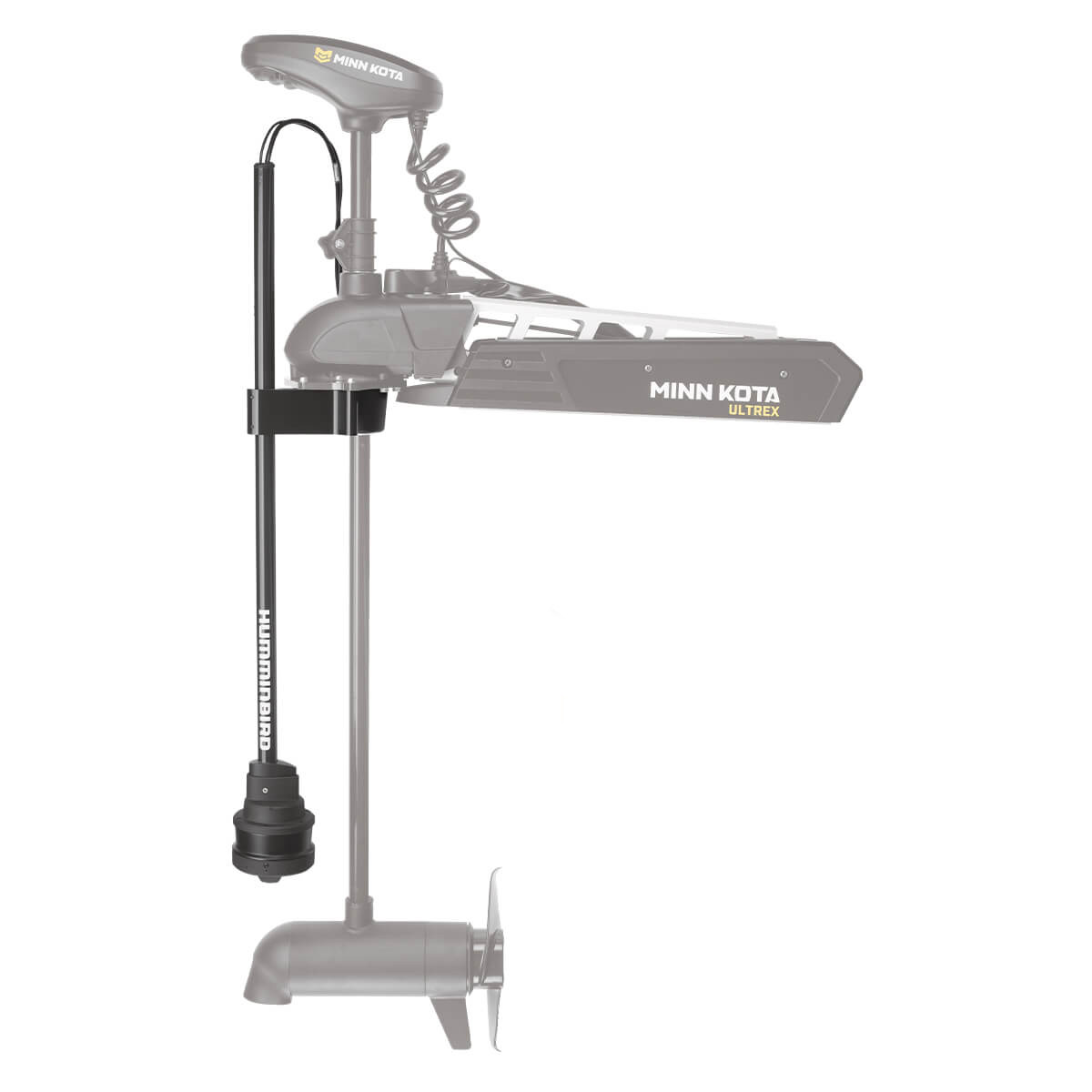

| Feature 6 | Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns. |
|---|
| Title 7 | MEGA 360 or MEGA Side |
|---|
| Feature 7 | Pick from two operation modes for this transducer; MEGA 360 Imaging or Side Imaging. This allows you to view a MEGA 360 Imaging view or use this transducer as a MEGA Side Imaging sonar source by selecting the Side Imaging operation mode. |
|---|
| Title 8 | Waypoint Marking |
|---|
| Feature 8 | Mark waypoints directly on your MEGA 360 Imaging screen and watch them update as your boat position changes, making it easy to find and then cast to fish and structure. |
|---|
| Title 9 | Range Rings |
|---|
| Feature 9 | Utilize optional range rings to show you the distance of targets from your boat, for a better understanding of exactly where the fish are. |
|---|
| Title 10 | Combining Sonar and Maps |
|---|
| Feature 10 | View MEGA 360 Imaging alongside your choice of multiple sonar and map technologies for a complete understanding of your surroundings. |
|---|
| Title 11 | Customizable Preferences |
|---|
| Feature 11 | MEGA 360 Imaging allows you to customize sweep speed, viewing area, display information, sonar zoom and color palette to your specific fishing situation and preferences. |
|---|
| Title 12 | Network Imaging Sharing |
|---|
| Feature 12 | Once connected to a compatible HELIX G3N unit with MEGA Imaging+ or SOLIX G2 unit, MEGA 360 Imaging view can be shared with All SOLIX models, and all HELIX G2N and G3N models when connected via an Ethernet network. |
|---|
| Title 13 | Transducer Shaft Length |
|---|
| Feature 13 | 39 inches |
|---|
| Title 14 | Weight |
|---|
| Feature 14 | 12 lbs |
|---|
| Title 15 | Mounting Bracket Material |
|---|
| Feature 15 | Anodized Aluminum |
|---|
| Title 16 | Warranty |
|---|
| Feature 16 | 2-Year Limited Warranty |
|---|
