Magnum 10
PrimaryProductImageDownload

Magnum 10

  • Brand (JDE)Cannon
    Product NameMagnum 10
    Product Code1902305
    UPC0029402033522
    MSRP $USD699.99
    Amazon ASINB0043GZNIQ
  • OverviewSeriously tough. Seriously powerful. Magnum 10 is the go-to downrigger for serious anglers for exactly these reasons. Its ruggedness and reliability have been proven on the water, year after year. But smart anglers know Magnum 10 has a sophisticated side too.
    Included ComponentsElectric Downrigger; Universal Mounting Base; Low-Profile Swivel Base; Line Terminator; Uni-Line Release; Manual Crank Handle; 250 feet of 150-lb Test Stainless Steel Cable

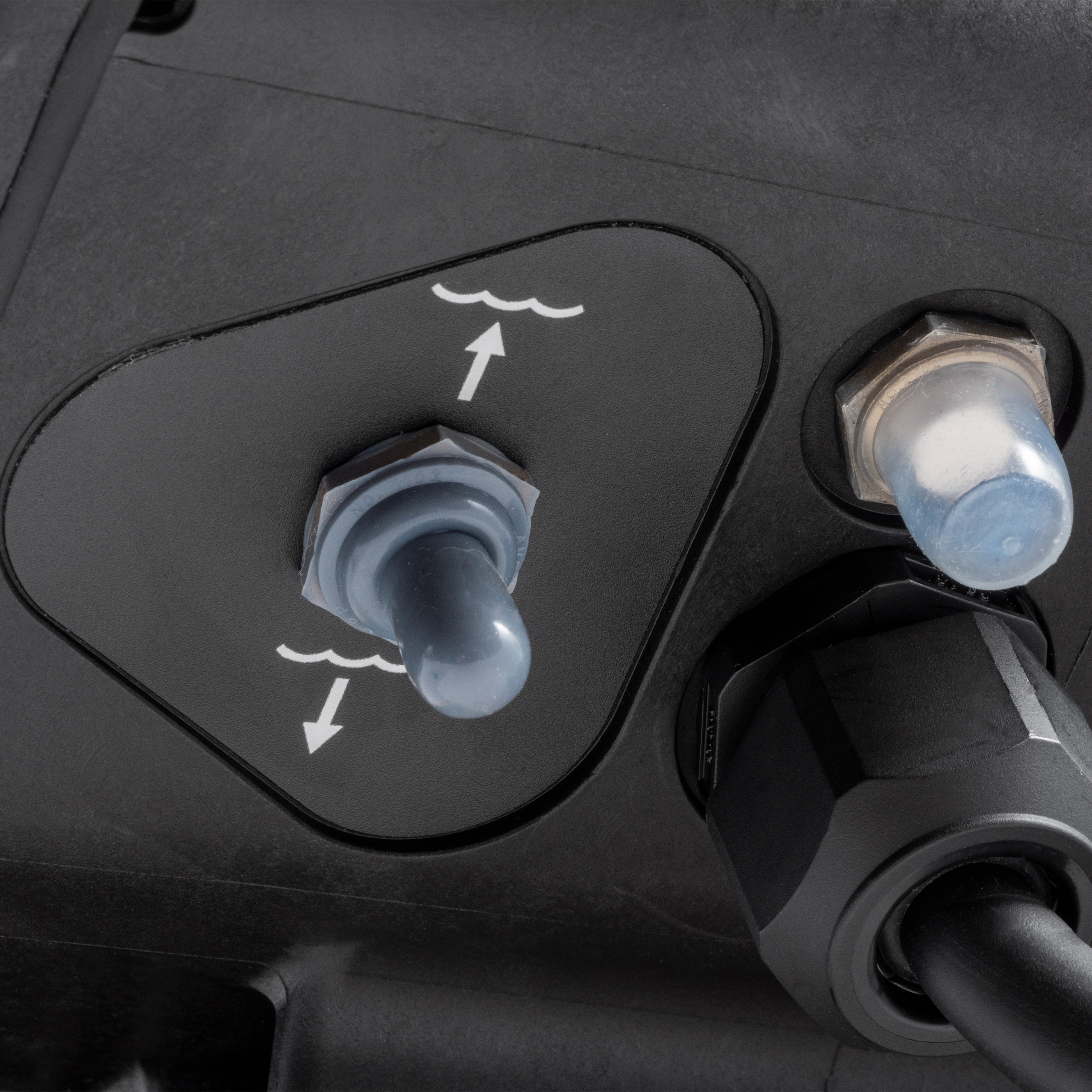

  • Feature 1Flip the up/down switch and your Magnum automatically retrieves your weight, stopping at the water line.
    Feature 2Always know exactly where your weights are with the easy to read three-digit depth counter.
    Feature 3When retrieving a weight, your downrigger will automatically stop it at the waterline. This eliminates cable strain caused by bouncing, stops the weight from hitting the boom end, and prevents weights from hitting the hull.
    Feature 4Your boat’s electronics create a fish-repelling negative energy field in the water. Positive Ion Control neutralizes the negative energy field so fish will stick closer to your line.
    Feature 5250 feet-per-minute weight retrieval rate
    Feature 6Extends from 24" to 53"
    Feature 7Comes pre-spooled with 250' of 150 lb of stainless steel cable
    Feature 8Easily access the spool to switch lines, fix snags and make adjustments.
    Feature 9Magnum 10 downrigger, Universal Mounting Base, Low-Profile Swivel Base, Dual Axis Rod Holder, Line terminator, Uni-line release, and Manual crank handle
  • Operation (Type)Electric
    Boom Length24 in - 53 in Telescopic
    Line On Spool250 ft / 150 lb Stainless Steel Cable
    Retrieval Speed250' Per Minute
    Mounting BaseLow-Profile Swivel Base
    Rod Holders1 - Dual Axis Adjustable
    Depth CounterAnalog
    Control MethodSwitch
    Positive Ion ControlYes
    One-Boat Network ReadyNo
    Wireless ConnectivityNo
    Mobile AppNo
    Full-Color LCD ScreenNo
    Short StopYes
    Soft StopNo
    Depth CyclingNo
    Preset Depth StorageNo
    Bottom Tracking CompatibleNo
    Adjustable SpeedsNo
    Waterline ZeroNo
    Auto UpYes
    Removable Side PlateYes
    Enclosed Boom EndYes
    Trolling WeightYes
    Weight Capacity20 lb
    WarrantyLimited Lifetime
    Country of OriginUNITED STATES
    Prop 65 TextThis product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  • Spool MaterialComposite
    Boom MaterialStainless Steel
  • Carton Length10.5
    Carton Width15.5
    Carton Height24
    Shipping Weight (lbs)27.72
    Units Per Container (Case Pack)1
