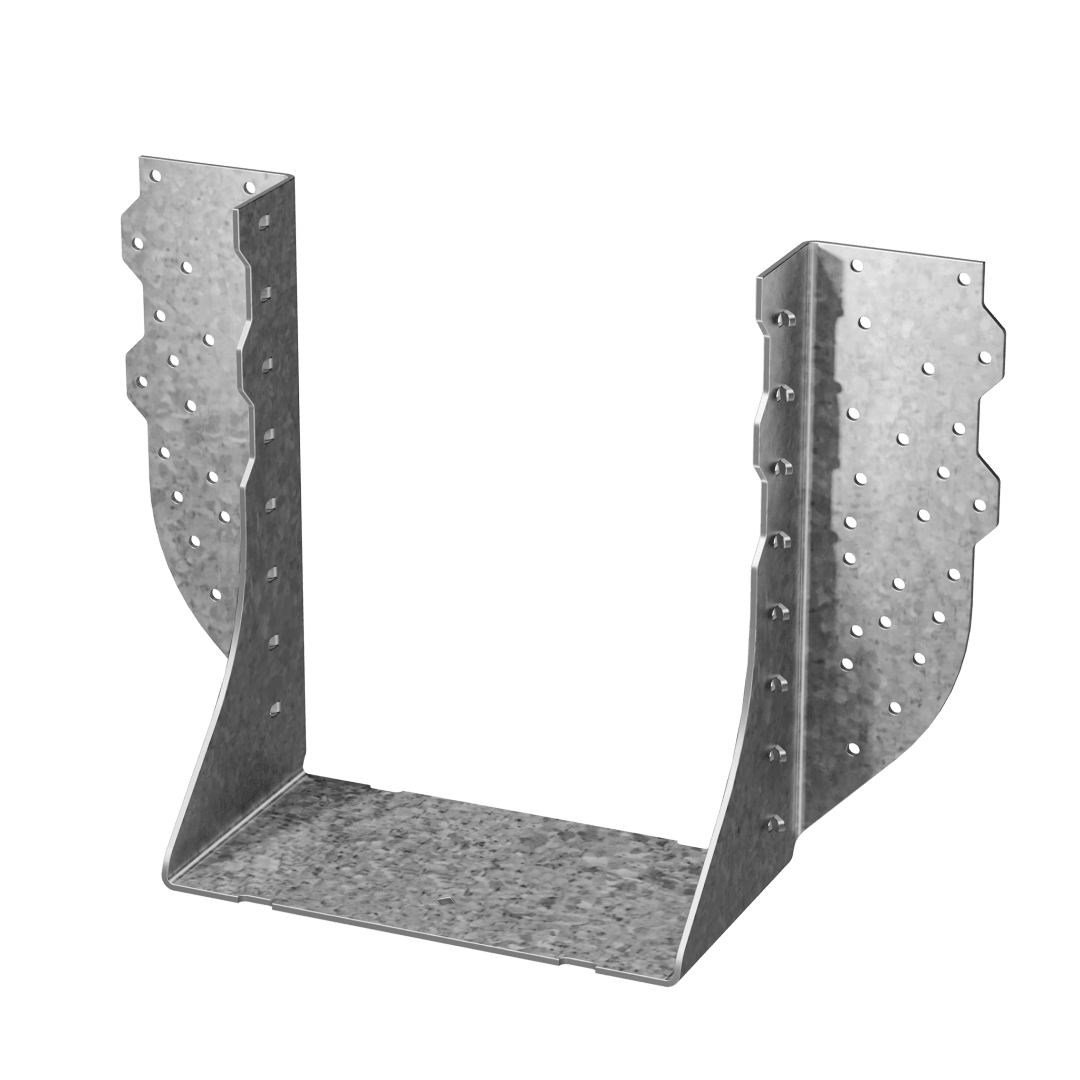

Simpson Strong-Tie HGUS7.25/10 HGUS® Galvanized Face-Mount Joist Hanger for 7 in. x 9-1/2 in. Engineered Wood

HGUS7.25/10

• Features

  • Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
  • Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
  • Do not bend or remove tabs
  • Joist size: 7 in. x 9-1/4 in. to 9-1/2 in.
  • Seat width: 7-1/4 in.
  • Hanger height: 8-5/8 in.
  • Made from 12-gauge steel
  • Galvanized (G90) for extra corrosion resistance
