Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger

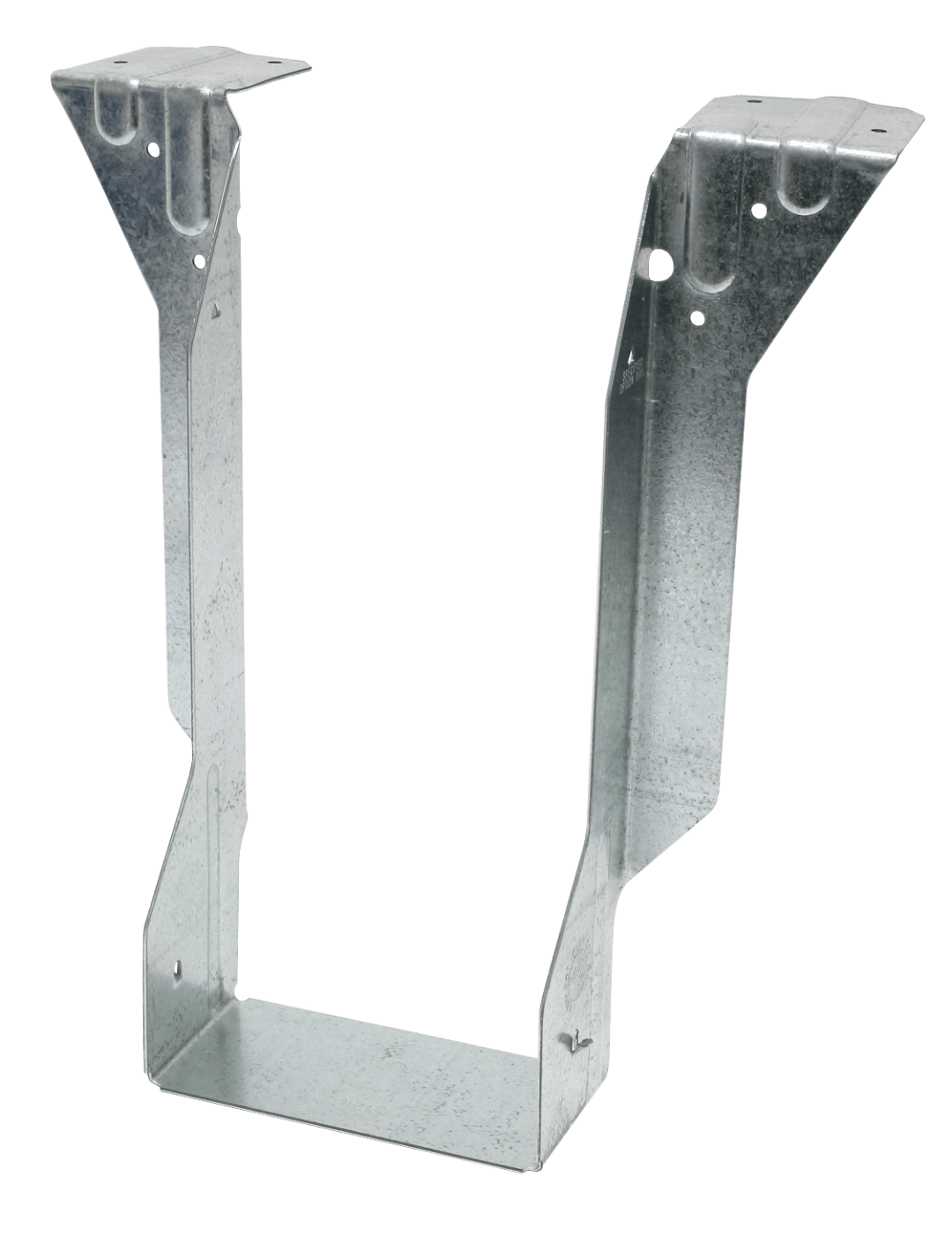

Simpson Strong-Tie MIT311.88-2 MIT Galvanized Top-Flange Joist Hanger for Double 2-1/2 in. x 11-7/8 in. Engineered Wood

MIT311.88-2

• Features

  • Positive-angle nailing (PAN) minimizes splitting of the flanges while permitting time-saving nailing from a better angle
  • With positive-angle nailing, the nail hole material is not removed
  • Optional triangle nail holes may be used for increased uplift capacity; optional uplift nailing requires the addition of properly-secured web stiffeners
  • Cost-effective solution for standard 90° connections in comparison to welded hangers
  • Features optional fastening with PAT for steel applications/header
  • Actual joist size: Double 2-1/2 in. to 2-9/16 in. x 11-7/8 in.
  • Made from 16-gauge steel
  • Galvanized (G90) for extra corrosion resistance
