Concrete Connectors and Anchors > Adhesive Anchoring Accessories > Screen Tube

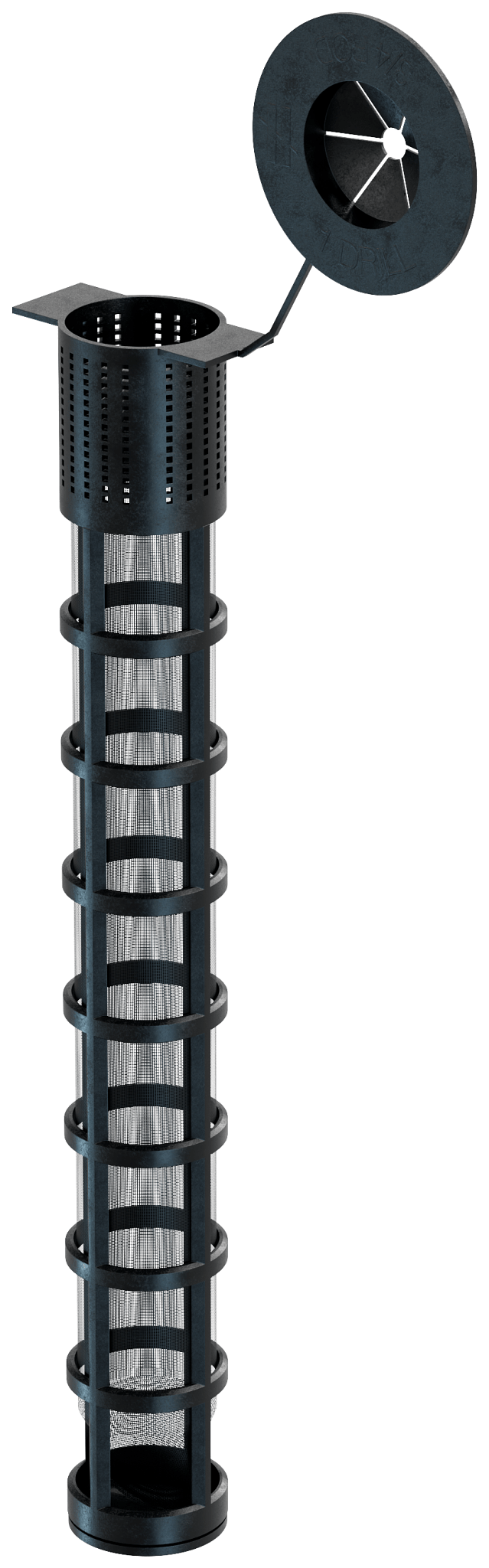

Simpson Strong-Tie EWS758P Opti-Mesh 8 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for ET-3G™

EWS758P

• Features

  • Integral cap centers the rod and displays drill bit and rod diameter
  • Flanges prevent the screen tube from slipping into over-drilled holes
  • Formula-specific woven mesh design controls flow of adhesive out of the screen
  • Uniform coverage of adhesive on the rod results in higher loads than for rods installed with standard screen
  • Open-mesh collar allows extra adhesive flow in hollow block applications
  • Caution: Screen tubes are designed for a specific adhesive type; epoxy screen tubes must be used with ET-3G™ formulation
  • For rod diameter: 3/4 in.
  • Hole size: 1 in.
  • Length: 8 in.
