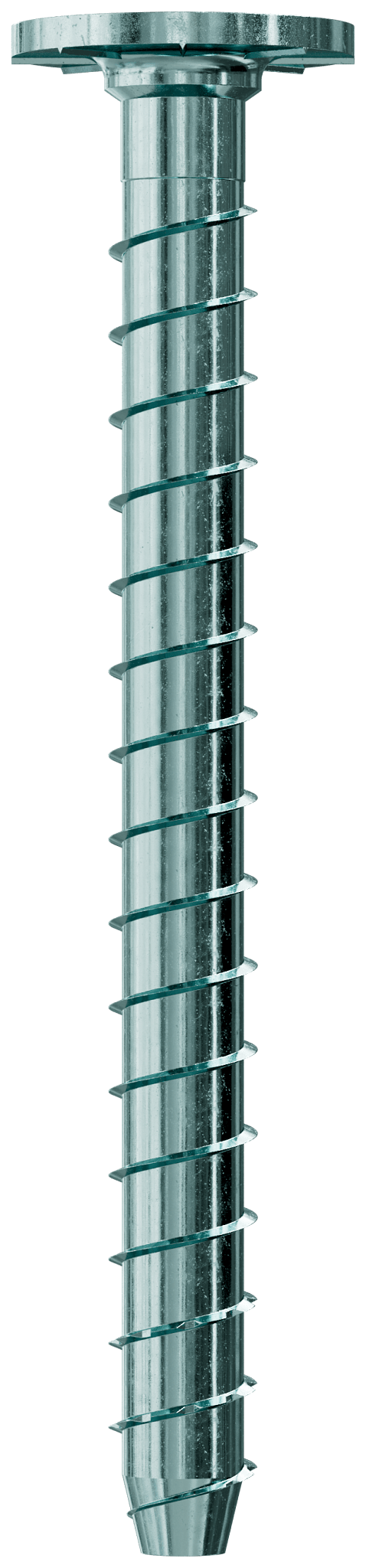

Simpson Strong-Tie THD50600WH Titen HD® 1/2 in. x 6 in. Washer-Head Heavy-Duty Screw Anchor (15-Qty)

THD50600WH

• Features

  • Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
  • Standard fractional sizes — the hole size matches the anchor size
  • No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
  • Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
  • Washer head allows screw anchor applications incompatible with a hex head
  • For added convenience, a 1/2-in. socket adapter and (2) T-drive bits are included in each box
  • Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque
  • Zinc plated; not recommended for permanent exterior use or highly corrosive environments
  • Anchor size: 1/2 in. x 6 in.
  • Quantity: 15 per package
