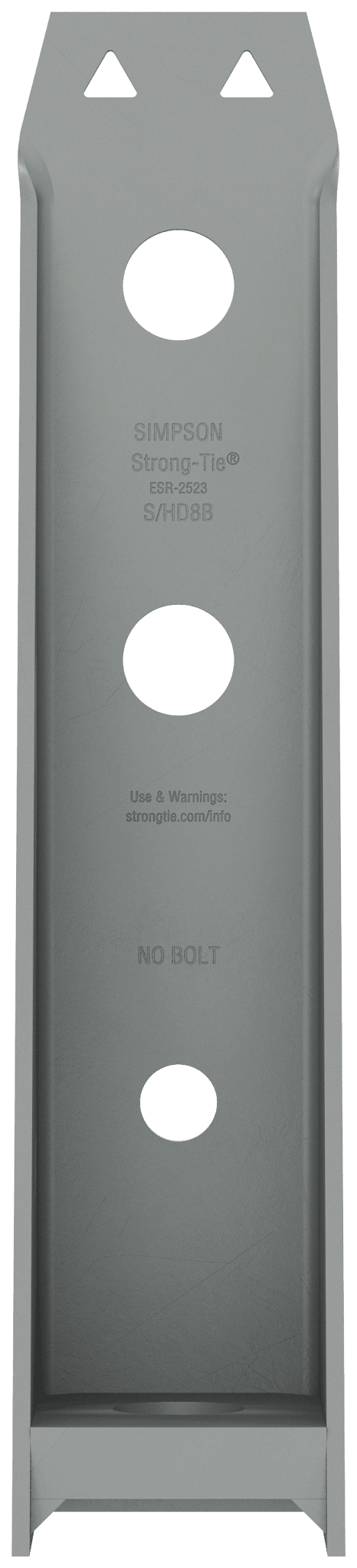

Simpson Strong-Tie S/HD8B S/HDB 11 in. Light Steel Bolted Holdown

S/HD8B

• Features

  • Can be installed directly on the bottom track or raised above it and is suitable for back-to-back applications where eccentricity is a concern
  • Features a unique seat design that greatly minimizes deflection under load
  • The S/HDB series is designed for installation with bolts; refer to the S/HDS series for attachment to post/column with screws
  • Holdown dimensions: 11 in. high x 2-5/16 in. wide
  • Made from 118 mil (10 ga.) steel
  • Simpson Strong‑Tie gray paint finish
