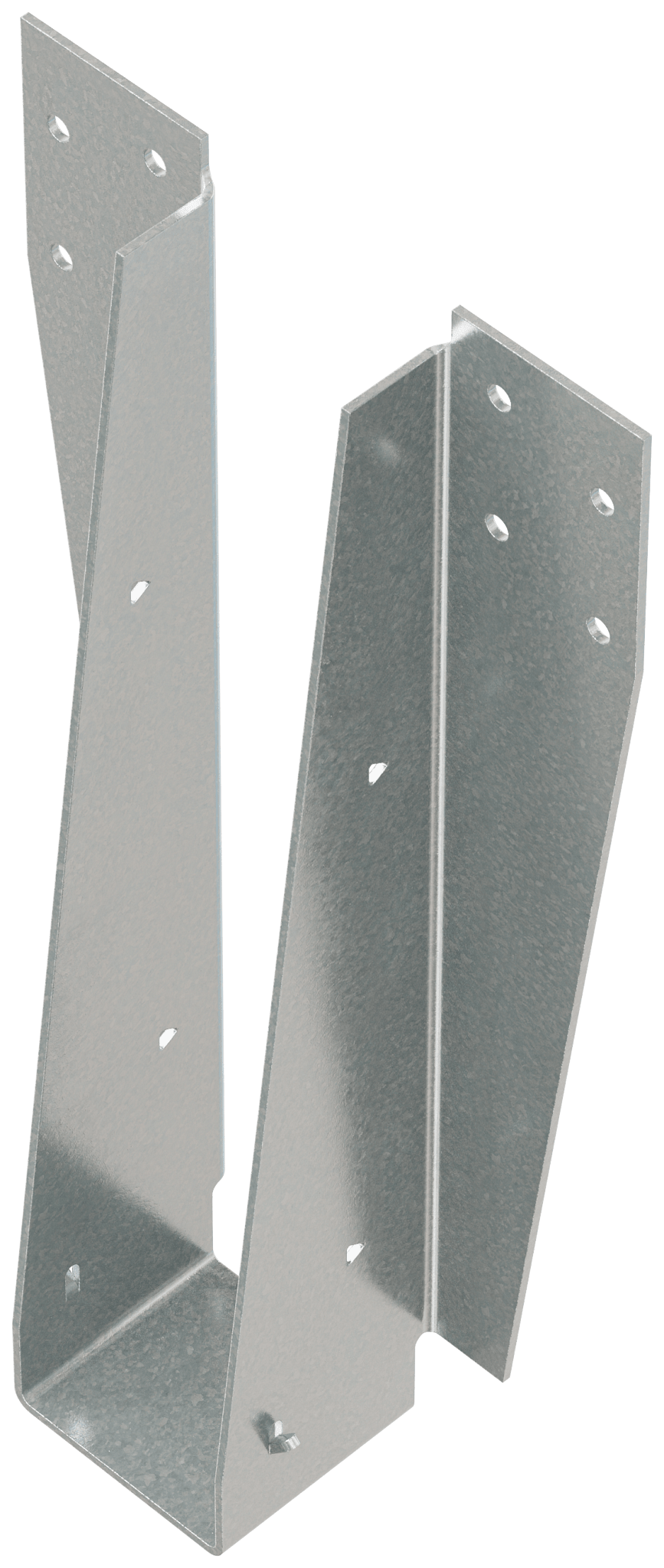

Simpson Strong-Tie DHU2.56/14TF DHUTF Top-Flange Drywall Hanger for 2-1/2 in. x 14 in. Engineered Wood with SDS Screws

DHU2.56/14TF

• Features

  • Available to order skewed up to 45°
  • Testing verifies that the DHUTF hangers do not reduce the two-hour fire wall assembly rating in either 2x4 or 2x6 walls
  • DHUTF fire wall hangers are code listed for structural use under ICC-ES ESR-2552
  • Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
  • If hangers are installed on both sides of the wall, then it must be a 2x6 wall
  • Seat width: 2-9/16 in.
  • Height: 13-15/16 in.
  • Made from 12-gauge steel
  • Galvanized (G90) for extra corrosion resistance
