Wood Construction Connectors > Holdowns and Tension Ties > Holdown

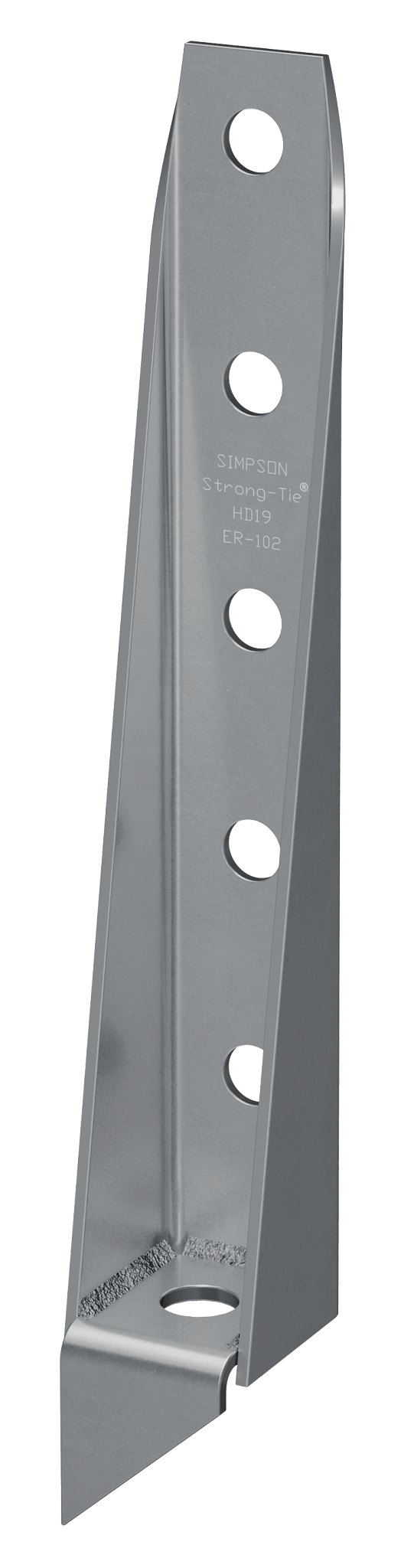

Simpson Strong-Tie HD19 HD 24-1/2 in. Bolted Holdown

HD19

• Features

  • High-capacity low-deflection holdown
  • Self-jigging, ensuring the code-required minimum of seven bolt diameters from the end of the post when installed flush with the sill plate
  • May be raised and installed off the sill plate
  • Width: 3-1/2 in.
  • Height: 24-1/2 in.
  • Base: 3/8 in. steel
  • Body: 3-gauge steel
  • Simpson Strong-Tie gray paint finish
