Cold-Formed Steel Connectors > Rigid Connectors > Clip

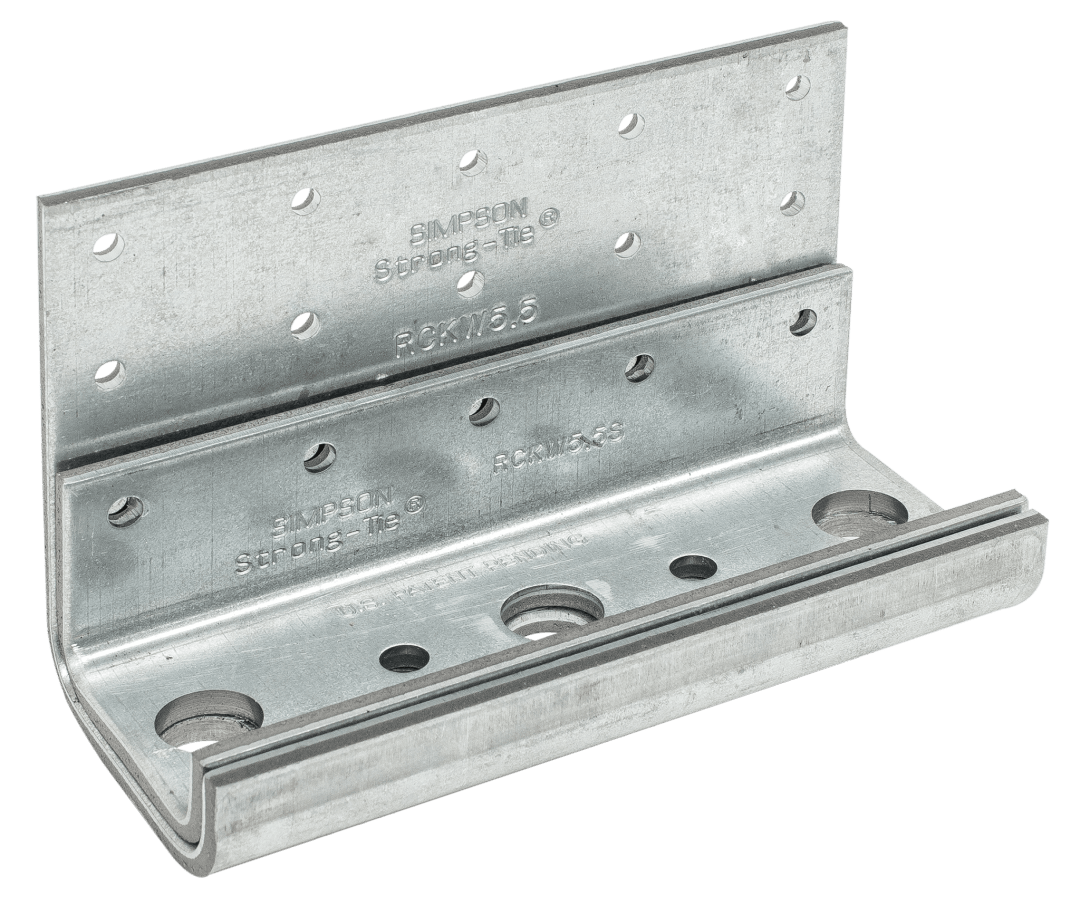

Simpson Strong-Tie RCKW5.5-R10 RCKW™ 5.5-in. Kneewall Connector Clip (Qty-10)

RCKW5.5-R10

• Features

  • RCKW5.5 has three large holes for added versatility — the center hole is for a one-anchor solution at the edge or center of slab; the outer holes are for a two-anchor solution that requires higher capacities at the center of slab
  • Anchorage legs incorporate stiffened flanges, improving overturning moment resistance
  • Large-diameter anchor holes accommodate 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD® heavy-duty screw anchor and the Strong-Bolt® 2 wedge anchor
  • Additional smaller-diameter anchor holes enable attachment to structural steel through use of #12 self-drilling screws
  • Attachment to CMU can be achieved with Titen HD or Titen Turbo™ concrete and masonry screw
  • Width: 5 1/2 in.
  • Made from 171 mil (7 ga.) steel
  • Galvanized (G90) for corrosion resistance
  • Quantity: 10
