Cold-Formed Steel Connectors > Deflection Connectors > Clip

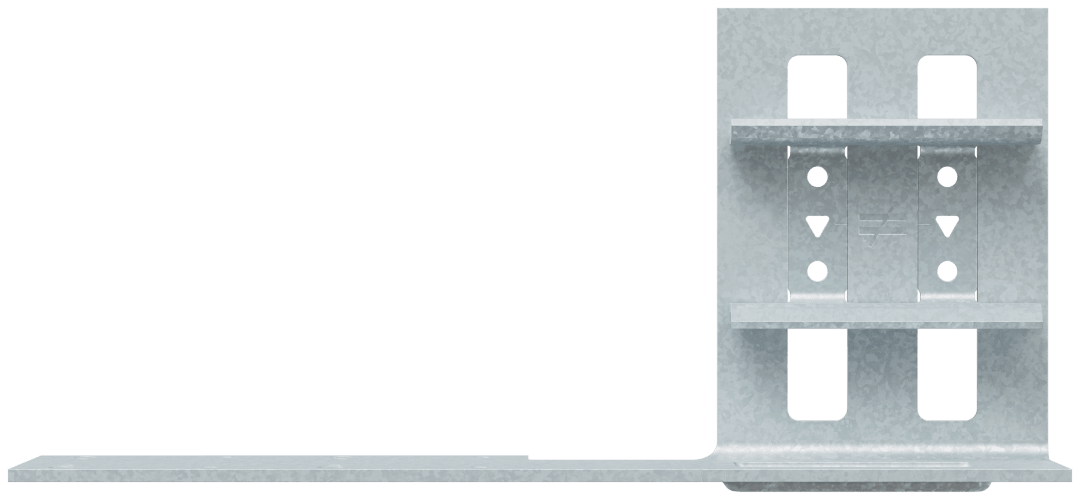

Simpson Strong-Tie SCHA10.75L-KT15 SCHA 10-3/4 in. Slide-Clip Connector for Horizontal Anchorage, Left-Facing (Qty-15)

SCHA10.75L-KT15

• Features

  • SCHA left-facing clip; for right-facing clip, see model SCHA10.75-KT15
  • Provides a full 1 in. of both upward and downward movement
  • Either face of anchorage leg can be used against the support
  • Accommodates standoff distances up to 4-3/4 in.
  • Can be used with 3-5/8 in., 4 in., 6 in. and 8 in. studs
  • Prepunched anchor holes accommodate 1/4 in. diameter Titen HD® or other 1/4 in. diameter concrete screw anchors, and 0.157 in. diameter powder-actuated fasteners such as the Simpson Strong-Tie® PDPAT-62KP
  • Prepunched anchor holes also eliminate the need for predrilling and help ensure accurate anchor placement
  • SCHA made from 118 mil (10 ga.) steel (33 ksi); SCVS made from 97 mil (12 ga.) steel (33 ksi)
  • Quantity: 15 connectors and sliders per package
