Wood Construction Connectors > Joist Hangers > Hanger

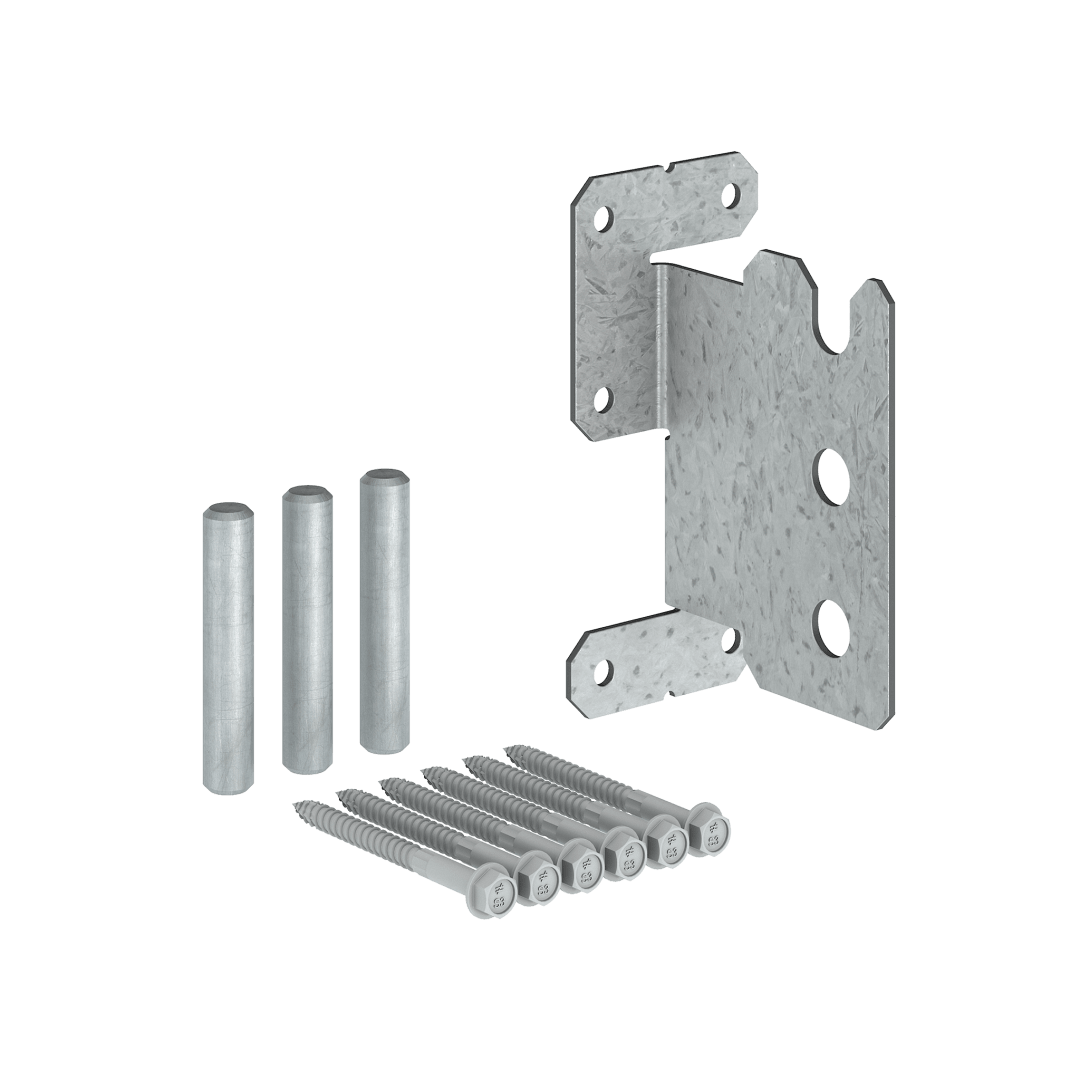

Simpson Strong-Tie CJT3ZS CJTZ® 12-Gauge ZMAX® Galvanized Concealed Joist Tie with (3) Short Pins

CJT3ZS

• Features

  • Center dowel in beam
  • Dowels aligned across the grain may cause splitting if the wood shrinks excessively
  • Install only in glulam, composite lumber (PSL, LSL and LVL) or well dried lumber
  • Short dowel (1/2 in. x 2-3/4 in.) for use with 3-1/8 in. glulam beam, 4x sawn lumber or 3-1/2 in.-wide PSL
  • Made from 12-gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
