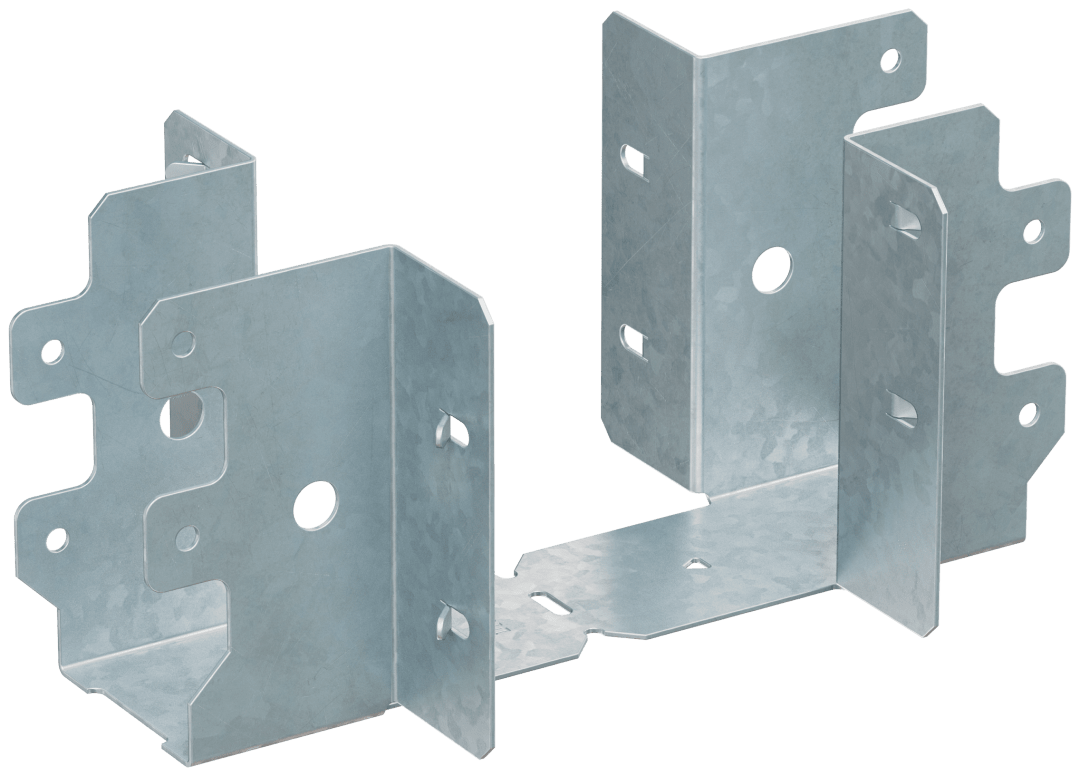

Simpson Strong-Tie PFUDS24 PFUD™ 20-Gauge Post-Frame Under-Saddle Hanger for 2x4 Joist and 2-Ply Truss (Pack of 25)

PFUDS24

• Features

  • Reduces connector layout labor costs by half, as each unit supports two joists versus separate face-mounted hangers
  • Load-rated for joist tension forces; ideal for ceiling panels acting as diaphragms or bottom chord truss bracing
  • Easily halved along under-saddle perforations for one-sided use, eliminating the need for additional face-mounted hangers
  • Offers greater reliability and load capacity than toe-nailed ceiling joists
  • Compatible with both nails and screws for load-rated performance
  • Fully tested and code listed to ensure strength, durability and peace of mind for specifiers and builders
  • Nominal joist size: 2x4
  • Fits 2-ply trusses
  • Made from 20-gauge steel
  • Galvanized (G90) for corrosion resistance
