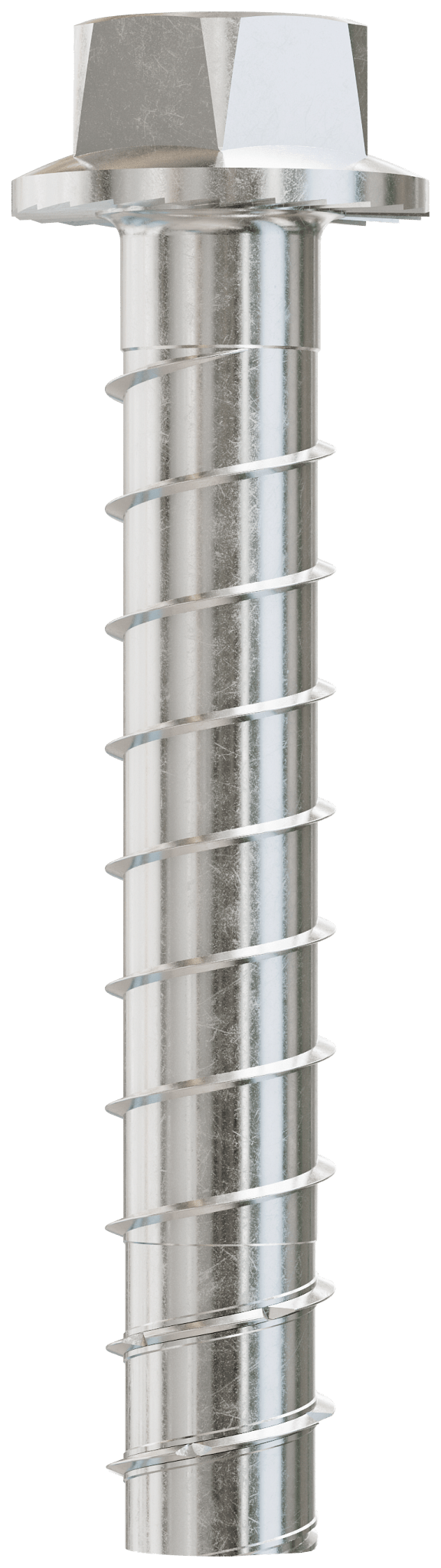

Simpson Strong-Tie THD75500H6SS Titen HD® 3/4 in. x 5 in. Type 316 Stainless Steel Heavy-Duty Screw Anchor (5-Qty) (Pack of 4)

THD75500H6SS

• Features

  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
  • Hex-washer head requires no separate washer and provides a clean installed appearance
  • The THDSS has an innovative carbon-steel thread that effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
  • Size: 3/4 in. x 5 in.
  • Made from Type 316 stainless steel for superior corrosion resistance
  • Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
  • Quantity: 5
