Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger

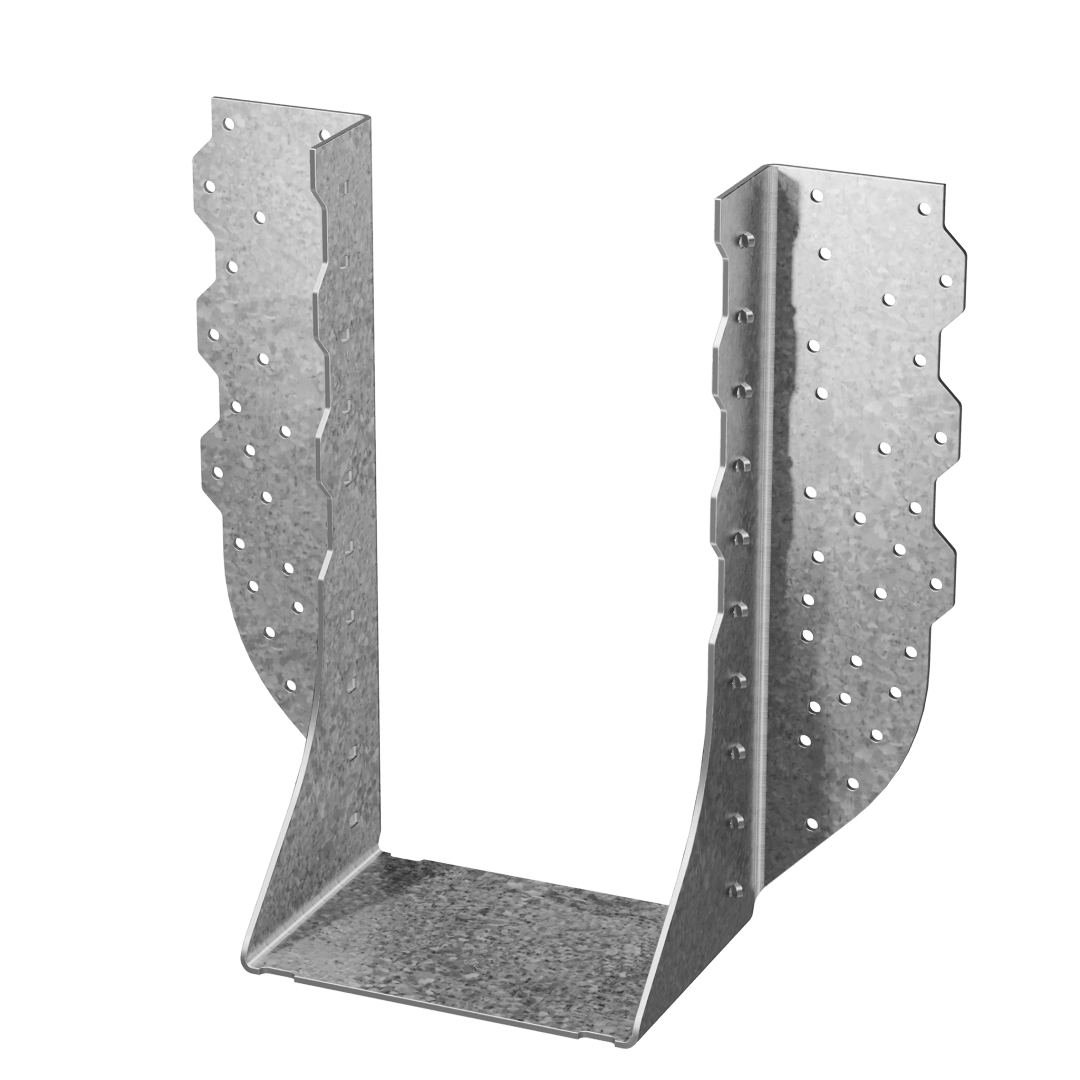

Simpson Strong-Tie HGUS5.50/12 HGUS® Galvanized Face-Mount Joist Hanger for 5-1/4 in. x 11-7/8 in. Engineered Wood (Pack of 216)

HGUS5.50/12

• Features

  • Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
  • Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
  • Do not bend or remove tabs
  • Joist size: nominal 6x10 , 5-1/4 in. SCL, 5-1/2 in. glulam
  • Seat width: 5-1/2 in.
  • Height: 10-1/2 in.
  • Made from 12-gauge steel
  • Galvanized (G90) for extra corrosion resistance
