Cold-Formed Steel Connectors > Rigid Connectors > Clip

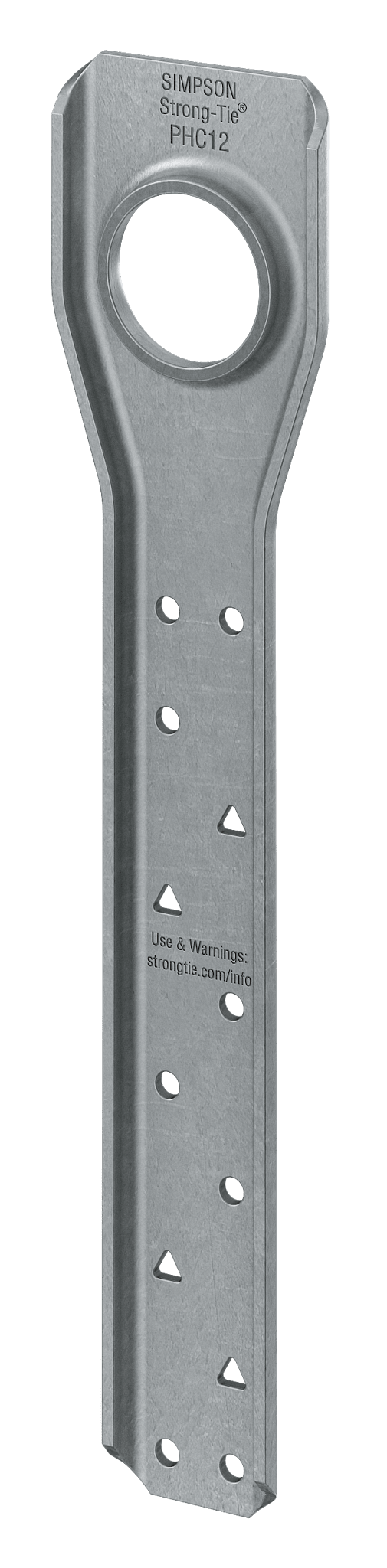

Simpson Strong-Tie PHC12 PHC™ 10-3/8 in. 12-Gauge Panel Hoist Clip (50-Qty) (Pack of 60)

PHC12

• Features

  • Small profile to allow for easy installation through the top track
  • Greater top track strength with reduced opening size required for hoist clip to fit through top track
  • Rolled stiffener for increased strength across the entire length of clip
  • Rolled hoist-edge-hole for increased strength and smooth mounting edge
  • Screw pattern options allow for varying load needs; fill round holes for minimum loads, or fill round holes and triangular holes for maximum loads
  • Chamfered top corners and minimized distance of material above hoist hole allow for the lifting device to slide freely without getting stuck
  • Assembly tested for tension and panel pick up at different angles for attachment to stud web
  • Optional panel hoist clip cover (PHC-C) available to cover track hole and create a tight connector fit for the concrete pour when embedding the installed hoist in concrete or other hole cover needs
  • Made from 12-ga. steel, galvanized (G90) for extra corrosion resistance
  • Quantity: 50
