Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger

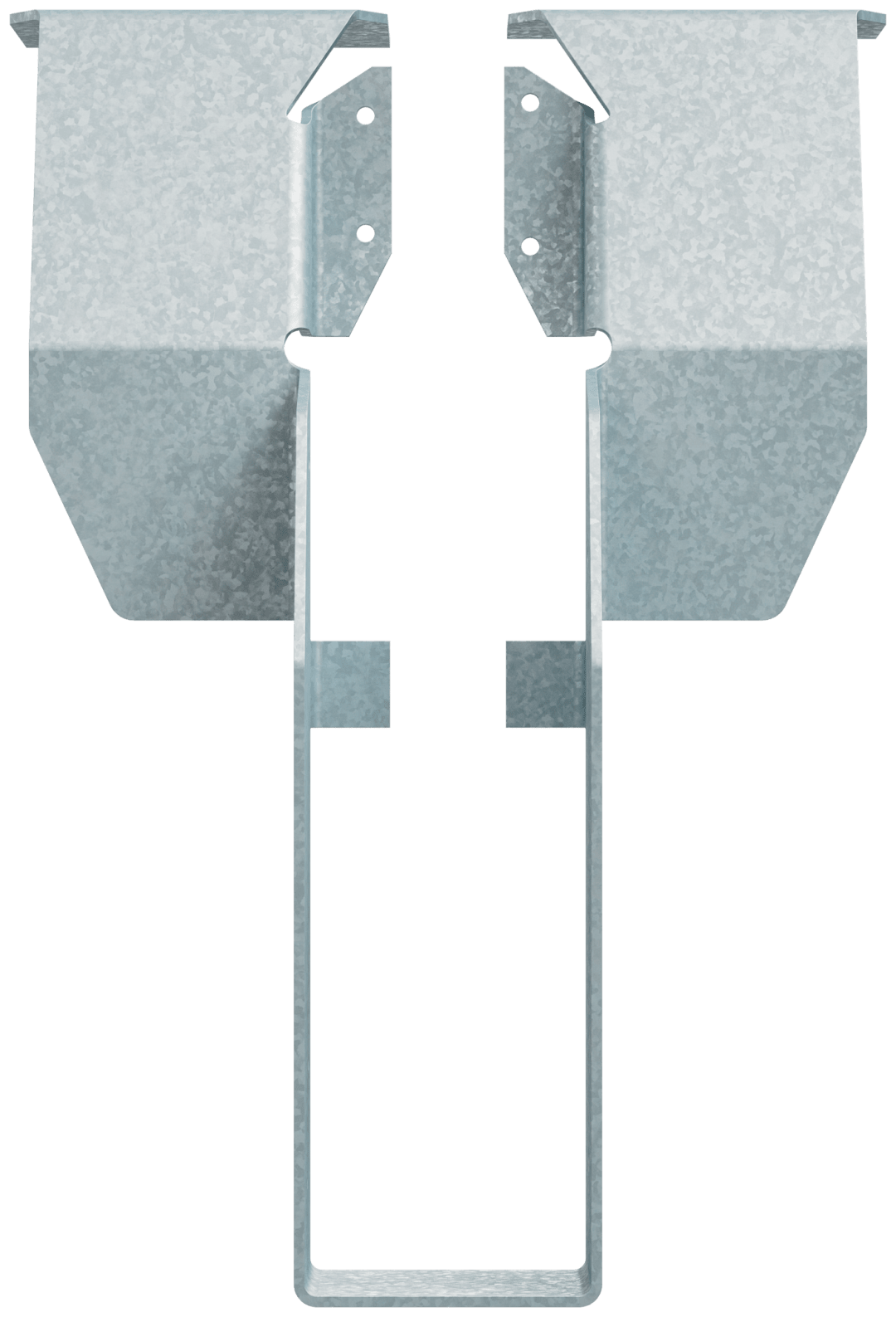

Simpson Strong-Tie DGT2.56/11.88 DGT™ Top-Flange Fire Wall Hanger for 2-1/2 in. x 11-7/8 in. Engineered Wood (Pack of 192)

DGT2.56/11.88

• Features

  • Loads tested and code listed for 1-1/2 in. and 2 -1/2 in. power-driven or hand-installed nails
  • Two-hour fire rating applies to 2x4 or thicker walls
  • Innovative top-flange design for back-to-back installation on 2x6 (min.) walls
  • Space for two layers of 5/8-in. drywall after framing
  • Two-hour Fire-Resistant rating Intertek Design No. SST/WPCF 120-01
  • Joist size: 2-1/2 in. x 11-7/8 in.
  • Seat width: 2-9/16 in.
  • Made from 12-gauge steel
  • Galvanized (G90) for corrosion resistance
