Cold-Formed Steel Connectors > Rigid Connectors > Clip

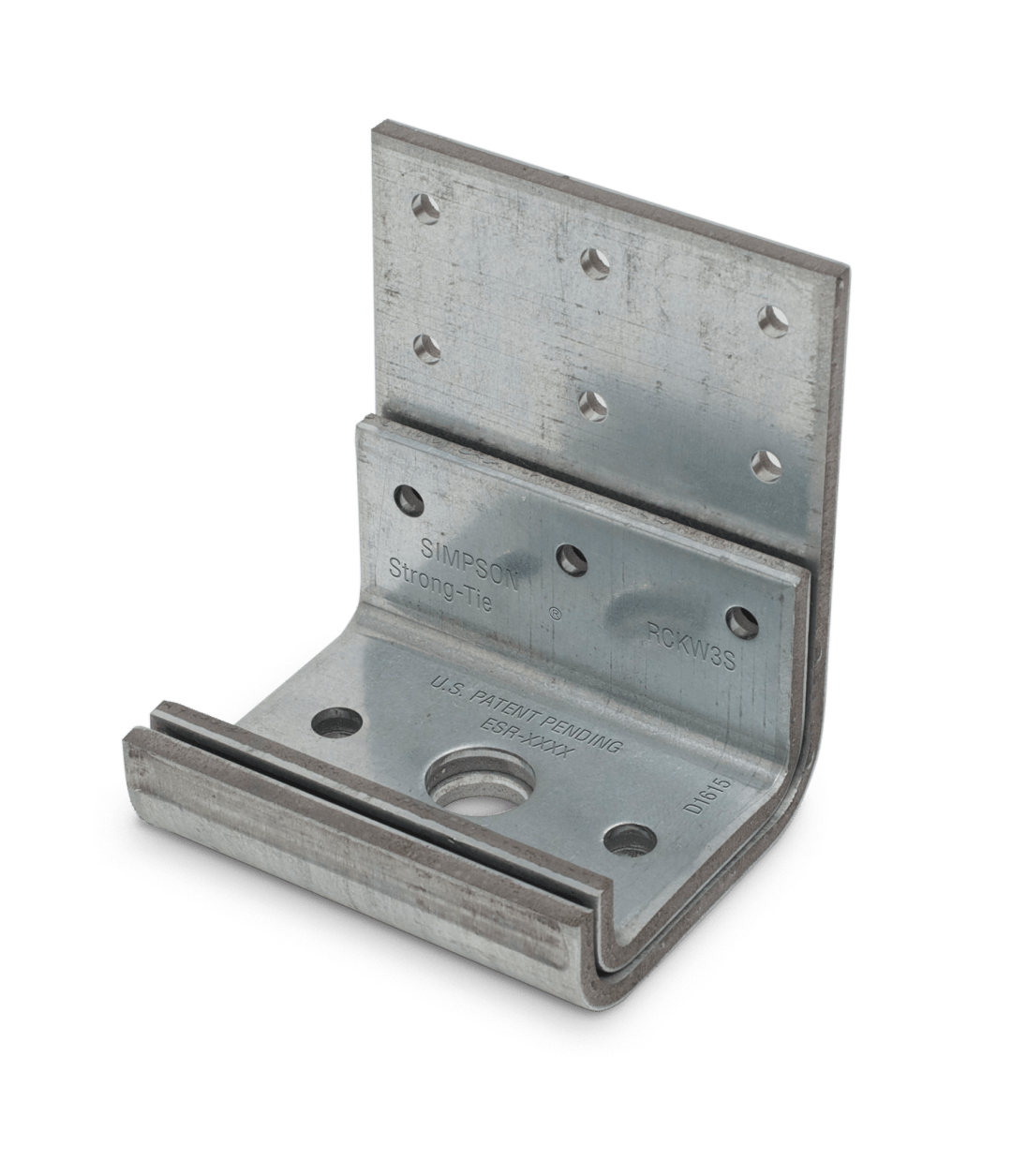

Simpson Strong-Tie RCKW3-R10 RCKW™ 3-in. Kneewall Connector Clip (Qty-10) (Pack of 120)

RCKW3-R10

• Features

  • RCKW3 has a large single bolt hole in the center for 3-5/8 in. framing
  • Anchorage legs incorporate stiffened flanges, improving overturning moment resistance
  • Large-diameter anchor hole accommodates 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD® heavy-duty screw anchor and the Strong-Bolt® 2 wedge anchor
  • Additional smaller-diameter anchor holes enable attachment to structural steel through use of #12 self-drilling screws
  • Attachment to CMU can be achieved with Titen HD or Titen Turbo™ concrete and masonry screw
  • Width: 3 in.
  • Made from 171 mil (7 ga.) steel
  • Galvanized (G90) for corrosion resistance
  • Quantity: 10
