Cold-Formed Steel Connectors > Rigid Connectors > Clip

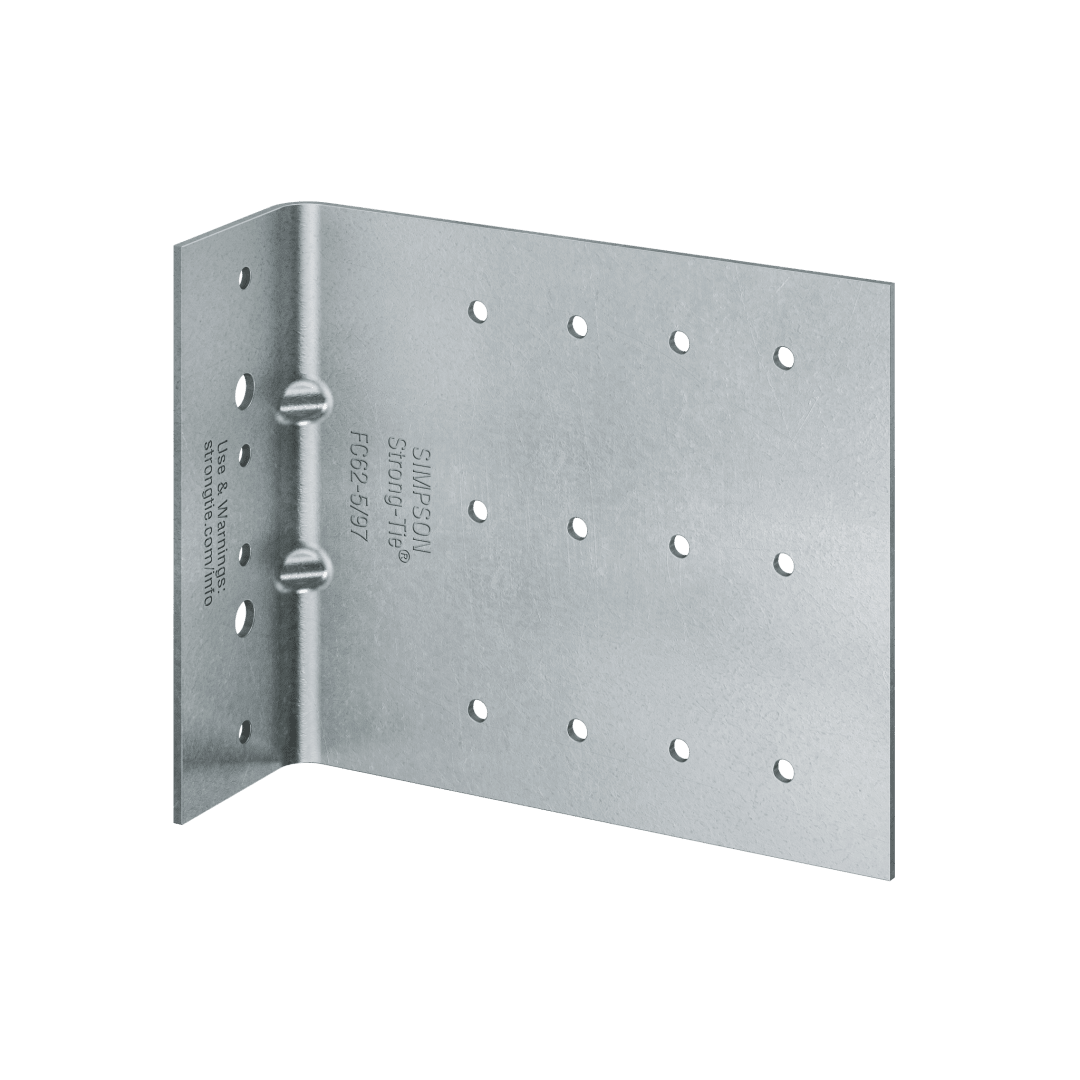

Simpson Strong-Tie FC62-5/97-R25 FC 2 in. x 6 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)

FC62-5/97-R25

• Features

  • Intended to be used with 6-in. studs
  • The maximum standoff distance is 1-1/2 in. for 6-in. studs
  • Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip
  • Prepunched large-diameter anchor holes accommodate 1/4-in. diameter concrete screws like the Simpson Strong-Tie Titen HD® screw anchor
  • Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157-in. diameter Simpson Strong-Tie PDPAT or #12 self-drilling Simpson Strong-Tie Strong-Drive® XL Large-Head Metal screw
  • Made from 12-gauge (97-mil) steel
  • Galvanized (G90) for extra corrosion resistance
  • Length: 6 in.
  • Quantity: 25
